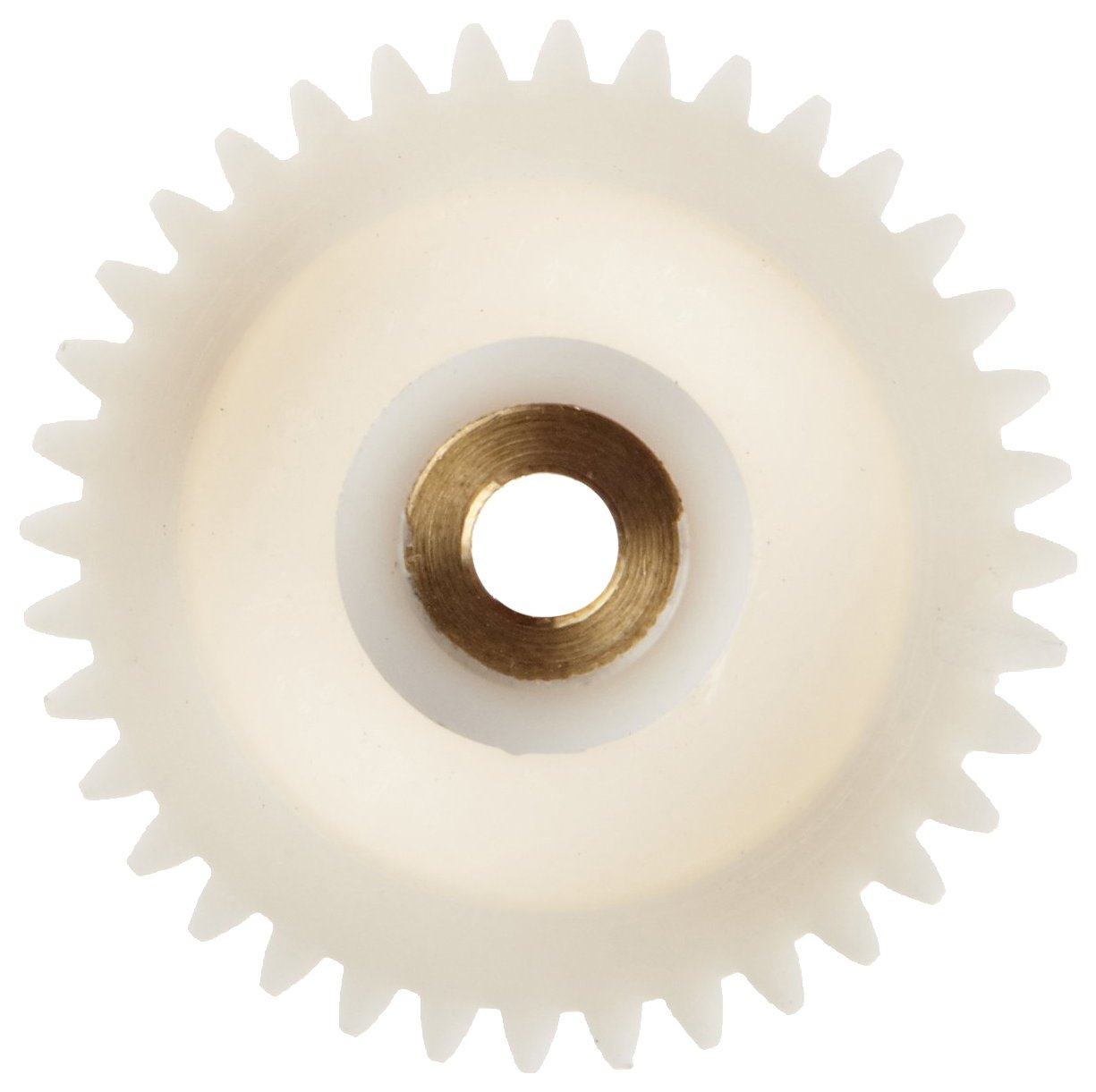

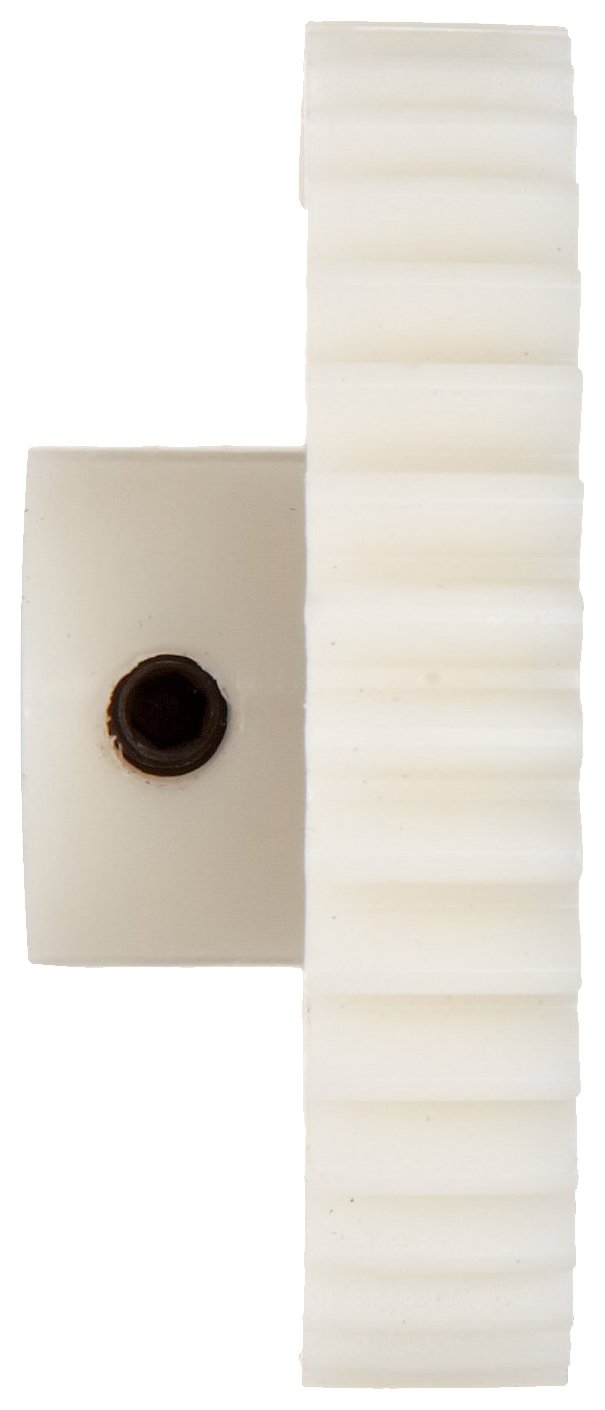

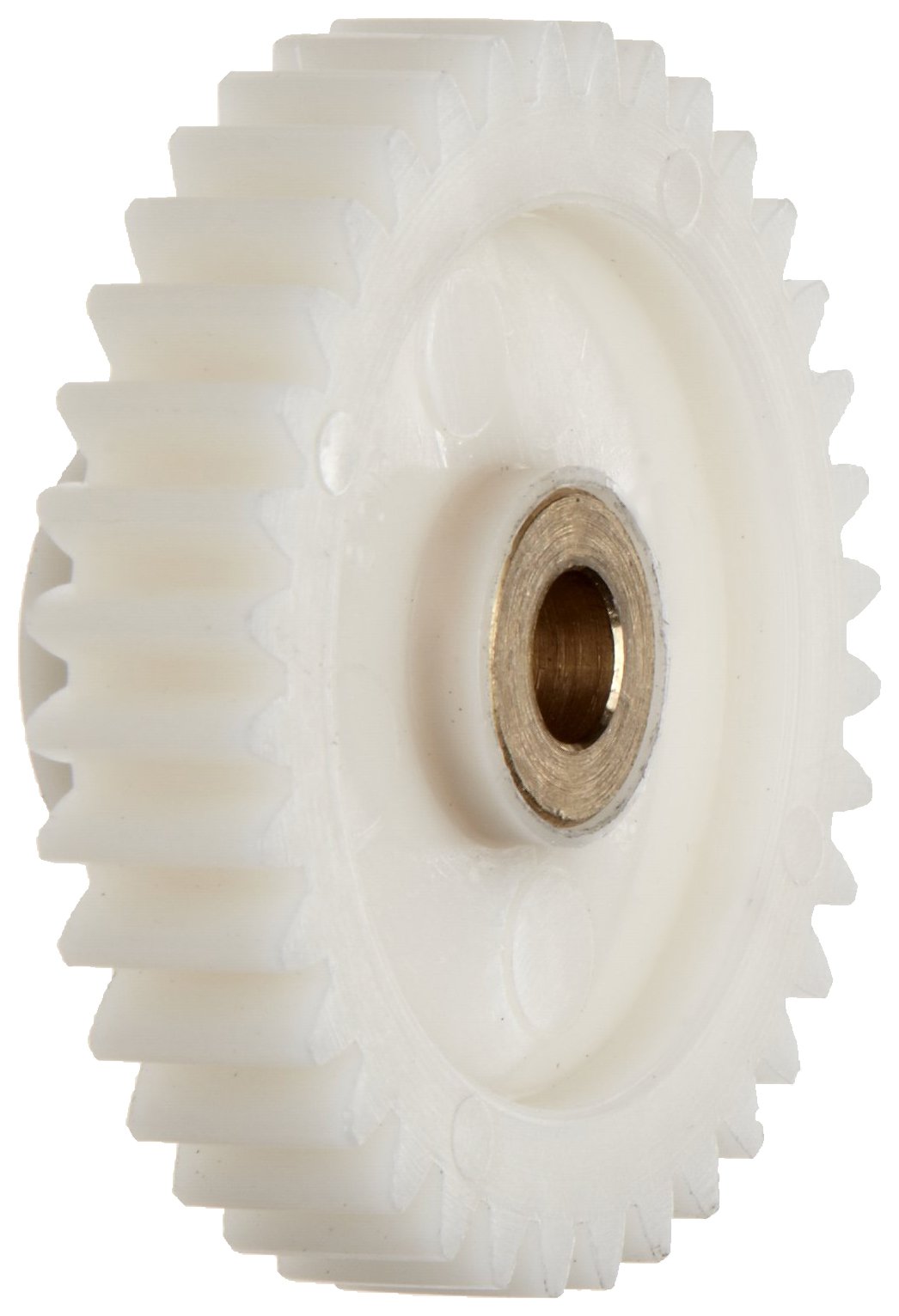

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Smallparts Spur Gear, 20 Degree Pressure Angle, Polyoxymethylene, Inch, 20 Pitch

(1 customer review)

Product Specifications
Pitch
20
Material Type
Polyoxymethylene_(POM)
UNSPSC Code
31171707
Brand Name
Small Parts

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Mar 30? Order in-stock items in the next 4 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 58 Next 20 »
Pitch diameter string Face width string Item diameter string Bore diameter string Number of teeth ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 58 Next 20 »
20 inches 0.375 inches 1.050 inches 0.375 inches 19 B000FN0CNM yes $6.43 Buy Options
20 inches 3/8 inches 0.700 inches 1/4 inches 12 B000FMYBZ8 yes $7.18 Buy Options
20 inches 3/8 inches 0.750 inches 1/4 inches 13 B000FMWISA yes $9.46 Buy Options
20 inches 3/8 inches 0.800 inches 5/16 inches 14 B000FN0C78 yes $10.28 Buy Options
20 inches 3/8 inches 0.850 inches 5/16 inches 15 B000FMU8W8 yes $10.41 Buy Options
20 inches 3/8 inches 0.850 inches 5/16 inches 17 B000FMY6FS yes $14.13 Buy Options
20 inches 3/8 inches 0.900 inches 5/16 inches 16 B000FMU8ZK yes $7.51 Buy Options
20 inches 3/8 inches 0.950 inches 5/16 inches 17 B000FN0CHS yes $6.83 Buy Options
20 inches 3/8 inches 1.000 inches 5/16 inches 18 B000FMY6GW yes $11.32 Buy Options
20 inches 3/8 inches 1.100 inches 3/8 inches 20 B000FMU97M yes $7.88 Buy Options
20 inches 3/8 inches 1.100 inches 3/8 inches 22 B000FMW3S0 yes $21.76 Buy Options
20 inches 3/8 inches 1.150 inches 3/8 inches 21 B000FN0CS2 yes $5.53 Buy Options
20 inches 3/8 inches 1.150 inches 3/8 inches 23 B000FN0CVO yes $22.55 Buy Options
20 inches 3/8 inches 1.200 inches 3/8 inches 22 B000FMY6N0 yes $2.96 Buy Options
20 inches 3/8 inches 1.250 inches 3/8 inches 23 B000FMW3TE Temporarily out of stock. Order now and we'll deliver when available. $11.29 Buy Options
20 inches 3/8 inches 1.300 inches 3/8 inches 24 B000FMY6QM yes $10.91 Buy Options
20 inches 3/8 inches 1.350 inches 3/8 inches 25 B000FN0CZK yes $11.86 Buy Options
20 inches 3/8 inches 1.400 inches 3/8 inches 26 B000FMU9KO yes $11.77 Buy Options
20 inches 3/8 inches 1.500 inches 3/8 inches 28 B000FMW45W yes $11.45 Buy Options
20 inches 3/8 inches 1.600 inches 3/8 inches 30 B000FMW3NA yes $11.53 Buy Options

Key Features

  • Transmits torque between parallel shafts to provide rotational power to another part of a motorized system
  • Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
  • Diametral pitch of 20 for applications requiring a balance between transferring torque and controlling changes in speed and direction of rotation with precision
  • Polyoxymethylene for quiet operation, low friction and moisture absorption, and high resistance to heat and abrasion

Product Description

This polyoxymethylene spur gear with 20-degree pressure angle (PA) and a diametral pitch (DP) of 20 transmits torque between parallel shafts to provide rotational power to another part of a motorized system. It has a 20-degree pressure angle for lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles, and a 20-diametral pitch for applications requiring a balance between transferring torque and controlling changes in speed and direction of rotation with precision. This spur gear, which can mesh only with spur gears that have the same pressure angle and diametral pitch, is made of polyoxymethylene for quiet operation, low friction and moisture absorption, and high resistance to heat and abrasion. This SmallParts spur gear is suitable for use in a variety of commercial and industrial applications, such as construction equipment, aeronautics, conveyors, and manufacturing equipment, among others.

Spur gears, the most common gear type, have a circular or cylindrical shape with teeth bordering the outer perimeter and are used for transmitting rotational torque and motion between parallel rotating shafts. A spur gear's pressure angle (PA), diametral pitch (also called DP or pitch), and its material are important factors to consider when purchasing. Gears come in several types for use in different power transmission configurations and for different applications, including bevel and miter gears (for rotating shafts perpendicular to each other), change gears (to increase or decrease torque and speed), helical gears (for high rates of rotational speed), internal gears (where one gear is nested inside the other), rack and pinion gears (for turning rotational motion into linear motion), and worm gears (for perpendicular shafts in tight spaces and quiet operation). Gears are suitable for use in the agriculture, automotive, construction, mining, and packaging industries, and can be found in a variety of machines, including bicycles, automobiles, and elevators, among others.
