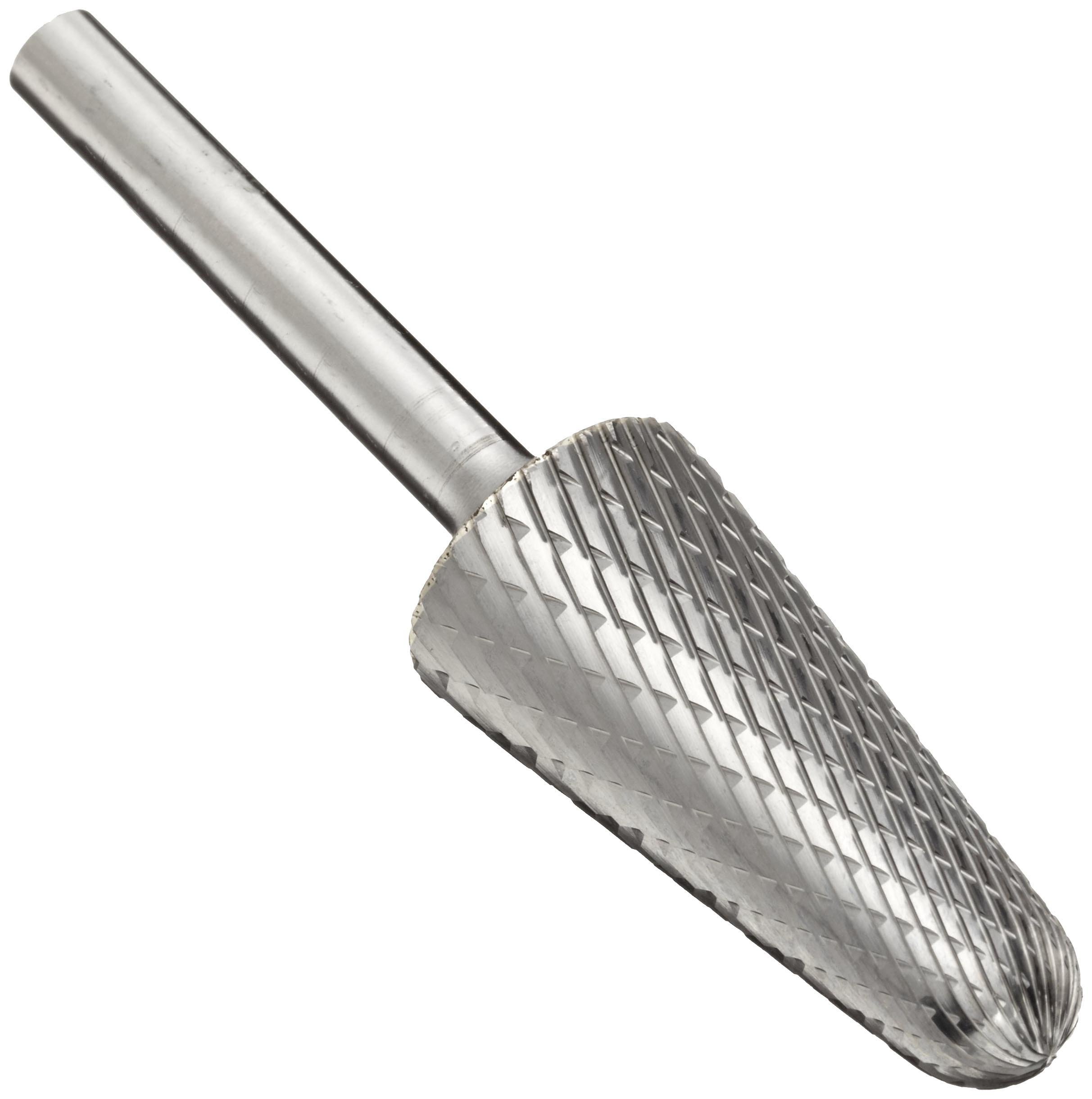

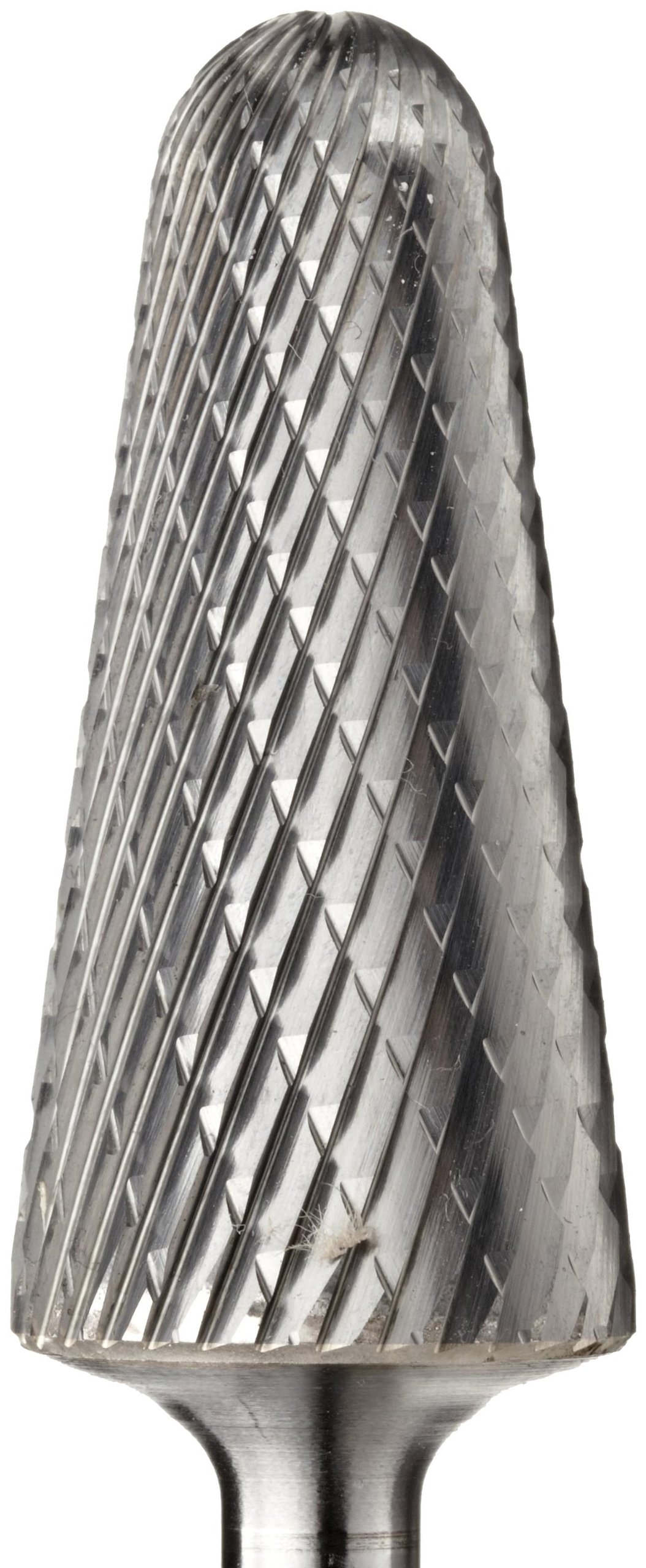

PFERD 14 Degree Taper Carbide Bur, Uncoated (Bright) Finish, Double Cut, Radius End

Be the first to review this item

Product Specifications
Item Shape
14 Degree Taper
End Cut Type
Radius
Finish Types
Uncoated (Bright)
Manufacturer Grade
Premium
Shank Type
Round
Material Type
Carbide
Cut Type
Double Cut
Brand Name
Pferd

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 23 hrs 38 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Head Diameter Length of Cut Shank Diameter Overall Length Trade Number Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-7 of 7
1/8" 1/2" 1/8" 1-1/2" SL-42 23452 B003A4H89E 1 $10.00 Buy Options
1/4" 5/8" 1/4" 1-15/16" SL-1 25132 B003A4HAKQ 1 $18.33 Buy Options
5/16" 7/8" 1/4" 2-13/16" SL-2 25142 B003A4HALK 1 $19.71 Buy Options
3/8" 1-1/16" 1/4" 3" SL-3 25152 B001HWAD4S 1 $22.05 Buy Options
1/2" 1-1/8" 1/4" 3-1/16" SL-4 25162 B001HWAD5C 4 $26.45 Buy Options
5/8" 1-5/16" 1/4" 3-1/4" SL-6 25182 B003A4HAOC 1 $53.13 Buy Options
3/4" 1-1/2" 1/4" 3-7/16" SL-7 25192 B003A4HAPG 1 $53.58 Buy Options

Key Features

  • Standard double-cut carbide bur for general-purpose machining on cast iron, steel with a Rockwell Hardness of less than C60, stainless steel, titanium alloys, and nickel-based alloys
  • Produces smaller chips and offers better operator control than a single-cut bur
  • 14-degree taper shape with radius end (shape L) for machining sloped surfaces
  • Carbide provides good wear resistance and maintains sharp edges longer than high-speed steel (HSS)
  • Uncoated (bright) tools have no additional surface treatment or coating

Product Description

The Pferd double-cut carbide bur has a 14-degree taper shape with a radius end and an uncoated (bright) finish, and is for use on cast iron, steel with a Rockwell Hardness of less than C60, stainless steel, titanium alloys, and nickel-based alloys. The standard double-cut type produces smaller chips and offers better operator control than a single-cut bur when used on recommended material. The bur has a 14-degree taper shape with a radius end, also known as shape L, which is suitable for machining sloped surfaces. Carbide provides good wear resistance and maintains sharp edges longer than high-speed steel (HSS). With no coating or surface treatment, uncoated carbide supports a range of general-purpose applications. In most applications, burs should be operated within the recommended cutting speed range, expressed in surface feet per minute (SFPM).

Cutting burs, also called rotary files, are small rotary tools with many cutting edges that operate at very high speeds in order to remove material from a workpiece. The bur’s head contains the cutting edges, and the bur’s shank is inserted like a drill bit into a toolholder such as a drill chuck or collet. Burs are versatile tools that are offered in many shapes, sizes, and end types, and they are used in a wide range of industries, including tool, die, and mold manufacturing; metal fabrication; and dentistry. Burs can be used for deburring, or removing small protrusions (burrs) that form on the surface of a workpiece as a result of a machining process. They can also be used for welding preparation, finishing welded joints, chamfering, surface cleaning and finishing, grinding down rough edges, and contouring. A bur’s compact size gives the operator control over contact between the bur and the workpiece, making the tool well suited for delicate operations. Finishes or coatings may be applied to the head of the tool to improve wear resistance, decrease friction, and protect against high temperatures.

Pferd, Inc., manufactures abrasives and cutting tools for grinding, finishing, and cutting. Founded in 1799, Pferd has its U.S. headquarters in Leominster, MA. Pferd meets International Organization for Standardization (ISO) 9001 standards.
