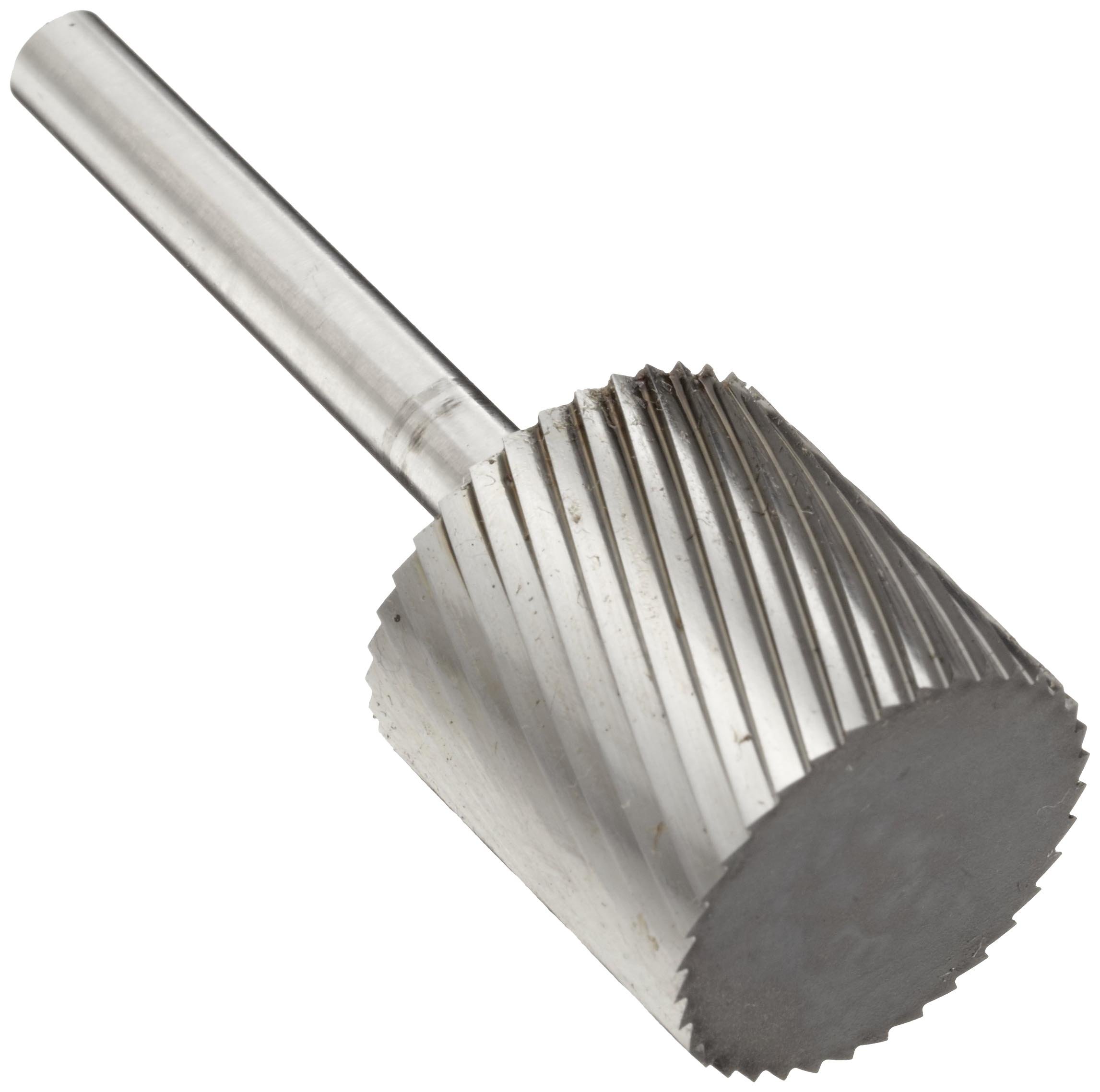

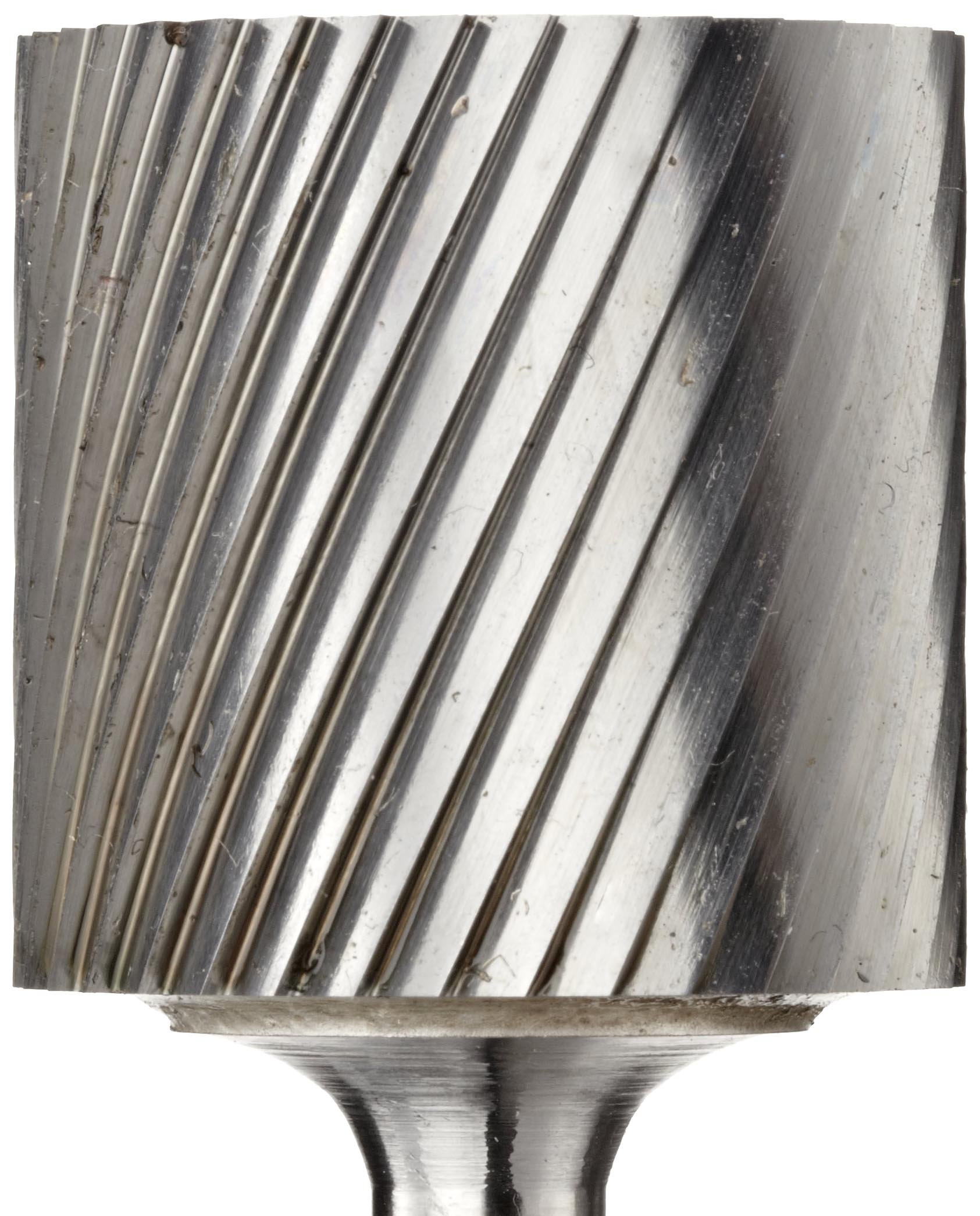

PFERD Cylindrical Carbide Bur, Uncoated (Bright) Finish, Single Cut, Plain End

Be the first to review this item

Product Specifications
Item Shape
End Cut Type
Finish Types
Uncoated (Bright)
Manufacturer Grade
Shank Type
Material Type
Cut Type
Single Cut
Brand Name

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 6 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Head Diameter Length of Cut Shank Diameter Overall Length Trade Number Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All All
Currently showing 1-15 of 15
3/32" 1/2" 1/8" 1-1/2" SA-42 23111 B003A4H7TA 1 $8.43 Buy Options
1/8" 1/2" 1/8" 1-1/2" SA-43 23121 B003A4H7TU 13 $9.24 Buy Options
1/8" 1/2" 1/4" 1-15/16" SA-11 24001 B003A4H8F8 1 $15.84 Buy Options
3/16" 5/8" 1/4" 1-15/16" SA-14 24021 B003A4H8GW 1 $15.90 Buy Options
1/4" 1/2" 1/8" 1-11/16" SA-51 23131 B003A4H7UO 1 $10.95 Buy Options
1/4" 5/8" 1/4" 1-15/16" SA-1 24031 B003A4H8HQ 1 $11.82 Buy Options
5/16" 3/4" 1/4" 2-1/2" SA-2 24051 B003A4H8J4 1 $14.79 Buy Options
3/8" 3/4" 1/4" 2-1/2" SA-3 24061 B001HWBYKU 7 $17.61 Buy Options
7/16" 1" 1/4" 2-3/4" SA-4 24091 B003A4H8KI 1 $23.26 Buy Options
1/2" 1" 1/4" 2-3/4" SA-5 24101 B003A4H8LC 2 $24.32 Buy Options
5/8" 1" 1/4" 2-3/4" SA-6 24111 B003A4H8MG 1 $26.67 Buy Options
3/4" 3/4" 1/4" 2-1/2" SA-16 24141 B003A4H8PI 1 $47.03 Buy Options
3/4" 1/2" 1/4" 2-1/4" SA-15 24131 B003A4H8OE 1 $34.07 Buy Options
3/4" 1" 1/4" 2-3/4" SA-7 24121 B003A4H8NK 1 $37.01 Buy Options
1" 1" 1/4" 2-3/4" SA-9 24161 B003A4H8QC 1 $49.88 Buy Options

Key Features

  • Standard single-cut carbide bur for general-purpose machining on cast iron, steel with a Rockwell Hardness of less than C60, stainless steel, titanium alloys, and nickel-based alloys
  • Provides gradual stock removal
  • Cylindrical shape with plain end (shape A) for machining with the side of the tool on flat surfaces
  • Carbide provides good wear resistance and maintains sharp edges longer than high-speed steel (HSS)
  • Uncoated (bright) tools have no additional surface treatment or coating

Product Description

The Pferd single-cut carbide bur has a cylindrical shape with a plain end and an uncoated (bright) finish, and is for use on cast iron, steel with a Rockwell Hardness of less than C60, stainless steel, titanium alloys, and nickel-based alloys. The standard single-cut type provides gradual stock removal when used on recommended material. The bur has a cylindrical shape with a plain end, also known as shape A, which is suitable for machining with the side of the tool on flat surfaces. Carbide provides good wear resistance and maintains sharp edges longer than high-speed steel (HSS). With no coating or surface treatment, uncoated carbide supports a range of general-purpose applications. In most applications, burs should be operated within the recommended cutting speed range, expressed in surface feet per minute (SFPM).

Cutting burs, also called rotary files, are small rotary tools with many cutting edges that operate at very high speeds in order to remove material from a workpiece. The bur’s head contains the cutting edges, and the bur’s shank is inserted like a drill bit into a toolholder such as a drill chuck or collet. Burs are versatile tools that are offered in many shapes, sizes, and end types, and they are used in a wide range of industries, including tool, die, and mold manufacturing; metal fabrication; and dentistry. Burs can be used for deburring, or removing small protrusions (burrs) that form on the surface of a workpiece as a result of a machining process. They can also be used for welding preparation, finishing welded joints, chamfering, surface cleaning and finishing, grinding down rough edges, and contouring. A bur’s compact size gives the operator control over contact between the bur and the workpiece, making the tool well suited for delicate operations. Finishes or coatings may be applied to the head of the tool to improve wear resistance, decrease friction, and protect against high temperatures.

Pferd, Inc., manufactures abrasives and cutting tools for grinding, finishing, and cutting. Founded in 1799, Pferd has its U.S. headquarters in Leominster, MA. Pferd meets International Organization for Standardization (ISO) 9001 standards.
