Cyalume ChemLight Military Grade Chemical Light Sticks, Orange, Ultra High Intensity, 6" Long, 5 Minute Duration (Pack of 10)

Be the first to review this item

ASIN B0052ZAO5Y

Specifications for this item
Number of Items
10
Item Shape
Duration: 5 Minute
Color Name
Orange
Part Number
9-03630
Brand Name
Cyalume
Size Name
10
UNSPSC Code
39111705
Overall Length
6  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 2? Order in-stock items in the next 13 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • ChemLight military grade ultra-high intensity orange light stick for providing illumination for up to 5 minutes
  • Measures 6" long and provides 360 degrees of illumination
  • Meets military specifications
  • Chemiluminescent substance is non-toxic and plastic body is phthalate free for safety
  • Two-year shelf life from date of manufacture for a maintenance-free alternative to other lighting

Package Details

Shipping Weight: 0.6 pounds
Package Size: 9.4 x 4.2 x 1.7 inches

Product Description

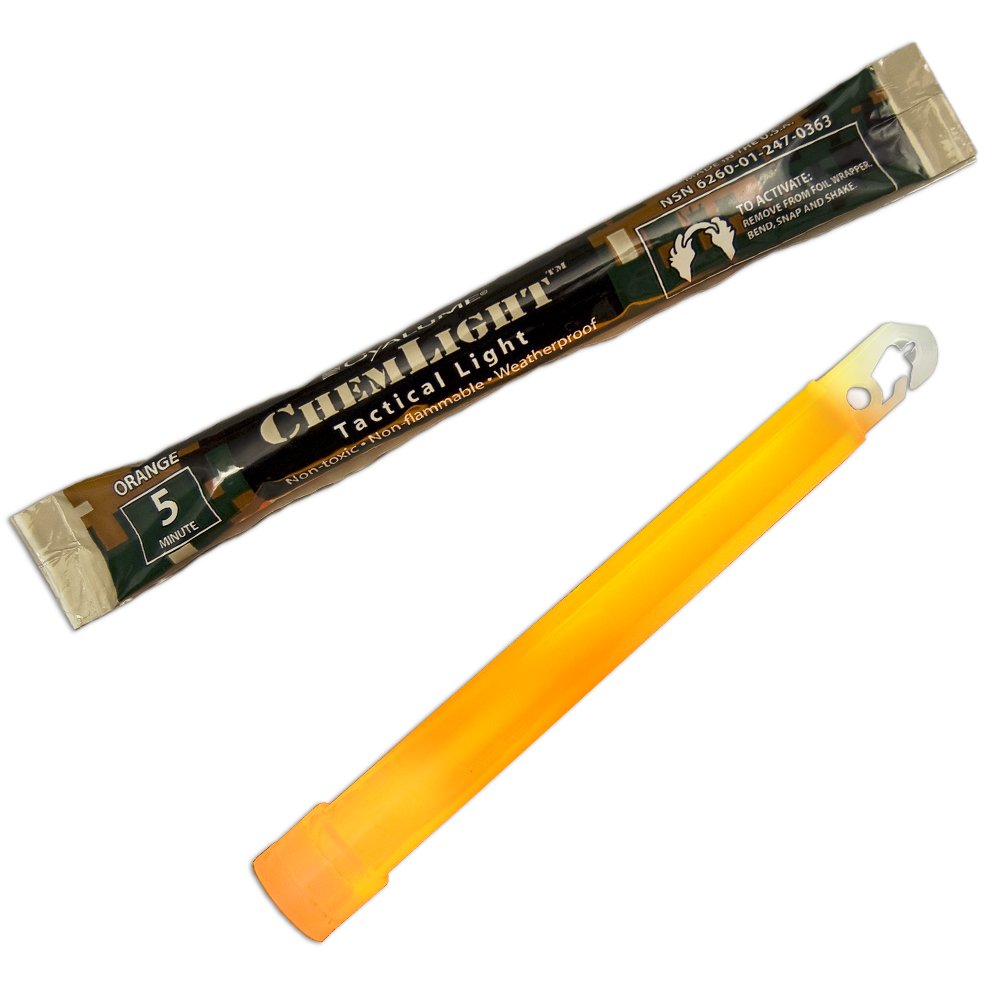

The Cyalume ChemLight is an orange military grade chemical light stick measuring 6" long, for providing instant ultra-high intensity 360 degree illumination, that can be seen up to a mile away for up to 5 minutes in optimal conditions. The ChemLight is waterproof, non-toxic, and non-flammable. To activate the light stick, bend, snap and shake the tube. The light stick has a hook and gate top, for hanging or attaching the light. The ChemLight meets Defense Logistics Agency (DLA) and NATO Maintenance and Supply Agency (NAMSA) specifications, and National/NATO Stock Numbers (NSN) are printed on each product. Each light stick is individually foil-wrapped for protection from light and moisture, and has up to a two-year shelf life from date of manufacture.

The durable, waterproof, external body of the light stick is made from low density polyethylene (LDPE), and is phthalate free for safety. The internal illuminating chemical substance is non-toxic and non-flammable, and the components of the light stick are recyclable. The light stick floats in water and works best between 40 to 80 degrees F (4 to 27 degrees C), and although the light stick works at higher or lower temperatures, it is less effective in colder temperatures.

All sticks are tested at a temperature of 72 degrees F (22 degrees C) to determine the illumination duration. Each 10-degree C (50-degree F) increase or decrease in temperature doubles or halves the reaction rate, and therefore the brightness and duration. For example, the same light stick that emits approximately 30 lux (a unit that describes how much light is visible over a square meter) at 15 minutes after activation at 24 degrees C (75 degrees F) will be half as bright but glow twice as long at 14 degrees C (57 degrees F). At 34 degrees C (93 degrees F), the same light stick would be twice as bright, but glow half as long. Storage at elevated temperatures (above 120 degrees F or 49 degrees C) will decrease shelf life and start to soften the plastic tube, and increase the risk of a leak. Exposure to cold temperatures will not affect the light sticks if they are warmed above 40 degrees F (4.5 degrees C) before activation, unless they are frozen (which occurs at -15 to -20 degrees F, or -26 to -29 degrees C). Once light sticks have been frozen, they will still produce some light, but performance will not be as reliable. Humidity and atmospheric conditions do not affect the light sticks.

Light sticks are chemiluminescent substances in plastic tubes that provide hours of illumination in a number of safety, industrial, and military applications. Light sticks are waterproof, non-flammable, and non-sparking, which makes them useful in hazardous situations where sparks or flame could cause an explosion. Duration is determined by the chemistry of the formulation. Brightness is affected by temperature: the warmer the temperature, the brighter the light will appear. All sticks are tested at a temperature of 72 degrees F to determine the illumination duration. Viewing distance can be affected by temperature, moisture, and other elements. Exposure to direct sunlight can reduce shelf life and effectiveness.

Cyalume Technologies manufactures chemiluminescent products used for safety, industrial, and military applications. The company, founded in 1970 and headquartered in West Springfield, MA, makes products under ChemLight and SnapLight brands. ChemLight products meet military specifications, and the company meets ISO 9001 standards.

What’s in the Box?

  • 10 individually foil-wrapped light sticks
