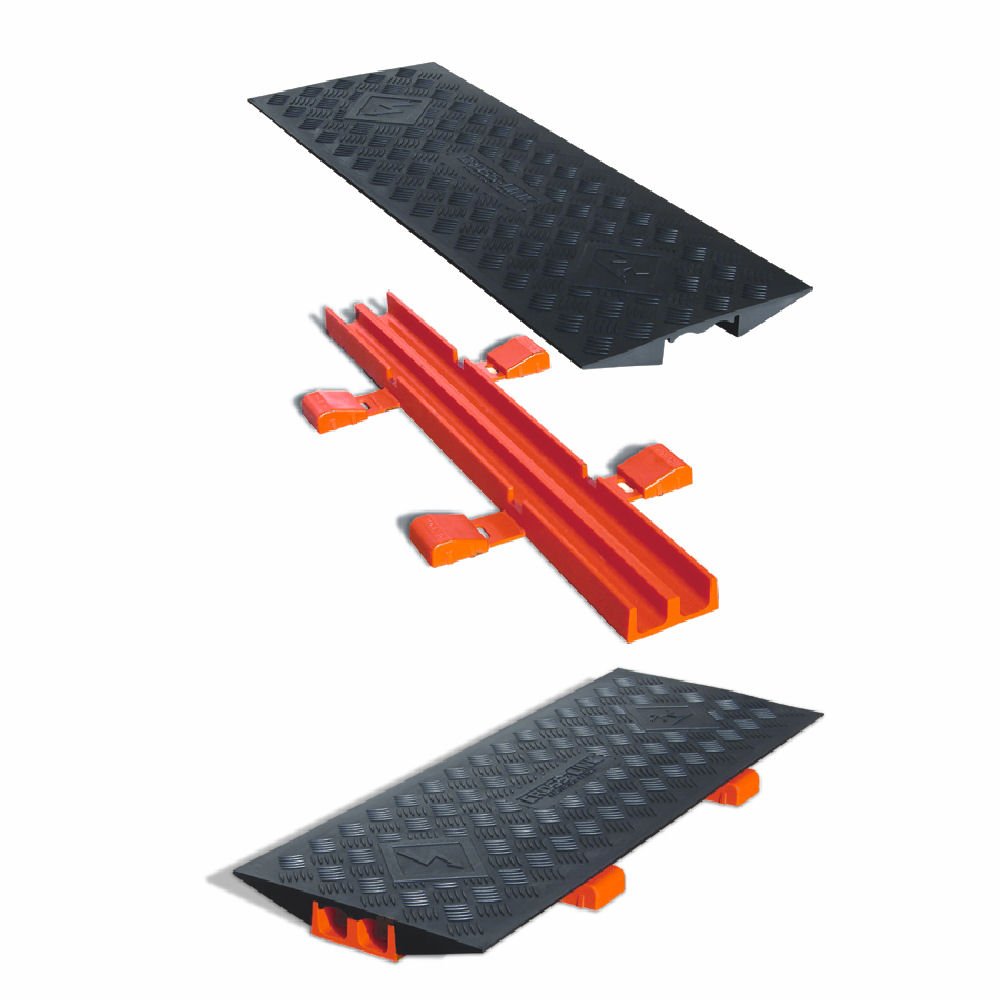

Cross-Link CL2X150-5GD-B Polyurethane Heavy Duty Protector Bridge for Guard Dog 5 Channel Cable Protectors, Black, 36" Length, 13" Width, 2" Height

Be the first to review this item


Specifications for this item
Number of Items
Material Type
Part Number
Brand Name
Checkers Industrial Safety Products

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 27? Order in-stock items in the next 27 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Bridge for Guard Dog GD5X125; protects cables and hose lines up to 1.5" in diameter
  • Provides additional channels and a continuous, level crossing surface
  • All weather polyurethane construction with heavy load capacity
  • Patented 5-bar tread surface provides maximum traction
  • Lightweight and easy to transport, setup, disassemble and store; safety warning symbols molded into protector surface

Package Details

Shipping Weight: 19.75 pounds
Package Size: 37 x 14.5 x 2.5 inches

Product Description

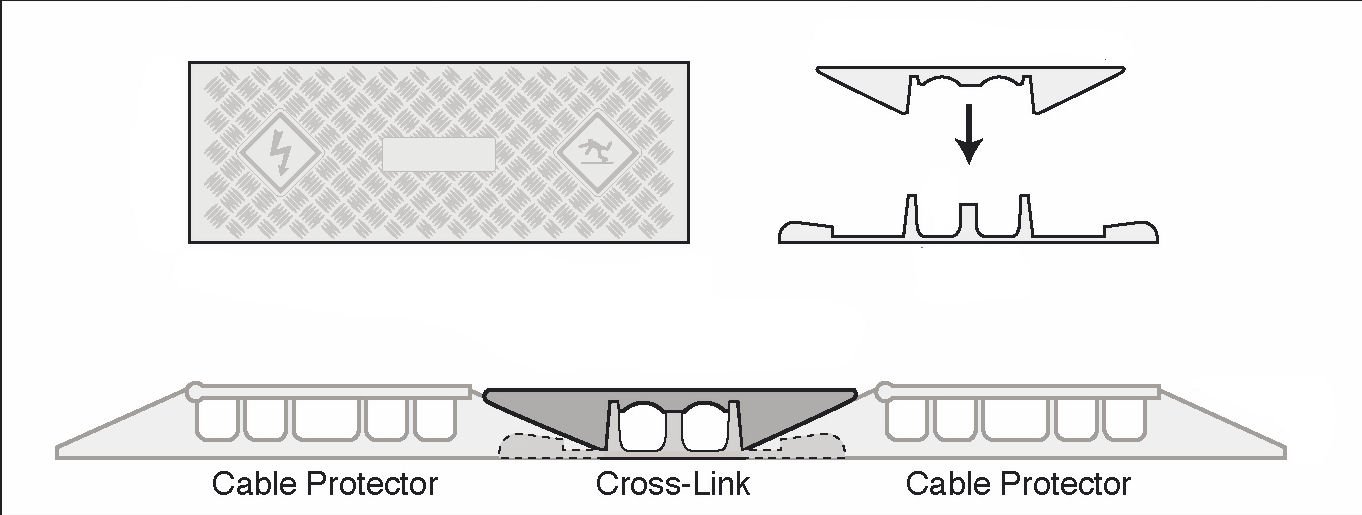

Cross-Link protector bridges are designed to utilize the space between multiple parallel cable protector runs. These bridges provide additional cable channels while providing a continuous, level crossing surface for vehicle and pedestrian traffic. Cross-Guard ADA compliant ramps and rails can also be used in conjunction with protector bridges to provide a gentle slope and safe crossing point over multiple cable runs for wheelchairs, carts, road cases, and vehicles with small wheels. Material: polyurethane (UV stabilized). Operating temperature: -40 degree F to 120 degree F (-40 degree C to 48 degree C). Safety symbols: Per ANSI. Z535.3-1991. 2 Channels: Maximum load at 70 degree F (21 degree C). Per tire: 11,500 lbs load capacity (4,763 kg). Per axle: 21,000 lbs load capacity (9,526 kg). Weight: 16 lbs. Measures 36" length by 13" width by 2" height. Available in black color. 1.5" Channel width. 1.5" Channel height.
