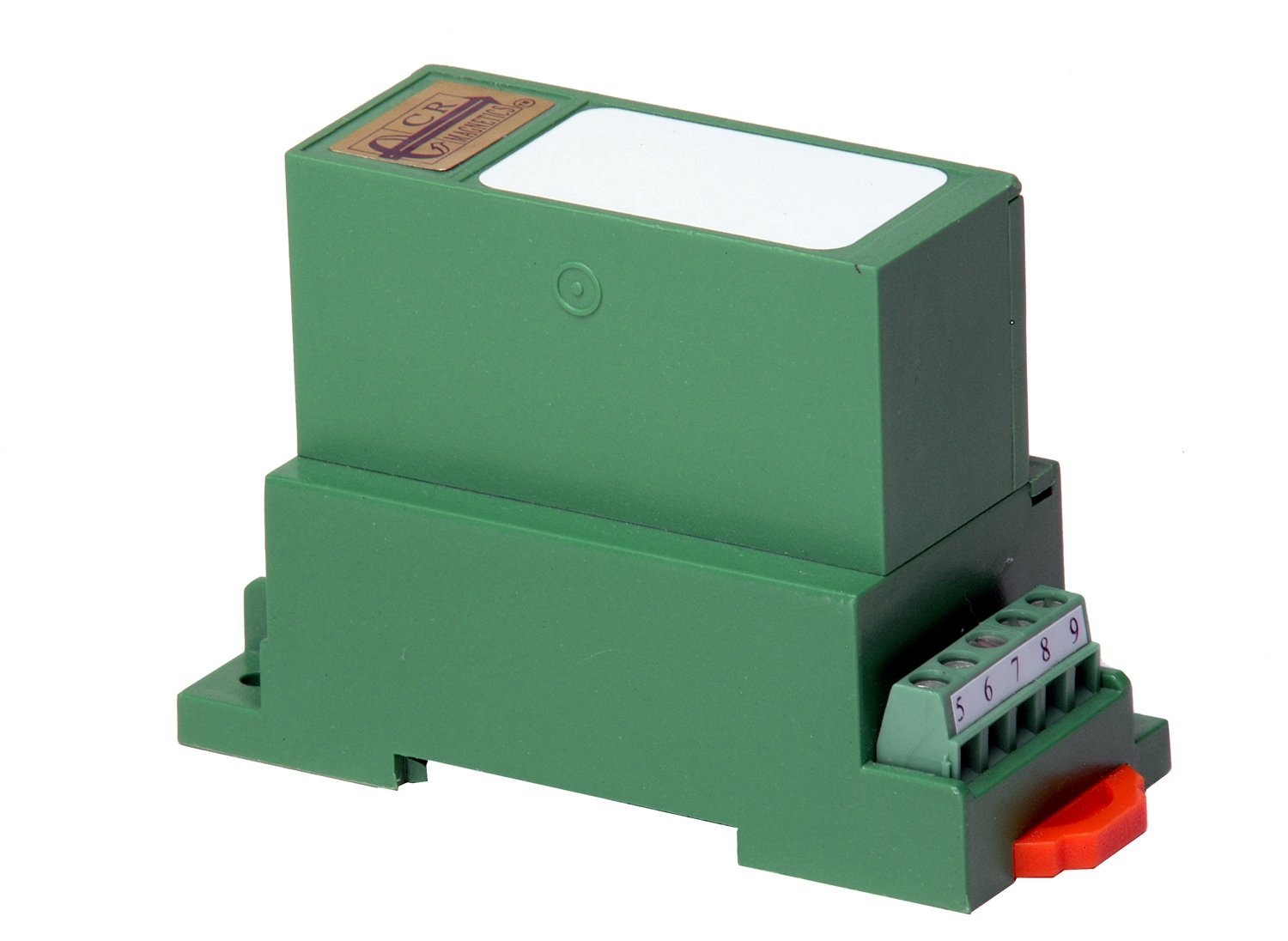

CR Magnetics True RMS AC Voltage Transducer with Single Element, 20 Hz - 5 KHz, >= 2K Output Load, 24 VDC +/-10%, 0 - 5 VDC Output Range
Be the first to review this item
Product Specifications
- Brand Name
- CR Magnetics
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 29? Order in-stock items in the next 3 days 1 hour 59 minutes and choose One-Day Shipping at checkout.
Key Features
- Connection diagram printed on case, DIN rail mount or panel mount
- Highest precision available, 24 VDC powered
- Outputs isolated from inputs
- Available with 0-5 VDC outputs
- Applications: Chopped waveform drivers, phase fired controlled devices, quickly varying voltage supplies, harmonic voltages
Product Description
The CR4510 series, true RMS voltage transducers and transmitters are designed for applications where AC voltage waveforms are not purely sinusoidal. More precise and accurate than other devices, these units are ideal in chopped wave and phase fired control systems. Thermal drift: 500 PPM/ degree C. Output Load: 0-5 VDC - 2 K or greater. Supply voltage: 24 VDC +/-10 percent. Insulation voltage: 2500 VDC. Response time: 250 ms. Operating temperature: 0 degree C to +50 degree C. Calibration: true RMS sensing. Basic accuracy: 0.5 percent. 4-20 mA DC - 0 - 300 ohm Output. MTBF: greater than 100 K hours. Frequency range: 20-5 KHz. Installation category: CAT II. Polution degree: 2. Altitude: 2000 meter max. Cleaning: water-dampened cloth. Relative humidity: 80 percent for temperatures up to 31 degree C and decreasing linearly to 50 percent at 40 degree C. Supply current: Typical 15mA, Max 25mA. Torque specs: 3.0 inch lbs. (0.4Nm).
