CR Magnetics AC Power Transducer with 3-Phase and 3-Wire Active Power, 50 - 400 Hz, 0 - 300 Load, 12 VDC, 4 - 20 mADC Output Range

Be the first to review this item

Product Specifications
UNSPSC Code
41112112
Brand Name
CR Magnetics

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Sep 22? Order in-stock items in the next 5 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-4 of 4
0-250 VAC0-20 AAC Input Range B005CWNLCK Usually ships in 1 to 2 months $312.01 Buy Options
0-500 VAC0-20 AAC Input Range B005CWNLSE yes $305.69 Buy Options
0-500 VAC0-5 AAC Input Range B005CWNMBU Usually ships in 1 to 2 months $310.34 Buy Options
0-500 VAC0-50 AAC Input Range B005CWNMVU Usually ships in 1 to 2 months $286.94 Buy Options

Key Features

  • Average RMS measurement for sinusoidal alternating current waveforms
  • 0.5% FS accuracy
  • Response time of 250 ms (10-90% step change)
  • Three-wire input for measurement of three-phase active power
  • UL Recognized and CE certified for quality assurance

Product Description

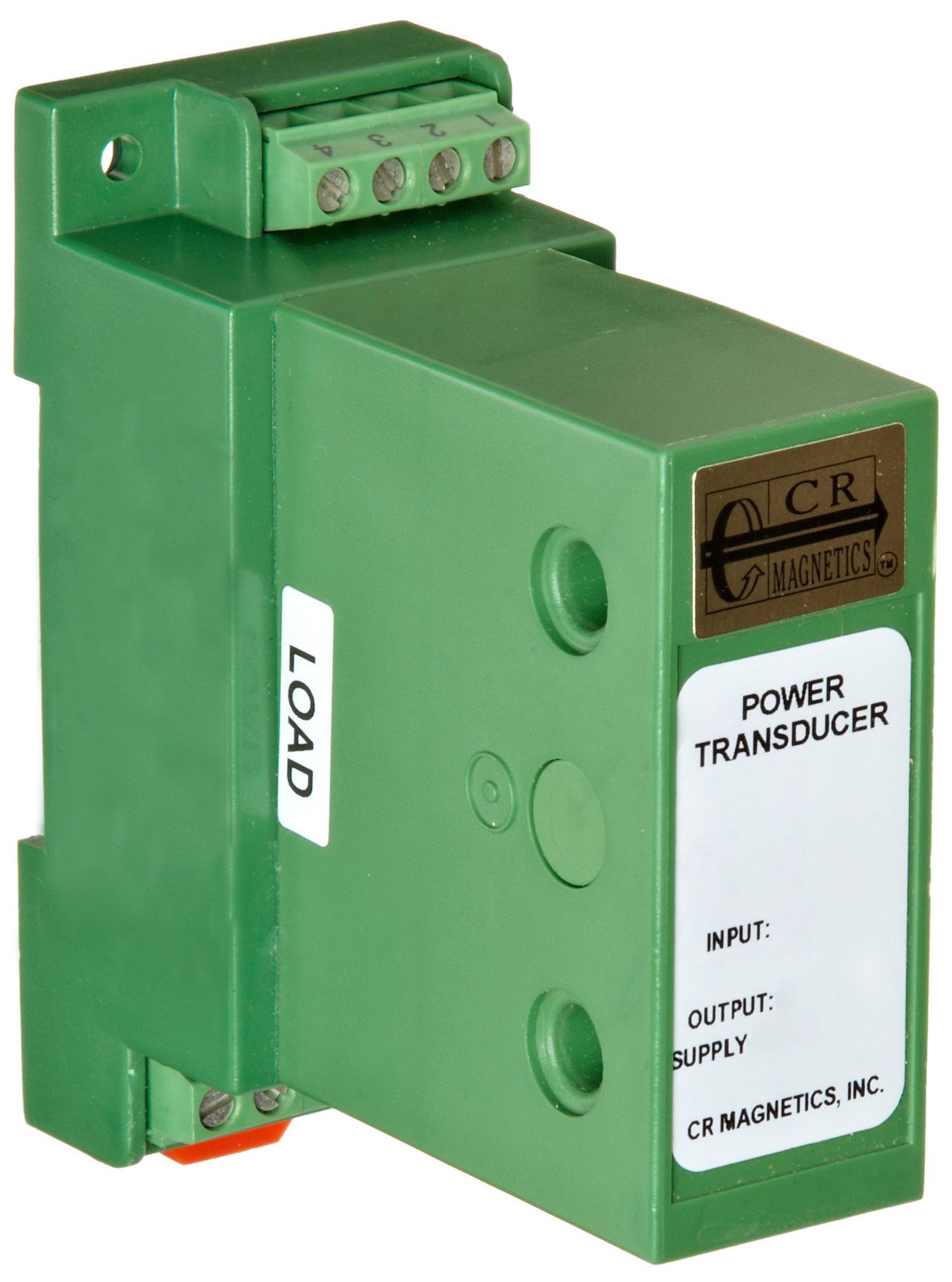

This CR Magnetics CR6240 series power transducer combines three solid-core current transformers and signal conditioner, and is suitable for use in industrial automation systems. The transducer provides average root-mean-square (RMS) measurement for sinusoidal alternating current waveforms, with an accuracy of 0.5% full scale (FS) and a response time of 250 ms (10-90% step change). A three-wire input allows for measurement of three-phase active power. This power transducer is Underwriters Laboratories (UR) Recognized and Conformité Européenne (CE) certified for quality assurance. It is suitable for monitoring linear, constant-speed alternating current (AC) loads that produce sinusoidal waveforms.

Specifications
Signal Output4-20 mADC
Frequency Range50-400 Hz
Insulation Voltage2,500 VDC
Output Loading300 ohm maximum
Operating Temperature0 C to 60 C

CR Magnetics manufactures electrical sensors, indicators, and displays. The company, founded in 2004, is headquartered in Saint Louis, MO.
