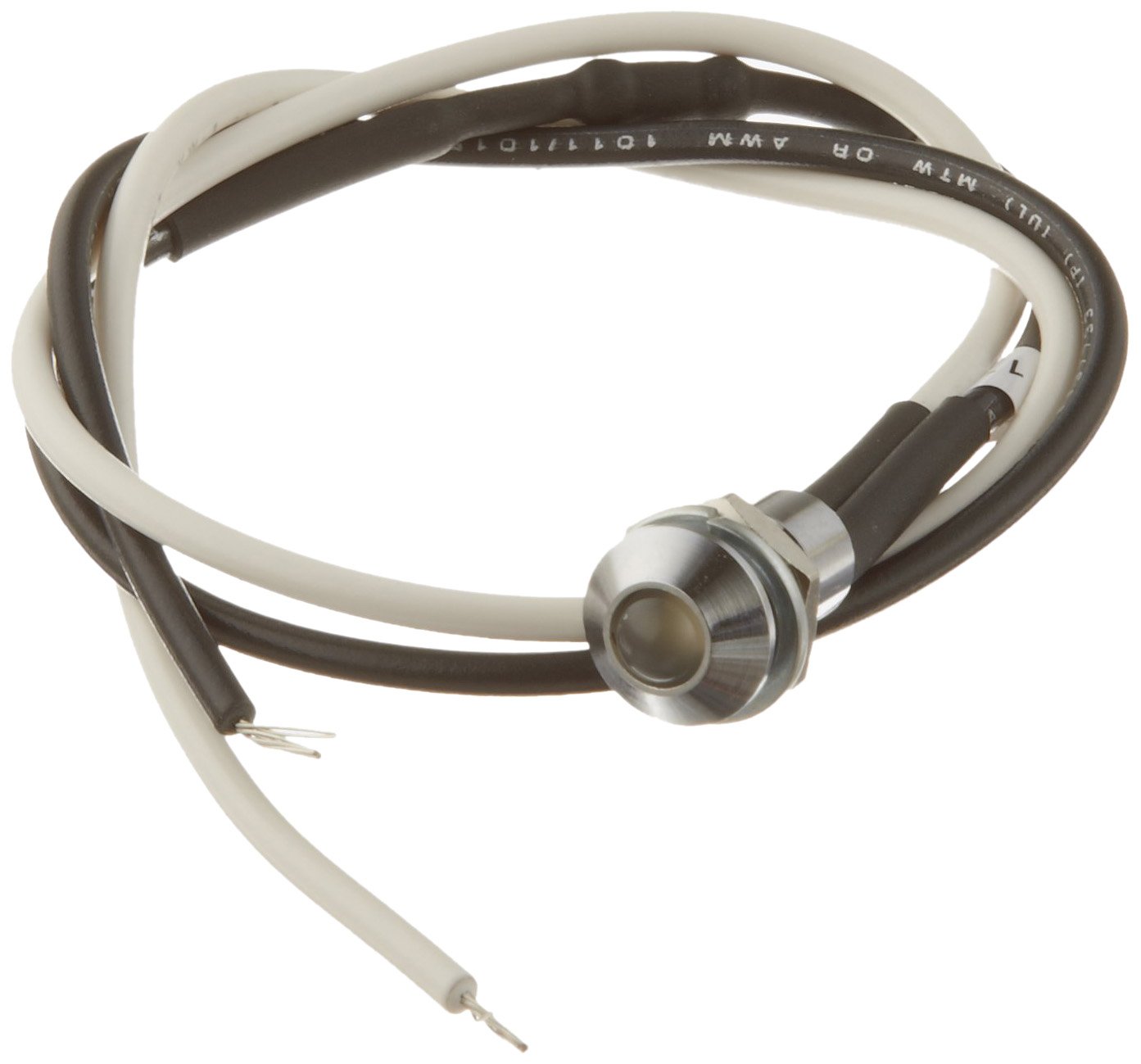

CR Magnetics Splash-Proof Panel Indicator with LED, For 50-60 Hz Model 18 and 19 Remote Current Transformer
Be the first to review this item
Product Specifications
- Brand Name
- CR Magnetics
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, June 19? Order in-stock items in the next 13 hours 33 minutes and choose One-Day Shipping at checkout.
Key Features
- 2 Case sizes, 2 types of LED indicators, self powered
- Indicating range: 2 to 100 Amps (1-Wire Pass)
- Max. continuous current: 100 Amps
- Working class: 600 Volts
- Applications: indicate open heater elements, observe remote loads, indicate phase loss, monitor motor operation
Product Description
The CR Magnetics line of Remote Electrical Current Indicators provides an effective method for remote monitoring of electrical current. The remote current sensing transformer is installed around the current-carrying wire and is connected directly to the LED panel indicator. When the current exceeds the turn-on point of the sensing transformer, the LED illuminates to indicate the presence of current. Two sizes of remote current sensing transformers are available for use with either one of two types of LED indicators. Supplied with rubber sealing washer. Housing material: chrome plated brass. Mounting Hole: 0.312 +/-0.005" (7.9) diameter.
