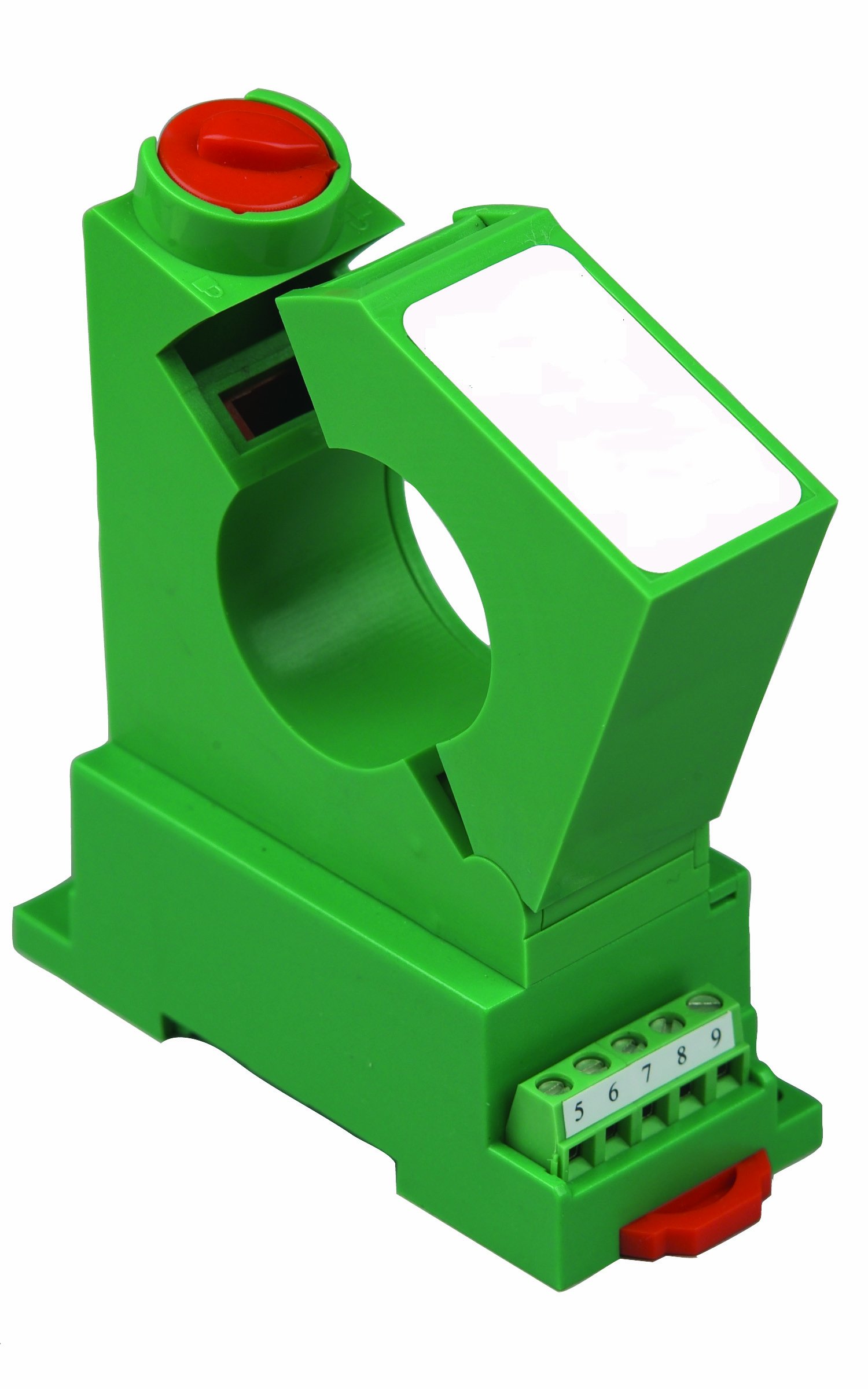

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

CR Magnetics Split Core Self Powered AC Current Transducer with Single Element, 20 - 5 KHz, >= 1M Output Load, 2500 VDC

Be the first to review this item

Product Specifications
Power Supply
Self Powered
UNSPSC Code
41112109
Brand Name
CR Magnetics

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 1? Order in-stock items in the next 9 hrs 59 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Input Range Case Style ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-12 of 12
0-20 AAC Input Range Plastic B005CWJWPU 1 $133.02 Buy Options
0-20 AAC Input Range Plastic B005CWJSHM 1 $111.42 Buy Options
0-25 AAC Input Range Plastic B005CWJY30 1 $159.56 Buy Options
0-30 AAC Input Range Plastic B005CWJYQW Usually ships in 3 to 4 weeks $160.70 Buy Options
0-30 AAC Input Range Plastic B005CWJSUE 1 $111.31 Buy Options
0-50 AAC Input Range Plastic B005CWJZ8O 1 $162.33 Buy Options
0-50 AAC Input Range Plastic B005CWJT2G 1 $113.60 Buy Options
0-75 AAC Input Range Plastic B005CWJZIO Usually ships in 3 to 4 weeks $160.70 Buy Options
0-100 AAC Input Range Plastic B005CWJW6E 1 $159.07 Buy Options
0-100 AAC Input Range Plastic B005CWJS7W 1 $112.50 Buy Options
0-150 AAC Input Range Plastic B005CWJWK0 1 $142.70 Buy Options
0-200 AAC Input Range Plastic B005CWJWX2 1 $160.29 Buy Options

Key Features

  • Average RMS measurement for sinusoidal alternating current waveforms
  • 0.5% accuracy
  • Response time of 100 ms (10-90% step change)
  • DIN rail or panel mounting options
  • CE certified for quality assurance

Product Description

This CR Magnetics CR4210S current transducer combines a split-core current transformer and signal conditioner, and is suitable for use in industrial automation systems. The transducer provides average root-mean-square (RMS) measurement for sinusoidal alternating current waveforms, with an accuracy of 0.5% full scale (FS) and a response time of 100 ms (10-90% step change). Mounting options include DIN rail or panel. This current transducer is Conformité Européenne (CE) certified for quality assurance. It is suitable for monitoring linear, constant-speed alternating current (AC) loads that produce sinusoidal waveforms.

Specifications
Signal Output0-5 VDC
Frequency Range20-5,000 Hz
Insulation Voltage2,500 VDC
Output Loading2 K ohm minimum
Operating Temperature0 C to 60 C

Current transducers are used to detect electrical current flowing in a wire or cable, and to generate an electrical signal proportional to the current for measurement or control. The transducer consists of an electrical winding, a magnetic core, and a signal conditioner. When current flows through a wire, the transducer winding generates a current, which produces a magnetic field in the core, which then creates a proportional current or voltage output signal. Current transducers are used in industrial automation systems for monitoring, alarming, and equipment control.

CR Magnetics manufactures electrical sensors, indicators, and displays. The company, founded in 2004, is headquartered in Saint Louis, MO.
