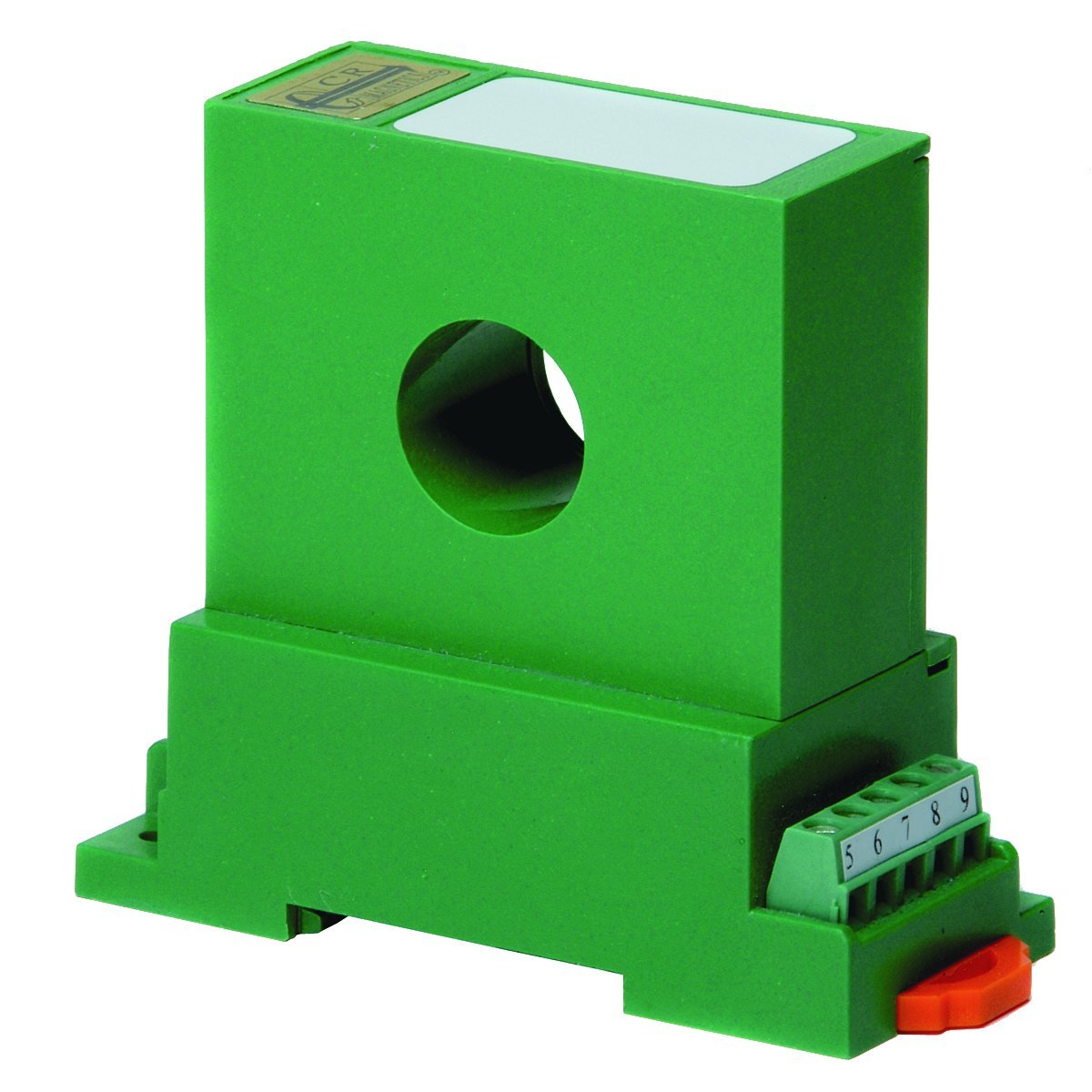

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

CR Magnetics DC Current Transducer with Single Element, DC

Be the first to review this item

Product Specifications
Power Supply
N/A
Brand Name
CR Magnetics

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 17 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Input Range Case Style ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-9 of 9
0-5 ADC Input Range Plastic B005CWLNXE 2 $105.30 Buy Options
0-10 ADC Input Range Plastic B005CWLKDC 3 $99.70 Buy Options
0-20 ADC Input Range Plastic B005CWLMHG 1 $113.67 Buy Options
0-30 ADC Input Range Plastic B005CWLMTE 1 $111.26 Buy Options
0-50 ADC Input Range Plastic B005CWLO5G 2 $105.30 Buy Options
0-75 ADC Input Range Plastic B005CWLON8 1 $101.97 Buy Options
0-100 ADC Input Range Plastic B005CWLL4U 21 $111.98 Buy Options
0-150 ADC Input Range Plastic B005CWLLSQ 1 $99.70 Buy Options
0-300 ADC Input Range Plastic B005CWLNJI 1 $99.70 Buy Options

Key Features

  • Magnetic modulator measurement for direct currents
  • 1.0% accuracy
  • Response time of 250 ms (10-90% step change)
  • DIN rail or panel mounting options
  • RoHS compliant for environmental protection

Product Description

This CR Magnetics CR5210 series current transducer combines a solid-core current transformer and signal conditioner, and is suitable for use in industrial automation systems. The transducer provides magnetic modulator measurement for direct currents, with an accuracy of 1.0% full scale (FS) and a response time of 250 ms (10-90% step change). Mounting options include DIN rail or panel. This current transducer is Restriction of Hazardous Substances (RoHS) compliant for environmental protection. It is suitable for monitoring direct current (DC) loads.

Specifications
Frequency RangeDC (0 Hz)
Insulation Voltage2,500 VDC
Output Loading2 K ohm minimum*
Operating Temperature0 C to 50 C

* 0-300 ohms maximum for 4-20 mADC output models

Current transducers are used to detect electrical current flowing in a wire or cable, and to generate an electrical signal proportional to the current for measurement or control. The transducer consists of an electrical winding, a magnetic core, and a signal conditioner. When current flows through a wire, the transducer winding generates a current, which produces a magnetic field in the core, which then creates a proportional current or voltage output signal. Current transducers are used in industrial automation systems for monitoring, alarming, and equipment control.

CR Magnetics manufactures electrical sensors, indicators, and displays. The company, founded in 2004, is headquartered in Saint Louis, MO.
