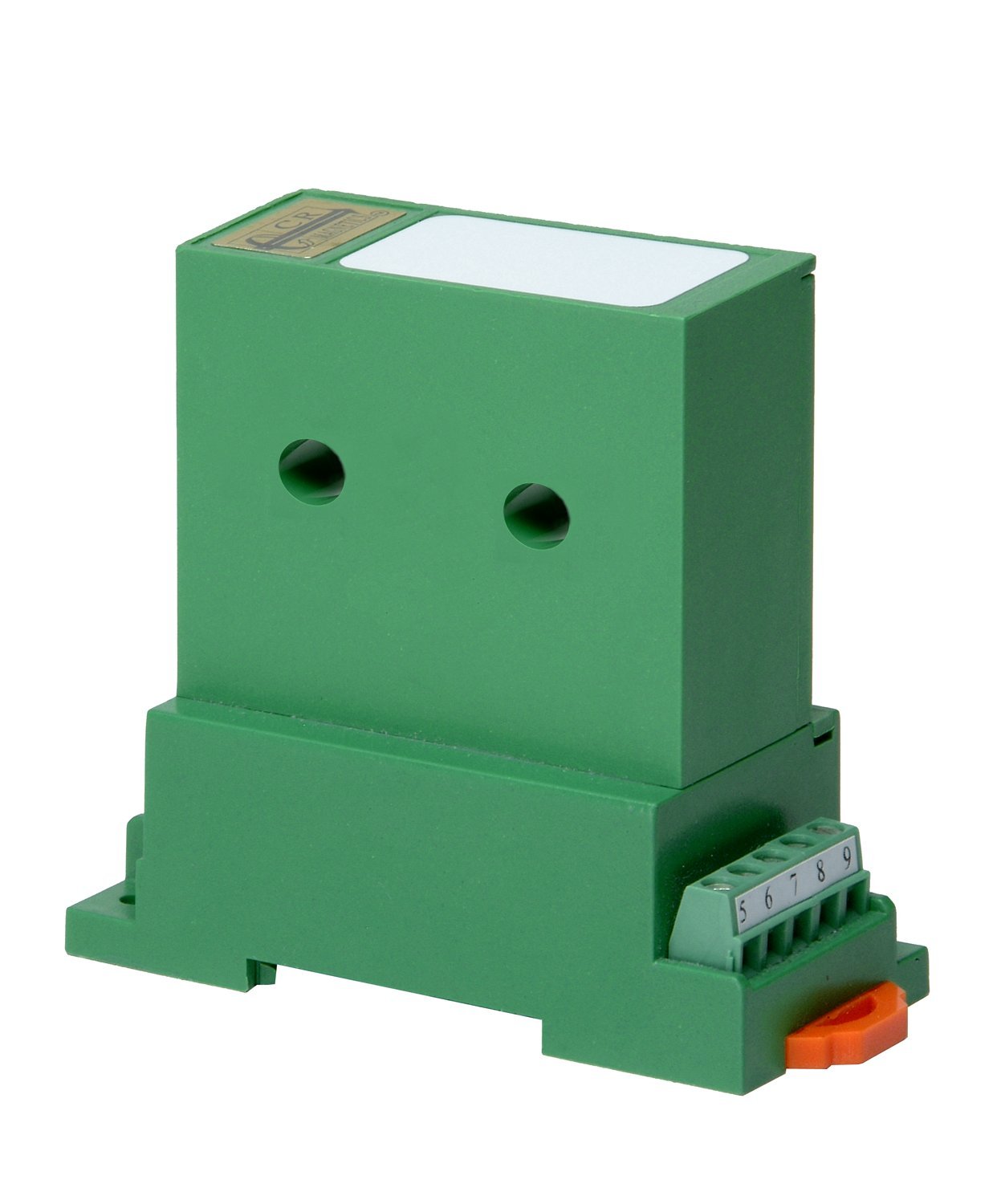

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

CR Magnetics Loop-Powered AC Current Transmitter with 2 Element, 20 - 5 KHz, 0 - 300 Load, 2500 VDC, 4 - 20 mADC Output Range

Be the first to review this item

Product Specifications
UNSPSC Code
41112112
Brand Name
CR Magnetics

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 2 hrs 19 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-4 of 4
0-10 AAC Input Range B005CWKEYS Temporarily out of stock. Order now and we'll deliver when available. $152.92 Buy Options
0-20 AAC Input Range B005CWKFEM yes $125.57 Buy Options
0-30 AAC Input Range B005CWKFQU yes $150.69 Buy Options
0-5 AAC Input Range B005CWKGAK yes $150.69 Buy Options

Key Features

  • Average RMS measurement for sinusoidal alternating current waveforms
  • 0.5% FS accuracy
  • Response time of 250 ms (10-90% step change)
  • Two-element core for measurement of two-phase power
  • UL Recognized and CE certified for quality assurance

Product Description

This CR Magnetics CR4260 series current transducer combines two solid-core current transformers and signal conditioner, and is suitable for use in industrial automation systems. The transducer provides average root-mean-square (RMS) measurement for sinusoidal alternating current waveforms, with an accuracy of 0.5% full scale (FS) and a response time of 250 ms (10-90% step change). A two-element core allows for measurement of two-phase power. This current transducer is Underwriters Laboratories (UR) Recognized and Conformité Européenne (CE) certified for quality assurance. It is suitable for monitoring linear, constant-speed alternating current (AC) loads that produce sinusoidal waveforms.

Specifications
Signal Output4-20 mADC
Frequency Range20-5,000 Hz
Insulation Voltage2,500 VDC
Output Loading300 ohm maximum
Operating Temperature0 C to 60 C

CR Magnetics manufactures electrical sensors, indicators, and displays. The company, founded in 2004, is headquartered in Saint Louis, MO.
