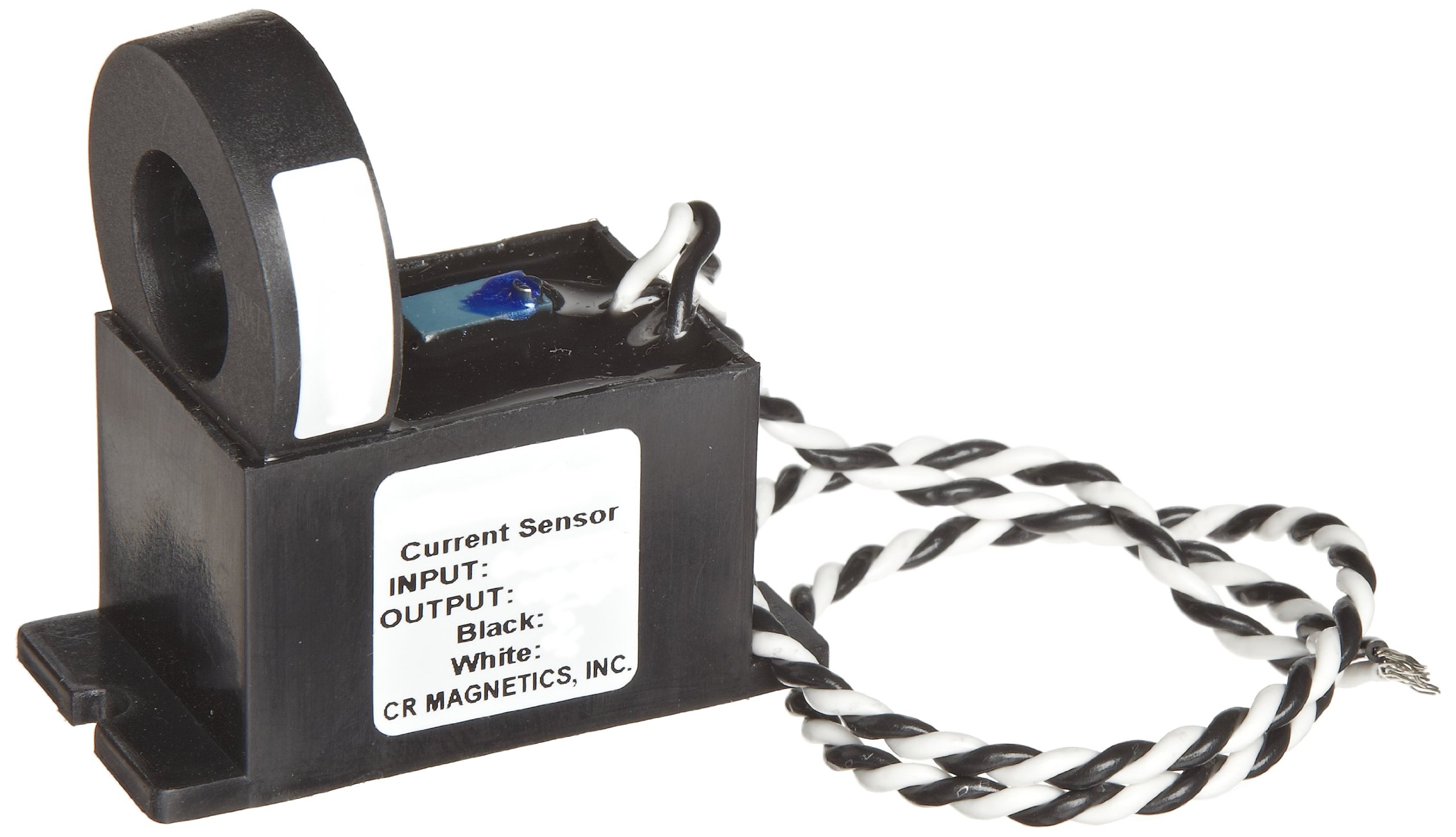

CR Magnetics CR9550-10-M Current Sensor with Mounting Case, 10 AC, +/-0.5% Accuracy, 50 - 400 Hz Frequency

Be the first to review this item

ASIN B005CWOMPU

Specifications for this item
Number of Items
1
Current Type
AC
Part Number
CR9550-10-M
Brand Name
CR Magnetics
Size Name
10
Power Source Type
N/A
UNSPSC Code
41111928

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 3? Order in-stock items in the next 10 hrs 40 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Applications: OEM current sensing, home automation, monitor motor operation
  • Electrical isolation between circuits, output relay rated up to 20 Amps
  • LED trip status indicator, dead band prevents relay chatter
  • Calibrated dial option available, external current transformers available
  • Applications: monitor electrical heater elements, sense motor over/under loads, detect lamp burn-out, indicate phase loss
  • Variable trip point and time delay, monitors currents from 10 mA to 60 AC amps

Package Details

Shipping Weight: 0.15 pounds
Package Size: 2.6 x 2.5 x 1.2 inches

Product Description

The CR9550 Series Current Sensors provides a cost effective method for monitoring electrical current. The sensor generates a 0-5 VDC signal proportional to the input AC current. The output signal is average sensing, calibrated to RMS. The sensor is used with process control and industrial instrumentation equipment. Especially suited for OEM applications that require a low cost solution for numerous monitoring locations. The DC output can be connected directly to an analog input connection without additional signal conditioning. Care must be taken to ensure the burden impedance of the instrumentation is greater than 1.0 megohm. The unit will operate with lower burden impedance but at reduced accuracy. Accuracy: +/-0.5 percent full scale (FS). Ripple: 1 percent Max. Signal out: 0-5 VDC. Max. Signal out: 12 VDC. Frequency: 50 to 400 Hz. Insulation class: 600 V. Operating temperature: -30 degree C to + 60 degree C. Storage temperature: -55 degree C to + 85 degree C. Dielectric withstand: 2500 Vrms. Response time: 250 ms. max. 10-90 percent FS. Calibration: Avg. sensing, RMS calibrated. Output load: 1.0 Megohm or greater for rated accuracy.
