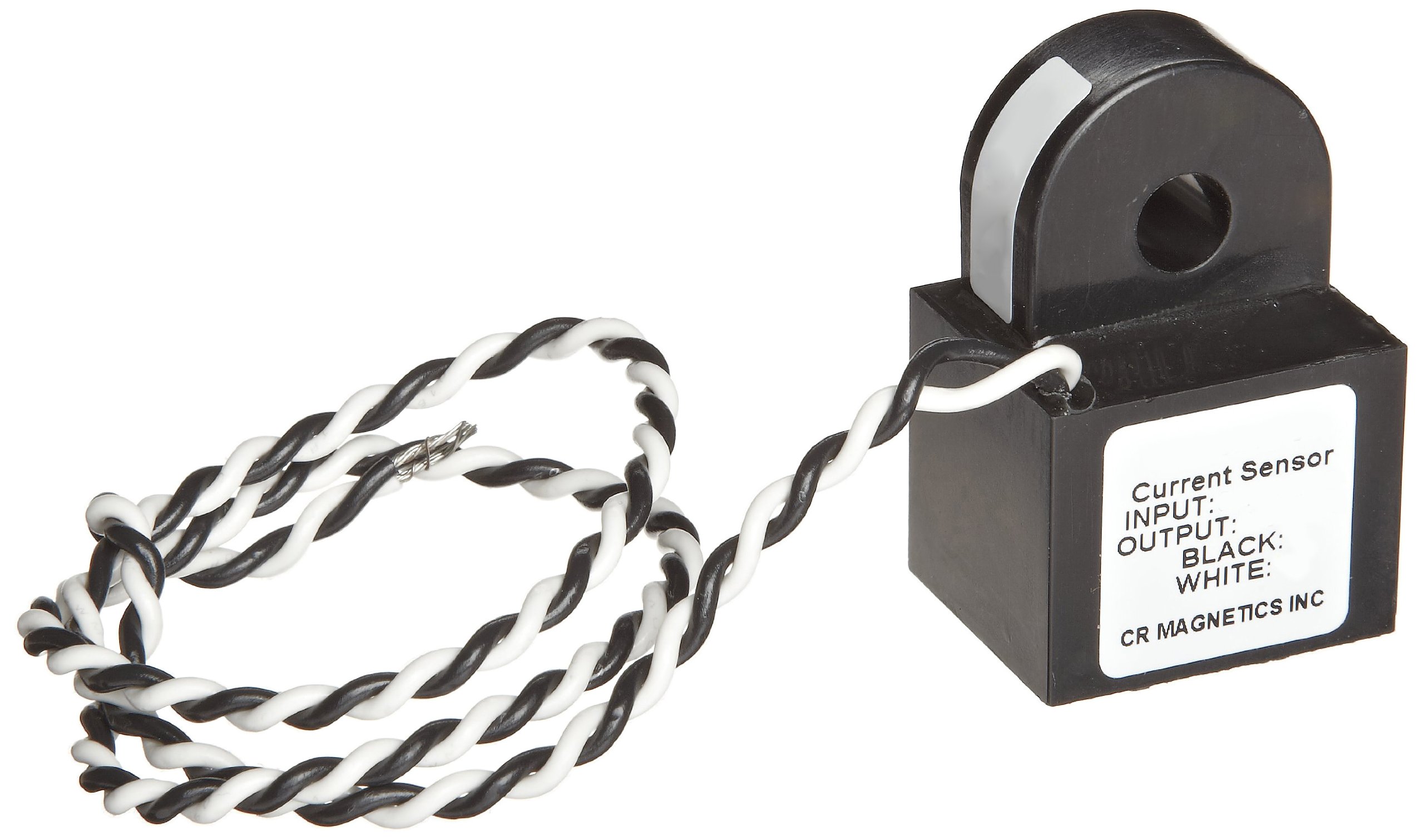

CR Magnetics CR9521-20 Current Sensor, 20 AC, +/-0.5% Accuracy, 50 - 400 Hz Frequency
Be the first to review this item
ASIN B005CWOKU2
Specifications for this item
- Brand Name
- CR Magnetics
- Current Type
- AC
- Input Range
- 20
- Number of Items
- 1
- Part Number
- CR9521-20
- Power Supply
- N/A
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, May 24? Order in-stock items in the next 13 hours 9 minutes and choose One-Day Shipping at checkout.
Key Features
- Applications: OEM current sensing, home automation, monitor motor operation
- Electrical isolation between circuits, output relay rated up to 20 Amps
- LED trip status indicator, dead band prevents relay chatter
- Calibrated dial option available, external current transformers available
- Applications: monitor electrical heater elements, sense motor over/under loads, detect lamp burn-out, indicate phase loss
- Variable trip point and time delay, monitors currents from 10 mA to 60 AC amps
Package Details
Shipping Weight:
0.1 pounds
Package Size:
2.6 x 2.5 x 1.2 inches
Product Description
The CR9521 Series Current Sensors provides a cost effective method for monitoring electrical current. The sensor generates a 0-5 VDC signal proportional to the input AC current. The output signal is average sensing, calibrated to RMS. The sensor is used with process control and industrial instrumentation equipment. Especially suited for OEM applications that require a low cost solution for numerous monitoring locations. The DC output can be connected directly to an analog input connection without additional signal conditioning. Care must be taken to ensure the burden impedance of the instrumentation is greater than 1.0 megohm. The unit will operate with lower burden impedance but at reduced accuracy. Accuracy: +/-0.5 percent full scale (FS). Ripple: 1 percent Max. Signal out: 0-5 VDC. Max. Signal out: 12 VDC. Frequency: 50 to 400 Hz. Insulation class: 600 V. Operating temperature: -30 degree C to + 60 degree C. Storage temperature: -55 degree C to + 85 degree C. Dielectric withstand: 2500 Vrms. Response time: 250 ms. max. 10-90 percent FS. Calibration: Avg. sensing, RMS calibrated. Output load: 1.0 Megohm or greater for rated accuracy.
