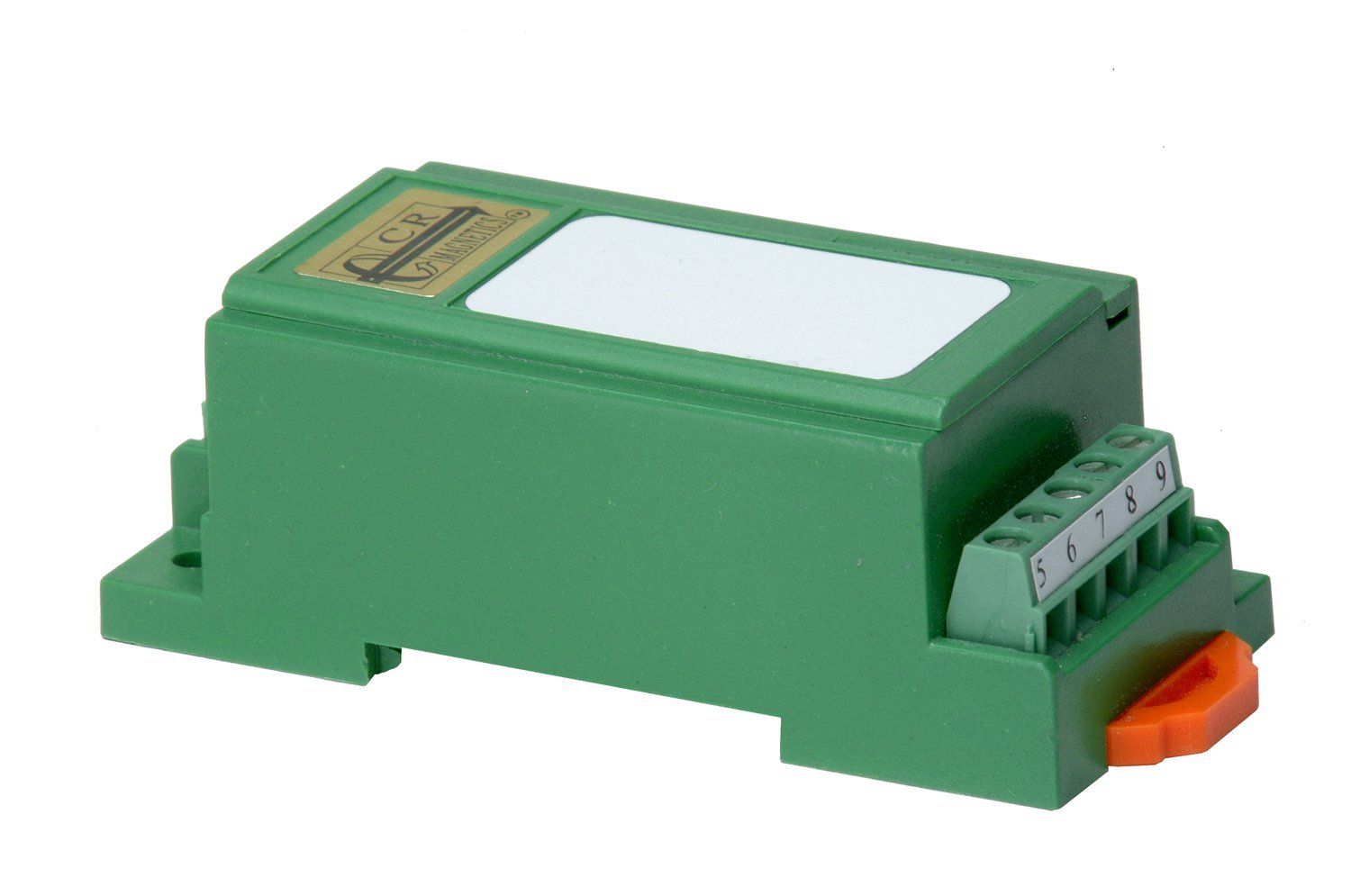

CR Magnetics CR5311-50 DC Voltage Transducer with Single Element, DC, >=2K Output Load, 24 VDC +/-10%, 0-50 VDC Input Range, +/-10 VDC Output Range

Be the first to review this item

ASIN B005CWMD7O

Specifications for this item
Number of Items
1
Part Number
CR5311-50
Brand Name
CR Magnetics
Size Name
0-50 VDC Input Range
UNSPSC Code
41112100

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 3? Order in-stock items in the next 17 hrs and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Outputs isolated from inputs
  • Electrical isolation between circuits, output relay rated up to 20 Amps
  • LED trip status indicator, dead band prevents relay chatter
  • Calibrated dial option available, external current transformers available
  • Applications: monitor electrical heater elements, sense motor over/under loads, detect lamp burn-out, indicate phase loss
  • Variable trip point and time delay, monitors currents from 10 mA to 60 AC amps

Package Details

Shipping Weight: 0.1 pounds
Package Size: 4.2 x 4 x 1.8 inches

Product Description

The CR5300 Series, DC Voltage Transducers and Transmitters, are designed to provide an output DC signal that is proportional to the input DC voltage. These devices are focused to provide an easy solution to DC voltage instrumentation needs. Response time: 250 ms, Operating temperature: 0 degree C to +50 degree C, MTBF: Greater than 100 K hours, Insulation voltage: 2500 VDC, Supply voltage: 24 VDC, Frequency Range: DC, Thermal drift: 200 PPM/ degree C, 4-20 mA DC - 0-300 ohm, 0-5 VDC - 2 K ohm or Greater, Output load: Basic Accuracy: 0.5 percent, Calibration: RMS Calibrated.
