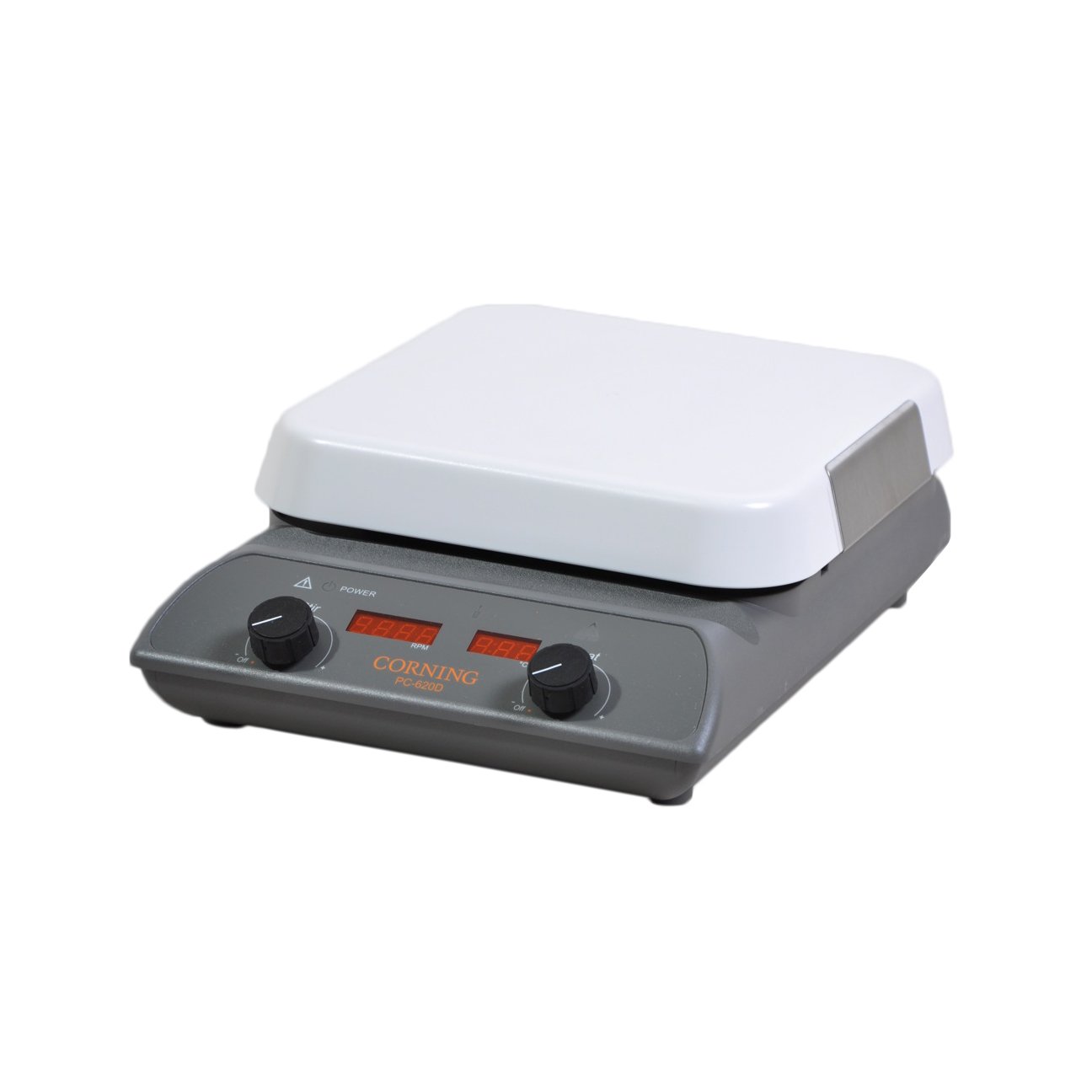

Corning 6797-620D PC-620D Digital Stirring Hot Plate with 10" x 10" Pyroceram Top Plate, 5 to 550 Degrees C, 100V

Be the first to review this item

ASIN B005J0S49A

Specifications for this item
Number of Items
1
Overall Height
15.37  inches
Overall Width
11  inches
Material Type
Pyroceram Glass-Ceramic
Part Number
6797-620D
Temperature Range
+5/550  Degrees Celsius
Item Weight
24.69 pounds
Brand Name
Corning
Size Name
Stir Range 60 To 1150 RPM, Temperature Range 5°C To 550°C, Dimensions (L x W x H) 4.62 x 11 x 15.37 Inches, 11.2kg Weight
Upper Temperature Range
550  Degrees Celsius
Maximum Stirring Speed
1150  RPM
UNSPSC Code
41102406
Overall Length
4.62  inches
LowerTemperature Range
5  Degrees Celsius

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 13 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Temperature range of ambient to 550 degrees C is adjustable in 5-degree increments
  • White glass-ceramic top plate for fast heating and resistance to chemicals and scratches
  • Dual LED readouts display temperature and speed settings
  • Speed range of 60 to 1,150 rpm in increments of 5, 10, 20, or 50 rpm
  • 100V with standard US three-prong plug for use in Japan

Package Details

Shipping Weight: 15 pounds
Package Size: 17.2 x 12.9 x 8.3 inches

Product Description

The Corning 6797-620D PC-620D 100V digital stirring hot plate has a temperature range of ambient to 550 degrees C, a 10 x 10 inch white glass-ceramic top plate, and dual LED readouts. The white glass-ceramic top plate (Pyroceram) provides fast heating and resistance to chemicals and scratches. It has dual LED readouts to display temperature and speed settings. Its temperature control knob adjusts temperature in 5-degree increments. This hot plate has a stirring speed range of 60 to 1,150 rpm in increments of 5, 10, 20, or 50 rpm, depending on the speed setting, and it regulates the stirring speed for aqueous, viscous, or semi-solid solutions. Stirring control slowly increases speed for improved safety and enhanced coupling with the stir bar (sold separately). For safety, a hot top light indicates when the unit is over 60 degrees C, even when the power is off. It can hold a support rod (sold separately) for holding an external temperature controller (sold separately). This 100V stirring hot plate comes with a standard US three-prong plug for use in Japan and areas with similar electrical requirements. It is used to heat glassware and heat and mix liquid solutions for scientific applications.

Specifications
Top plate materialGlass-ceramic
Temperature rangeAmbient +5 to 550 degrees C
Speed range60 to 1,150 rpm
Speed settability5 rpm at 60 to 100 rpm; 10 rpm at 100 to 200 rpm; 20 rpm at 200 to 400 rpm; 50 rpm at 400 to 1,150 rpm
Power100V/60Hz
Weight5.2kg
Top plate dimensions10 x 10 inches (25.4cm x 25.4cm) (W x D)
Overall Dimensions4.625 x 11 x 15.375 inches (11.75cm x 28cm x 39.05cm) (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Laboratory hot plates are electric or gas-fired benchtop appliances that are used to heat glassware or its liquid or solid contents. Stirring hot plates can stir a liquid solution by means of a stir bar that is spun magnetically inside the vessel holding the solution. Hot plates are commonly used in scientific research, clinics, and classrooms.

Corning manufactures consumable glass, ceramics, and plastic laboratory tools under the brands Corning, Costar, Cellgro, Pyrex, Axygen, Gosselin, and Lambda, among others. The company, founded in 1908, is headquartered in New York, NY.

What's in the Box?

  • PC-620D stirring hot plate
  • Instructions
