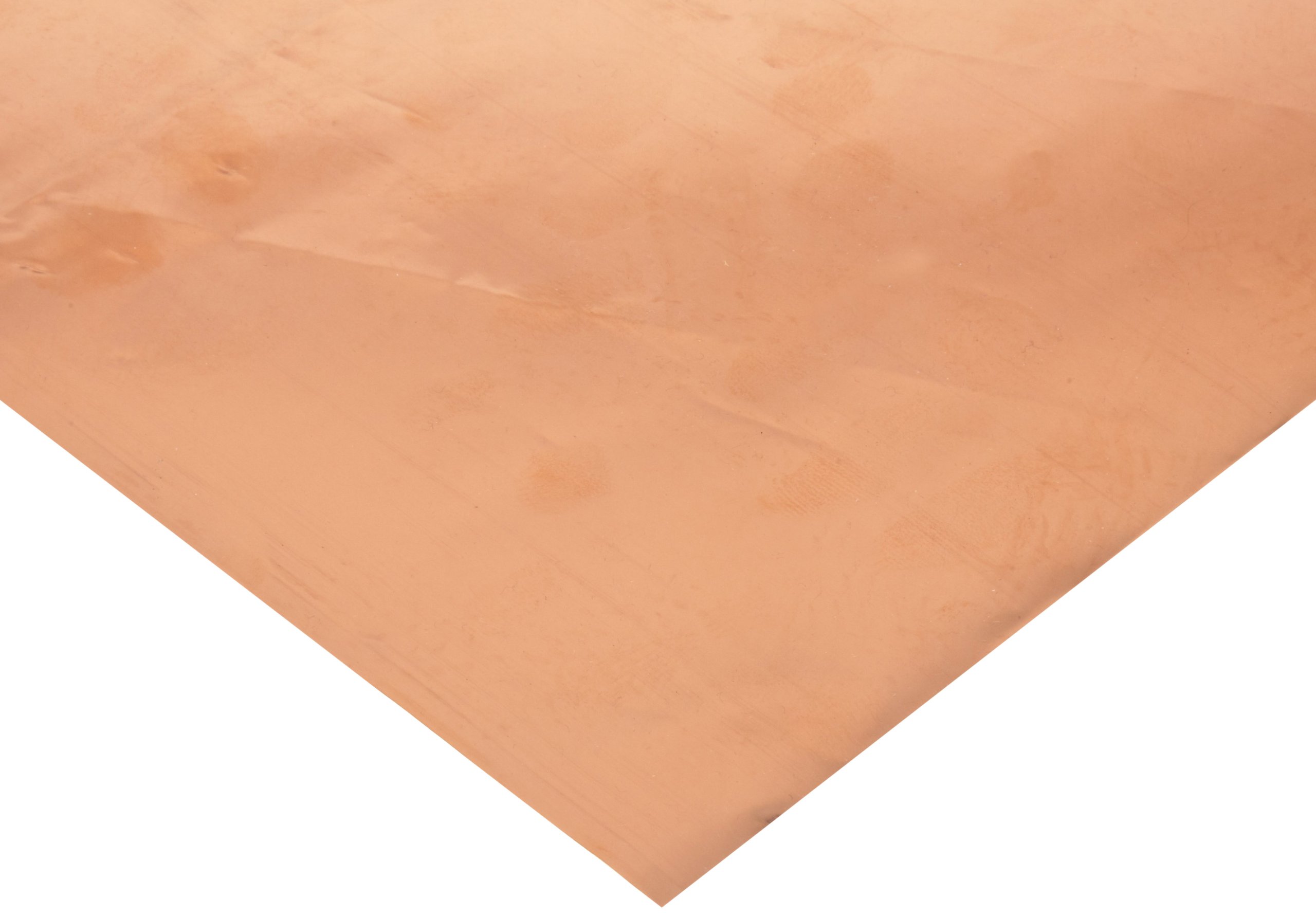

110 Copper Sheet, Unpolished (Mill) Finish, Soft Temper, Standard Tolerance, Inch, ASTM B152

Be the first to review this item

Product Specifications
Finish
Unpolished (Mill)
Item Shape
Sheet
Specification Met
ASTM B152
Temper
Soft
Material Composition
Solid
Grade
110
Material Type
Copper
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 1 day 1 hr 11 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Thickness Width Overall Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-6 of 6
0.005" 12" 12" 1 B000H9TKRI 19 $10.92 Buy Options
0.005" 12" 24" 1 B000H9TKRS 6 $12.49 Buy Options
0.005" 12" 36" 1 B000H9TKS2 2 $16.90 Buy Options
0.005" 12" 48" 1 B000H9VD5A 1 $21.61 Buy Options
0.005" 12" 60" 1 B000H9TKSW 2 $29.83 Buy Options
0.005" 12" 72" 1 B000H9VD64 2 $30.64 Buy Options

Key Features

  • 110 copper has high conductivity and formability
  • Meets ASTM B152 specifications
  • Unpolished (mill) surface has no finish
  • Soft temper is soft annealed
  • Standard tolerance

Product Description

The 110 copper sheet with soft temper is unpolished, meets American Society for Testing and Materials International ASTM B152 specifications, and has a standard tolerance. The 110 copper alloy is 99.9% pure copper and has high conductivity and formability. The material has a soft temper, meaning it has been soft annealed.

Copper, brass, and bronze are known as red metals because they contain copper, which has a reddish color. Copper, a term that applies to alloys containing at least 99.3% copper, offers very high thermal and electrical conductivity and provides corrosion resistance, formability, and machinability. Brass is an alloy of copper and varying levels of zinc, sometimes with additional elements. It provides greater strength and better machinability than copper or bronze. Bronze is commonly an alloy of copper and tin, but sometimes it is copper alloyed with other elements such as aluminum, phosphorus, manganese, or silicon. Tin gives bronze more corrosion resistance than brass and greater strength than copper. Copper and its alloys have temper designations, meaning the material has undergone a process to achieve certain properties of strength and hardness.

Tensile strength, used to indicate the material's overall strength, is the peak stress it can withstand before it breaks. Corrosion resistance describes the material's ability to prevent deterioration caused by atmosphere, moisture, or other medium. Wear resistance indicates the ability to prevent surface damage caused by contact with other surfaces. Hardness (commonly measured as indentation hardness) describes its resistance to permanent surface deformation. Formability indicates how easily the material can be permanently shaped. Machinability describes how easily it can be cut, shaped, finished, or otherwise machined, while weldability characterizes the ability to be welded.
