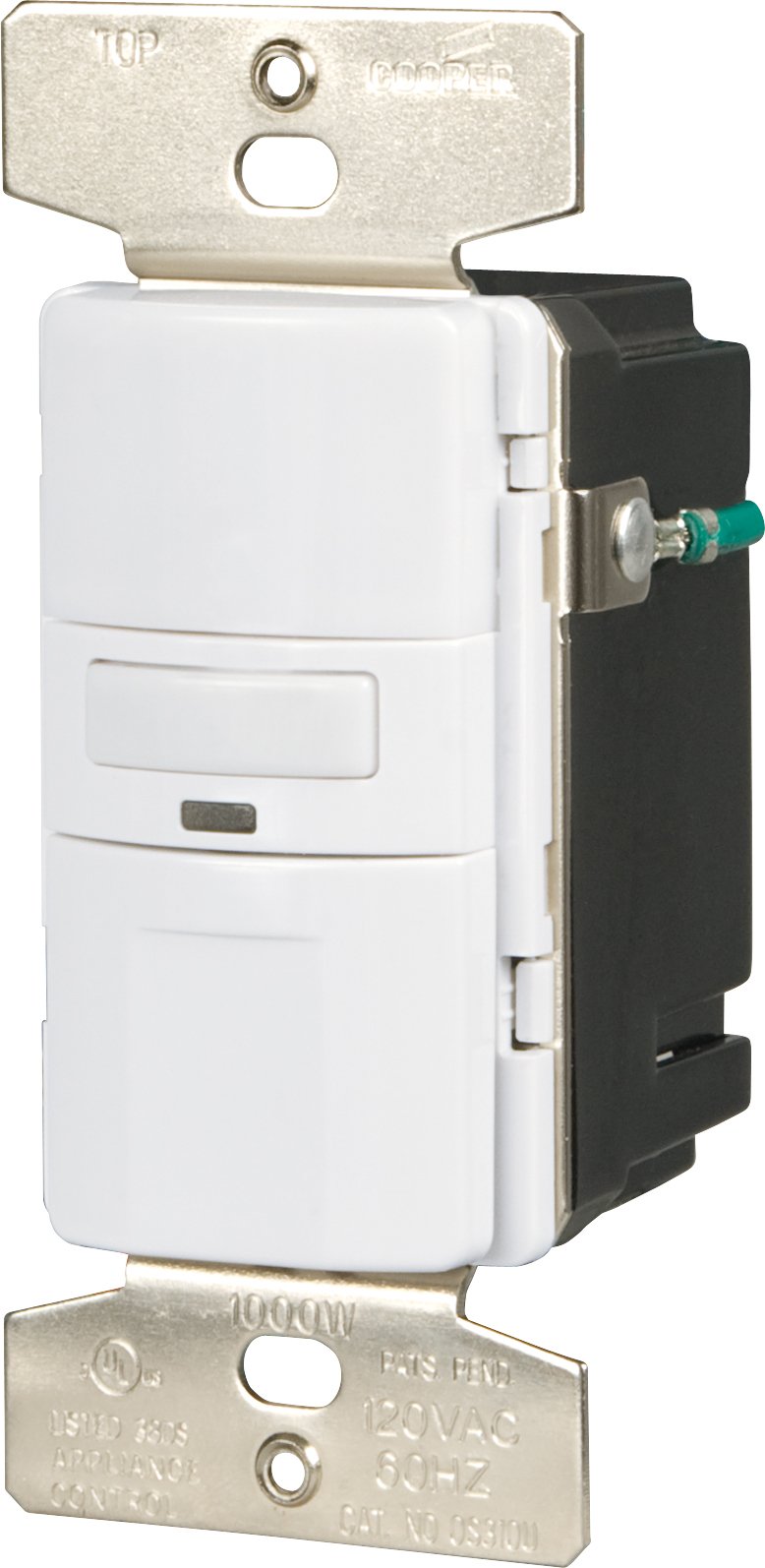

Cooper Wiring Devices OS310U-W-K Motion-Activated Occupancy Sensor Wall Switch, White

Be the first to review this item

ASIN B004R1PL3O

Specifications for this item
Number of Items
1
Color Name
White
Part Number
OS310U-W-K
Item Weight
0.4 pounds
UPC
032664710322 , 032664710872
Brand Name
Cooper Wiring Devices
EAN
0032664710872 , 0032664710322
Warranty
Cooper Wiring Devices warrants our products against defects in material or workmanship under normal operating conditions during their initial installation for period of 2 years. Cooper Wiring Devices will replace or repair the item provided that it has not been altered or subjected to abuse, accident, improper installation or improper use, and is returned prepaid to Cooper Wiring Devices Quality Assurance Department at the address shown below. If the product has been discontinued and replacement is deemed necessary by Cooper, replacement will be made with the nearest available equivalent model. This warranty does not cover consumables (such as fuses). Proof of purchase in the form of a bill of sale or receipted invoice that shows that the item is within the applicable warranty period must be presented to obtain the repair or replacement provided by the warranty.
UNSPSC Code
39122200

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 22 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Single Pole or 3-Way (control one light from two locations)
  • Works with all popular load types: Incandescent, Magnetic Low-Voltage, Electronic Low-Voltage, Fluorescent, Compact Fluorescent (CFL) and LED
  • Occupancy Sensor provides a selectable ambient light override preventing lights from switching ON when there is acceptable natural light
  • Provides 180 Degree field of view and 1000 square feet of major motion coverage
  • Fits in standard wall box; replaces standard switch for light control

Package Details

Shipping Weight: 0.4 pounds
Package Size: 6 x 4.5 x 3 inches

Product Description

From the Manufacturer

Cooper Wiring Devices OS310U Motion-Activated Occupancy Sensor Wall Switch: Can be wired as a Single-Pole or 3-Way device. Selectable ON/OFF LED nightlight with press and hold dimming function. Works with all popular load types: Incandescent, Magnetic Low-Voltage, Electronic Low-Voltage, Fluorescent, Compact Fluorescent (CFL) and LED. Green LED indicates load status, provides locator light in dark and blinks to indicate motion detection. Push pad design provides minimal travel and crisp actuation. Replaces a standard light or fan switch. Provides 180 Degree field of view and 1000 square feet of major motion coverage. Provides 3-Way operation when used with a 3-Way switch or sensor. Selectable time delay of 5 seconds (test), 5 minutes, 15 minutes and 30 minutes for lights to remain on after room is vacated. Walk-in-Delay feature allows sensor to turn lights off without time delay when motion is detected briefly in room. Occupancy Sensors time delay default set to 5 minutes; Vacancy Sensors time delay default set to 30 minutes. Occupancy Sensor provides a selectable ambient light override preventing lights from switching ON when there is acceptable natural light. Occupancy Sensor Version allows to toggle between Auto-ON/Auto-OFF or Manual ON/Auto-OFF mode with a simple press and hold of switch. Occupancy Sensor provides for a bypass feature to allow the sensor to perform as a traditional switch (Manual ON/Manual OFF). Electrostatic discharge protection. No leakage to load in off mode. Uniform color matched PIR lens to device housing Color change faceplate kits provide for a simple in field change. Mid-Size decorator wall plate included with product. Neutral required for installation of device.
