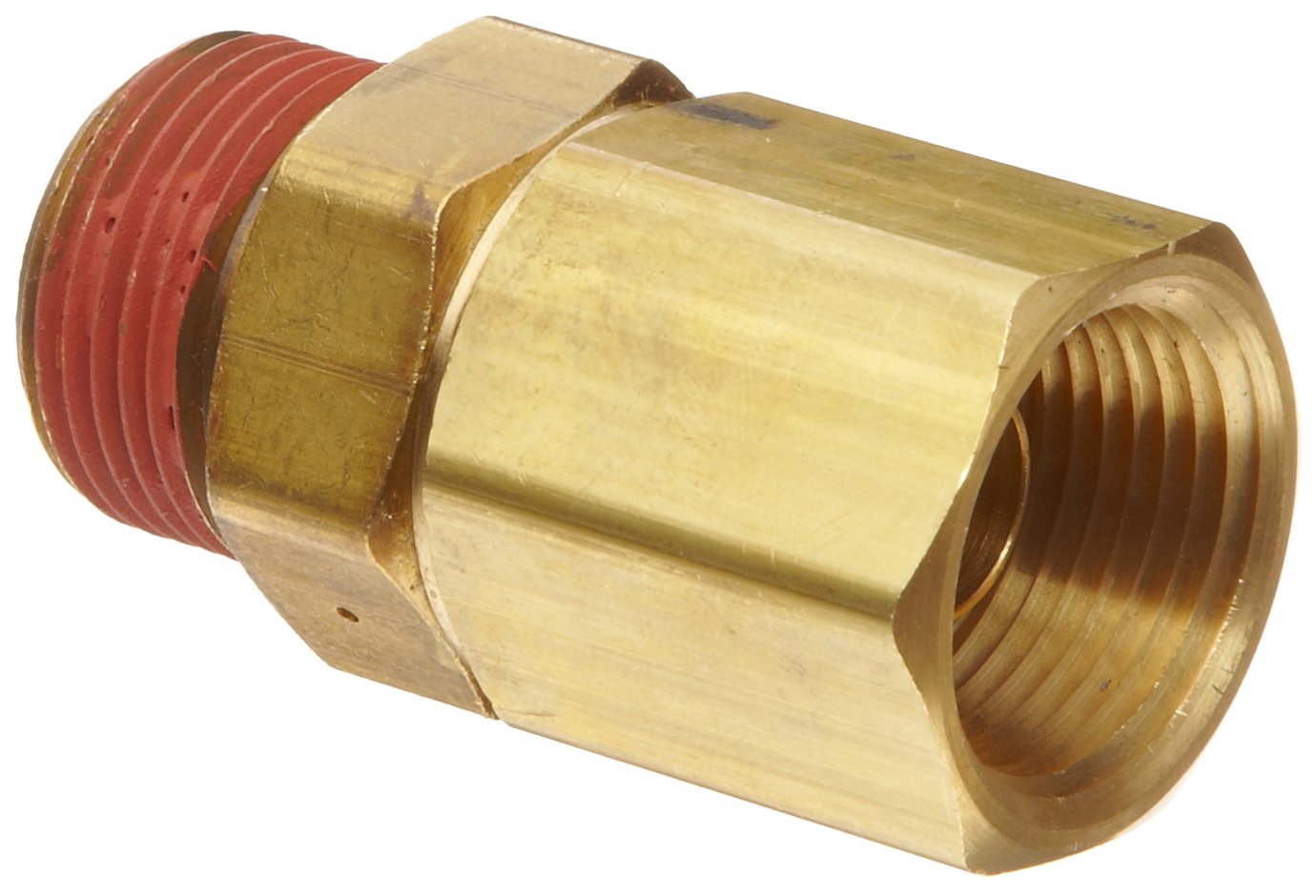

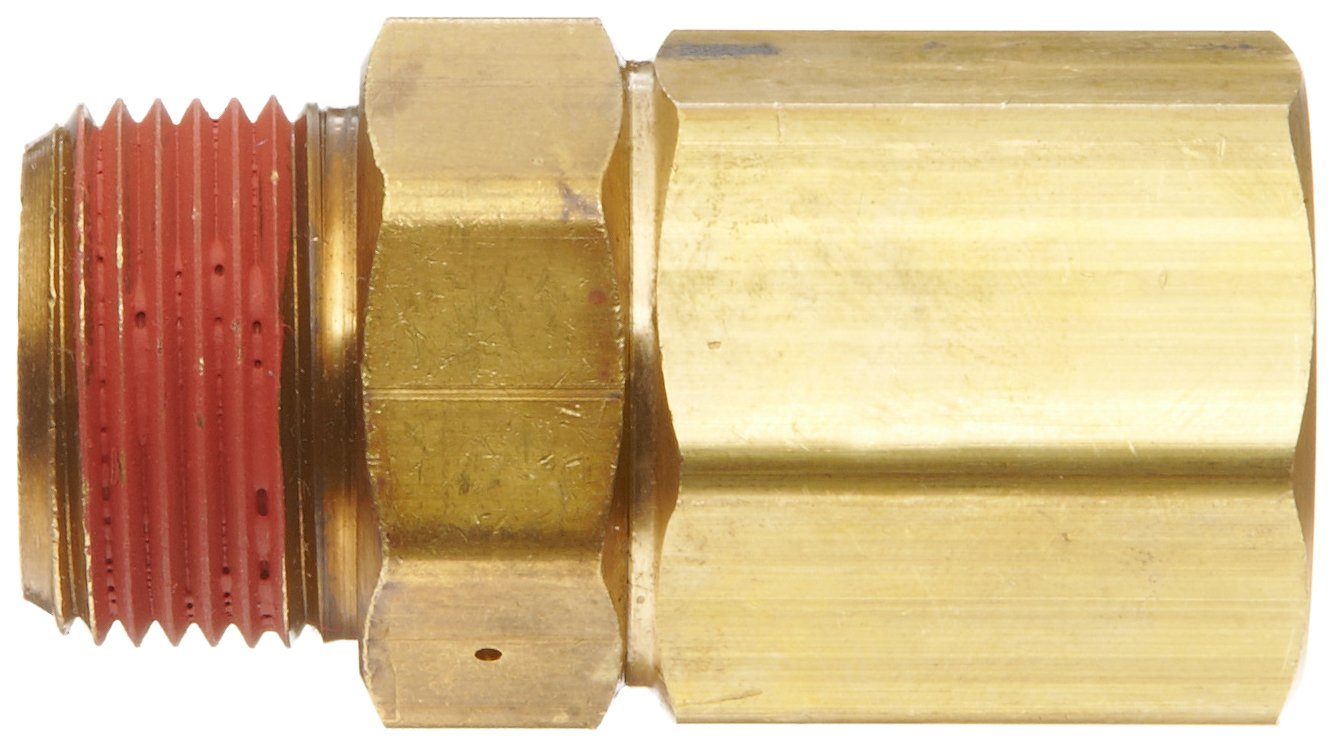

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Control Devices Brass Load Genie Unloading Check Valve, NPT Female x NPT Male

Be the first to review this item

Product Specifications
Upper Temperature Range
400  Degrees Fahrenheit
Material Type
Brass
Maximum Pressure
250  PSI
Style Name
Threaded
Connector Type
NPT Female x NPT Male
UNSPSC Code
40141600
Brand Name
Control Devices
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Nov 28? Order in-stock items in the next 6 hrs 34 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Item length string Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-4 of 4
1-13/16 inches PA12-1A B007GDXZQA yes $15.36 Buy Options
1-3/4 inches PA6-1A B007GDXYOI yes $13.80 Buy Options
2-1/4 inches PA24-1A B007GDY0LE yes $31.57 Buy Options
2-3/8 inches PA48-1A B007GDY25S yes $32.71 Buy Options

Key Features

  • Unloading check valve releases trapped pressure in a compressor head
  • Made from brass for higher corrosion resistance than steel
  • Male and female NPT threads for connecting to a female and a male threaded pipe or fitting
  • Maximum pressure rating of 250 psi
  • Maximum working temperature of 400 degrees Fahrenheit

Product Description

The Control Devices Load Genie unloading check valve releases trapped pressure in a compressor head. The valve body is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. Brass can be connected to copper, brass, plastic, aluminum, and welded steel. It has male NPT threads on one end and female NPT threads on the other for connecting to a female and a male threaded pipe or fitting. The NPT threads create a tighter seal than straight threads. The maximum pressure rating is 250 pounds per square inch (psi), and the maximum working temperature is 400 degrees Fahrenheit.

Check valves have two ports and restrict the flow of fluids and other loose materials through a pipe or passageway to one direction. Flow enters through one port and exits through the other, closing when flow reverses or stops. Two common types of check valves are ball cone valves and swing check valves. A ball cone valve utilizes a spring-loaded ball seated against a cone-shaped interior surface to stop the flow of fluid in a forward direction, and a swing check valve has a movable disc on a hinge to block reverse flow. Check valves are rated by their cracking pressure (the minimum upstream pressure required for the valve to operate), and they are used in various water, gas, air, and steam lines.

Control Devices manufactures specialty valves, nozzles, and condensate traps. The company, founded in 1963 and headquartered in Fenton, MI, meets ASME standards.
