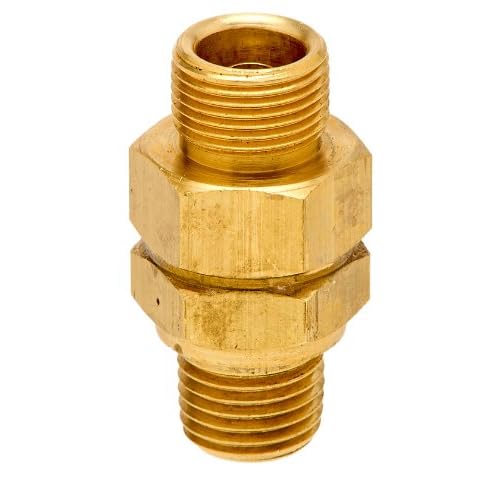

Control Devices Brass Load Genie Unloading Check Valve, 3/4" Tube Comp. x NPT Male

Be the first to review this item


Specifications for this item
Overall Height
1-3/16  inches
Part Number
Brand Name
Control Devices
Maximum Flow Rate
48  Cubic Feet Per Minute
Style Name
Number of Items
Material Type
Maximum Steam Pressure Description
Not Rated
Size Name
Upper Temperature Range
400  Degrees Fahrenheit
Maximum Pressure
250  PSI
Connector Type
Compression x NPT Male
System of Measurement
Overall Length
2-3/16  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 20? Order in-stock items in the next 11 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Package Details

Shipping Weight: 0.4 pounds
Package Size: 3.2 x 1.4 x 0.8 inches

Product Description

A compressor running in a "start-stop" mode operates more efficiently if the pressure trapped in the compressor head and discharge line is released after each pump-up cycle. This allows smoother starts and the use of a motor with lower starting torque. The most convenient way to release this trapped pressure is to use a Load Genie combination check and unloader valve, available only from Contol Devices. Simply install this unique valve in the compressor discharge line, and the Load Genie does the rest! The Load Genie senses air flow when the compressor is running and closes an unloading orifice port. when airflow stops (such as when the pressure switch turn off the motor), the Load Genie opens the unloading orifice to release head pressure, and a built-in check valve keeps receiver air from leaking back into the discharge line and compressor head. Alterniative methods rely on external unloading valves mounted on the pressure switch or compressor. These external unloading valves are connected with appropriate tubing and fittings to the compressor discharge line or compressor head. A tank check valve is also required. These systms, then, consist of the unloading valve, connecing tubing with appropriate fittings, a thank check valve, and the labor to install it all. Compare this to the single compnenet installation of a Load Genie, and the advantages are apparent.
