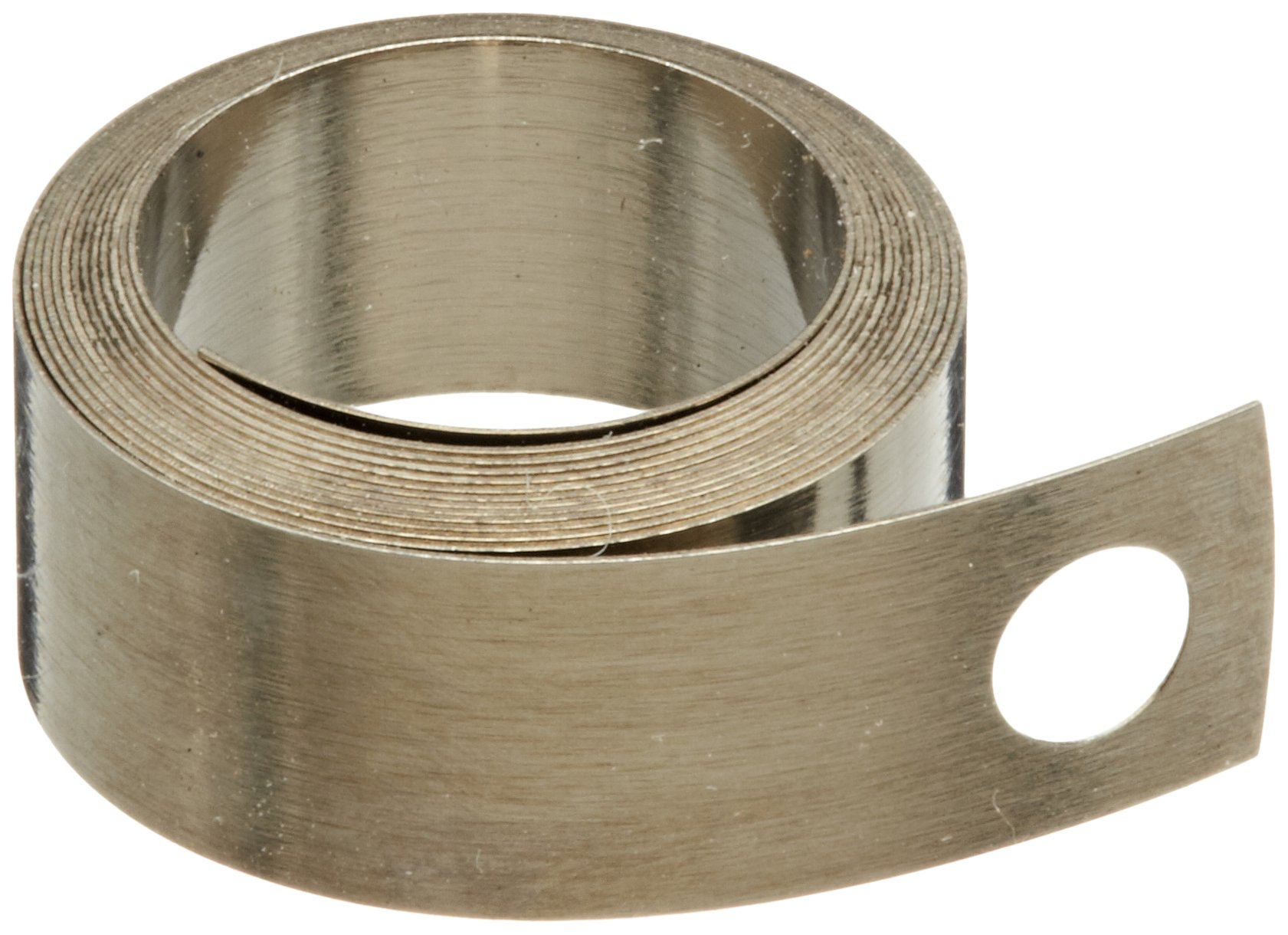

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

Constant Force Spring, 301 Stainless Steel, Inch, 2500 Cycle Life, 24" Extended Length, 0.375" Width, 0.45" ID, 0.54" OD, 0.13" End Hole Diameter, 1.48lbs/in Load Capacity (Pack of 5)

(1 customer review)

ASIN B0085ZX95K

Product Specifications
Part Number
CF024-0148
Inside Diameter
0.45  inches
Extended Length
24  inches
Extended Length
24  inches
Inside Diameter
0.45  inches
Load Capacity
1.48  pounds
Outside Diameter
0.54  inches
Outside Diameter
0.54  inches
Pkg Qty
5
Width
0.375  inches
Specification for this product family (See all  products)
Specification Met
2500 Cycle Life
Grade
301
Material Type
Stainless Steel
UNSPSC Code
31161900
Brand Name
Small Parts
Size Name
Inch, 2500"
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Dec 24? Order in-stock items in the next 21 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Type 301 Stainless Steel
  • Plain Finish

Package Details

Shipping Weight: 0.05 pounds
Package Size: 7.3 x 4.9 x 0.5 inches

Product Description

Constant-force springs are a special variety of extension springs. They consist of a spiral of strip material with built-in curvature so that each turn of the strip wraps tightly on its inner neighbor. The strip can then be extended, with the inherent stress resisting the loading force, but at a nearly constant rate. In a typical application, the spring is mounted on a drum, and the free end attached to a loading force, such as in a counterbalance application. Or, the relationship can be reversed. These springs can be used in tandem or back-to-back to multiply the load capacity.
