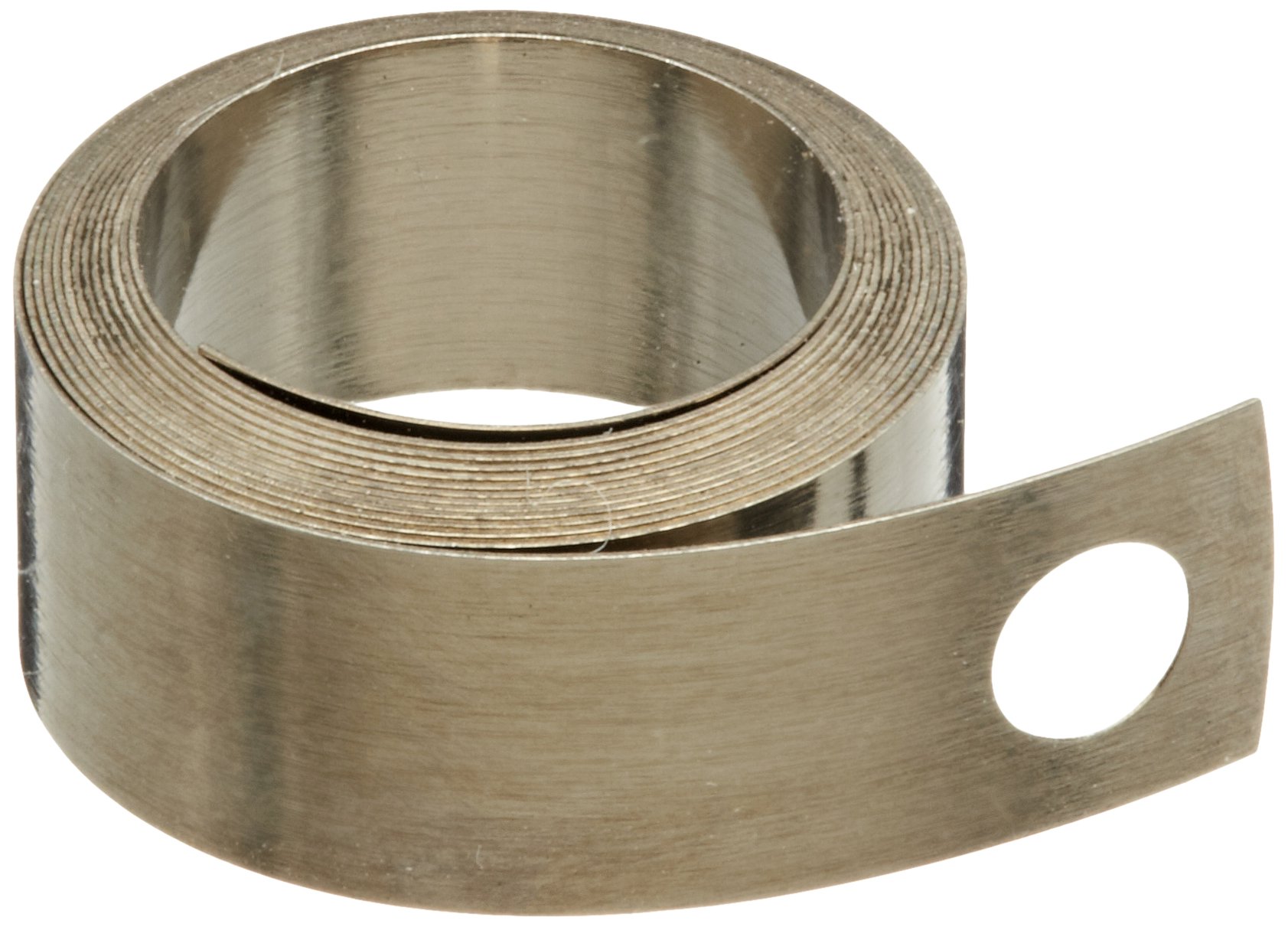

Constant Force Spring, 301 Stainless Steel, Inch, 2500 Cycle Life, 15" Extended Length, 0.187" Width, 0.29" ID, 0.34" OD, 0.13" End Hole Diameter, 0.49lbs/in Load Capacity (Pack of 5)

(1 customer review)


Product Specifications
Extended Length
15  inches
Inside Diameter
0.29  inches
Load Capacity
0.49  pounds
Number of Items
Outside Diameter
0.34  inches
Outside Diameter
0.29  inches
Overall Length
15  inches
Overall Width
0.187  inches
Part Number
Wire Diameter
0.34  inches
Specification for this product family (See all  products)
Specification Met
2500 Cycle Life
Material Type
Stainless Steel
Brand Name
Small Parts
Size Name
Inch, 2500"
System of Measurement

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 1 day 19 hrs 2 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Type 301 Stainless Steel
  • Plain Finish

Package Details

Shipping Weight: 0.05 pounds
Package Size: 7.48 x 4.57 x 0.31 inches

Product Description

Constant-force springs are a special variety of extension springs. They consist of a spiral of strip material with built-in curvature so that each turn of the strip wraps tightly on its inner neighbor. The strip can then be extended, with the inherent stress resisting the loading force, but at a nearly constant rate. In a typical application, the spring is mounted on a drum, and the free end attached to a loading force, such as in a counterbalance application. Or, the relationship can be reversed. These springs can be used in tandem or back-to-back to multiply the load capacity.
