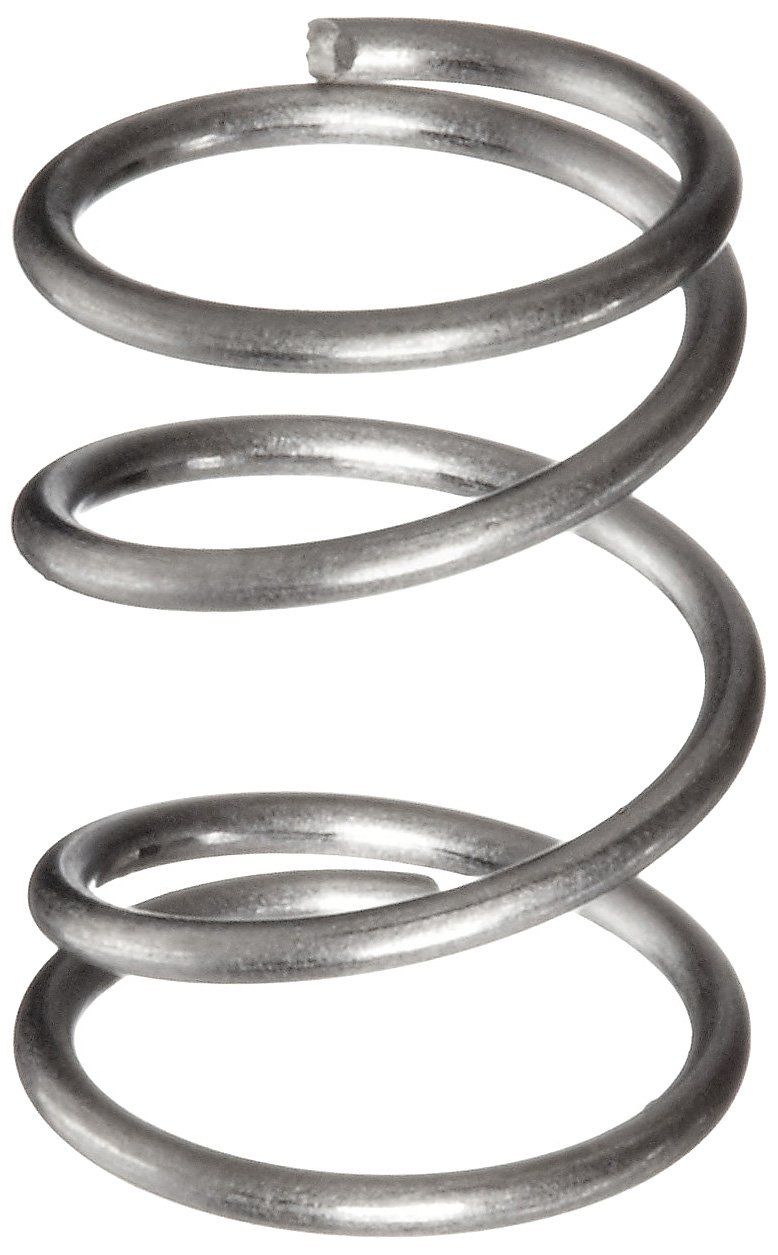

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Compression Spring, 316 Stainless Steel, Inch, 0.18" OD, 0.016" Wire Size (Pack of 10)

Be the first to review this item

Product Specifications
Material Type
stainless_steel_316
UNSPSC Code
31161904
System of Measurement
Inch

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-8 of 8
Free Length Wire Size Compressed Length Outside Diameter Small End Outside Diameter Load Capacity Spring Rate Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All All
Currently showing 1-8 of 8
0.44" 0.016" 0.267" 0.18" 0.18" 0.71 lbs 4.1 lbs/in 10 B005KTHN7O yes $14.67 Buy Options
0.5" 0.016" 0.298" 0.18" 0.18" 0.71 lbs 3.5 lbs/in 10 B005KTHOFK yes $14.46 Buy Options
0.62" 0.016" 0.37" 0.18" 0.18" 0.71 lbs 2.8 lbs/in 10 B005KTHQC6 yes $14.80 Buy Options
0.75" 0.016" 0.446" 0.18" 0.18" 0.71 lbs 2.3 lbs/in 10 B005KTHTUA yes $14.80 Buy Options
1" 0.016" 0.614" 0.18" 0.18" 0.71 lbs 1.8 lbs/in 10 B005KTHW2U Usually ships in 2 to 4 weeks $15.07 Buy Options
1.25" 0.016" 0.75" 0.18" 0.18" 0.71 lbs 1.4 lbs/in 10 B005KTHWYI Usually ships in 2 to 4 weeks $15.11 Buy Options
1.38" 0.016" 0.849" 0.18" 0.18" 0.71 lbs 1.3 lbs/in 10 B005KTHY64 Usually ships in 2 to 4 weeks $15.00 Buy Options
1.75" 0.016" 1.042" 0.18" 0.18" 0.71 lbs 1 lbs/in 10 B005KTI1PW Usually ships in 2 to 4 weeks $15.07 Buy Options

Key Features

  • Slightly magnetic stainless steel 316 wire per ASTM A313 (chemical and physical only)
  • Spring ends are closed and ground flat (squared) for efficient force transfer and reduced possibility of tangling
  • Load capacity of 0.71 pound
  • Maximum operating temperature of 570 degrees F (300 degrees C)
  • Plain wire finish passivated per ASTM A967 for excellent resistance to corrosion and oxidation

Product Description

This compression spring is made of stainless steel 316 wire and has an outside diameter (OD) of 0.18 inch and a wire size of 0.016 inch. This stainless steel 316 wire spring meets American Society for Testing and Materials (ASTM) A313 (for chemical and physical only) spring wire specification. The spring ends are closed and ground (squared) for efficient transfer of force, and reduced risk of tangling. This spring has a load capacity of 0.71 pound, and a maximum operating temperature of 570 degrees F (300 degrees C). It has a slightly magnetic plain wire finish for excellent resistance to corrosion and oxidation that is passivated per ASTM A967.

Compression springs are open-coil helical springs that are used to save space and absorb shock in a variety of applications. They absorb the energy of a force acting upon them by becoming shorter, store that energy while compacted, and expand as they release the energy. These springs are either placed over a rod, or fitted inside a hole, and are found in a wide variety of applications ranging from automotive engines and large stamping presses to major appliances and lawn mowers, medical devices, cell phones, electronics, and sensitive instrumentation devices.

How can we improve our Product Description?

Customer Reviews

There are no customer reviews yet.

Be the first to review this item
