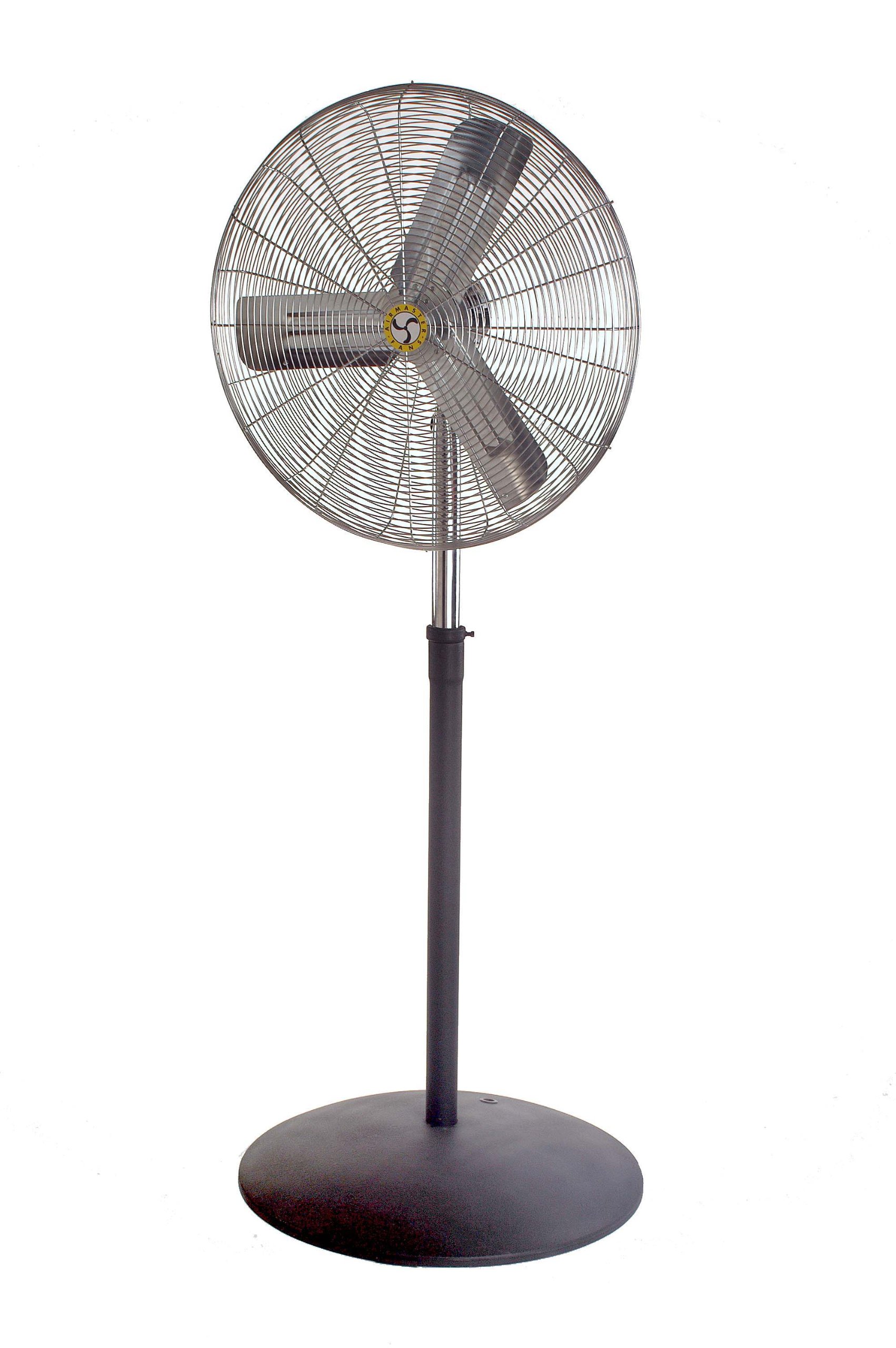

Airmaster 71586 Commercial Air Circulator, 3 Speed, Adjustable Floor Solid Base Mount, 30" Prop Diameter, 115V, 1/4HP Motor

Be the first to review this item

ASIN B002M8I8RA

Specifications for this item
Number of Items
1
External Testing Certification
UL/CUL Listed
Part Number
71586
Item Weight
0 pounds
Outside Diameter
30  inches
UPC
783429715860
Brand Name
Airmaster
Size Name
1100/800/600 RPM
EAN
0783429715860
UNSPSC Code
52141804

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 3-speed 30" circulator fan head with adjustable-height pedestal mount
  • 115V, 3.5 amp, single phase, 1/4 hp, permanently lubricated, totally enclosed ball bearing motor
  • Three speed settings for airflow rates up to 6,100 cubic feet per minute (CFM)
  • Three galvanized steel paddle blades attached to a steel hub and spider assembly for durability
  • UL Listed for quality assurance

Package Details

Shipping Weight: 92 pounds
Package Size: 41 x 33.5 x 9 inches

Product Description

This Airmaster 71586 pedestal-mount circulator has a 30" blade diameter, includes an adjustable-height pedestal mount, and is suitable for providing directed air circulation. It has a 3-speed, 115V, 3.5 amp, single phase, 1/4 hp, permanently lubricated, totally enclosed ball bearing motor and a 15' three-conductor cord with a three-prong plug for connecting to grounded electric outlets. The enclosure, guards, and mount are galvanized steel for corrosion resistance. The blade assembly, consisting of a hub and spider, holds the fan head's three paddles, which are enclosed by front and rear wire guards for safety. The pedestal mount can be positioned horizontally or vertically for precise direction of air flow. The motor of the workstation fan is totally enclosed, making it suitable for use in conditions that standard, unenclosed motors are not, such as in the presence of hazardous dust or other airborne debris. This pedestal-mount circulator is Underwriters Laboratories (UL) Listed for quality assurance.

Specifications
Motor3-speed, 115V, 3.5 amp, single phase, 1/4 hp, permanently lubricated, totally enclosed ball bearing motor
MountGalvanized steel pedestal, 43 to 63" adjustable height
Switch typePull chain
Cord15' three-conductor cord with three-prong plug
BladesGalvanized steel (3)
Blade guardsGalvanized steel spiral wire
Cubic feet per minute (CFM)6,100 / 4,400 / 2,700
Weight98 Lbs.
Specifications metUL Listed

Industrial fans are used in workplace environments to exhaust fumes or direct air flow. Most industrial fans have coated metal parts and lubricated motors that are permanently sealed to help protect against environmental hazards, such as dirt and airborne debris or corrosive fumes. They can have fan blade cages that meet workplace safety standards, as well as a variety of mounting mechanisms for precise placement to direct large volumes of air flow. Electronic circuitry for industrial fans matches the power specifications found in the workplace and provides the initial torque needed to start up a large blade fan. Industrial fans are used in warehouses, gyms, and other commercial environments to ventilate spaces and to circulate air.

Airmaster Fan manufactures circulation and ventilation fans for industrial and residential applications. The company, founded in 1886, is headquartered in Jackson, MI.

What's in the Box?

  • Fan head
  • Pedestal mount
  • Mounting hardware
