Coilhose Pneumatics 8824R Heavy Duty Series Filter, 1/2-Inch Pipe Size with Bowl Guard

Be the first to review this item

ASIN B0037QFG62

Specifications for this item
Number of Items
1
Pressure Flow Rate
108  Cubic Feet Per Minute
Color Name
black
Material Type
Die Cast Aluminum/Polycarbonate
Part Number
8824R
UPC
029292160377
Brand Name
Coilhose Pneumatics
Size Name
1/2" NPT Female
Manufacturer Series Number
Heavy Duty Series
EAN
0029292160377
Upper Temperature Range
150  Degrees Fahrenheit
Exterior Finish
Painted
Particle Retention Size
40  Micron
Maximum Pressure
150  PSI
UNSPSC Code
40161505
LowerTemperature Range
40  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 20 hrs 35 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Filter for removal of water and particulates from compressed air systems
  • Die-cast aluminum and polycarbonate construction, with a sintered bronze filter element
  • Maximum operating temperature of 120 degrees F
  • Maximum pressure of 150 psi for safety
  • 40 micron rating for contaminant and particle reduction

Package Details

Shipping Weight: 1.6 pounds
Package Size: 9.6 x 4.5 x 4.3 inches

Product Description

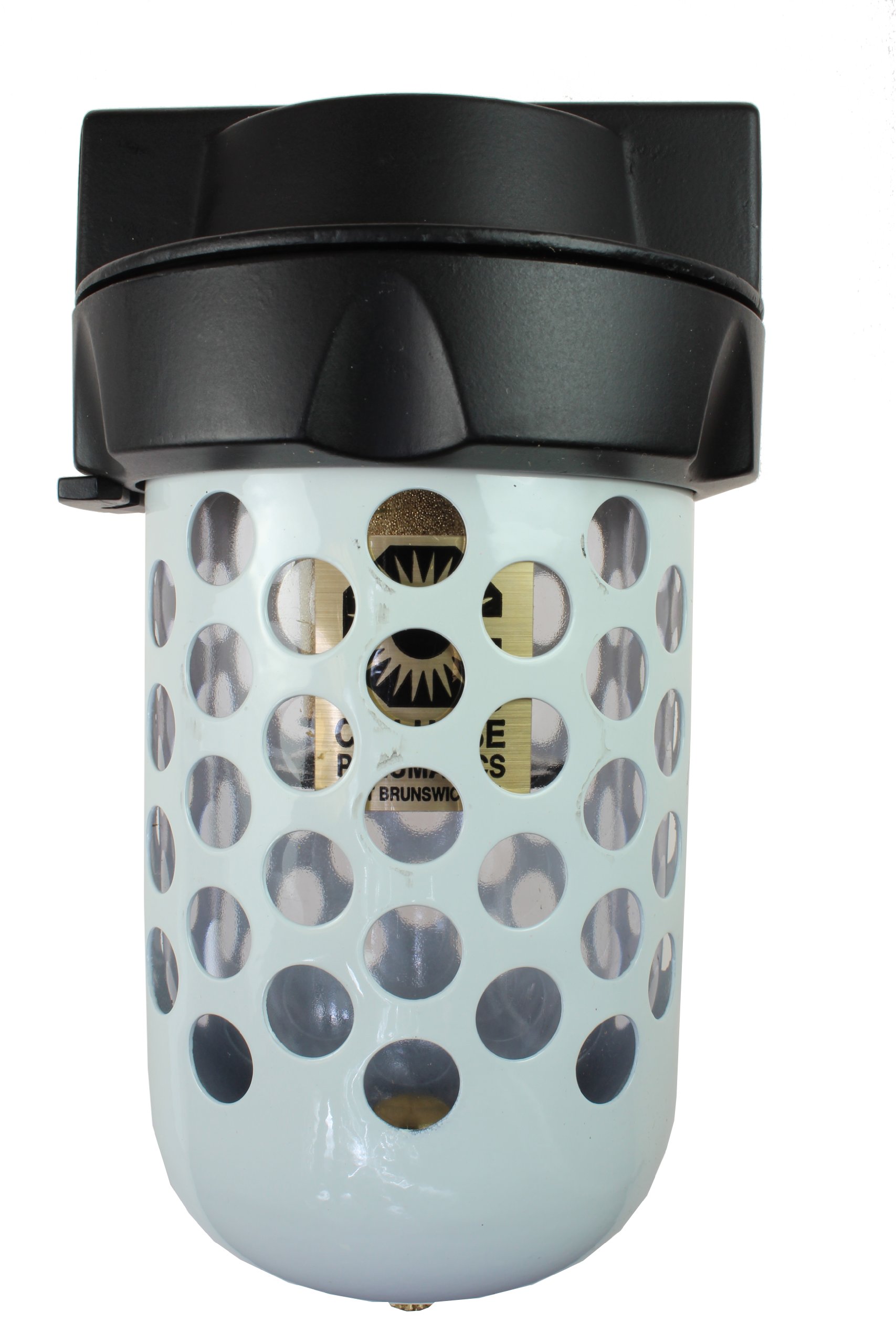

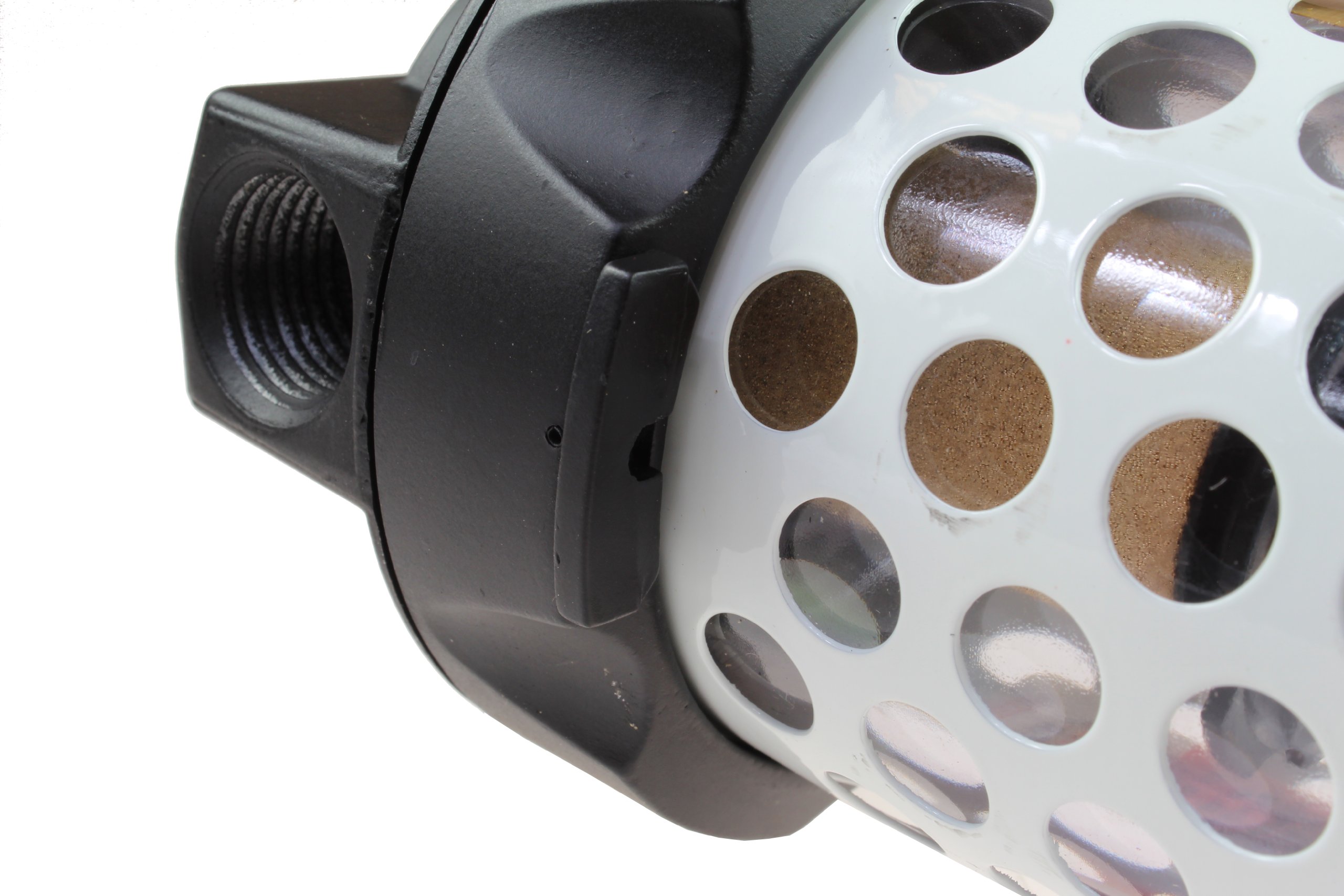

This Coilhose Pneumatics 8824R coalescing filter is suitable for removing water and particulates from compressed air systems. Its die-cast aluminum body and polycarbonate bowl resist corrosion, and its sintered bronze filter element has a 40 micron rating for contaminant and particle reduction. It has a maximum operating temperature of 120 degrees F and a maximum pressure rating of 150 pounds per square inch (psi). Its filter element and bowl are removable by hand, and it comes with a 1/2" female National Pipe Taper (NPT) threaded connection for connecting to an air hose, and a bowl guard to protect the bowl from breakage. This compressed air filter is suitable for use in industrial and commercial compressed air filtration applications.

Compressed air filters remove pollutants and submicronic contaminants from clean air in compressed air handling and preparation systems. Clean compressed air provides and controls energy, conveys materials, and is critical to the safe operation of equipment in many industries. Compressed air filters remove particulates (dirt), oil, water, and oil vapor. They can be combined with other units, integrating with either a regulator, which controls excess pressure for better performance, or a lubricator, which adds oil mist to the air, or both. They are typically constructed of metal, such as zinc or type 316 stainless steel, or transparent polycarbonate, and are available with optional indicators, gauges, and drain configurations depending on the application. Compressed air filters are used in a wide range of applications, including food processing, electronics, health care, and instrumentation, among others.

Coilhose Pneumatics manufactures air tool products and accessories such as hoses, tubing, fittings, lubricants, and blow guns. The company, founded in 1969, is headquartered in East Brunswick, NJ.
