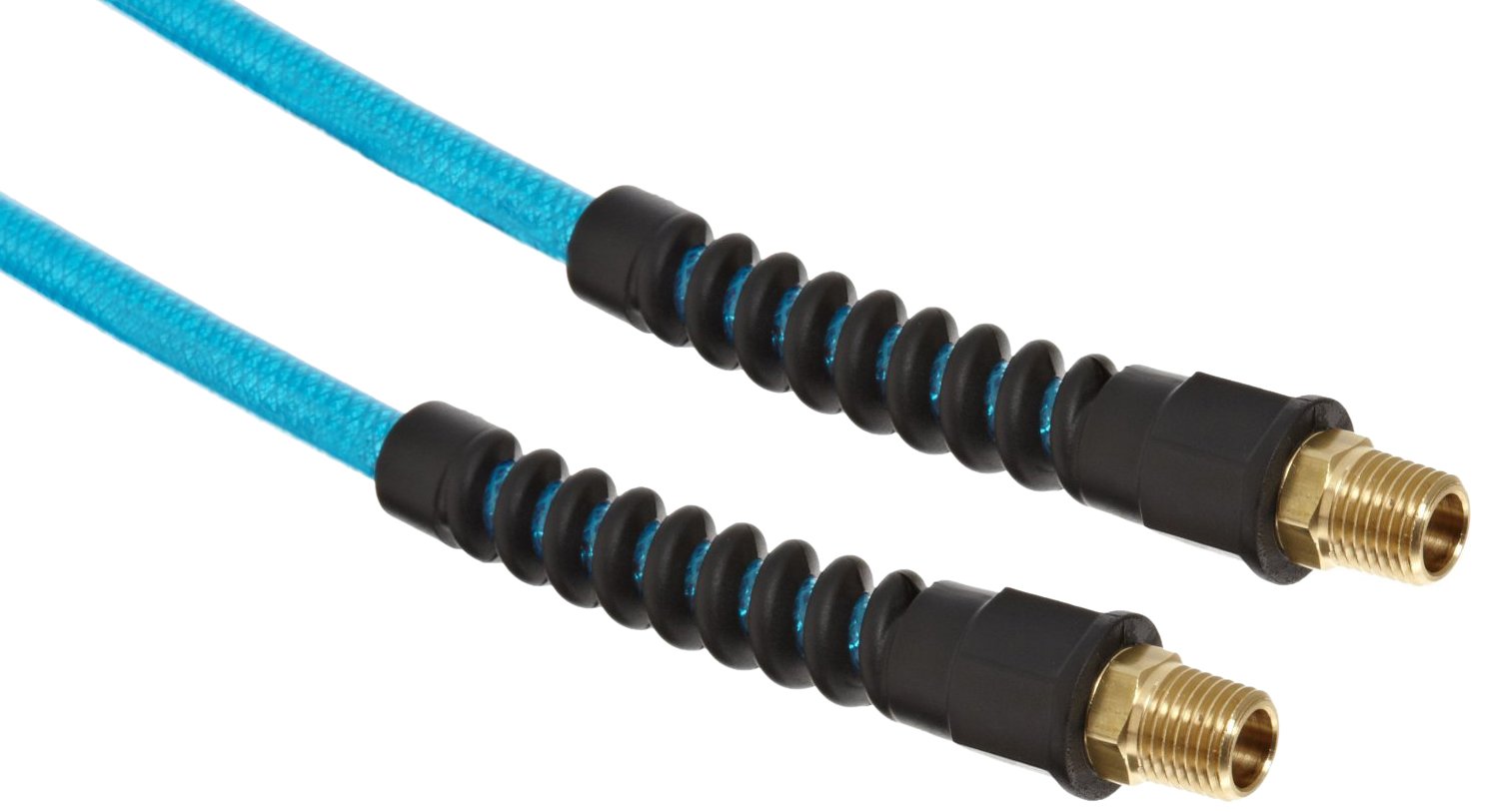

Coilhose Pneumatics PFE40504T Flexeel Reinforced Polyurethane Air Hose, 1/4-Inch ID, 50-Foot Length with (2) 1/4-Inch MPT Reusable Strain Relief Fittings, Transparent Blue

Be the first to review this item

ASIN B000GGPXFU

Specifications for this item
Number of Items
1
Color Name
transparent blue
Material Type
Reinforced Polyurethane/Brass
Part Number
PFE40504T
UPC
029292531122 , 029292100816 , 029292503143
Item Weight
1.76 pounds
Size Name
1/4" NPT Male
Brand Name
Coilhose Pneumatics
EAN
0029292531122 , 0029292503143 , 0029292100816
Manufacturer Series Number
Flexeel
Upper Temperature Range
165  Degrees Fahrenheit
Maximum Pressure
200  PSI
UNSPSC Code
40142002
LowerTemperature Range
-40  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 15 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Reinforced polyurethane air hose for outdoor contractor or indoor industrial use
  • Polyurethane tube and cover for durability, flexibility in cold weather, and resistance to weathering, abrasion, oil, and kinks
  • Integrated braided nylon reinforcement for strength
  • Temperature range of -40 to +165 degrees F
  • Two 1/4" factory-installed, brass MPT reusable strain relief fittings

Package Details

Shipping Weight: 1.6 pounds
Package Size: 13 x 12.5 x 2 inches

Product Description

The Coilhose Pneumatics PFE40504T Flexeel straight reinforced polyurethane air hose has a 1/4" inside diameter (ID) and is 50 ft. long. Its transparent blue tube and cover are made of polyurethane, which provides resistance to weathering and abrasion, and resistance to chemicals, oil, and other petroleum-based fluids. This hose provides both durability and flexibility at temperatures ranging from -40 to +165 degrees F. It is reinforced with a nylon braid that is extruded internally rather than bonded, so the hose will not experience component separation that can occur in other hoses after constant pulsating operations, such as with staple or nail guns, and it is resistant to kinking. It has a maximum pressure rating of 200 psi, and comes equipped with two 1/4" factory-installed, brass Male Pipe Thread (MPT) reusable strain relief fittings. This hose is manufactured as a lighter-weight alternative to bulkier rubber and plastic hoses for use in general contracting and industrial applications.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method to help determine the type of hose needed:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Coilhose Pneumatics manufactures straight and coiled hoses, couplers, connectors, fittings, filters, regulators, and lubricators for pneumatic tools and applications. The company, founded in 1969, is headquartered in East Brunswick, NY.
