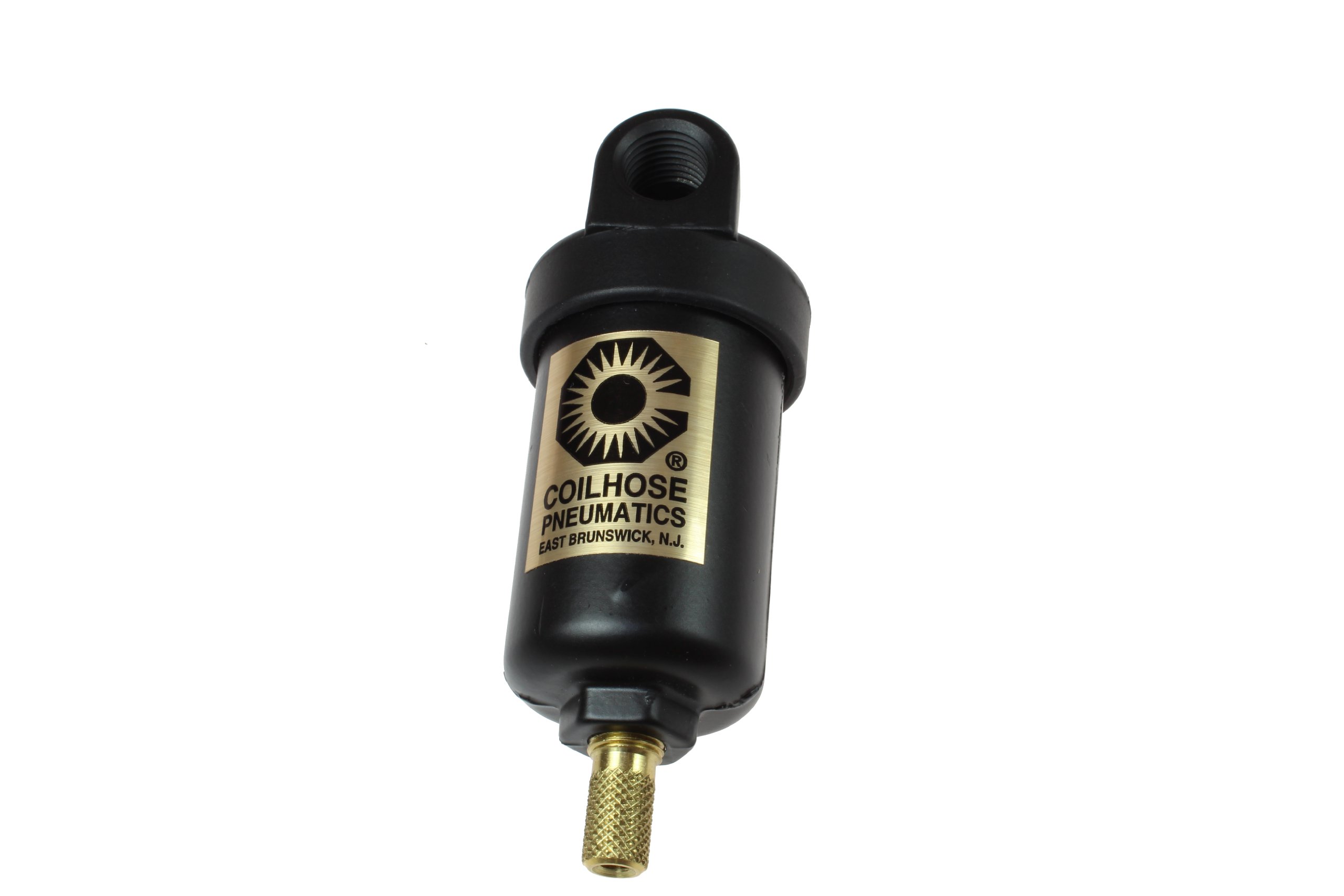

Coilhose Pneumatics MC2-M Miniature Series Coalescing Filter with Metal Bowl, 1/4-Inch Pipe Size

Be the first to review this item


Specifications for this item
Pressure Flow Rate
9  Cubic Feet Per Minute
Part Number
Brand Name
Coilhose Pneumatics
Number of Items
Material Type
Die Cast Zinc/Polycarbonate
Color Name
Size Name
1/4" NPT Female
Manufacturer Series Number
Miniature Series
Upper Temperature Range
250  Degrees Fahrenheit
Exterior Finish
Particle Retention Size
0.3  Micron
Maximum Pressure
250  PSI
LowerTemperature Range
40  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 7 hrs 8 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Filter for removal of water and particulates from compressed air systems
  • Die-cast zinc body and bowl for resistance to corrosion, with a porous polypropylene filter element
  • Maximum operating temperature of 120 degrees F
  • Maximum pressure of 150 psi for safety
  • Removes 99.97% of solids and fluids down to 0.3 microns

Package Details

Shipping Weight: 0.45 pounds
Package Size: 5.1 x 1.9 x 1.8 inches

Product Description

This Coilhose Pneumatics MC2-M miniature coalescing compressed air filter is suitable for removing water and particulates from compressed air systems. Its die-cast zinc body and bowl resist corrosion, and its porous polypropylene filter element removes 99.97% of solids and fluids down to 0.3 microns. The bowl has a capacity of 1.5 oz., and can be drained manually. This filter has a maximum operating temperature of 120 degrees F and a maximum pressure rating of 150 pounds per square inch (psi). It comes with a 1/4" female National Pipe Taper (NPT) threaded connection for connecting to an air hose, is recommended for use on a pre-filtered air hose, and is suitable for industrial and commercial compressed air filtering applications where space is limited and flow requirements are low.

Compressed air filters remove pollutants and submicronic contaminants from clean air in compressed air handling and preparation systems. Clean compressed air provides and controls energy, conveys materials, and is critical to the safe operation of equipment in many industries. Compressed air filters remove particulates (dirt), oil, water, and oil vapor. They can be combined with other units, integrating with either a regulator, which controls excess pressure for better performance, or a lubricator, which adds oil mist to the air, or both. They are typically constructed of metal, such as zinc or type 316 stainless steel, or transparent polycarbonate, and are available with optional indicators, gauges, and drain configurations depending on the application. Compressed air filters are used in a wide range of applications, including food processing, electronics, health care, and instrumentation, among others.

Coilhose Pneumatics manufactures air tool products and accessories such as hoses, tubing, fittings, lubricants, and blow guns. The company, founded in 1969, is headquartered in East Brunswick, NJ.
