Click for larger image and other views

How can we improve our images or Product Specifications?

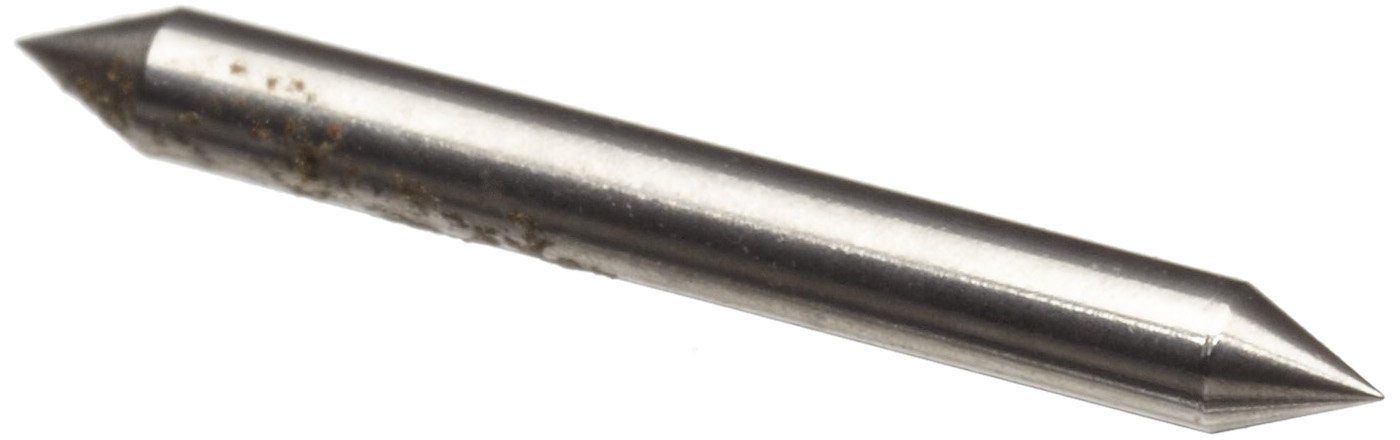

Cobalt Vee Jewel Pivots Angle 50 Degrees , .0156" - .016" OD , .485" - .495" Length (Pack of 5)

Be the first to review this item

ASIN B0016J9XRU

Specifications for this item
Number of Items
5
Material Type
Steel
Part Number
VJPX-1D-05
Brand Name
Small Parts
UNSPSC Code
31171549
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 2? Order in-stock items in the next 11 hrs 4 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Radius .00098 - .0012
  • Double-pointed pivots are used
  • Cobalt

Package Details

Shipping Weight: 0.05 pounds
Package Size: 4 x 3 x 0.25 inches

Product Description

These double-pointed pivots are used in conjunction with Vee Jewels in 75/85 Degrees (VJ-0469), 85/5 Degrees (VJ-0787 and VJ-0800) and 90/95 Degrees (VJ-1244) and Brass Vee Jewel Assemblies in 80/85 Degrees (VJA-1, VJA-3, and VJA-5) and 85/95 Degrees (VJA-7). Synthetic sapphires are next to diamonds in hardness which makes these highly polished bearings scratch and shock resistant. They also have a long wear life, and are highly resistant to heat, corrosion and distortion. In addition, sapphire bearings are nonmagnetic, dielectrically strong and provide good shaft end support and freedom of motion. They are especially well suited for use in delicate instruments such as ammeters, voltmeters, compasses and precision indicator devices. The jewel radius should be 2.5 to 3 times the pivot radius. In general, the greater the ratio between jewel and pivot, the greater the sensitivity and pivot roll. The contact area of the pivot should be highly polished and a finish of 2 to 3 micro-inch on the pivot radius is recommended.
