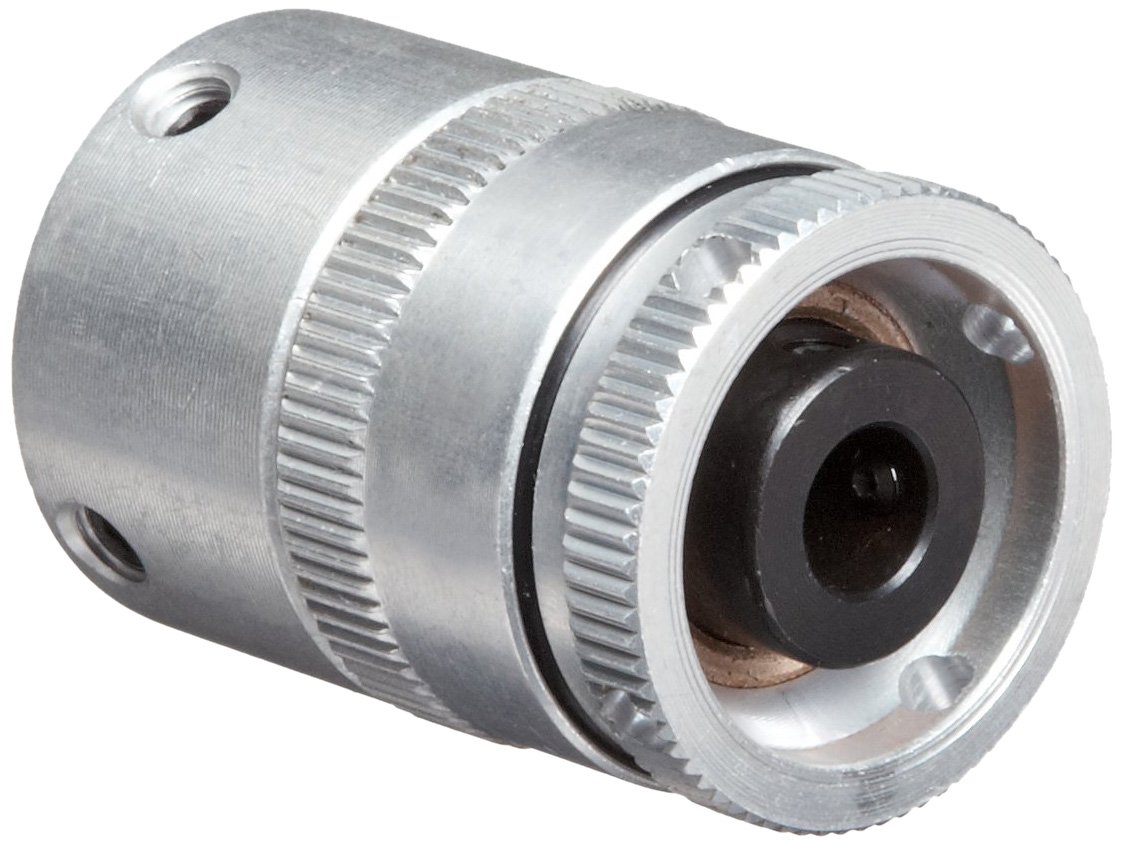

Mini Slip Clutch, Type B, 1/4" Bore-End 1 .984" End 2 .354" x 1.000" OD x 1.417" O/A Length

Be the first to review this item

ASIN B0013813M2

Specifications for this item
Number of Items
1
Material Type
Steel
Part Number
MSCB-4
Brand Name
Huco
UNSPSC Code
26111900
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 17 hrs 35 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Torque Range is 3.4 - 76 oz-in

Package Details

Shipping Weight: 0.12 pounds
Package Size: 4 x 4 x 1 inches

Product Description

Miniature Slip Clutch Type B is designed to operate either with one spindle unsupported or as a link between the power source and the mechanism to provide overload protection. Damage to delicate or sensitive equipment may be avoided by setting the torque level just above the required power to drive the equipment.These clutches are friction devices which may be re-set to a specific torque level by an adjustment ring. They may be used to protect against overload between the drive and driven components, to absorb inertia in intermittent or reversing applications, or to provide continuous braking. The overload or breaking level may be varied by the knurled adjustment ring, which, once set, will continue to perform at that level. In applications where continuous braking is being applied, care should be taken not to allow the surface temperature to exceed 80 C.
