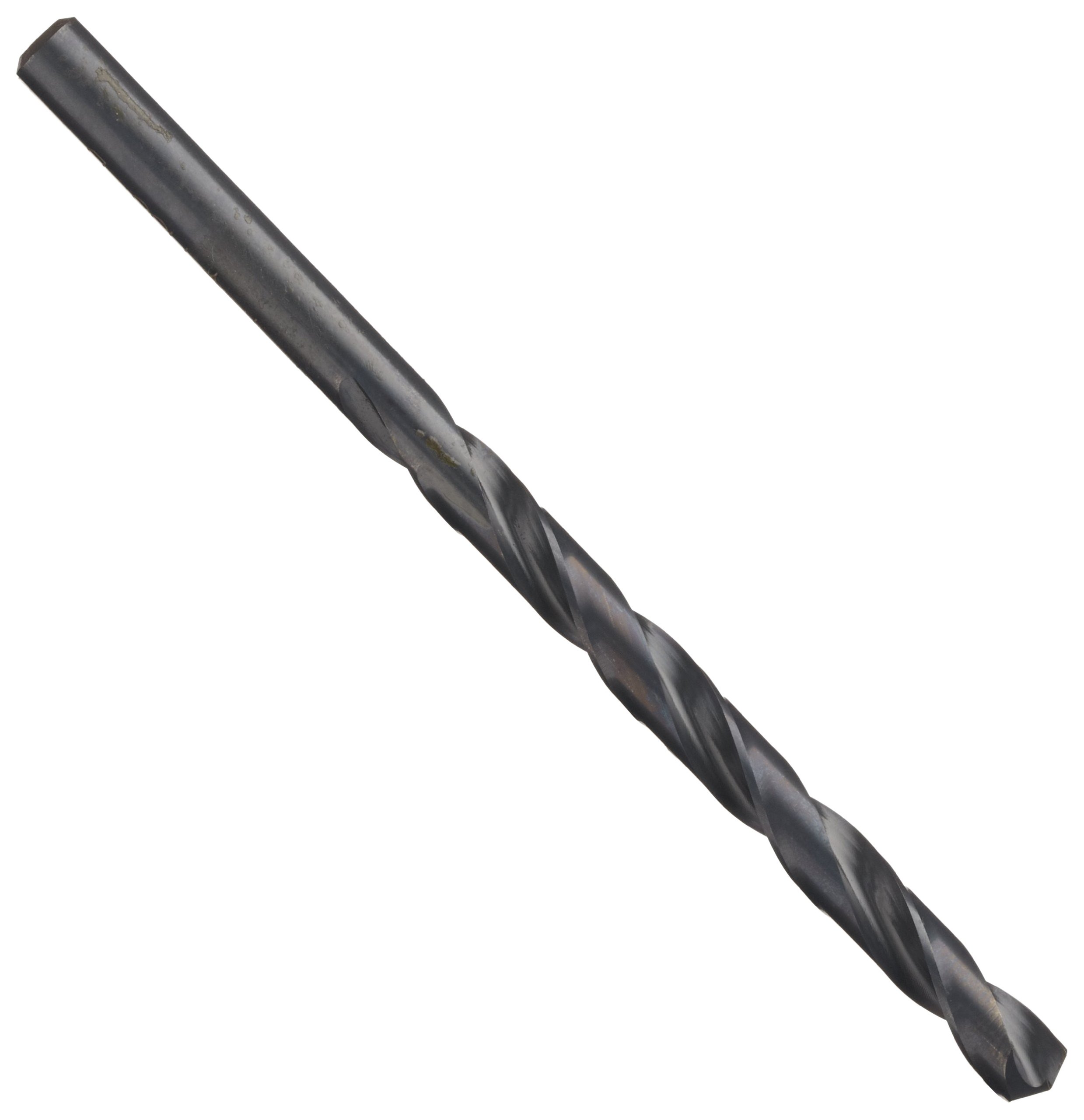

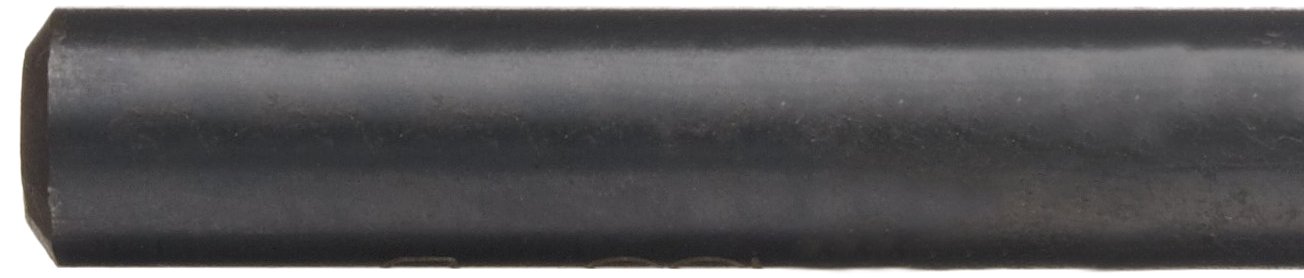

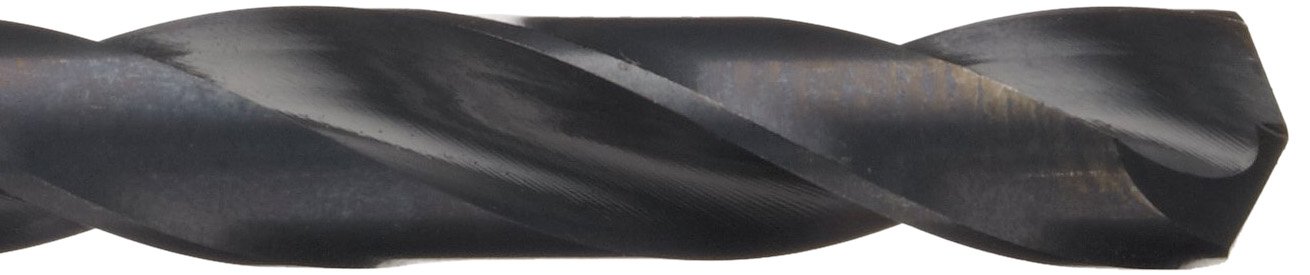

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Cleveland 2222 High Speed Steel Jobbers' Length Drill Bit, Uncoated (Bright), Round Shank, 135 Degree Split Point

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
High-Speed Steel
Drill Point
135 Degrees
UNSPSC Code
20121600
Cutting Angle
135  Degrees
Brand Name
Cleveland
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 hr 57 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 107 Next 20 »
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 107 Next 20 »
#1 2222 Wire Gauge 1.313" 3.875" 12 C11655 B0026HEU3I yes $30.97 Buy Options
#2 2222 Wire Gauge 1.313" 3.875" 12 C11656 B00271DPZC yes $32.22 Buy Options
#3 2222 Wire Gauge 1.250" 3.750" 12 C11657 B0025QJT0E yes $28.50 Buy Options
#4 2222 Wire Gauge 1.250" 3.750" 12 C11658 B0026HGVDK yes $30.63 Buy Options
#5 2222 Wire Gauge 1.250" 3.750" 12 C11659 B0026H99NY yes $28.45 Buy Options
#6 2222 Wire Gauge 1.250" 3.750" 12 C11660 B0026HEU60 yes $11.05 Buy Options
#7 2222 Wire Gauge 1.188" 3.625" 12 C11661 B00209DZ9M yes $25.96 Buy Options
#8 2222 Wire Gauge 1.188" 3.625" 12 C11662 B0026HB5A4 yes $10.14 Buy Options
#9 2222 Wire Gauge 1.188" 3.625" 12 C11663 B0026H99R0 yes $10.05 Buy Options
#10 2222 Wire Gauge 1.188" 3.625" 12 C11664 B002719ZF6 yes $25.36 Buy Options
#11 2222 Wire Gauge 1.188" 3.500" 12 C11665 B0025QCHOE yes $9.85 Buy Options
#12 2222 Wire Gauge 1.188" 3.500" 12 C11666 B00271BS9W yes $9.96 Buy Options
#13 2222 Wire Gauge 1.125" 3.500" 12 C11667 B0026H7O5Y yes $26.31 Buy Options
#14 2222 Wire Gauge 1.125" 3.375" 12 C11668 B00271BSB0 yes $26.31 Buy Options
#15 2222 Wire Gauge 1.125" 3.375" 12 C11669 B00271BSC4 yes $10.13 Buy Options
#16 2222 Wire Gauge 1.125" 3.375" 12 C11670 B0025QADSQ yes $24.81 Buy Options
#17 2222 Wire Gauge 1.125" 3.375" 12 C11671 B00271BSEW yes $11.11 Buy Options
#18 2222 Wire Gauge 1.063" 3.250" 12 C11672 B0026HGVIK yes $23.62 Buy Options
#19 2222 Wire Gauge 1.063" 3.250" 12 C11673 B0026H7O7M yes $9.38 Buy Options
#20 2222 Wire Gauge 1.063" 3.250" 12 C11674 B0026HD2R8 yes $21.25 Buy Options

Key Features

  • 135-degree split-point angles are self-centering, to reduce walking, good for hard material, and to reduce pressure on cutting edges
  • High-speed steel (HSS), for use on a wide variety of materials
  • Jobber-length, for a wide range of applications
  • Uncoated (bright), for use with a wide range of drilling materials
  • NAS 907 Rev. 14 type B standards, for use in the aerospace industry

Product Description

The Cleveland 2222 jobber length, high-speed steel (HSS) drill bit has a 30-degree helix angle, with a 135-degree split-point and uncoated surface treatment, which is designed general purpose drilling applications. Conforms to NAS 907 Rev. 14 type B specifications. The shank diameter is the same as the drill size. This drill is designed for drilling tougher materials.

The 2222 series performs best when drilling into stainless steel, alloy steel, carbon steel, iron-based alloys, and aluminum. The uncoated finish helps increase chip flow in soft materials. Spiral flutes act as a passageway for chip extraction from the hole and for coolant to enter the hole. The twist of the flutes brings chips up and away from the cutting edge. 135-degree drill point reduces walking when starting a hole and penetrates more easily than a convention point. Round shanks allow use with a wide variety of tool holding systems. While the 2222 series was designed for the aircraft industry, it works well for other drilling applications.

Made of HSS, one of the most common tool steels, they offer a good comprise of performance across a wide range of materials and drilling applications and are an economical choice. They can be operated at twice the cutting speed and the cutting edges last longer than carbon-steel. They are made to ANSI and DIN industry standards, which help ensure that drill bits around the world, conform to the same specifications.

The tolerances for various aspects of the Cleveland drill bits are: drill diameter range (inches) through 1/8 +0.0000/-0.0005, over 1/8 through 1/4 +0.0000/-0.0007, over 1/4 through 1/2 +0.0000/-0.0010, over 1/2 through 1 +0.0000/-0.0012, over 1 through 2 +0.0000/-0.0015, over 2 through 3 1/2 +0.0000/-0.0020; drill overall length and flute length #80 through 1/8 +0.1250/-0.0626, over 1/8 through 1/2 +0.1250/-0.1250, over 1/2 through 1 +0.2500/-0.1250, over 1 through 2 +0.2500/-0.2500, over 2 through 3 1/2 +0.3750/-0.3750; drill point angle diameter range (inches) 1/16 through 1/2 included angle (degrees) 118 or 135 +/-5 degrees, over 1/2 through 1 1/2 included angle (degrees) 118 +/-3 degrees, over 1 1/2 through 3 1/2 includes angle (degrees) 118 +/- 2 degrees; drill lip height diameter range (inches) 1/16 through 1/8 total indicator variation (inches) 0.0020, over 1/8 through 1/4 total indicator variation (inches) 0.0030, over 1/4 through 1/2 total indicator variation (inches) 0.0040, over 1/2 through 1 total indicator variation (inches) 0.0050, over 1 through 3 1/2 total indicator variation (inches) 0.0060.

Drilling, or hole making, is the most common metalworking operation in the world. Twist drill bits are the most common type of drill bit used. Twist drill bits can be used in hand-operated drills, standalone drill presses, or a lathe.

Greenfield Industries, which are a part of Top-Eastern Group, is one of the largest manufacturers of twist drills. They also manufacture cutting tools and related products under the following brands: Cleveland, Chicago-Latrobe, Cle-Line, Vermont Tap & Die, Bassett, Putnam Tools, Geo Met RJC, H & G, Vers-O-Tool, and Acme-Fette. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
