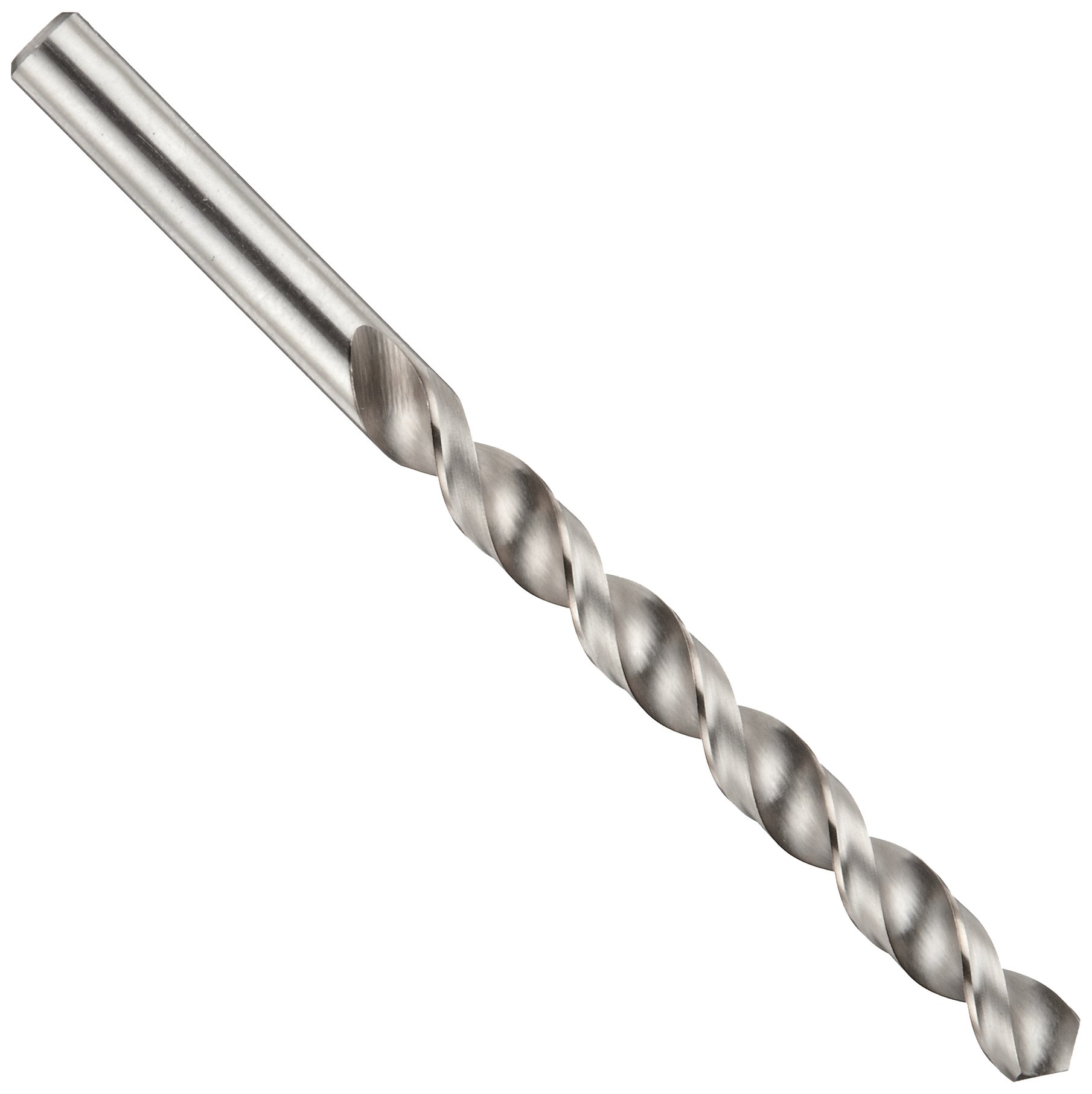

Cleveland 2012 Style High Speed Steel Jobbers' Drill Bit, High Helix, Uncoated (Bright), Round Shank, 118 Degree Conventional Point

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
High-Speed Steel
Drill Point
Conventional
UNSPSC Code
20121600
Cutting Angle
118  Degrees
Brand Name
Cleveland
Flute Type
Fast Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 11 hrs 27 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 106 Next 20 »
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 106 Next 20 »
#1 2012 Wire Gauge 2.625" 3.875" 10 C03060 B00074ZT7I yes $41.45 Buy Options
#2 2012 Wire Gauge 2.625" 3.875" 10 C03057 B00074ZT78 yes $41.45 Buy Options
#3 2012 Wire Gauge 2.500" 3.750" 10 C03053 B00074ZT6O yes $45.84 Buy Options
#4 2012 Wire Gauge 2.500" 3.750" 10 C03051 B00074ZT64 yes $38.93 Buy Options
#5 2012 Wire Gauge 2.500" 3.750" 10 C03048 B00074ZT5U yes $38.93 Buy Options
#6 2012 Wire Gauge 2.500" 3.750" 10 C03046 B00074ZT5K yes $38.93 Buy Options
#7 2012 Wire Gauge 2.438" 3.625" 10 C03044 B00074ZT4G yes $29.31 Buy Options
#8 2012 Wire Gauge 2.438" 3.625" 10 C03042 B00074ZT46 yes $31.83 Buy Options
#9 2012 Wire Gauge 2.438" 3.625" 10 C03040 B00074ZT3W yes $31.18 Buy Options
#10 2012 Wire Gauge 2.438" 3.625" 10 C03039 B00074ZT3C yes $31.18 Buy Options
#11 2012 Wire Gauge 2.313" 3.500" 10 C03037 B00074ZT32 yes $29.87 Buy Options
#12 2012 Wire Gauge 2.313" 3.500" 10 C03035 B00074ZT2S yes $30.34 Buy Options
#13 2012 Wire Gauge 2.313" 3.500" 10 C03031 B00074Y5VE yes $29.87 Buy Options
#14 2012 Wire Gauge 2.188" 3.375" 10 C03030 B00074Y5UU yes $31.18 Buy Options
#15 2012 Wire Gauge 2.188" 3.375" 10 C03028 B00074Y5U0 yes $31.18 Buy Options
#16 2012 Wire Gauge 2.188" 3.375" 10 C03026 B00074Y5TG yes $29.31 Buy Options
#17 2012 Wire Gauge 2.188" 3.375" 10 C03024 B00074Y5SM yes $29.31 Buy Options
#18 2012 Wire Gauge 2.125" 3.250" 10 C03022 B00074Y5QE yes $24.18 Buy Options
#19 2012 Wire Gauge 2.125" 3.250" 10 C03019 B00074Y5PU yes $24.18 Buy Options
#20 2012 Wire Gauge 2.125" 3.250" 10 C03016 B00074Y5P0 yes $28.47 Buy Options

Key Features

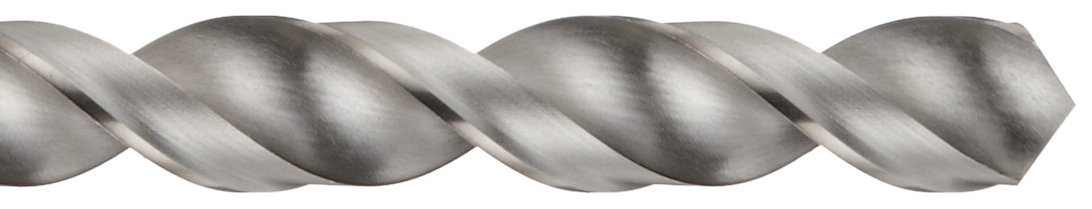

  • High helix angle for improved chip removal in soft materials and deeper holes
  • 118-degree conventional point angles, for general drilling applications
  • Uncoated (bright), for use with a wide range of drilling materials
  • High-speed steel (HSS) for use on a wide variety of materials
  • Jobber-length, for a wide range of applications

Product Description

The Cleveland 2012 high helix jobber length high-speed steel (HSS) drill bit has a 38-degree helix angle, with a 118-degree drill point and uncoated surface treatment, which is designed for general purpose drilling applications. The shank diameter is the same as the drill size.

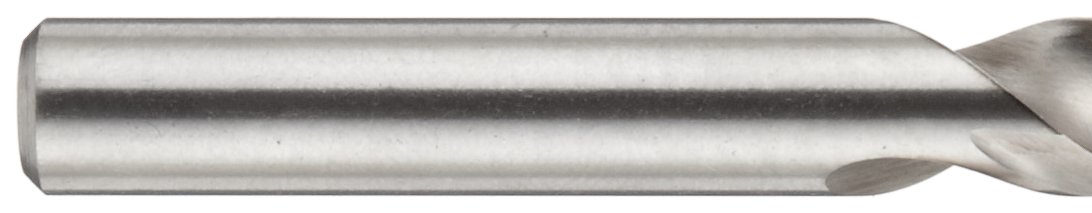

The 2012 series performs best when drilling into low carbon steel, aluminum, copper alloys, and plastic. The uncoated finish helps increase chip flow in soft materials. Spiral flutes act as a passageway for chip extraction from the hole and for coolant to enter the hole. The twist of the flutes brings chips up and away from the cutting edge. Round shanks allow use with a wide variety of tool holding systems. 118-degree drill point is the most common angle with a good comprise of performance across a wide range of materials. The higher, also called faster helix provides greater lifting power for chips and works well in deeper holes.

Made of HSS, one of the most common tool steels, they offer a good comprise of performance across a wide range of materials and drilling applications and are an economical choice. They can be operated at twice the cutting speed and the cutting edges last longer than carbon-steel. They are made to ANSI and DIN industry standards, which help ensure that drill bits around the world, conform to the same specifications.

The tolerances for various aspects of the Cleveland drill bits are: drill diameter range (inches) through 1/8 +0.0000/-0.0005, over 1/8 through 1/4 +0.0000/-0.0007, over 1/4 through 1/2 +0.0000/-0.0010, over 1/2 through 1 +0.0000/-0.0012, over 1 through 2 +0.0000/-0.0015, over 2 through 3 1/2 +0.0000/-0.0020; drill overall length and flute length #80 through 1/8 +0.1250/-0.0626, over 1/8 through 1/2 +0.1250/-0.1250, over 1/2 through 1 +0.2500/-0.1250, over 1 through 2 +0.2500/-0.2500, over 2 through 3 1/2 +0.3750/-0.3750; drill point angle diameter range (inches) 1/16 through 1/2 included angle (degrees) 118 or 135 +/-5 degrees, over 1/2 through 1 1/2 included angle (degrees) 118 +/-3 degrees, over 1 1/2 through 3 1/2 includes angle (degrees) 118 +/- 2 degrees; drill lip height diameter range (inches) 1/16 through 1/8 total indicator variation (inches) 0.0020, over 1/8 through 1/4 total indicator variation (inches) 0.0030, over 1/4 through 1/2 total indicator variation (inches) 0.0040, over 1/2 through 1 total indicator variation (inches) 0.0050, over 1 through 3 1/2 total indicator variation (inches) 0.0060.

Drilling, or hole making, is the most common metalworking operation in the world. Twist drill bits are the most common type of drill bit used. Twist drill bits can be used in hand-operated drills, standalone drill presses, or a lathe.

Greenfield Industries, which are a part of Top-Eastern Group, is one of the largest manufacturers of twist drills. They also manufacture cutting tools and related products under the following brands: Cleveland, Chicago-Latrobe, Cle-Line, Vermont Tap & Die, Bassett, Putnam Tools, Geo Met RJC, H & G, Vers-O-Tool, and Acme-Fette. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
