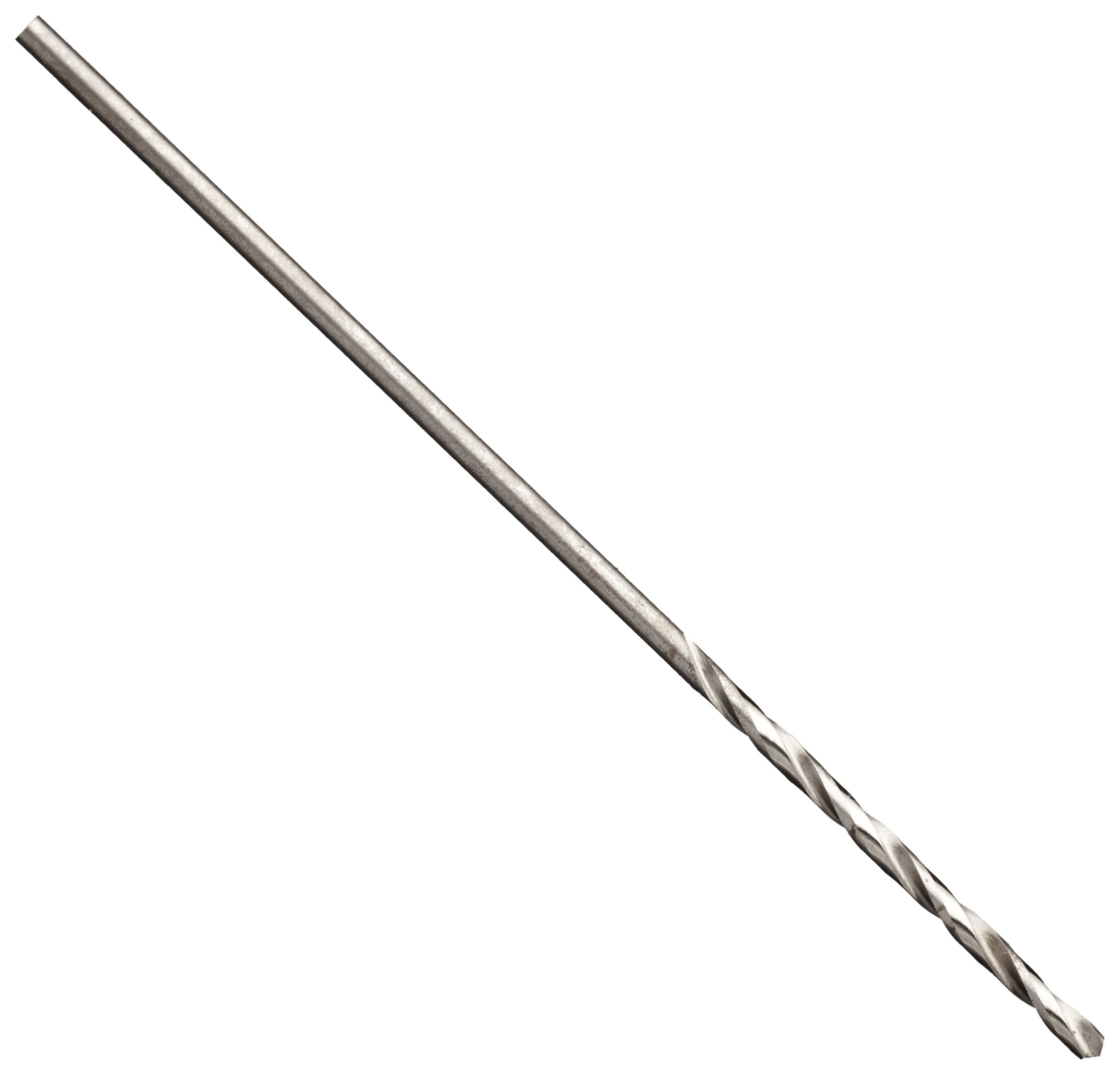

Cleveland 2002 Style High Speed Steel Jobbers' Drill Bit, Uncoated (Bright), Round Shank, 118 Degree Conventional Point

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
High-Speed Steel
Drill Point
Conventional
UNSPSC Code
20121600
Cutting Angle
118  Degrees
Brand Name
Cleveland
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 3? Order in-stock items in the next 14 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 34 Next 14 »
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 34 Next 14 »
#61 2002 Wire Gauge 0.688" 1.500" 10 C01836 B00074XX26 yes $20.91 Buy Options
#62 2002 Wire Gauge 0.625" 1.500" 10 C01835 B00074XX1M yes $6.90 Buy Options
#63 2002 Wire Gauge 0.625" 1.500" 10 C01833 B00074XX1C yes $21.00 Buy Options
#64 2002 Wire Gauge 0.625" 1.500" 10 C01832 B00074XX12 yes $21.00 Buy Options
#65 2002 Wire Gauge 0.625" 1.500" 10 C01830 B00074XX0S yes $17.35 Buy Options
#66 2002 Wire Gauge 0.500" 1.375" 10 C01828 B00074ZKF4 yes $21.92 Buy Options
#67 2002 Wire Gauge 0.500" 1.375" 10 C01827 B00074ZKDQ yes $20.91 Buy Options
#68 2002 Wire Gauge 0.500" 1.375" 10 C01824 B00074ZKTK yes $20.91 Buy Options
#69 2002 Wire Gauge 0.500" 1.375" 10 C01822 B00074ZKT0 yes $17.34 Buy Options
#70 2002 Wire Gauge 0.375" 1.250" 10 C01821 B00074ZKS6 yes $20.91 Buy Options
#71 2002 Wire Gauge 0.375" 1.250" 10 C01819 B00074ZKRM yes $18.40 Buy Options
#72 2002 Wire Gauge 0.313" 1.125" 10 C01817 B00074ZKRC yes $22.59 Buy Options
#73 2002 Wire Gauge 0.313" 1.125" 10 C01816 B00074ZKR2 yes $22.59 Buy Options
#74 2002 Wire Gauge 0.250" 1.000" 10 C01814 B00074ZKQI yes $6.90 Buy Options
#75 2002 Wire Gauge 0.250" 1.000" 10 C01812 B00074ZKPY yes $23.43 Buy Options
#76 2002 Wire Gauge 0.188" 0.875" 10 C01811 B00074ZKPO yes $23.43 Buy Options
#77 2002 Wire Gauge 0.188" 0.875" 10 C01808 B00074ZKP4 Usually ships in 2 to 4 weeks $31.60 Buy Options
#78 2002 Wire Gauge 0.188" 0.875" 10 C01805 B00074ZKOK yes $9.79 Buy Options
#79 2002 Wire Gauge 0.188" 0.750" 10 C01801 B00074ZKNQ yes $9.87 Buy Options
#80 2002 Wire Gauge 0.125" 0.750" 10 C01799 B00074ZKNG yes $9.89 Buy Options

Key Features

  • High-speed steel (HSS) offers toughness and shock resistance, and is compatible with a variety of materials

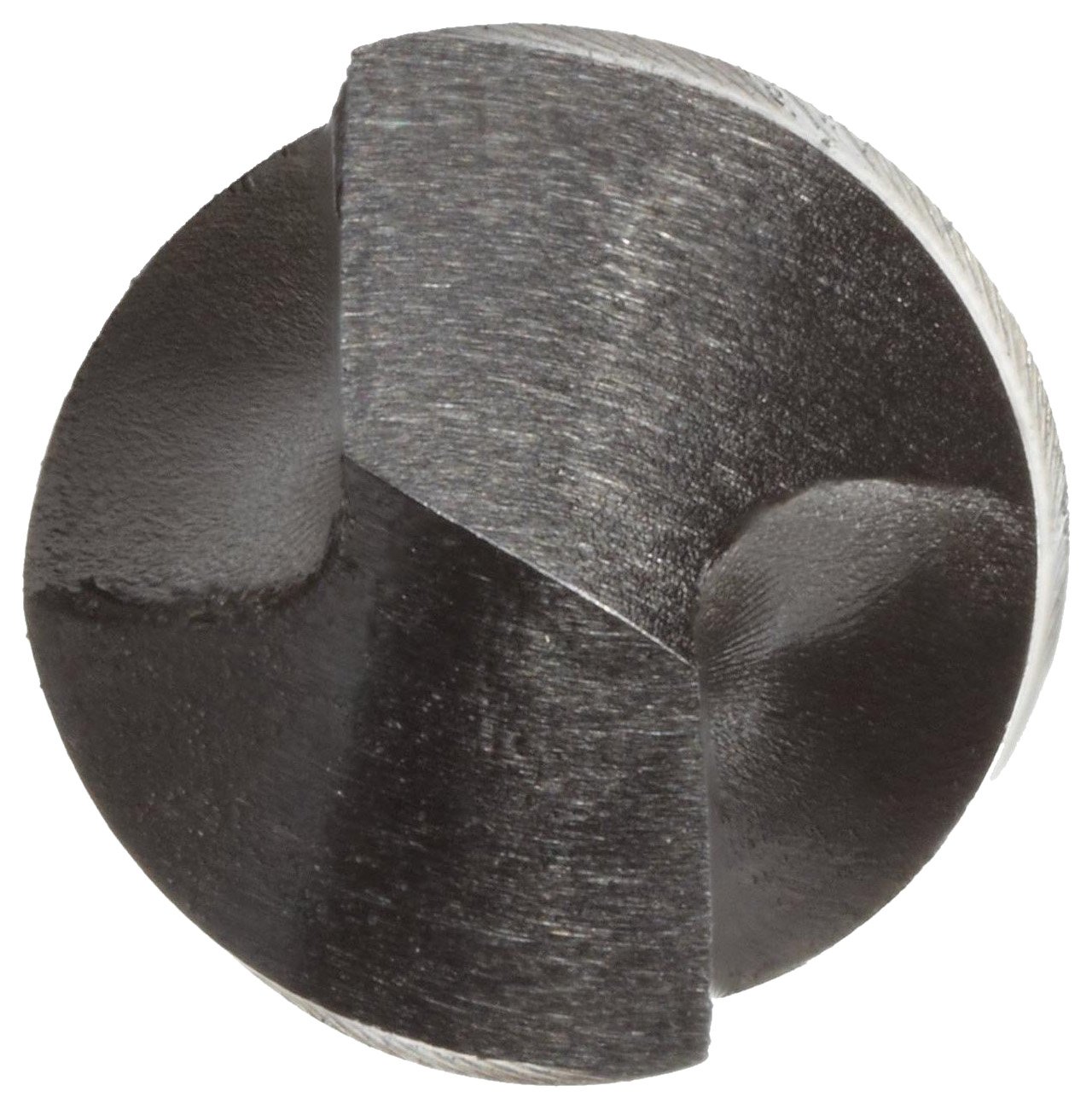

  • 118-degree conventional point angles, for general drilling applications
  • Uncoated (bright) finish, for use with a wide range of drilling materials
  • Jobber-length, for a wide range of applications

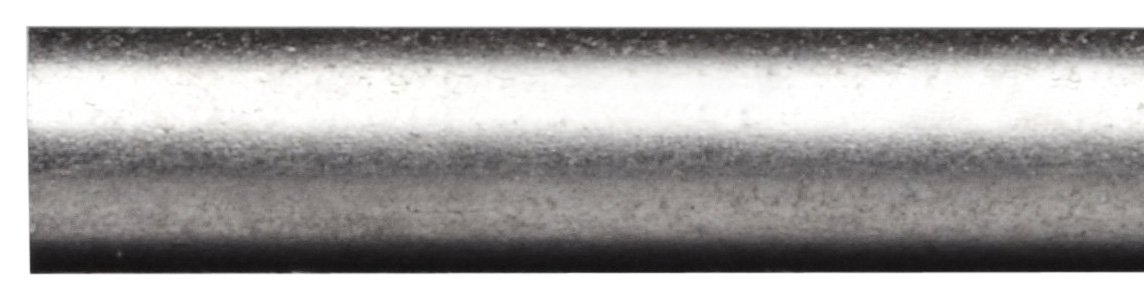

  • Round shanks, for use on a variety of tool holders

Product Description

The Cleveland 2002 jobber length high-speed steel (HSS) drill bit has a 30-degree helix angle, with a 118-degree drill point and uncoated (bright) surface treatment, which is suitable for general-purpose drilling applications. The shank diameter is the same as the drill size.

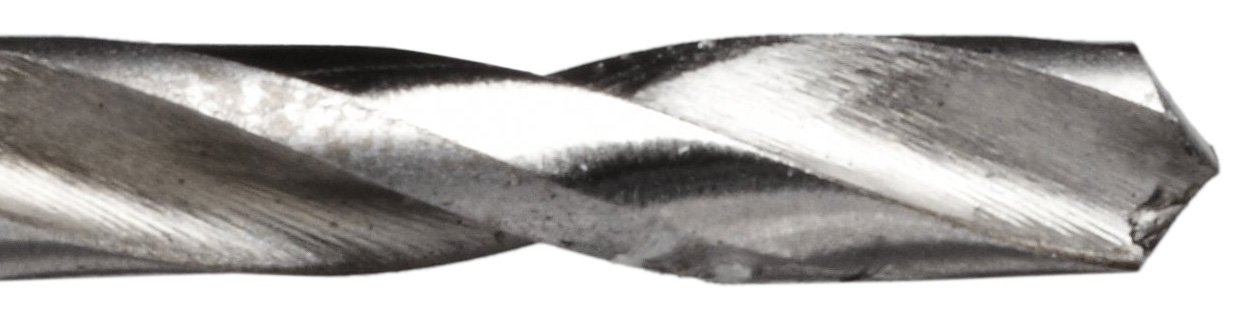

The 2002 series is most suitable for drilling into carbon steel, cast iron, and aluminum. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials. Spiral flutes act as a passageway for chip removal and for coolant to enter the hole. The right-hand twist brings chips up and away from the cutting edge. Round shanks allow use with a wide variety of tool holding systems. The 118-degree drill point is the most common angle with a good comprise of performance across a wide range of materials. HSS is a common, general-purpose steel for cutting tools, offers toughness and shock resistance, and is compatible with a variety of materials.

The tolerances for various aspects of the Cleveland drill bits are: drill diameter range through 1/8” +0.0000”/-0.0005”, over 1/8” to 1/4” +0.0000”/-0.0007”, over 1/4” through 1/2” +0.0000”/-0.0010”, over 1/2” to 1” +0.0000”/-0.0012”, over 1” to 2” +0.0000”/-0.0015”, over 2” to 3-1/2” +0.0000”/-0.0020”; drill overall length and flute length #80 through 1/8” +0.1250”/-0.0626”, over 1/8” to 1/2” +0.1250”/-0.1250”, over 1/2” to 1” +0.2500”/-0.1250”, over 1” to 2” +0.2500”/-0.2500”, over 2” to 3-1/2” +0.3750”/-0.3750”; drill point angle diameter range 1/16” to 1/2” included angle 118 or 135 degrees +/-5 degrees, over 1/2” to 1 1/2” included angle 118 degrees +/-3 degrees, over 1-1/2” to 3-1/2” includes angle 118 degrees +/- 2 degrees; drill lip height diameter range 1/16” to 1/8” total indicator variation 0.0020”, over 1/8” to 1/4” total indicator variation 0.0030”, over 1/4” to 1/2” total indicator variation 0.0040”, over 1/2” to 1” total indicator variation 0.0050”, over 1” to 3 1/2” total indicator variation 0.0060”.

Drill bits are cutting tools used to make holes in a range of materials. They are used in machines such as handheld portable drills, drill presses, machining centers, and lathes. Drill bits come in a variety of types and lengths. Twist drill bits are the most common type of drill bit. They are a round, twisted shaft, end-cutting tool with two or more cutting edges and two or more flutes. Jobber drill bits are the most common length of twist bit. They offer a good compromise of length and reach to work with a wide range of materials and applications.

Greenfield Industries manufactures tools under the brand names Cleveland, Chicago-Latrobe, Cle-Line, Vermont Tap & Die, Bassett, Putnam Tools, Geometric, Vers-O-Tool, H & G, and Acme-Fette. The company owned by Top-Eastern Group and headquartered in Seneca, SC, makes tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
