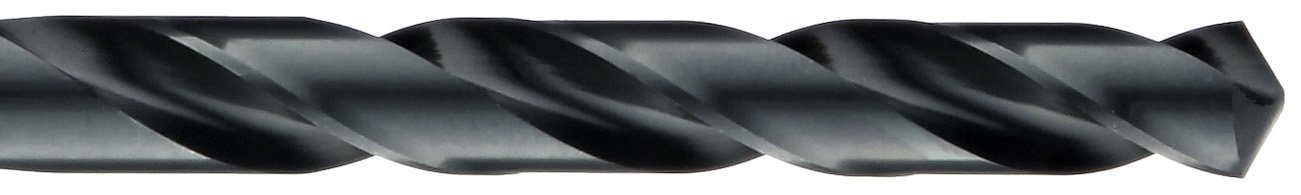

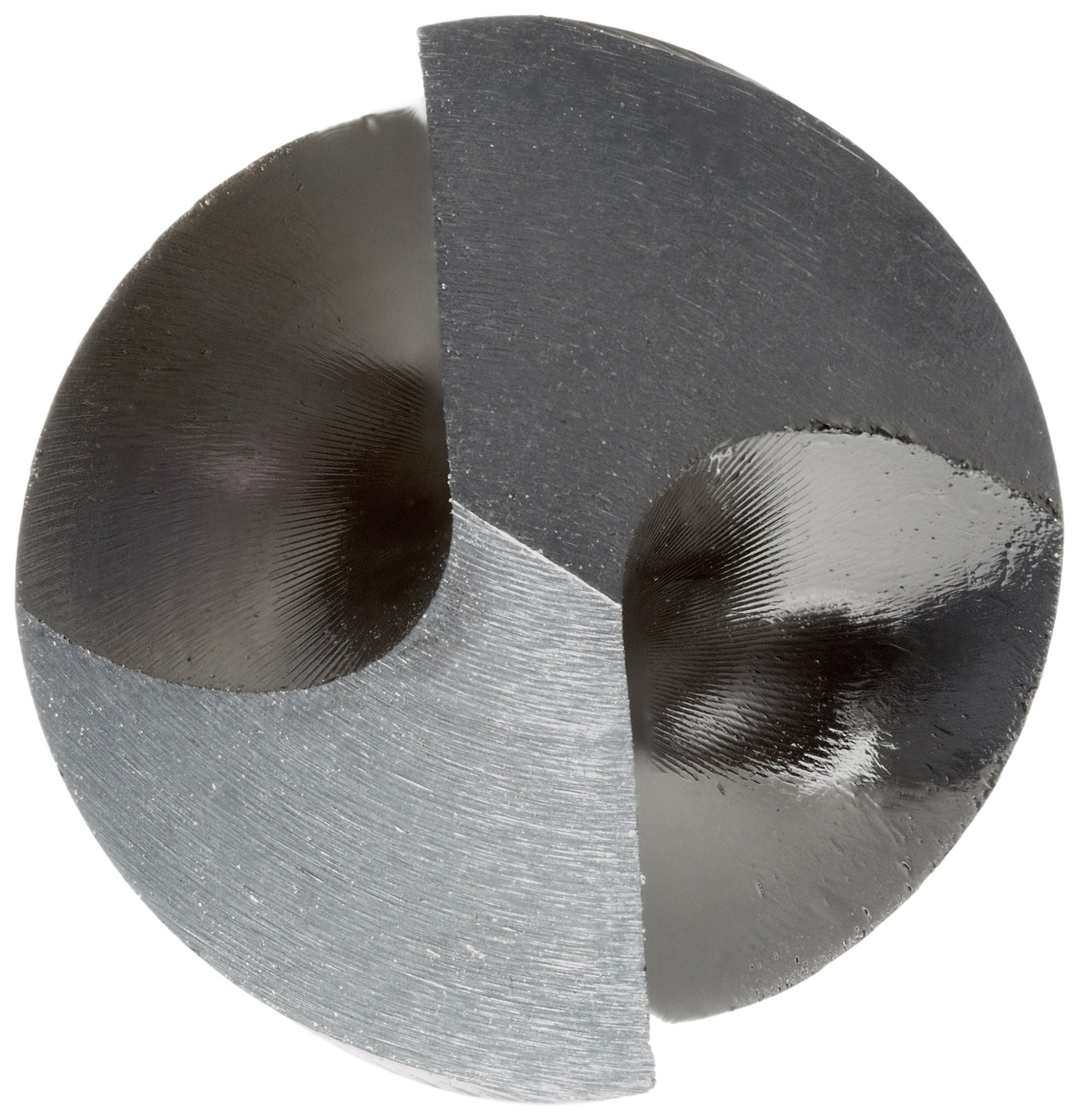

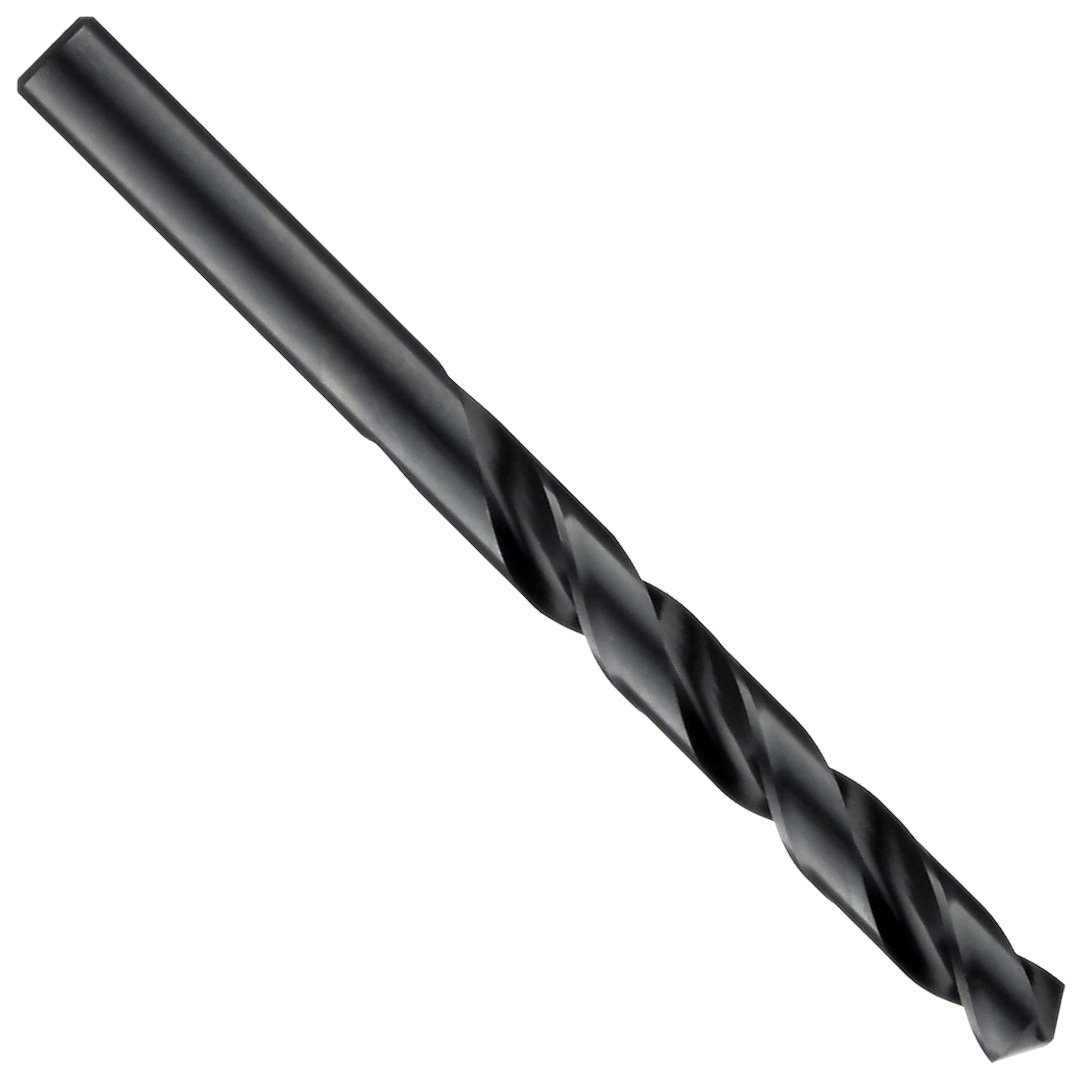

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Cleveland 2001G Style High Speed Steel Jobbers' Drill Bit, Black Oxide, 118 Degree Point, Straight Shank

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Black Oxide
Shank Type
Round
Material Type
High-Speed Steel
Drill Point
Conventional
UNSPSC Code
20121600
Cutting Angle
118  Degrees
Brand Name
Cleveland
Flute Type
Fast Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 4? Order in-stock items in the next 2 days 10 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 228 Next 20 »
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 228 Next 20 »
#1 2001G Wire Gauge 2.625" 3.875" 12 C71101 B003BYQ7S6 yes $30.11 Buy Options
#2 2001G Wire Gauge 2.625" 3.875" 12 C71102 B0025QDFDQ Usually ships in 1 to 2 months $33.20 Buy Options
#3 2001G Wire Gauge 2.500" 3.750" 12 C71103 B003BYQ7SQ yes $32.19 Buy Options
#4 2001G Wire Gauge 2.500" 3.750" 12 C71104 B003BYQ7T0 yes $31.86 Buy Options
#5 2001G Wire Gauge 2.500" 3.750" 12 C71105 B00208TY2A yes $36.76 Buy Options
#6 2001G Wire Gauge 2.500" 3.750" 12 C71106 B0025Q99F4 yes $36.76 Buy Options
#7 2001G Wire Gauge 2.438" 3.625" 12 C71107 B003BYQ7TA yes $27.88 Buy Options
#8 2001G Wire Gauge 2.438" 3.625" 12 C71108 B003BYQ7TU yes $27.74 Buy Options
#9 2001G Wire Gauge 2.438" 3.625" 12 C71109 B0025Q4P62 yes $27.74 Buy Options
#10 2001G Wire Gauge 2.438" 3.625" 12 C71110 B002KLPG7Y yes $27.74 Buy Options
#11 2001G Wire Gauge 2.313" 3.500" 12 C71111 B002KLLC0Y Usually ships in 1 to 2 months $26.96 Buy Options
#12 2001G Wire Gauge 2.313" 3.500" 12 C71112 B003BYQ7UE yes $27.74 Buy Options
#13 2001G Wire Gauge 2.313" 3.500" 12 C71113 B003BYQ7UY yes $27.18 Buy Options
#14 2001G Wire Gauge 2.188" 3.375" 12 C71114 B0025Q6KVK yes $27.18 Buy Options
#15 2001G Wire Gauge 2.188" 3.375" 12 C71115 B003BYQ7VI yes $26.34 Buy Options
#16 2001G Wire Gauge 2.188" 3.375" 12 C71116 B002KLJJRM yes $26.51 Buy Options
#17 2001G Wire Gauge 2.188" 3.375" 12 C71117 B003BYQ7W2 yes $26.96 Buy Options
#18 2001G Wire Gauge 2.125" 3.250" 12 C71118 B002KLPGH4 yes $23.06 Buy Options
#19 2001G Wire Gauge 2.125" 3.250" 12 C71119 B003BYQ7WC yes $22.84 Buy Options
#20 2001G Wire Gauge 2.125" 3.250" 12 C71120 B003BYQ7WM yes $22.50 Buy Options

Key Features

  • Vanadium steel for greater heat resistance than high-speed steel (HSS)
  • Black oxide improves lubricity, resists corrosion, and resists flaking, and also helps prevent buildup of material on the tool's cutting edge
  • Jobber-length, for a wide range of applications
  • 118-degree conventional point angles, for general drilling applications
  • Round shanks, for use with a variety of tool holders

Product Description

The Cleveland 2001G, also called CLE-MAX 2001G, is a jobber length, vanadium steel drill bit has a 38-degree helix angle, with a 118-degree conventional point and black oxide surface treatment, is suitable for general-purpose drilling applications. Jobber length provides a longer reach and more rigidity than shorter lengths. The shank diameter is the same as the drill size.

While the 2001G series of drill bits can be used for drilling into most material, it is most suitable for drilling into low carbon steel, cast iron, aluminum, and copper alloys. Black oxide, also called steam oxide improves lubricity, resists corrosion, and resists flaking. It also helps prevent buildup and welding of material on the tool’s cutting edge when machining iron and steel. Spiral flutes act as a passageway for chip removal and for coolant to enter the hole. The twist of the flutes brings chips up and away from the cutting edge. The 118-degree drill point is the most common angle for general purpose drilling across a wide range of materials. The faster helix angle provides greater lifting power for chip removal than a lesser helix angle. Round shanks allow use with a variety of tool holders.

Vanadium steel is high-speed steel (HSS) with a high percentage of vanadium, for greater heat resistance and an increased ability to hold an edge over high-speed steel (HSS).They adhere to Deutsches Institut für Normung (DIN) 338 standards.

The tolerances for various aspects of the Cleveland drill bits are: drill diameter range through 1/8” +0.0000”/-0.0005”, over 1/8” to 1/4” +0.0000”/-0.0007”, over 1/4” to 1/2” +0.0000”/-0.0010”, over 1/2” to 1” +0.0000”/-0.0012”, over 1” to 2” +0.0000”/-0.0015”, over 2” to 3-1/2” +0.0000”/-0.0020”; drill overall length and flute length #80 through 1/8” +0.1250”/-0.0626”, over 1/8” to 1/2” +0.1250”/-0.1250”, over 1/2” to 1” +0.2500”/-0.1250”, over 1” to 2” +0.2500”/-0.2500”, over 2” to 3-1/2” +0.3750”/-0.3750”; drill point angle diameter range 1/16” to 1/2” included angle 118 or 135 degrees +/-5 degrees, over 1/2” to 1 1/2” included angle 118 degrees +/-3 degrees, over 1-1/2” to 3-1/2” includes angle 118 degrees +/- 2 degrees; drill lip height diameter range 1/16” to 1/8” total indicator variation 0.0020”, over 1/8” to 1/4” total indicator variation 0.0030”, over 1/4” to 1/2” total indicator variation 0.0040”, over 1/2” to 1” total indicator variation 0.0050”, over 1” to 3 1/2” total indicator variation 0.0060”.

Drill bits are cutting tools used to make holes in a range of materials. They are used in machines such as handheld portable drills, drill presses, machining centers, and lathes. Drill bits come in a variety of types and lengths. Twist drill bits are the most common type of drill bit. They are a round, twisted shaft, end-cutting tool with two or more cutting edges and two or more flutes. Jobber drill bits are the most common length of twist bit. They offer a good comprise of length and reach to work with the widest range of materials and applications.

Greenfield Industries manufactures tools under the brand names Cleveland, Chicago-Latrobe, Cle-Line, Vermont Tap & Die, Bassett, Putnam Tools, Geometric, Vers-O-Tool, H & G, and Acme-Fette. The company, owned by Top-Eastern Group and headquartered in Seneca, SC, makes tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
