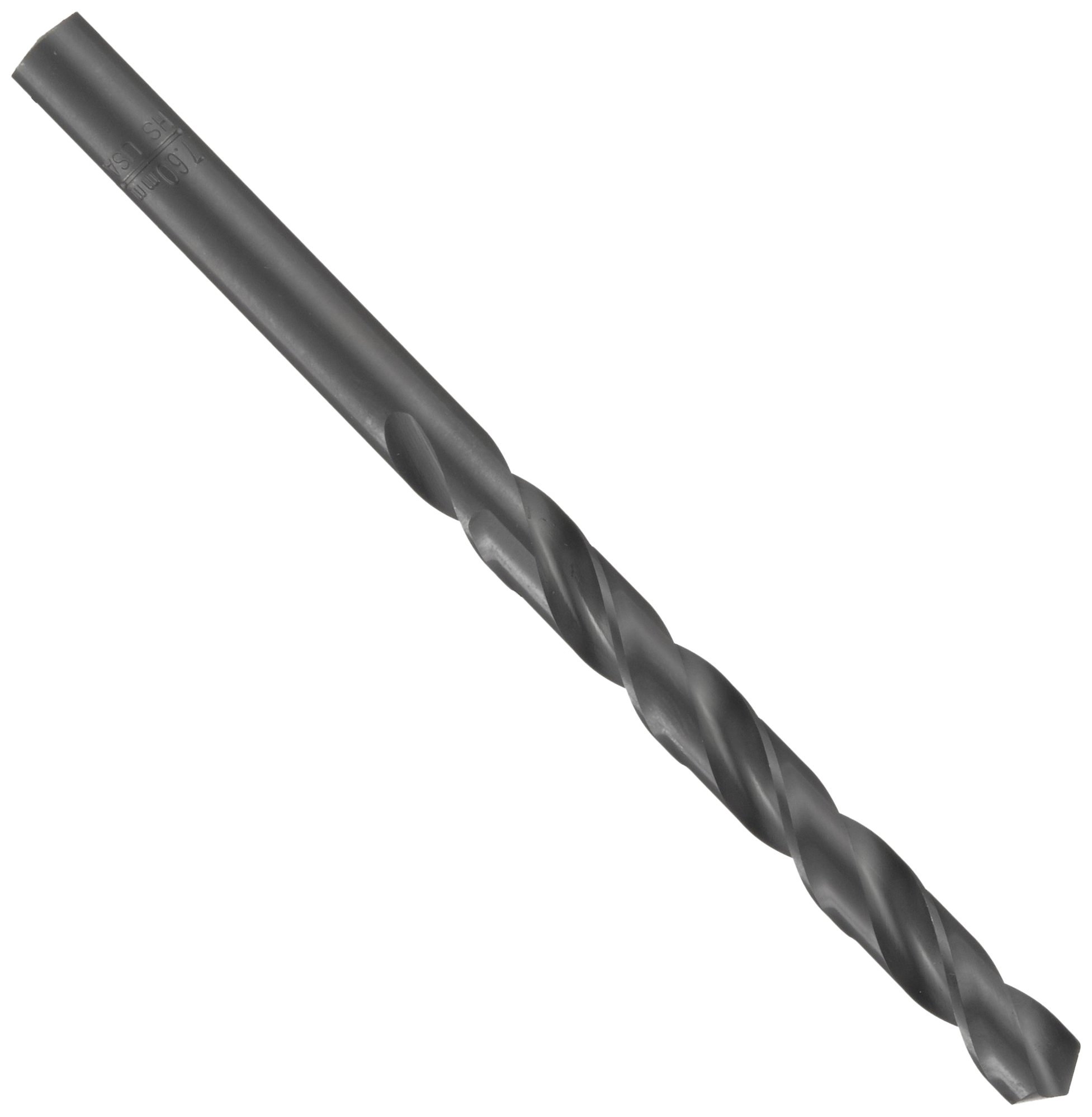

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Cleveland 2001 Style High Speed Steel Jobbers' Drill Bit, Black Oxide, Round Shank, 118 Degree Conventional Point

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Black Oxide
Shank Type
Round
Material Type
High-Speed Steel
Drill Point
Conventional
UNSPSC Code
20121600
Cutting Angle
118  Degrees
Brand Name
Cleveland
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 16 hrs 20 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 42 Next 20 »
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 42 Next 20 »
#61 2001 Wire Gauge 0.688" 1.500" 10 C01049 B00074Y8TS yes $16.71 Buy Options
#62 2001 Wire Gauge 0.625" 1.500" 10 C01048 B00074Y8TI yes $6.93 Buy Options
#63 2001 Wire Gauge 0.625" 1.500" 10 C01046 B00074Y8T8 yes $6.93 Buy Options
#64 2001 Wire Gauge 0.625" 1.500" 10 C01045 B00074Y8SY Usually ships in 1 to 2 months $16.62 Buy Options
#65 2001 Wire Gauge 0.625" 1.500" 10 C01043 B00074Y8SE yes $16.80 Buy Options
#66 2001 Wire Gauge 0.500" 1.375" 10 C01041 B00074Y8S4 yes $16.62 Buy Options
#67 2001 Wire Gauge 0.500" 1.375" 10 C01040 B00074Y8RU yes $16.71 Buy Options
#68 2001 Wire Gauge 0.354" 1.102" 10 C01037 B00074Y88O yes $6.93 Buy Options
#69 2001 Wire Gauge 0.500" 1.375" 10 C01035 B00074Y88E yes $16.80 Buy Options
#70 2001 Wire Gauge 0.375" 1.250" 10 C01034 B00074Y884 yes $18.58 Buy Options
#71 2001 Wire Gauge 0.375" 1.250" 10 C01032 B00074Y87U yes $22.59 Buy Options
#72 2001 Wire Gauge 0.313" 1.125" 10 C01030 B00074Y87K yes $22.59 Buy Options
#73 2001 Wire Gauge 0.313" 1.125" 10 C01029 B00074Y870 yes $7.34 Buy Options
#74 2001 Wire Gauge 0.250" 1.000" 10 C01027 B00074Y86G yes $7.36 Buy Options
#75 2001 Wire Gauge 0.250" 1.000" 10 C01025 B00074Y866 yes $23.43 Buy Options
#76 2001 Wire Gauge 0.188" 0.875" 10 C01024 B00074Y85W yes $23.43 Buy Options
#77 2001 Wire Gauge 0.188" 0.875" 10 C01021 B00074Y8O8 yes $28.85 Buy Options
#78 2001 Wire Gauge 0.188" 0.875" 10 C01018 B00074Y8NO yes $9.78 Buy Options
#79 2001 Wire Gauge 0.188" 0.750" 10 C01014 B00074Y8MU yes $9.93 Buy Options
#80 2001 Wire Gauge 0.125" 0.750" 10 C01012 B00074Y8MA yes $9.93 Buy Options

Key Features

  • High-speed steel (HSS) offers toughness and shock resistance, and is compatible with a variety of materials
  • 118-degree conventional point angles, for general drilling applications
  • Black oxide improves lubricity, resists corrosion, and resists flaking. It also helps prevent buildup and welding of material on the tool's cutting edge when machining iron and steel.
  • Jobber-length, for a wide range of applications
  • Round shanks, for use on a variety of tool-holding systems

Product Description

The Cleveland 2001 jobber length 2410 high-speed steel (HSS) drill bit has a 30-degree helix angle, with a 118-degree drill point and black oxide surface treatment, which is designed for general purpose drilling applications. The shank diameter is the same as the drill size.

While the 2001 series can be used on most materials, it is most suitable for drilling into various types of steel including alloys and tool steel, cast iron, and aluminum. Black oxide also known as steam oxide improves lubricity, resists corrosion, and resists flaking. It also helps prevent buildup and welding of material on the tool’s cutting edge when machining iron and steel. Spiral flutes act as a passageway for chip extraction from the hole and for coolant to enter the hole. Right-hand twist brings chips up and away from the cutting edge. Round shanks allow use with a wide variety of tool holding systems. 118-degree drill point is the most common angle with a good comprise of performance across a wide range of materials. HSS is a common, general-purpose steel for cutting tools, offers toughness and shock resistance, and is compatible with a variety of materials.

The tolerances for various aspects of the Cleveland drill bits are: drill diameter range through 1/8” +0.0000”/-0.0005”, over 1/8” to 1/4” +0.0000”/-0.0007”, over 1/4” through 1/2” +0.0000”/-0.0010”, over 1/2” to 1” +0.0000”/-0.0012”, over 1” to 2” +0.0000”/-0.0015”, over 2” to 3-1/2” +0.0000”/-0.0020”; drill overall length and flute length #80 through 1/8” +0.1250”/-0.0626”, over 1/8” to 1/2” +0.1250”/-0.1250”, over 1/2” to 1” +0.2500”/-0.1250”, over 1” to 2” +0.2500”/-0.2500”, over 2” to 3-1/2” +0.3750”/-0.3750”; drill point angle diameter range 1/16” to 1/2” included angle 118 or 135 degrees +/-5 degrees, over 1/2” to 1 1/2” included angle 118 degrees +/-3 degrees, over 1-1/2” to 3-1/2” includes angle 118 degrees +/- 2 degrees; drill lip height diameter range 1/16” to 1/8” total indicator variation 0.0020”, over 1/8” to 1/4” total indicator variation 0.0030”, over 1/4” to 1/2” total indicator variation 0.0040”, over 1/2” to 1” total indicator variation 0.0050”, over 1” to 3 1/2” total indicator variation 0.0060”.

Drill bits are cutting tools used to make holes in a range of materials. They are used in machines such as handheld portable drills, drill presses, machining centers, and lathes. Drill bits come in a variety of types and lengths. Twist drill bits are the most common type of drill bit. They are a round, twisted shaft, end-cutting tool with two or more cutting edges and two or more flutes. Jobber drill bits are the most common length of twist bit. They offer a good comprise of length and reach to work with the widest range of materials and applications.

Greenfield Industries manufactures tools under the brand names Cleveland, Chicago-Latrobe, Cle-Line, Vermont Tap & Die, Bassett, Putnam Tools, Geometric, Vers-O-Tool, H & G, and Acme-Fette. The company owned by Top-Eastern Group and headquartered in Seneca, SC, makes tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
