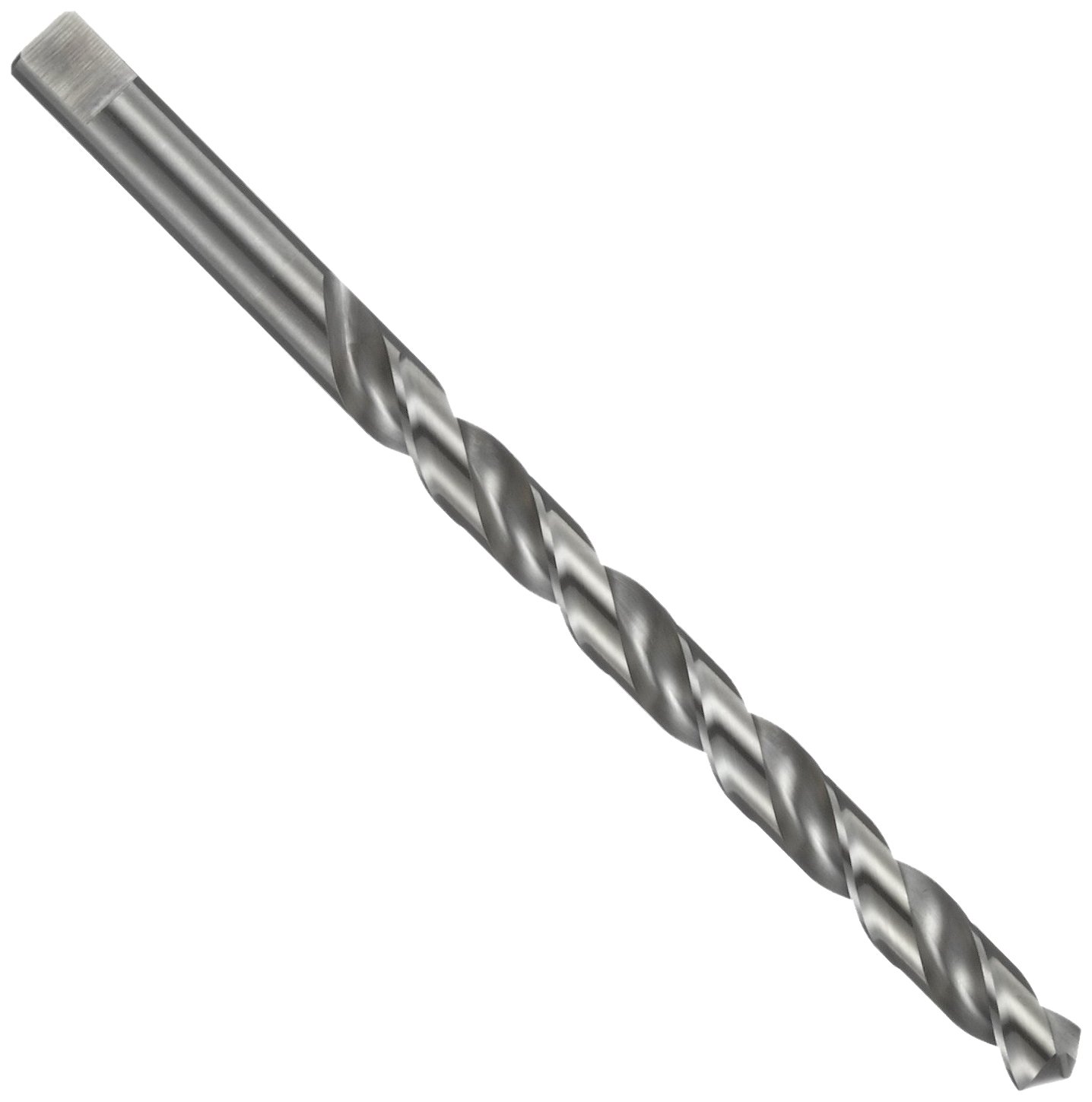

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Cleveland 2513 Cobalt Steel Long Length Drill Bit, Gold Oxide Finish, Round Shank with Tang, 118 Degree Notched Point

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Gold Oxide
Shank Type
Round with Tang
Material Type
Cobalt Steel
Drill Point
118 Degrees
UNSPSC Code
20121600
Cutting Angle
118  Degrees
Brand Name
Cleveland
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 5 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-12 of 12
9/64" 2513 Inch 3.625" 5.375" 1 C14882 B003LSSNDY yes $103.45 Buy Options
5/32" 2513 Inch 3.75" 5.375" 1 C14893 B003LSSNES yes $32.59 Buy Options
7/32" 2513 Inch 4.375" 6.000" 10 C14935 B003LSSNH0 yes $19.32 Buy Options
23/64" 2513 Inch 5.375" 6.750" 1 C15007 B003LSSNKM yes $27.54 Buy Options
3/8 " 2513 Inch 5.375" 6.750" 1 C15014 B003LSSNL6 yes $28.30 Buy Options
13/32" 2513 Inch 5.625" 7.000" 1 C15028 B003LSSNMA yes $30.28 Buy Options
27/64" 2513 Inch 5.688" 7.250" 1 C15031 B003LSSNN4 yes $31.60 Buy Options
7/16" 2513 Inch 5.688" 7.250" 1 C15034 B003LSSNNO yes $31.63 Buy Options
29/64" 2513 Inch 5.75" 7.500" 1 C15037 B003LSSNOI yes $34.15 Buy Options
15/32" 2513 Inch 5.75" 7.500" 1 C15039 B003LSSNPM yes $34.58 Buy Options
31/64" 2513 Inch 5.75" 7.750" 1 C15042 B003LSSNQG yes $37.45 Buy Options
1/2 " 2513 Inch 5.75" 7.750" 1 C15044 B003LSSNRA yes $37.91 Buy Options

Key Features

  • High-speed steel (HSS) containing cobalt is a good combination of toughness and hardness, for use on drilling through hard substances
  • Long-length, for extra reach and deeper holes

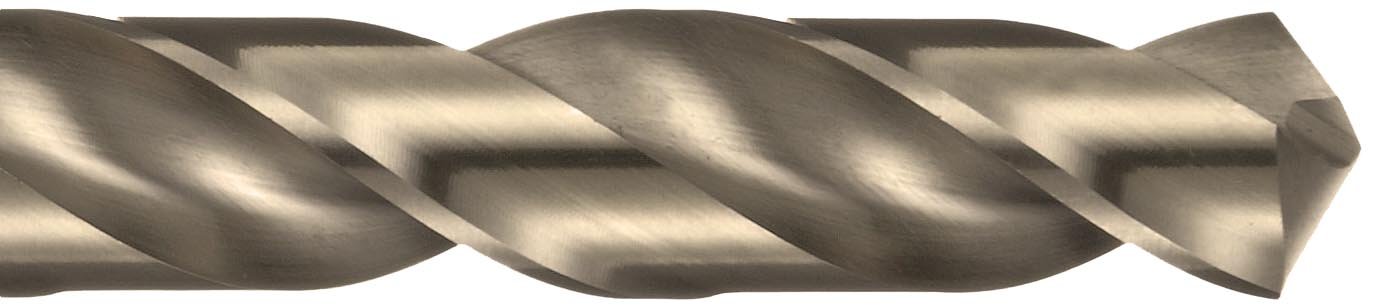

  • 118-degree angle, notched-point provides ease of penetration when starting holes and prevent walking
  • Gold oxide reduces grinding stress within the tool

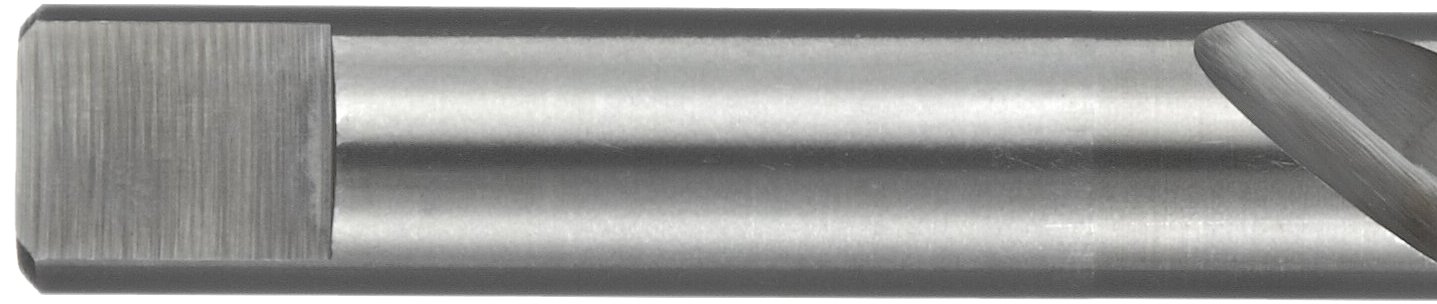

  • Round shank with tang, for secure fit a variety of tool-holding systems

Product Description

The Cleveland 2513 long-length, high-speed steel (HSS) containing cobalt drill bit has a 30-degree helix angle, with a 118-degree notched-point drill point and gold oxide surface treatment, which is designed for heavy-duty drilling applications. The shank diameter is the same as the drill size. This drill has high red hardness for extended wear life in high heat conditions.

The 2513 series performs best when drilling into stainless steel, carbon steel, and cast iron. Gold also known as straw oxide is a low-temperature heat treatment that reduces grinding stress within the tool. Spiral flutes act as a passageway for chip extraction from the hole and for coolant to enter the hole. The twist of the flutes brings chips up and away from the cutting edge. The 118-degree notched-point drill point works well for hard and tough materials. The notched point can withstand higher thrust loads and has same benefits as a split-point design. The long, also known as taper length has more reach than Jobber-length bits and allows for deeper holes. Round shanks allow use with a wide variety of tool holding systems. The round shank with tang provides a means to securely hold the drill bit in the tool holder. Made from cobalt steel which can be run at faster speeds and stays sharp longer than HSS tools, while offering resistance to heat and abrasion.

The tolerances for various aspects of the Cleveland drill bits are: drill diameter range through 1/8” +0.0000”/-0.0005”, over 1/8” to 1/4” +0.0000”/-0.0007”, over 1/4” through 1/2” +0.0000”/-0.0010”, over 1/2” to 1” +0.0000”/-0.0012”, over 1” to 2” +0.0000”/-0.0015”, over 2” to 3-1/2” +0.0000”/-0.0020”; drill overall length and flute length #80 through 1/8” +0.1250”/-0.0626”, over 1/8” to 1/2” +0.1250”/-0.1250”, over 1/2” to 1” +0.2500”/-0.1250”, over 1” to 2” +0.2500”/-0.2500”, over 2” to 3-1/2” +0.3750”/-0.3750”; drill point angle diameter range 1/16” to 1/2” included angle 118 or 135 degrees +/-5 degrees, over 1/2” to 1 1/2” included angle 118 degrees +/-3 degrees, over 1-1/2” to 3-1/2” includes angle 118 degrees +/- 2 degrees; drill lip height diameter range 1/16” to 1/8” total indicator variation 0.0020”, over 1/8” to 1/4” total indicator variation 0.0030”, over 1/4” to 1/2” total indicator variation 0.0040”, over 1/2” to 1” total indicator variation 0.0050”, over 1” to 3 1/2” total indicator variation 0.0060”.

Drill bits are cutting tools used to make holes in a range of materials. They are used in machines such as handheld portable drills, drill presses, machining centers, and lathes. Drill bits come in a variety of types and lengths. Twist drill bits are the most common type of drill bit. They are a round, twisted shaft, end-cutting tool with two or more cutting edges and two or more flutes. Long length bits (also called taper length) are twist bits that are a little longer than jobber length, allowing for deeper holes and longer reach.

Greenfield Industries manufactures tools under the brand names Cleveland, Chicago-Latrobe, Cle-Line, Vermont Tap & Die, Bassett, Putnam Tools, Geometric, Vers-O-Tool, H & G, and Acme-Fette. The company owned by Top-Eastern Group and headquartered in Seneca, SC, makes tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
