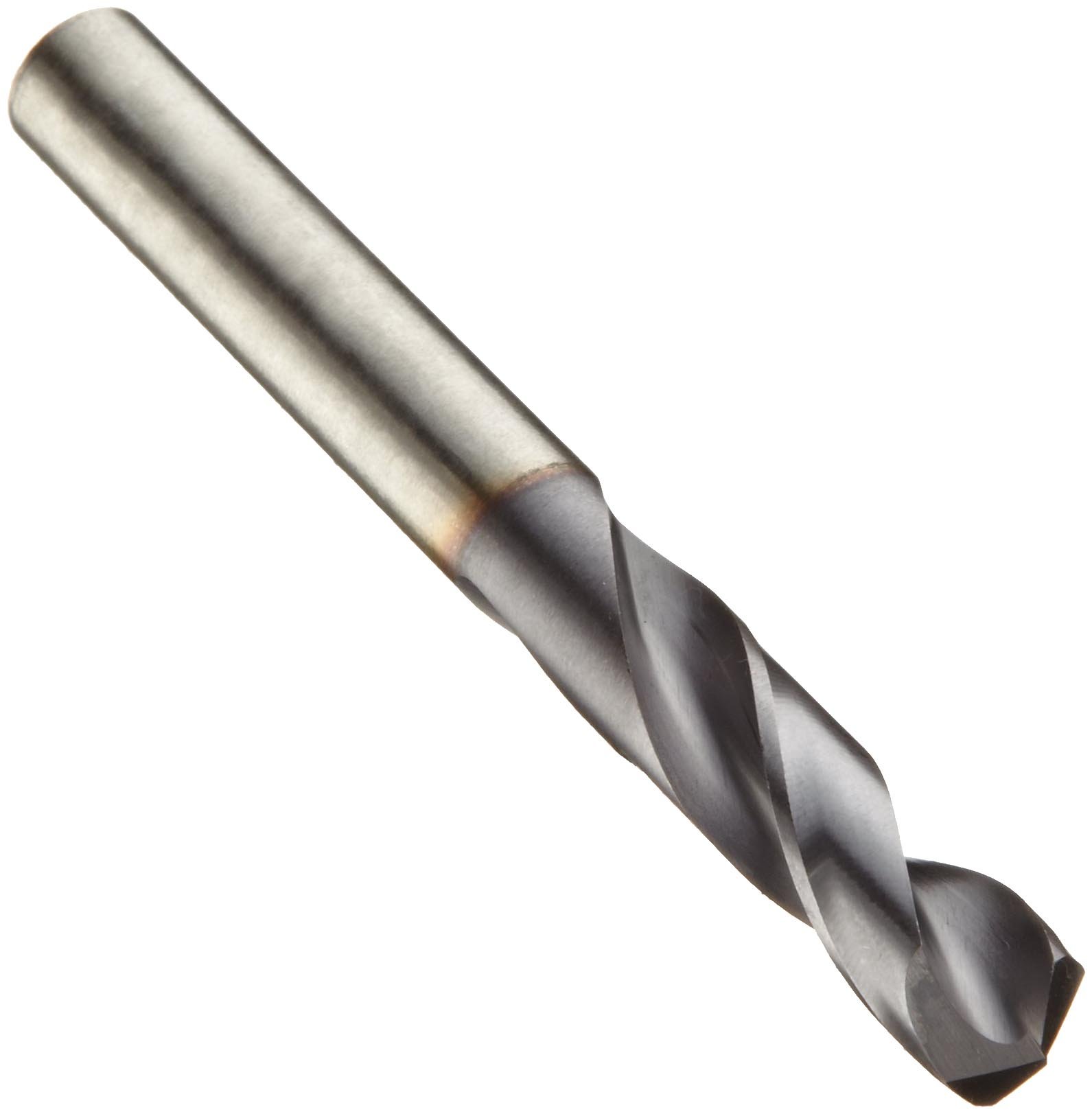

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, TiCN Coated, Round Shank, 135 Degree Split Point

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
TiCN
Shank Type
Round
Material Type
Cobalt Steel
Drill Point
135 Degrees
UNSPSC Code
20121600
Cutting Angle
135  Degrees
Brand Name
Cleveland
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 22? Order in-stock items in the next 10 hrs 46 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 32 Next 12 »
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 32 Next 12 »
1/16" 2133 Inch 0.625" 1.625" 12 C14846 B003EYVDUA yes $42.22 Buy Options
3/32" 2133 Inch 0.750" 1.750" 12 C14848 B003EYVDSC yes $44.04 Buy Options
1/8" 2133 Inch 0.875" 1.875" 12 C14850 B003EYVDTQ yes $44.70 Buy Options
5/32" 2133 Inch 1.000" 2.063" 12 C14852 B003EYVDRI yes $14.51 Buy Options
3/16 " 2133 Inch 1.125" 2.188" 12 C14854 B003EYVDSM yes $16.51 Buy Options
7/32" 2133 Inch 1.250" 2.375" 12 C14856 B003EYVDQY yes $68.66 Buy Options
9/32" 2133 Inch 1.500" 2.688" 12 C14860 B003EYVDQO yes $94.12 Buy Options
7/16" 2133 Inch 2.063" 3.438" 12 C14865 B003EYVDR8 Usually ships in 2 to 4 weeks $159.60 Buy Options
15/32" 2133 Inch 2.125" 3.625" 1 C14867 B003EYVDSW yes $9.81 Buy Options
1/2 " 2133 Inch 2.250" 3.750" 1 C14866 B003EYVDU0 yes $125.90 Buy Options
2 mm 2133 Metric 12.00 mm 38.00 mm 12 C14749 B003EYVDUK yes $44.78 Buy Options
2.5 mm 2133 Metric 14.00 mm 43.00 mm 12 C14750 B003EYVDUU yes $48.19 Buy Options
2.6 mm 2133 Metric 14.00 mm 43.00 mm 12 C14730 B003EYVDV4 yes $47.74 Buy Options
3 mm 2133 Metric 16.00 mm 46.00 mm 12 C14751 B003EYVDVE yes $47.75 Buy Options
3.1 mm 2133 Metric 18.00 mm 49.00 mm 12 C14752 B003EYVDVO yes $49.96 Buy Options
3.2 mm 2133 Metric 18.00 mm 49.00 mm 12 C14753 B003EYVDVY yes $50.01 Buy Options
3.3 mm 2133 Metric 18.00 mm 49.00 mm 12 C14754 B003EYVDW8 yes $49.23 Buy Options
3.5 mm 2133 Metric 20.00 mm 52.00 mm 12 C14755 B003EYVDWI yes $48.47 Buy Options
4 mm 2133 Metric 22.00 mm 55.00 mm 12 C14756 B003EYVDWS yes $55.38 Buy Options
4.1 mm 2133 Metric 22.00 mm 55.00 mm 12 C14757 B003EYVDX2 yes $55.92 Buy Options

Key Features

  • Short length offers the greatest rigidity of the various drill bit lengths
  • High-speed steel (HSS) containing cobalt is a good combination of toughness and hardness, for use on drilling into hard materials
  • Titanium carbon nitride (TiCN) coating lubricates drill bits for high-temperature stability and offers better abrasion resistance than TiN coating

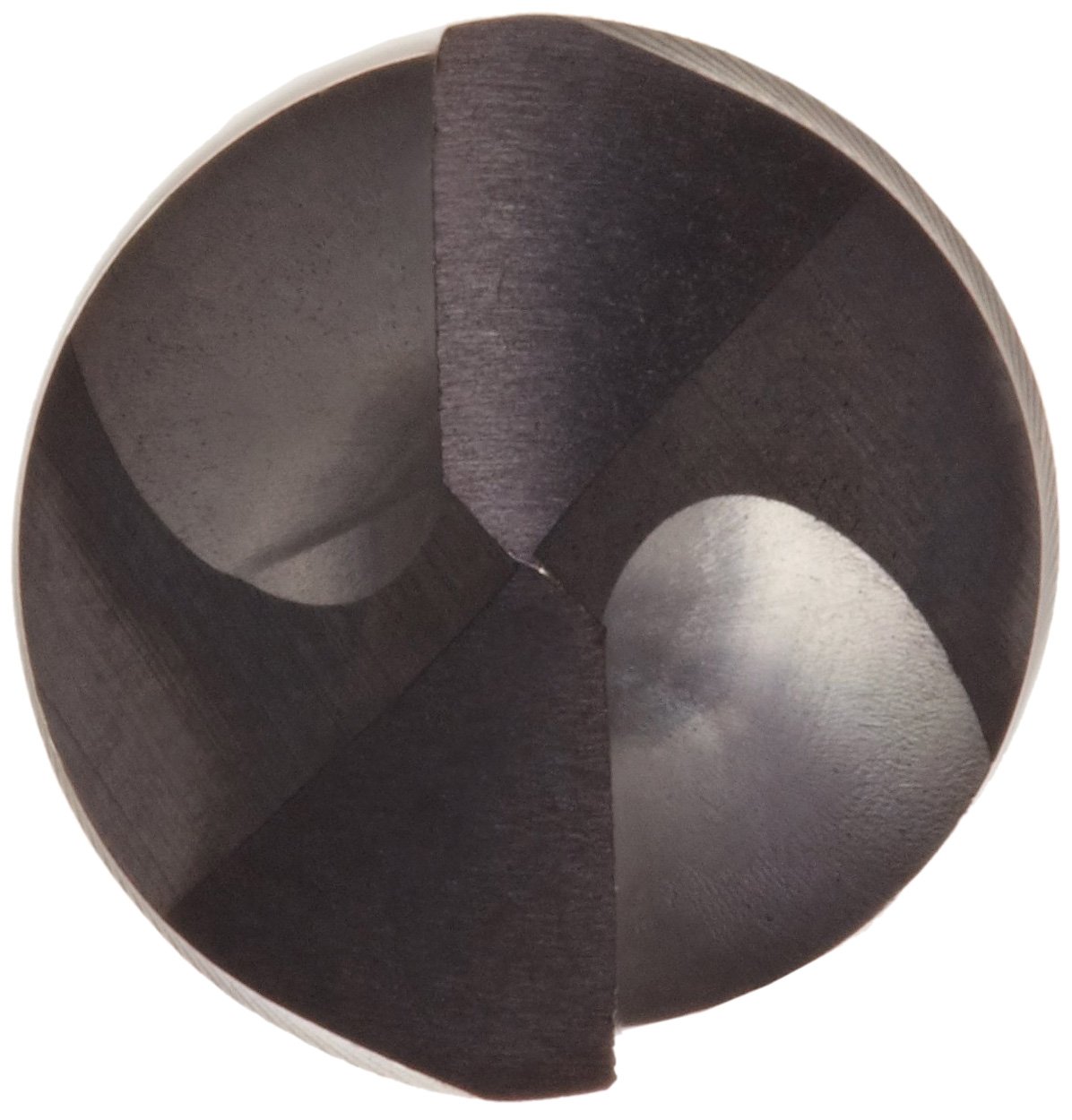

  • 135-degree split-point angles for centering and to reduce pressure on cutting edges

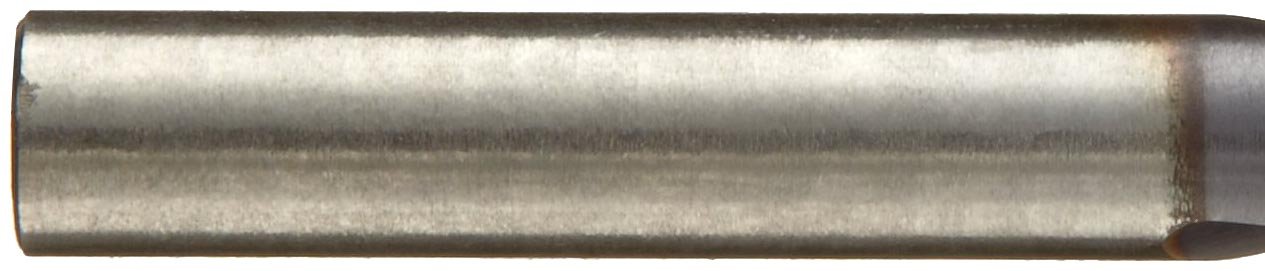

  • Round shanks, for use on a variety of tool-holding systems

Product Description

The Cleveland 2133 short length high-speed steel (HSS) containing cobalt drill bit has a 30-degree helix angle, with a 135-degree split-point drill point and titanium carbon nitride (TiCN) surface treatment, which helps optimize performance in general-purpose drilling applications. The shank diameter is the same as the drill size.

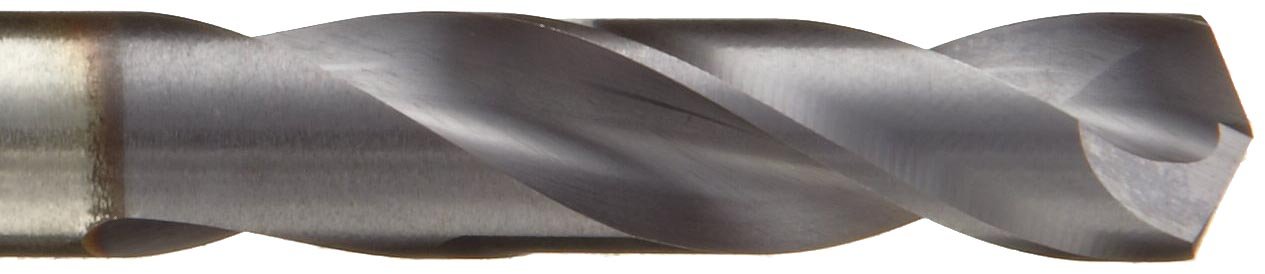

While the 2133 series can be used on most materials, it is most suitable for drilling into stainless steel, tool steel, carbon steel, and cast iron. TiCN coating lubricates the drill bit for high-temperature stability, and offers increased hardness and greater abrasion resistance than uncoated or TiN-coated tools. Spiral flutes act as a passageway for chip extraction from the hole and for coolant to enter the hole. The twist of the flutes brings chips up and away from the cutting edge. 135-degree split-point reduces walking when starting a hole and penetrates more easily than a convention point. Round shanks allow use with a wide variety of tool holding systems.

The 2133 series is most suitable for drilling into stainless steel, various steels, and cast iron. TiCN is harder than TiN and has lower friction. It combines toughness with good wear resistance. Spiral flutes act as a passageway for chip removal and for coolant to enter the hole. The right-hand twist brings chips up and away from the cutting edge. Round shanks allow use with a wide variety of tool holding systems. 135-degree split-point reduces walking when starting a hole and penetrates more easily than a convention point.

HSS containing cobalt which can be run at faster speeds and stays sharp longer than HSS tools, while offering resistance to heat and abrasion. It provides heat and wear resistance to help extend tool life and it adheres to Deutsches Institut für Normung (DIN) 1897 standards.

The tolerances for various aspects of the Cleveland drill bits are: drill diameter range through 1/8” +0.0000”/-0.0005”, over 1/8” to 1/4” +0.0000”/-0.0007”, over 1/4” through 1/2” +0.0000”/-0.0010”, over 1/2” to 1” +0.0000”/-0.0012”, over 1” to 2” +0.0000”/-0.0015”, over 2” to 3-1/2” +0.0000”/-0.0020”; drill overall length and flute length #80 through 1/8” +0.1250”/-0.0626”, over 1/8” to 1/2” +0.1250”/-0.1250”, over 1/2” to 1” +0.2500”/-0.1250”, over 1” to 2” +0.2500”/-0.2500”, over 2” to 3-1/2” +0.3750”/-0.3750”; drill point angle diameter range 1/16” to 1/2” included angle 118 or 135 degrees +/-5 degrees, over 1/2” to 1 1/2” included angle 118 degrees +/-3 degrees, over 1-1/2” to 3-1/2” includes angle 118 degrees +/- 2 degrees; drill lip height diameter range 1/16” to 1/8” total indicator variation 0.0020”, over 1/8” to 1/4” total indicator variation 0.0030”, over 1/4” to 1/2” total indicator variation 0.0040”, over 1/2” to 1” total indicator variation 0.0050”, over 1” to 3 1/2” total indicator variation 0.0060”.

Drill bits are cutting tools used to make holes in a range of materials. They are used in machines such as handheld portable drills, drill presses, machining centers, and lathes. Drill bits come in a variety of types and lengths. Twist drill bits are the most common type of drill bit. They are a round, twisted shaft, end-cutting tool with two or more cutting edges and two or more flutes. Short length drill bits (also called stub or screw-machine length) are the shortest and stiffest twist bits, helping to reduce the chance of deflection or breakage when drilling.

Greenfield Industries manufactures tools under the brand names Cleveland, Chicago-Latrobe, Cle-Line, Vermont Tap & Die, Bassett, Putnam Tools, Geometric, Vers-O-Tool, H & G, and Acme-Fette. The company owned by Top-Eastern Group and headquartered in Seneca, SC, makes tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
