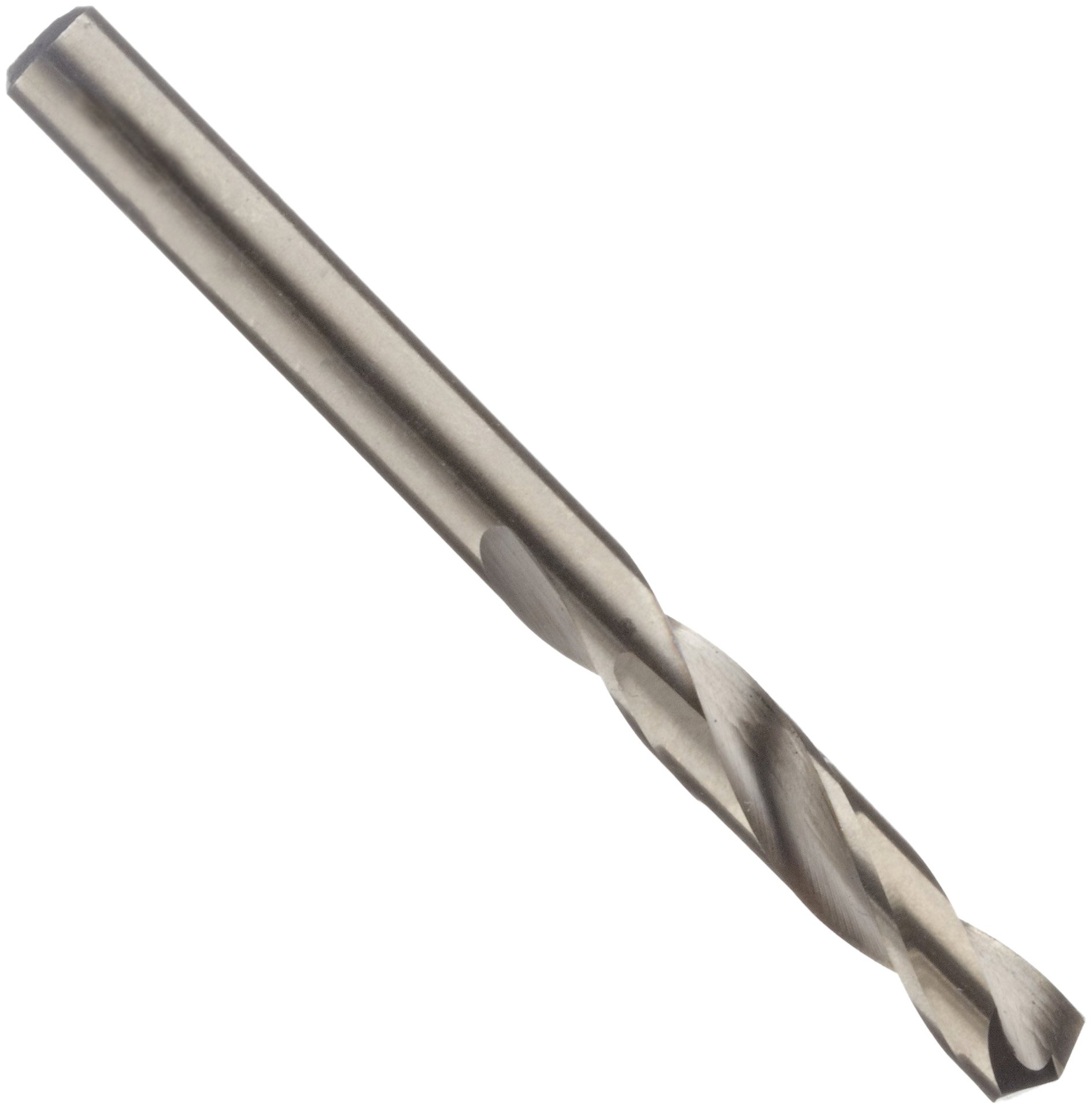

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, Bronze Oxide, Round Shank, 135 Degree Split Point

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Finish Types
Gold Oxide
Shank Type
Round
Material Type
Cobalt Steel
Drill Point
135 Degrees
UNSPSC Code
20121600
Cutting Angle
135  Degrees
Brand Name
Cleveland
Flute Type
Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 24? Order in-stock items in the next 7 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 139 Next 20 »
Size Mfg Series # System of Measurement Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 139 Next 20 »
#1 2133 Wire Gauge 1.313" 2.438" 10 C14634 B00075HTNO yes $37.66 Buy Options
#2 2133 Wire Gauge 1.313" 2.438" 10 C14632 B00075HTLQ yes $37.18 Buy Options
#3 2133 Wire Gauge 1.250" 2.375" 10 C14628 B00075HSI0 yes $34.57 Buy Options
#4 2133 Wire Gauge 1.250" 2.375" 10 C14626 B00075HSH6 yes $35.27 Buy Options
#5 2133 Wire Gauge 1.250" 2.375" 10 C14624 B00075HSGC yes $35.27 Buy Options
#6 2133 Wire Gauge 1.250" 2.375" 10 C14622 B00075HSEE yes $35.27 Buy Options
#7 2133 Wire Gauge 1.188" 2.250" 10 C14620 B00075HSD0 yes $31.19 Buy Options
#8 2133 Wire Gauge 1.188" 2.250" 10 C14618 B00075HSCG yes $30.45 Buy Options
#9 2133 Wire Gauge 1.188" 2.250" 10 C14616 B00075HSB2 yes $30.45 Buy Options
#10 2133 Wire Gauge 1.188" 2.250" 10 C14615 B00075HSAI yes $29.77 Buy Options
#11 2133 Wire Gauge 1.188" 2.250" 10 C14613 B00075HS9E yes $29.77 Buy Options
#12 2133 Wire Gauge 1.188" 2.250" 10 C14611 B00075HS8K yes $30.45 Buy Options
#13 2133 Wire Gauge 1.125" 2.188" 10 C14608 B00075HS4E yes $31.48 Buy Options
#14 2133 Wire Gauge 1.125" 2.188" 10 C14607 B00075HS2G yes $29.96 Buy Options
#15 2133 Wire Gauge 1.125" 2.188" 10 C14605 B00075HS12 yes $31.42 Buy Options
#16 2133 Wire Gauge 1.125" 2.188" 10 C14603 B00075HRZY yes $31.42 Buy Options
#17 2133 Wire Gauge 1.125" 2.188" 10 C14601 B00075HRYK yes $31.41 Buy Options
#18 2133 Wire Gauge 1.063" 2.125" 10 C14599 B00075HRVI yes $30.99 Buy Options
#19 2133 Wire Gauge 1.063" 2.125" 10 C14597 B00075HRU4 yes $31.29 Buy Options
#20 2133 Wire Gauge 1.063" 2.125" 10 C14594 B00075HRS6 yes $31.01 Buy Options

Key Features

  • Screw machine length, for rigidity and strength
  • High-speed steel (HSS) containing cobalt is a good combination of toughness and hardness, for use on drilling through hard substances

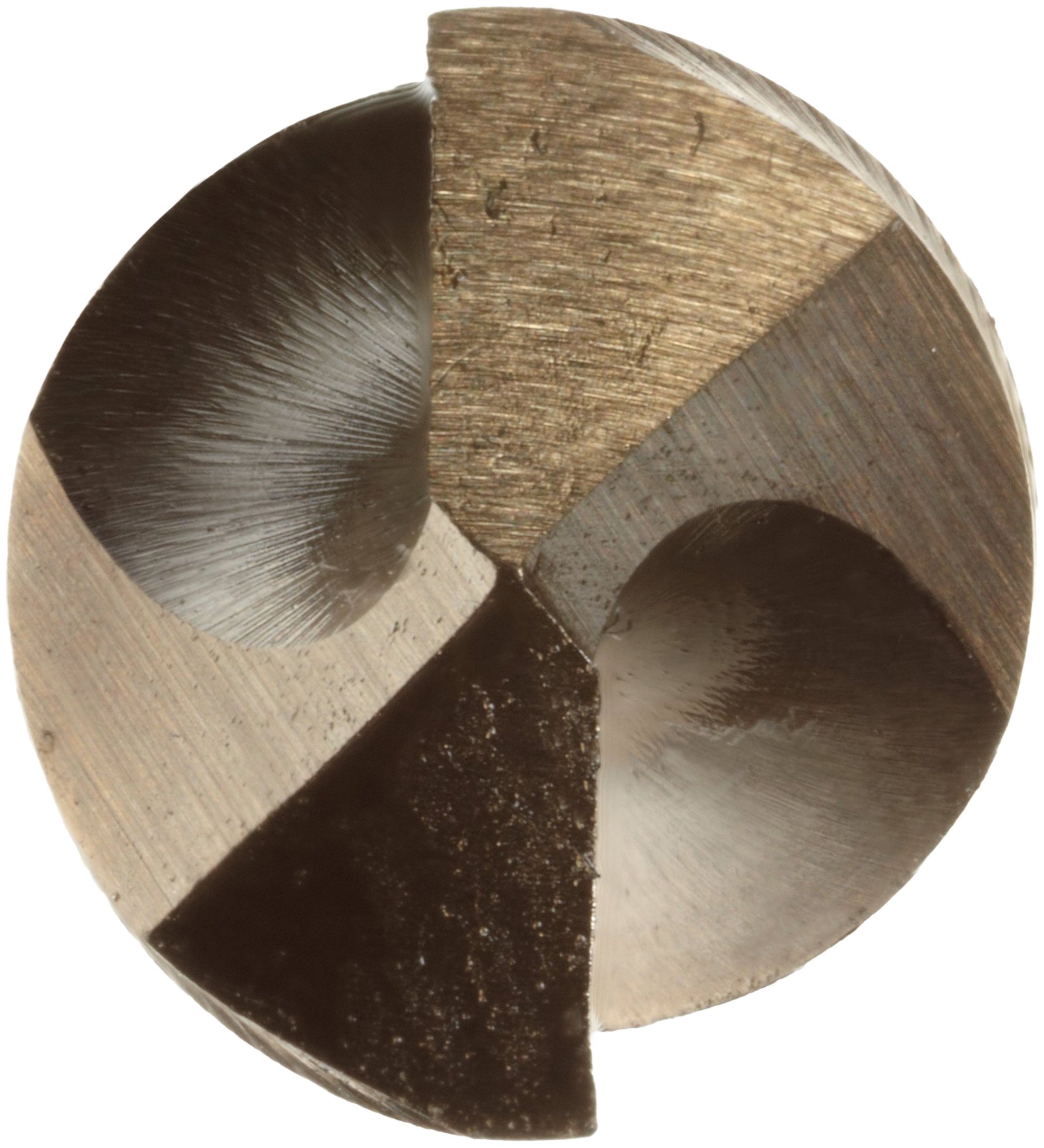

  • 135-degree split-point angles are self-centering, to reduce walking, good for hard material, and to reduce pressure on cutting edges
  • Straw oxide reduces grinding stress within the tool

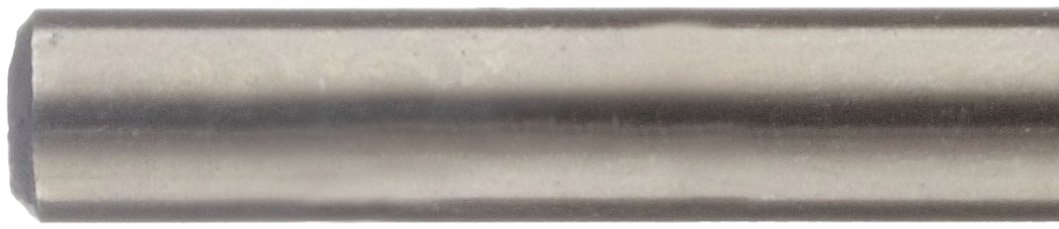

  • Round shanks, for use on a variety of tool-holding systems

Product Description

The Cleveland 2133 screw machine length, high-speed steel (HSS) containing cobalt drill bit has a 30-degree helix angle, with a 135-degree split-point drill point and straw oxide surface treatment, which is designed for heavy-duty drilling applications. The shank diameter is the same as the drill size. This drill has high red hardness for extended wear life in high heat conditions.

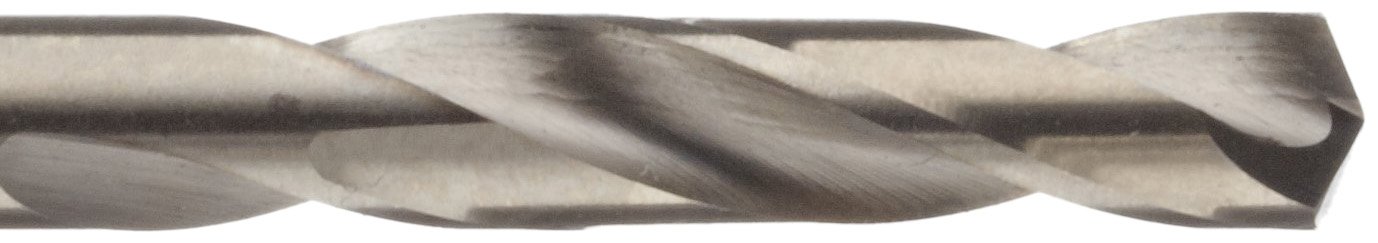

The 2133 series performs best when drilling into stainless steel, tool steel, carbon steel, and cast iron. Straw oxide is a low-temperature heat treatment that reduces grinding stress within the tool. Spiral flutes act as a passageway for chip extraction from the hole and for coolant to enter the hole. The twist of the flutes brings chips up and away from the cutting edge. 135-degree split-point reduces walking when starting a hole and penetrates more easily than a convention point. Round shanks allow use with a wide variety of tool holding systems. The screw machine length, also called short or stub length has shorter flute and overall length for more rigidity and accuracy. Designed to reduce deflection and breakage than longer length drill bits.

Made of cobalt-powder-metal substrate which is many times harder and stiffer than HSS, will hold an edge longer, and will deflect less than HSS. These are also more resistant to heat than HSS. These qualities allow it to run at higher speeds and feeds. They are made to ANSI and DIN 1897 industry standards, which help ensure that drill bits around the world, conform to the same specifications.

The tolerances for various aspects of the Cleveland drill bits are: drill diameter range (inches) through 1/8 +0.0000/-0.0005, over 1/8 through 1/4 +0.0000/-0.0007, over 1/4 through 1/2 +0.0000/-0.0010, over 1/2 through 1 +0.0000/-0.0012, over 1 through 2 +0.0000/-0.0015, over 2 through 3 1/2 +0.0000/-0.0020; drill overall length and flute length #80 through 1/8 +0.1250/-0.0626, over 1/8 through 1/2 +0.1250/-0.1250, over 1/2 through 1 +0.2500/-0.1250, over 1 through 2 +0.2500/-0.2500, over 2 through 3 1/2 +0.3750/-0.3750; drill point angle diameter range (inches) 1/16 through 1/2 included angle (degrees) 118 or 135 +/-5 degrees, over 1/2 through 1 1/2 included angle (degrees) 118 +/-3 degrees, over 1 1/2 through 3 1/2 includes angle (degrees) 118 +/- 2 degrees; drill lip height diameter range (inches) 1/16 through 1/8 total indicator variation (inches) 0.0020, over 1/8 through 1/4 total indicator variation (inches) 0.0030, over 1/4 through 1/2 total indicator variation (inches) 0.0040, over 1/2 through 1 total indicator variation (inches) 0.0050, over 1 through 3 1/2 total indicator variation (inches) 0.0060.

Drilling, or hole making, is the most common metalworking operation in the world. Twist drill bits are the most common type of drill bit used. Twist drill bits can be used in hand-operated drills, standalone drill presses, or a lathe.

Greenfield Industries, which are a part of Top-Eastern Group, is one of the largest manufacturers of twist drills. They also manufacture cutting tools and related products under the following brands: Cleveland, Chicago-Latrobe, Cle-Line, Vermont Tap & Die, Bassett, Putnam Tools, Geo Met RJC, H & G, Vers-O-Tool, and Acme-Fette. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
