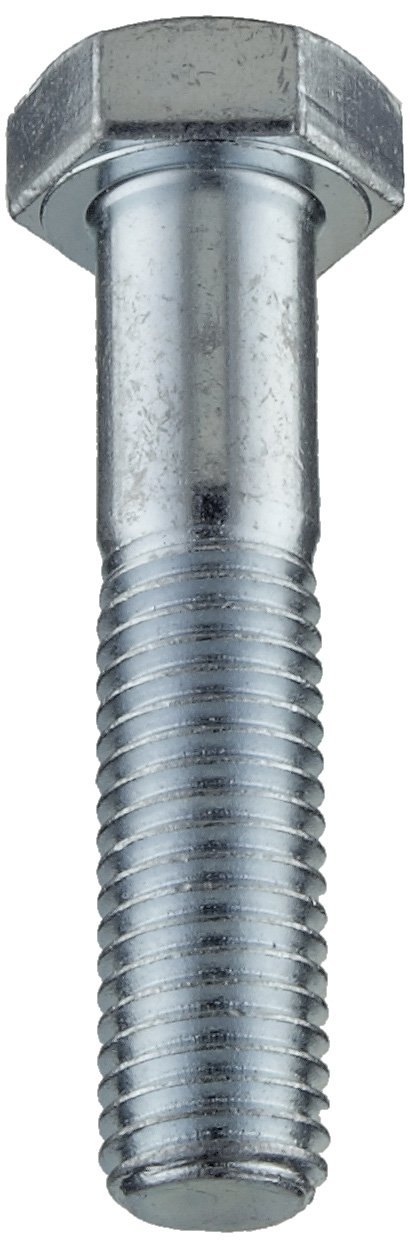

Class 10.9 Zinc Plated Steel Hex Bolt (Metric)
Be the first to review this item
Product Specifications
- Brand Name
- Small Parts
- Color Name
- Silver
- Drive Style
- Hex
- Exterior Finish
- Zinc Plating
- Grade
- Class 10.9
- Head Style
- Hex
- Material Type
- Steel
- System of Measurement
- Metric
- Thread Style
- Right Hand
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Thursday, May 24? Order in-stock items in the next 55 minutes and choose One-Day Shipping at checkout.
Key Features
- Hex Bolts feature a chamfered point
- Zinc Plated Steel fasteners are suitable where strength and corrosion resistance are primary considerations
- Hex head for easy driving
- Length is measured from under the head
Product Description
Hex bolts have a chamfered point to aid insertion into a tapped hole or nut. Length is measured from under the head.
Class 10.9 fasteners are typically made of a medium-carbon alloy steel that is quenched and tempered, with 830 MPa proof load and 1040 MPa tensile strength. It has superior hardness for usage in applications where strength is a primary concern. Steels are designated by a 4 number SAE Steel grade. The first two digits indicate the primary materials used to form the steel. The last 2 digits identify the percentage of carbon for the alloy (in hundredths). The steel used in these fasteners has a tensile strength ranging from 100,000 to 150,000 psi (pounds per square inch). Zinc Plating helps to prevent corrosion.
Hex head fasteners can be driven with simple wrenches, and require minimal clearance above the fastener because they can be driven or loosened from the side.
A threaded fastener's size name includes information about the major external diameter (in millimeters), followed by the thread pitch (millimeters per thread), which indicates if it is coarse or fine.
