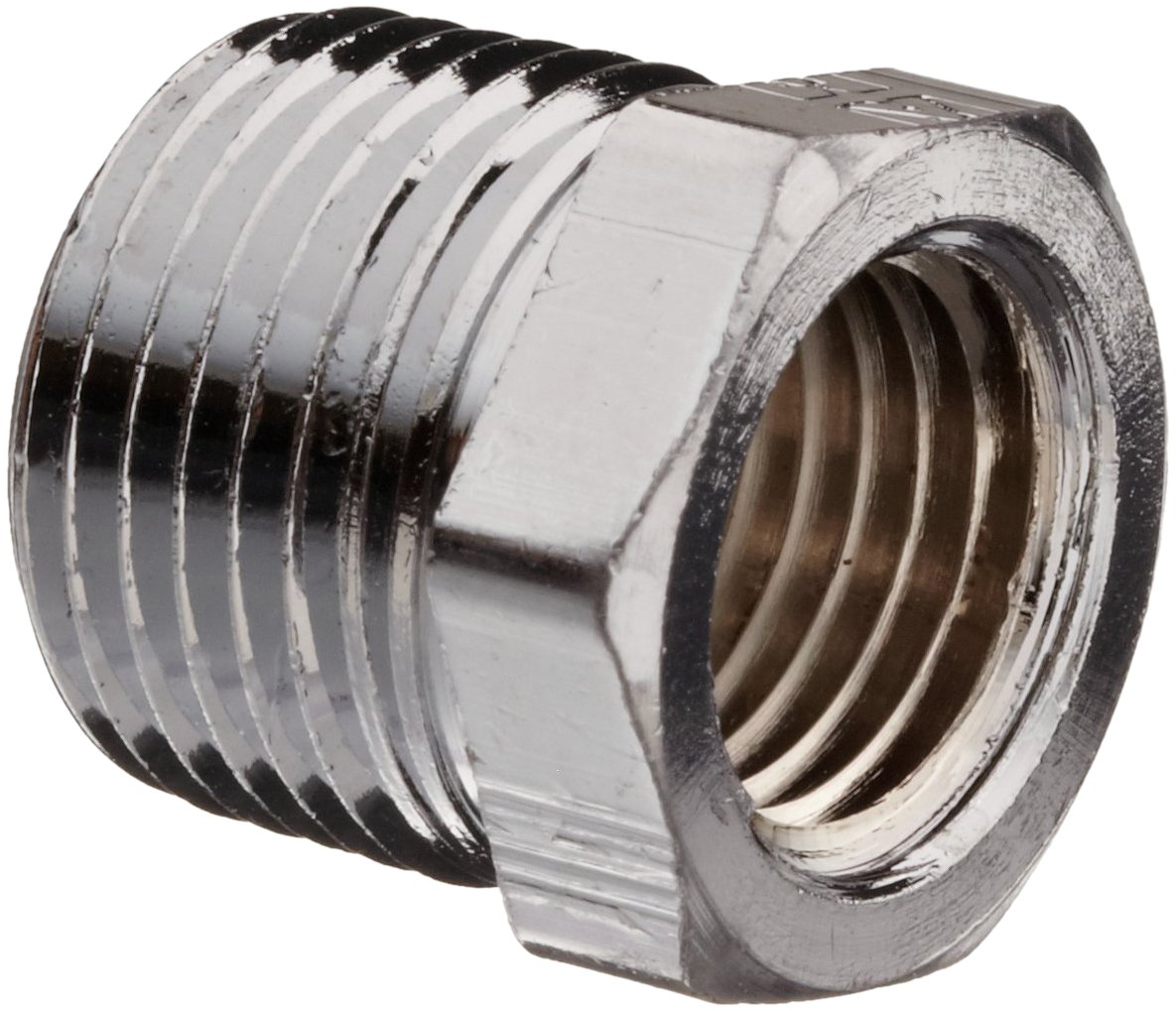

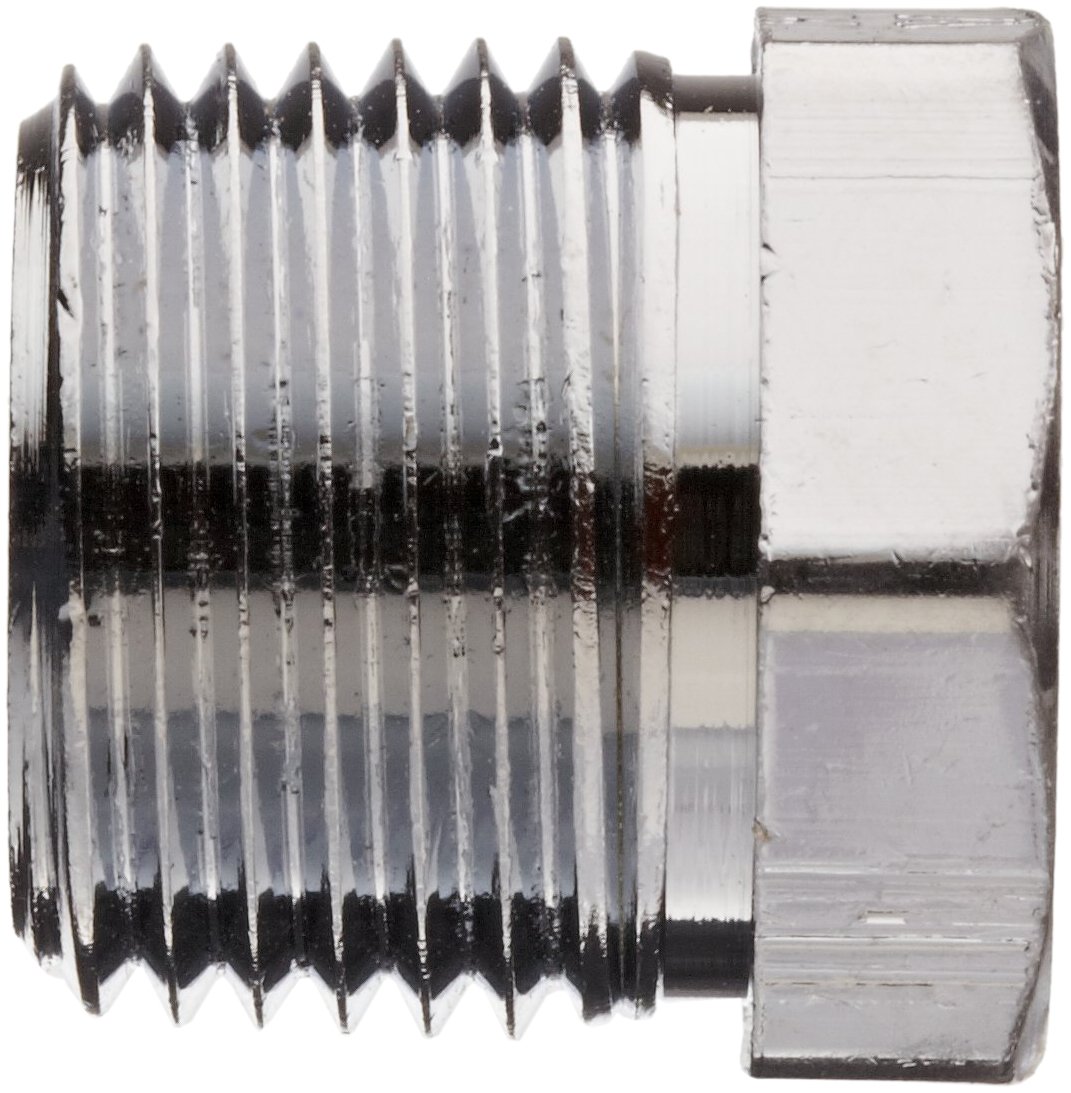

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Chrome Plated Brass Pipe Fitting, Hex Bushing, NPT Male X NPT Female

Be the first to review this item

Product Specifications
Item Shape
Bushing
Specification Met
ANSI B16.15, ASTM B584, ASTM B456 at Service Condition 2-Table 6
Material Type
Brass
Pressure Rating Class
125
Style Name
Threaded
UNSPSC Code
40170000
Brand Name
Merit Brass
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Sep 22? Order in-stock items in the next 10 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 20
Pipe Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 20
1/4" x 1/8" 37/64" 1 B0046A889U yes $9.42 Buy Options
3/8" x 1/8" 5/8" 1 B0046A88A4 yes $6.00 Buy Options
3/8" x 1/4" 5/8" 1 B0046A88AE yes $6.00 Buy Options
1/2" x 1/8" 3/4" 1 B0046A88AY yes $7.60 Buy Options
1/2" x 1/4" 3/4" 1 B0046A88B8 yes $6.00 Buy Options
1/2" x 3/8" 5" 25 B00N9T9ASC Usually ships in 3 to 6 weeks $115.33 Buy Options
1/2" x 3/8" 3/4" 1 B0046A88BI yes $6.00 Buy Options
3/4" x 1/4" 27/32" 1 B0046A88BS yes $7.60 Buy Options
3/4" x 3/8" 27/32" 1 B0046A88C2 Usually ships in 3 to 6 weeks $7.60 Buy Options
1" x 1/4" 1-3/64" 1 B0046A88CW yes $11.00 Buy Options
1-1/4" x 1/2"   1 B0046A88DQ yes $18.00 Buy Options
1-1/4" x 3/4"   1 B0046A88EA yes $16.25 Buy Options
1-1/4" x 1"   1 B0046A88EK yes $16.25 Buy Options
1" x 1/2" 1" 1 B0046A88D6 yes $9.50 Buy Options
1-1/2" x 1/2"   1 B0046A88EU Usually ships in 3 to 6 weeks $19.80 Buy Options
1-1/2" x 1"   1 B0046A88F4 Usually ships in 3 to 6 weeks $19.80 Buy Options
1-1/2" x 1-1/4"   1 B0046A88FE Usually ships in 3 to 6 weeks $19.80 Buy Options
1" x 3/4" 1-63/64" 1 B0046A88DG yes $4.36 Buy Options
2" x 1"   1 B0046A88FY yes $25.10 Buy Options
2" x 1-1/2"   1 B0046A88G8 yes $24.90 Buy Options

Key Features

  • Bushing for connecting pipes of two different sizes
  • Male and female National Pipe Taper (NPT) threads for connecting two pipes
  • Made from brass for higher corrosion resistance than steel
  • Relative softness of metal enables tighter seals and greater ease in installation
  • Manufactured to standards ASTM B-584, ANSI B 1.20.1, and ANSI B 16.15 for quality assurance

Product Description

The Merit Brass hex bushing is a chrome-plated brass pipe fitting with male National Pipe Taper (NPT) threads on one end and female NPT threads on the other end for connecting pipes of different sizes. It has a hexagonal head for increased leverage and use with a wrench. Made of brass with a high gloss, chrome-plated finish, this busing is easier to clean than regular brass and more corrosion resistant than stainless steel. The fitting’s pressure ratings are 125 psi for steam and 200 psi for water, oil, and gas (W.O.G.), and it meets standards ASTM B-584, ANSI B 1.20.1, and ANSI B 16.15 for quality assurance.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. Family-owned since 1937, the company is based in Cleveland, OH. Merit Brass distributes pipe fittings to the United States and Canada.
