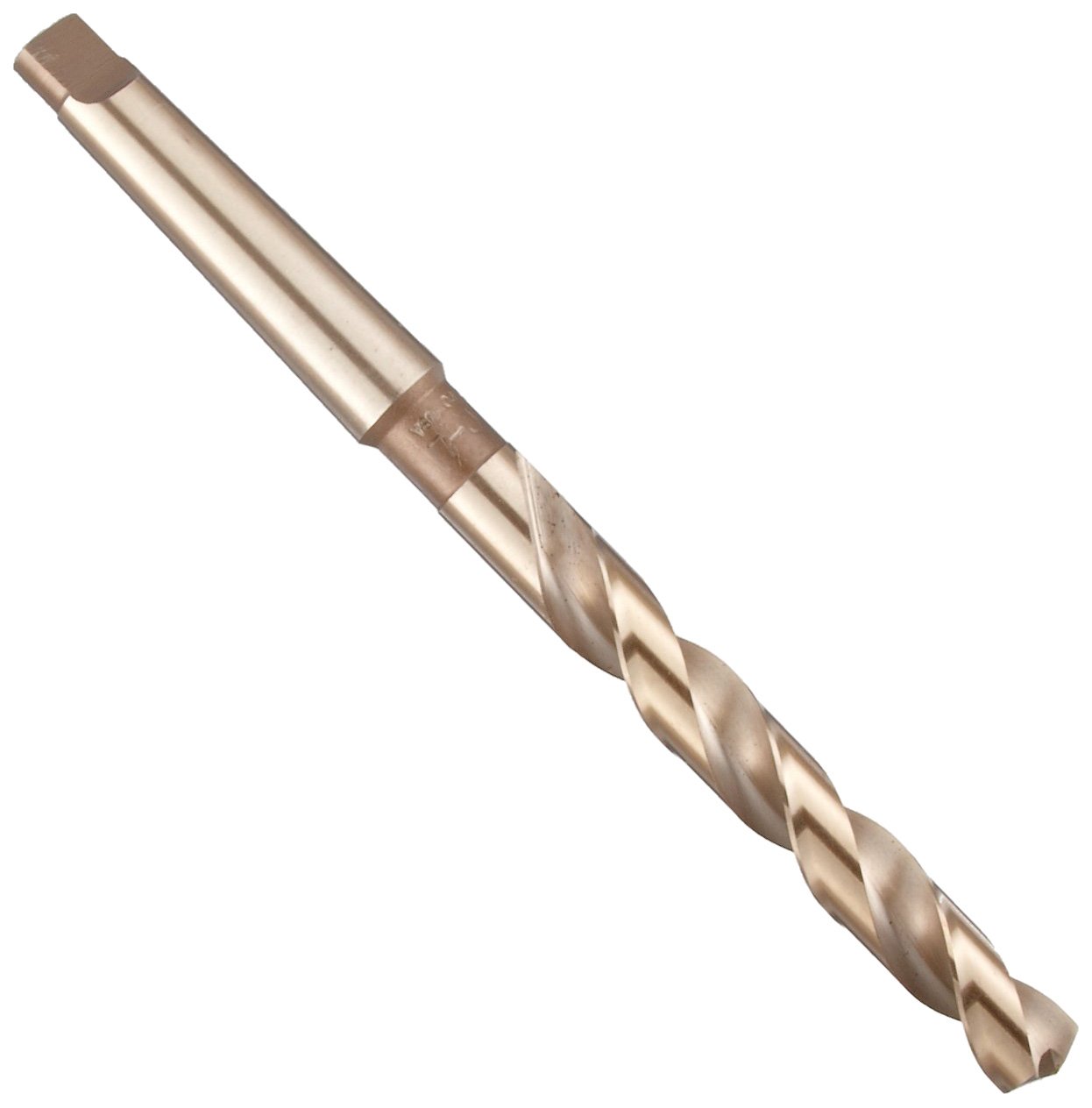

Chicago Latrobe 510 Cobalt Steel Taper Shank Drill Bit, Gold Oxide Finish, Morse Taper Shank, 135 Degree Notch Point

Be the first to review this item

Product Specifications
Brand Name
Chicago Latrobe
Cutting Angle
135  Degrees
Drill Point
Notched
Finish Types
Gold Oxide
Flute Type
Conventional Spiral
Manufacturer Series #
510
Material Type
Cobalt Steel
Shank Type
Taper
System of Measurement
Inch

0 items added

To add items,
choose from the table below



These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tuesday, May 21? Order in-stock items in the next 1 day 1 hour 23 minutes and choose One-Day Shipping at checkout.

  • Share
Currently showing 18 of 18
Size Taper Size Flute Length Overall Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

 Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

 Price Quantity
All All All All All
Currently showing 18 of 18
5/16" Taper 3-1/8" 6-3/8" 1 53020 B002KVM0QE In Stock (1) $41.11
3/8 " Taper 3-1/2" 7-3/8" 1 53024 B002KVPTSK In Stock (1) $53.14
13/32" Taper 3-5/8" 7-1/2" 1 53026 B002KVRI3O In Stock (1) $54.68
7/16" Taper 3-7/8" 7-3/4" 1 53028 B002KVM0SW In Stock (1) $61.82
1/2 " Taper 4-3/8" 8-1/4" 1 53032 B00271G14O In Stock (1) $64.43
33/64" Taper 4-5/8" 8-1/2" 1 53033 B002KVNPLS In Stock (1) $70.19
17/32" Taper 4-5/8" 8-1/2" 1 53034 B00209MOO4 In Stock (1) $70.19
9/16" Taper 4-7/8" 8-3/4" 1 53036 B00209KS5Q In Stock (1) $73.76
37/64" Taper 4-7/8" 8-3/4" 1 53037 B002KVNPNG In Stock (1) $78.40
5/8" Taper 4-7/8" 8-3/4" 1 53040 B000LESG42 In Stock (1) $79.35
41/64" Taper 5-1/8" 9-3/4" 1 53041 B002KVNPOU Usually ships in 2 to 4 weeks $86.14
21/32" Taper 5-1/8" 9-3/4" 1 53042 B001VY0M9S In Stock (1) $91.82
11/16" Taper 5-3/8" 10" 1 53044 B00209S1EG In Stock (1) $95.52
25/32" Taper 6" 10-5/8" 1 53050 B000LED4H6 In Stock (1) $110.19
15/16" Taper 6-1/8" 10-3/4" 1 53060 B0025Q8WJ8 Usually ships in 2 to 4 weeks $132.70
1-1/16" Taper 6-5/8" 12-1/4" 1 53068 B00209JCNK In Stock (1) $241.42
1-3/16" Taper 7-3/8" 13" 1 53076 B00209S1PK Usually ships in 2 to 4 weeks $251.57
1-1/4" Taper 7-7/8" 13-1/2" 1 53080 B00209S1SW In Stock (1) $284.88

Key Features

  • Heavy-duty geometry for drilling in tough, high-tensile materials under extreme operating conditions
  • Manufactured from premium 8% cobalt (M42) high-speed steel for increasing hot hardness

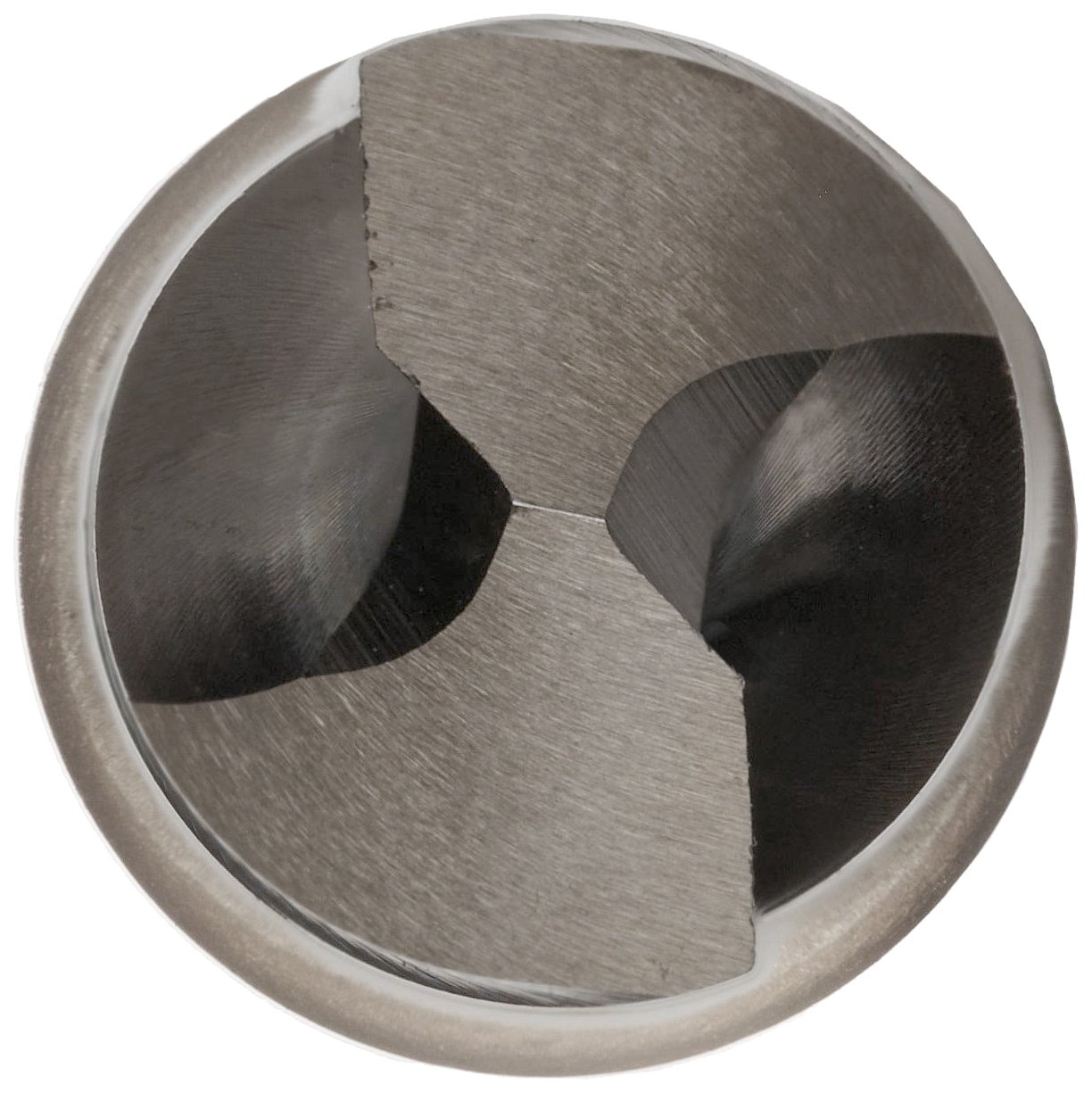

  • 135 degree notch point reduces thrust forces and easier penetration

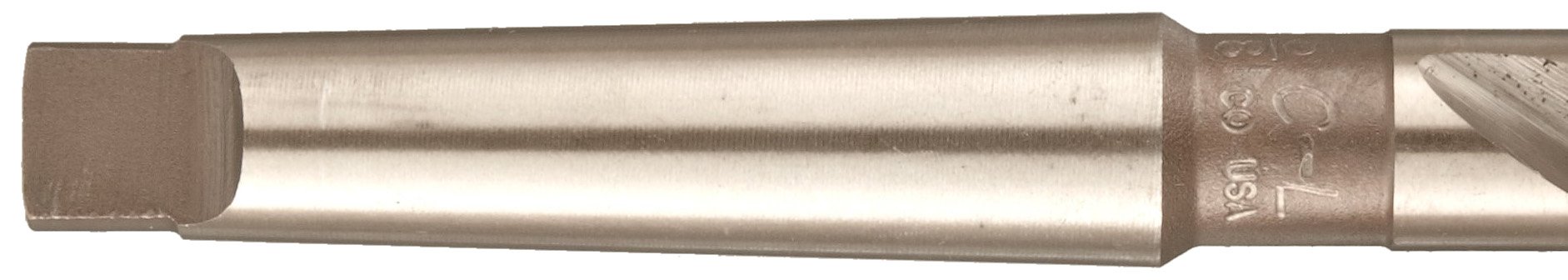

  • Furnished with American National Standard (Morse) taper shanks
  • Straw finish standard from stock and alternate coatings are available as stock modifications

Product Description

Chicago Latrobe Cobalt Heavy-Duty Taper Shank Drill Bit - Drill Size 1.0000", Flute Length 6-3/8", Overall Length 11", Material Type - Cobalt Steel, Point Angle - 135 Degree, Finish/Coating: Gold Oxide
