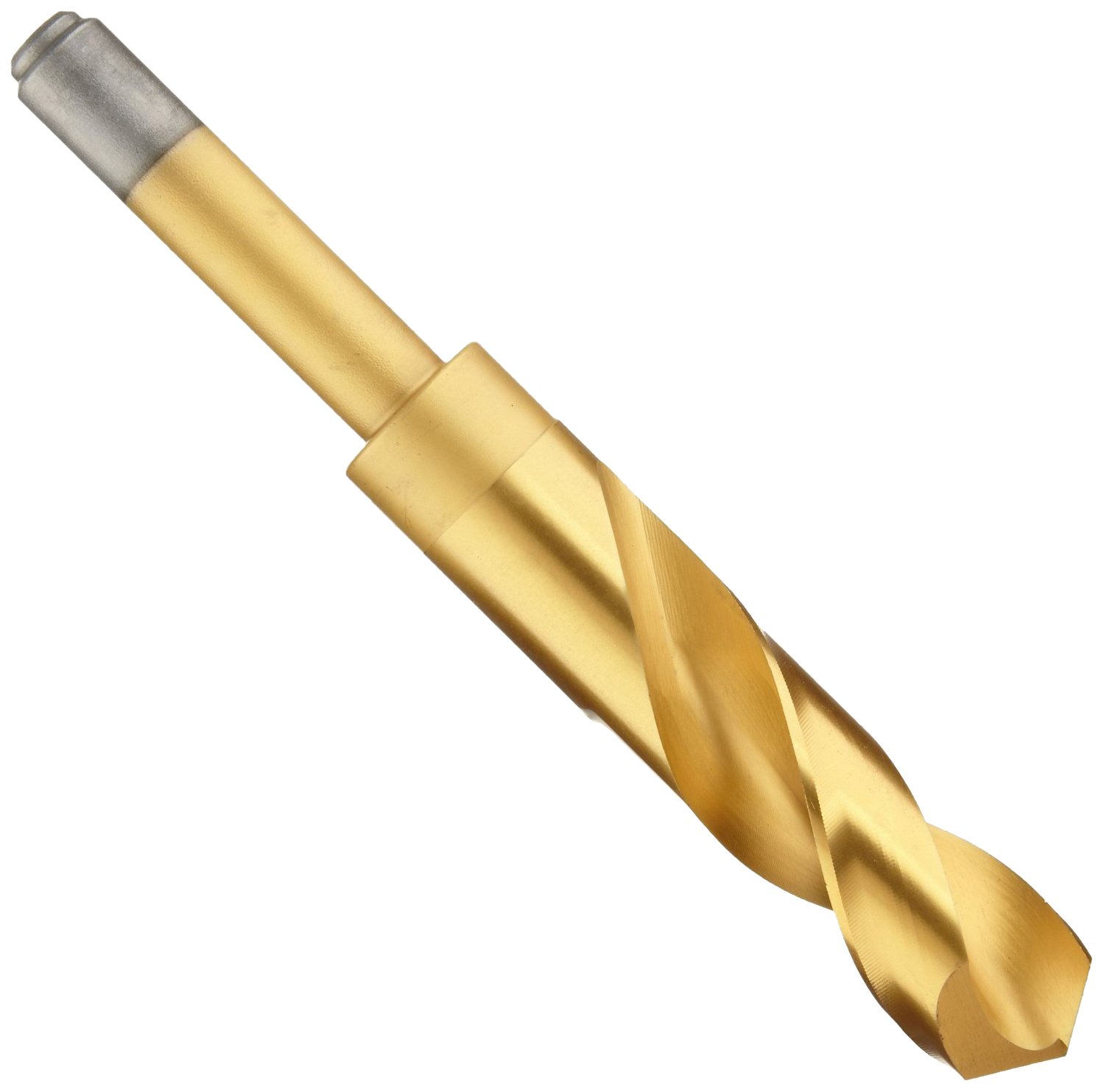

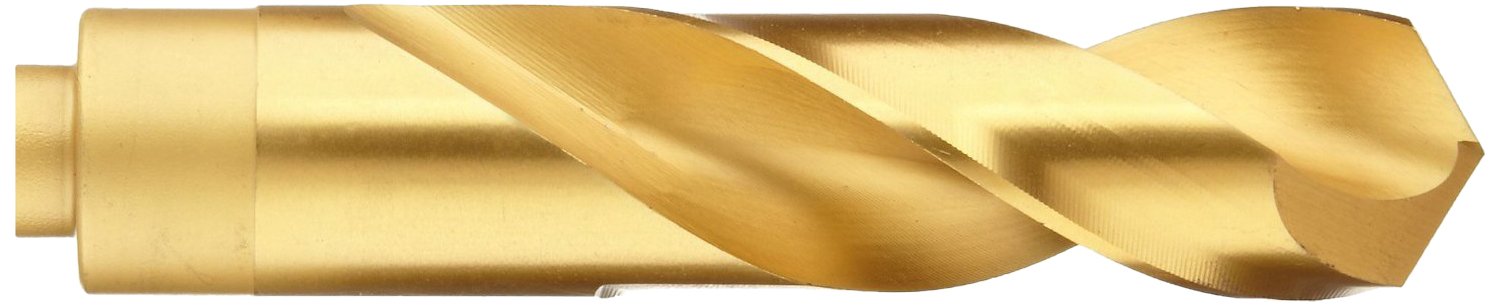

Chicago Latrobe 190C-TN Cobalt Steel Reduced-Shank Drill Bit, TiN Coated, Round Shank, 118 Degree Split Point

Be the first to review this item

Product Specifications
Finish Types
TiN
Material Type
Cobalt Steel
Drill Point
Split
Flute Length
3-1/8  inches
Shank Diameter
1/2  inches
Cutting Angle
118  Degrees
Brand Name
Chicago Latrobe
Flute Type
Conventional Spiral
Mfg Series #
190C-TN
Cutting Length
3-1/8  inches
Shank Type
Round
UNSPSC Code
20121600
Overall Length
6  inches
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 24? Order in-stock items in the next 10 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-16 of 16
Size Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-16 of 16
17/32" 1 53634 B00209KTFU yes $40.48 Buy Options
9/16" 1 53636 B00209S2QI yes $41.13 Buy Options
19/32" 1 53638 B0026H7YBI yes $46.62 Buy Options
5/8" 1 53640 B00209U3EW yes $46.62 Buy Options
21/32" 1 53642 B00209KTMS yes $50.74 Buy Options
11/16" 1 53644 B0025QCHVC Usually ships in 4 to 7 weeks $50.74 Buy Options
23/32" 1 53646 B0026H7YCC yes $55.21 Buy Options
3/4" 1 53648 B00209OM2Q yes $55.73 Buy Options
25/32" 1 53650 B0025QGJE8 Usually ships in 4 to 7 weeks $62.92 Buy Options
13/16" 1 53652 B00209Q152 yes $63.45 Buy Options
27/32" 1 53654 B0025QEJG8 yes $68.68 Buy Options
7/8" 1 53656 B00208CBU2 yes $68.12 Buy Options
29/32" 1 53658 B0025QIEUA yes $75.29 Buy Options
15/16" 1 53660 B0026HH69I yes $19.19 Buy Options
31/32" 1 53662 B00209U3LK Temporarily out of stock. Order now and we'll deliver when available. $87.02 Buy Options
1" 1 53664 B00209U3MY yes $87.39 Buy Options

Key Features

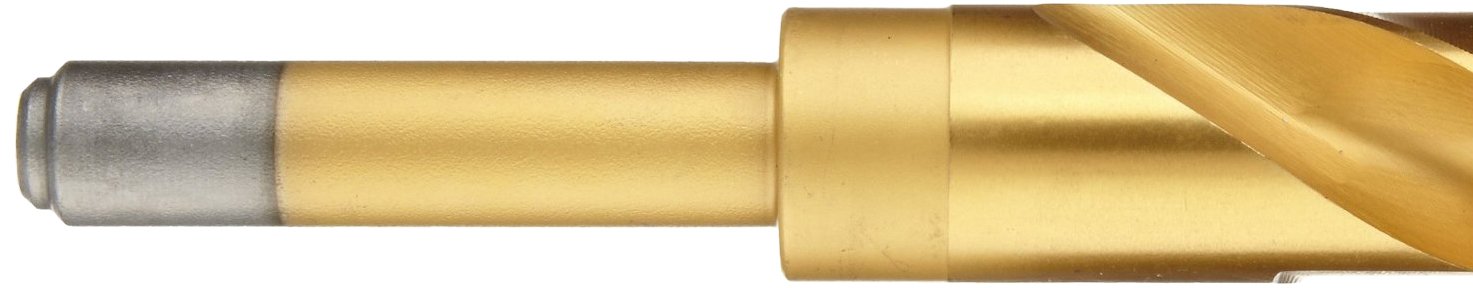

  • Larger size general-purpose drills with 1/2" reduced shank

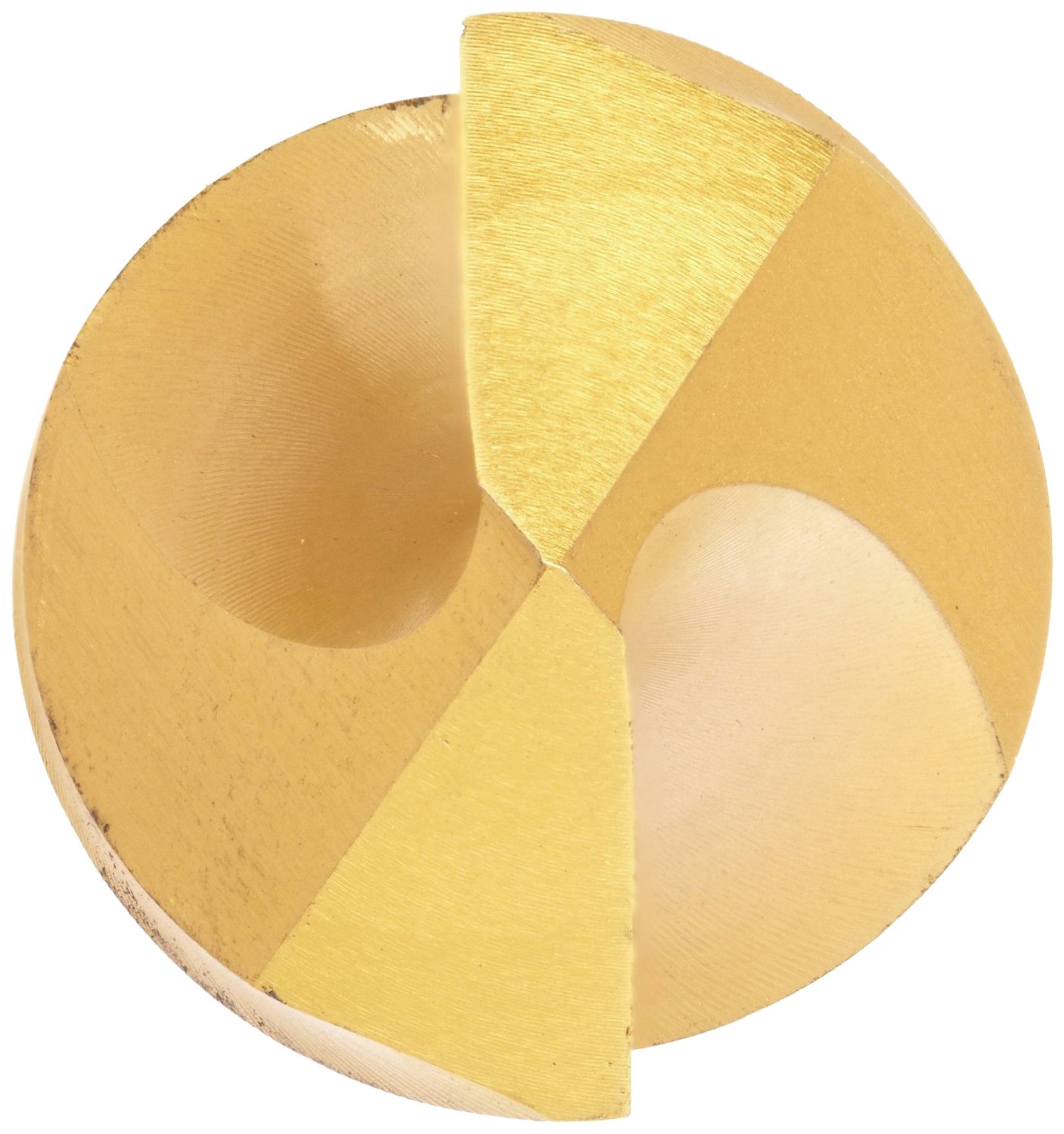

  • Manufactured from cobalt premium highspeed steel for use in highly abrasive applications also 118 degree split point for easier, more precise penetration
  • Features 6" overall length and 3 1/8" flute length for increased rigidity, less deflection, and better hole accuracy
  • Standardized lengths result in minimal adjustment during tool changes in screw machines and machining centers and increased rigidity is ideal for portable drilling
  • Titanium nitride (TiN) coating adds lubricity and hardness, enhancing chip flow, finish hole quality, and drill life

Product Description

Chicago Latrobe Reduced Shank Silver & Deming Drill Bit - Drill Size 1.0000", Flute Length 3-1/8", Overall Length 6", Shank Dia 1/2", Material Type - Cobalt Steel, Point Angle - 118 Degree, Finish/Coating: TiN Coated
