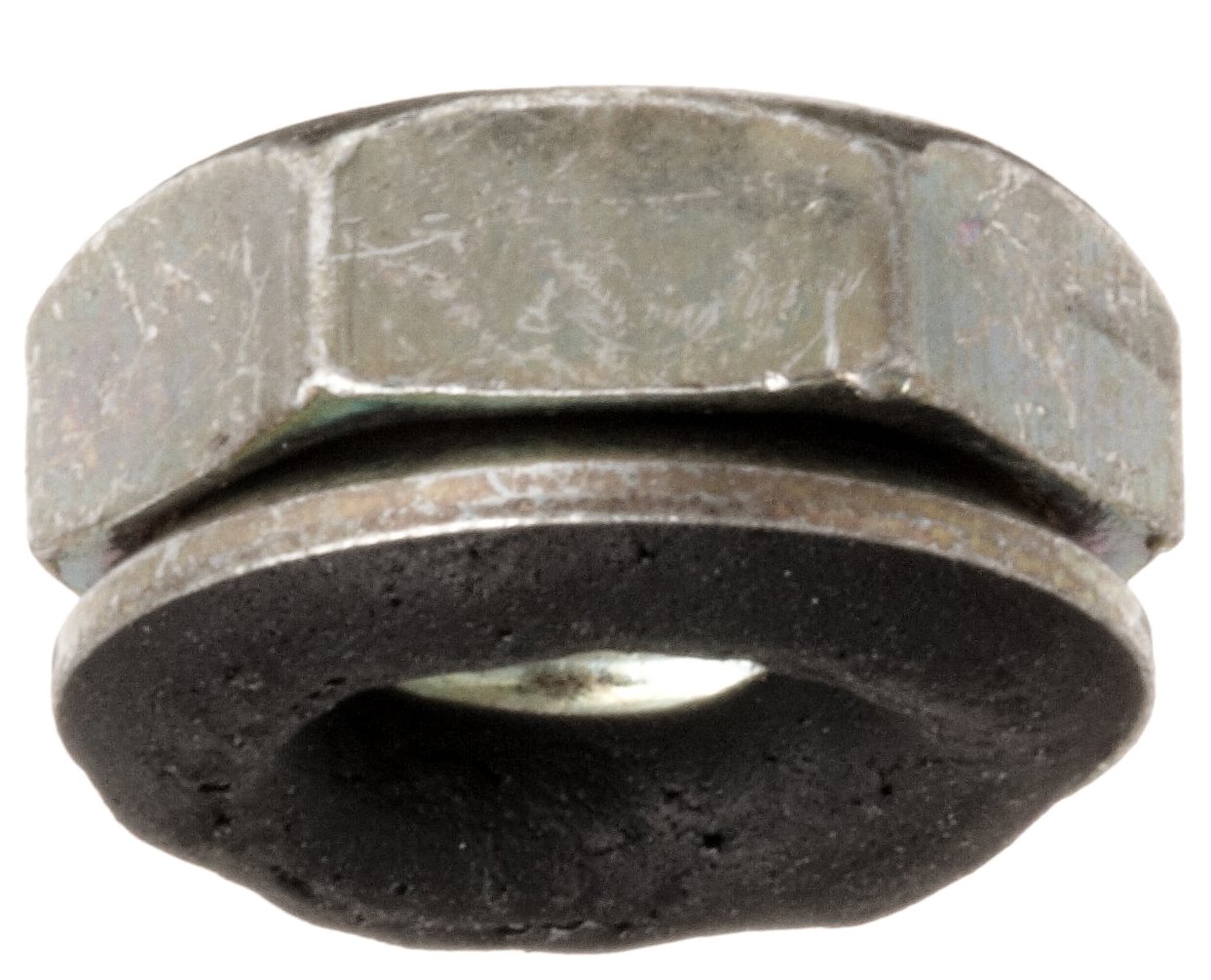

Carbon Steel 1050 Bartite Sealing Nut with 0.406" OD Conical Washer
Be the first to review this item
Product Specifications
- Brand Name
- Small Parts
- Drive Style
- Hex
- Exterior Finish
- Plain
- Material Type
- Carbon Steel 1050
- Overall Width
- 0.375 inches
- Part Number
- B003SLDKWI
- System of Measurement
- Inch
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, May 24? Order in-stock items in the next 15 hours 11 minutes and choose One-Day Shipping at checkout.
Key Features
- Bartite nut with conical (also known as Belleville) washer prevents leaks with patented thermosetting plastisol seal, which is stable and resistant to a range of chemicals
- Withstands 12,000 psi hydrostatic pressure
- Works in wide temperature range, from -60 degrees F to +250 degrees F
- Hex-shaped head drive style for easy adjustment with wrench
Product Description
Carbon steel 1050 bartite sealing nut with 0.406” OD conical (also known as Belleville) washer has a patented thermosetting plastisol seal for superior leak and pressure protection. It withstands 12,000 psi hydrostatic pressure and provides a wide working temperature range, from -60 degrees F to +250 degrees F. It includes a conical washer for security.
Seal resists water, gasoline, petroleum oils, salt sprays, alkalis, acids, organic and aromatic solvents, detergents, ozone, hydrocarbons, and oxygenated and chlorinated solvents. Carbon steel 1050 material is a standard carbon steel grade made from iron, carbon, and manganese. The nut has a hex-shaped head for easy adjustment with a wrench.
Nuts are used with bolts, threaded rods, and studs to fasten items together. The size of the nut should match the bolt. The size name reflects the external diameter of the bolt, followed by the threads per inch in standard nuts and millimeters per thread for metric nuts.
