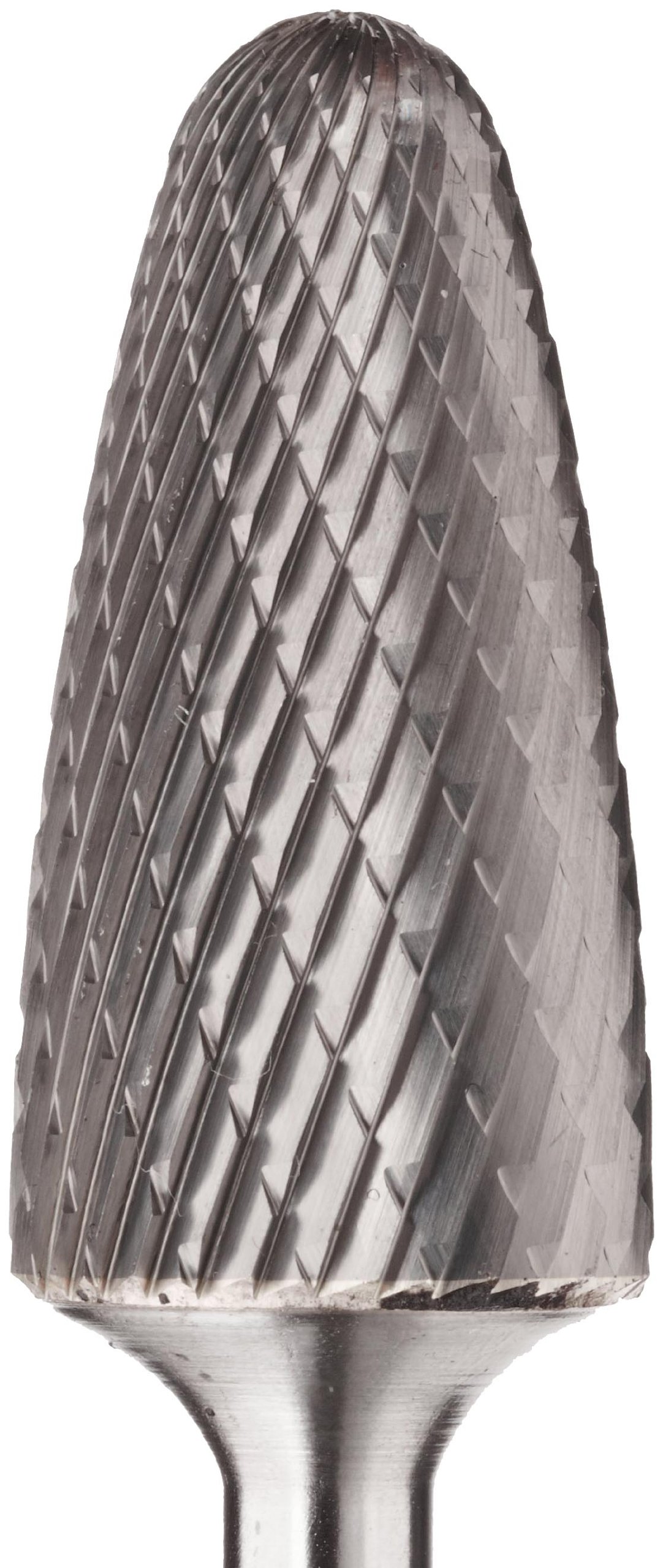

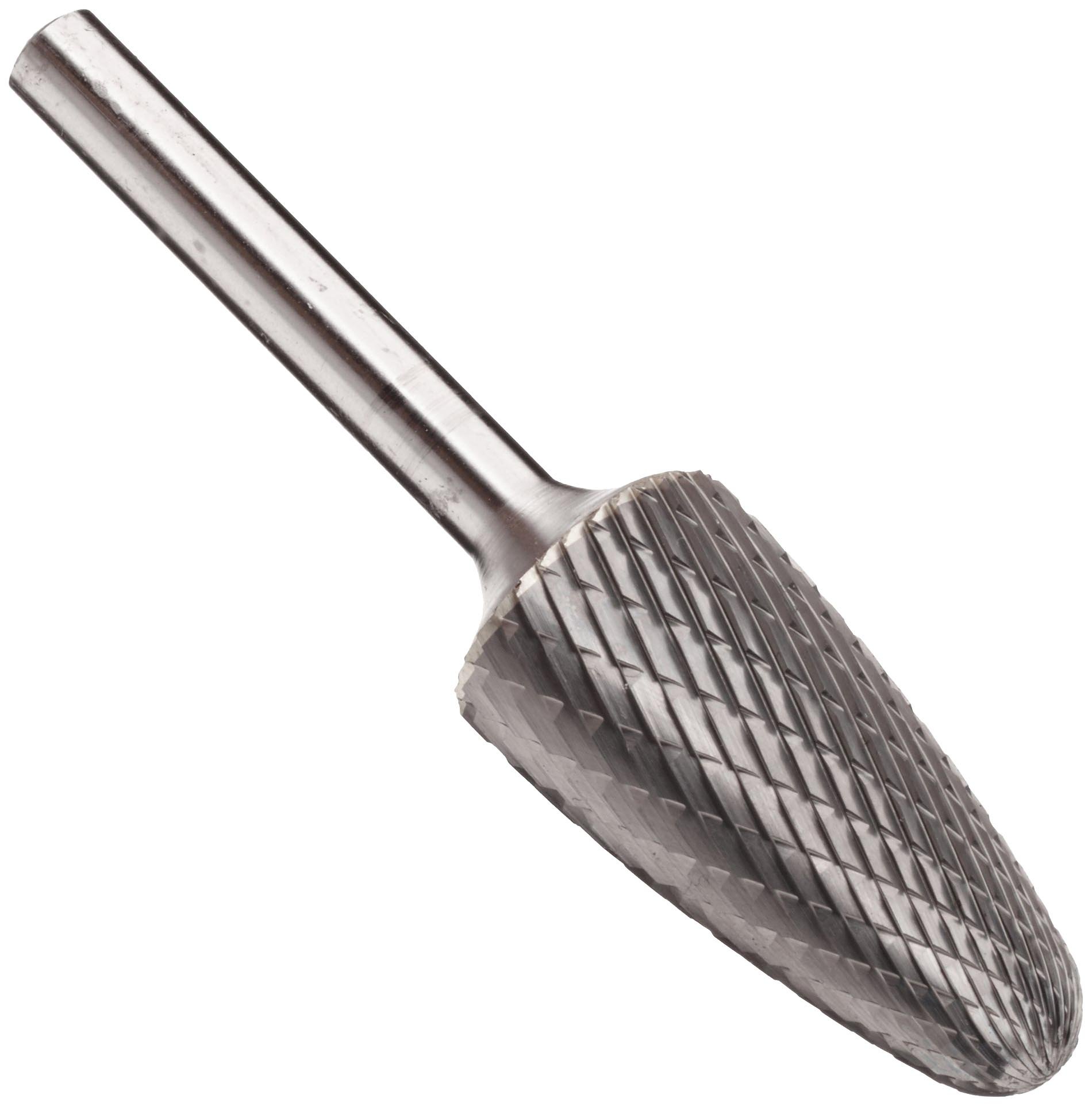

PFERD Tree Carbide Bur, Uncoated (Bright) Finish, Double Cut, Radius End

Be the first to review this item

Product Specifications
Item Shape
Tree
End Cut Type
Radius
Finish Types
Uncoated (Bright)
Manufacturer Grade
Premium
Shank Type
Round
Material Type
Carbide
Cut Type
Double Cut
UNSPSC Code
23241600
Brand Name
Pferd

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 10 hrs and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Head diameter string Head length Shank diameter Item length string Industry standard identifier Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-12 of 12
1/2 inches 1 inches 1/4 inches 2-3/4 inches SF-5 24722 B001HWDOHQ 3 $25.54 Buy Options
1/2 inches 3/4 inches 1/4 inches 2-1/2 inches SF-13 24732 B001HWAD3E 17 $23.19 Buy Options
1/4 inches 1/2 inches 1/8 inches 1-11/16 inches SF-51 23322 B003A4H844 2 $14.03 Buy Options
1/4 inches 5/8 inches 1/4 inches 1-15/16 inches SF-1 24692 B001HWFLGI 2 $17.77 Buy Options
1/8 inches 1/2 inches 1/8 inches 1-1/2 inches SF-42 23312 B003A4H83K 1 $9.62 Buy Options
1/8 inches 1/4 inches 1/8 inches 1-1/2 inches SF-41 23302 B003A4H830 1 $9.10 Buy Options
3/4 inches 1 inches 1/4 inches 2-3/4 inches SF-7 24752 B003A4H9YI 1 $36.31 Buy Options
3/4 inches 1-1/2 inches 1/4 inches 3-1/4 inches SF-15 24772 B003A4HA06 1 $52.39 Buy Options
3/4 inches 1-1/4 inches 1/4 inches 3 inches SF-14 24762 B003A4H9ZC 1 $44.98 Buy Options
3/8 inches 3/4 inches 1/4 inches 2-1/2 inches SF-3 24702 B001HWFLHC 6 $20.06 Buy Options
5/8 inches 1 inches 1/4 inches 2-3/4 inches SF-6 24742 B003A4H9XE 1 $30.70 Buy Options
7/16 inches 1 inches 1/4 inches 2-3/4 inches SF-4 24712 B003A4H9VG 1 $22.83 Buy Options

Key Features

  • Standard double-cut carbide bur for general-purpose machining on cast iron, steel with a Rockwell Hardness of less than C60, stainless steel, titanium alloys, and nickel-based alloys
  • Produces smaller chips and offers better operator control than a single-cut bur
  • Tree shape with radius end (shape F) for machining narrow, hard-to-reach contoured surfaces with a round corner
  • Carbide provides good wear resistance and maintains sharp edges longer than high-speed steel (HSS)
  • Uncoated (bright) tools have no additional surface treatment or coating

Product Description

The Pferd double-cut carbide bur has a tree shape with a radius end and an uncoated (bright) finish, and is for use on cast iron, steel with a Rockwell Hardness of less than C60, stainless steel, titanium alloys, and nickel-based alloys. The standard double-cut type produces smaller chips and offers better operator control than a single-cut bur when used on recommended material. The bur has a tree shape with a radius end, also known as shape F, which is suitable for machining narrow, hard-to-reach contoured surfaces with a round corner. Carbide provides good wear resistance and maintains sharp edges longer than high-speed steel (HSS). With no coating or surface treatment, uncoated carbide supports a range of general-purpose applications. In most applications, burs should be operated within the recommended cutting speed range, expressed in surface feet per minute (SFPM).

Cutting burs, also called rotary files, are small rotary tools with many cutting edges that operate at very high speeds in order to remove material from a workpiece. The bur’s head contains the cutting edges, and the bur’s shank is inserted like a drill bit into a toolholder such as a drill chuck or collet. Burs are versatile tools that are offered in many shapes, sizes, and end types, and they are used in a wide range of industries, including tool, die, and mold manufacturing; metal fabrication; and dentistry. Burs can be used for deburring, or removing small protrusions (burrs) that form on the surface of a workpiece as a result of a machining process. They can also be used for welding preparation, finishing welded joints, chamfering, surface cleaning and finishing, grinding down rough edges, and contouring. A bur’s compact size gives the operator control over contact between the bur and the workpiece, making the tool well suited for delicate operations. Finishes or coatings may be applied to the head of the tool to improve wear resistance, decrease friction, and protect against high temperatures.

Pferd, Inc., manufactures abrasives and cutting tools for grinding, finishing, and cutting. Founded in 1799, Pferd has its U.S. headquarters in Leominster, MA. Pferd meets International Organization for Standardization (ISO) 9001 standards.
