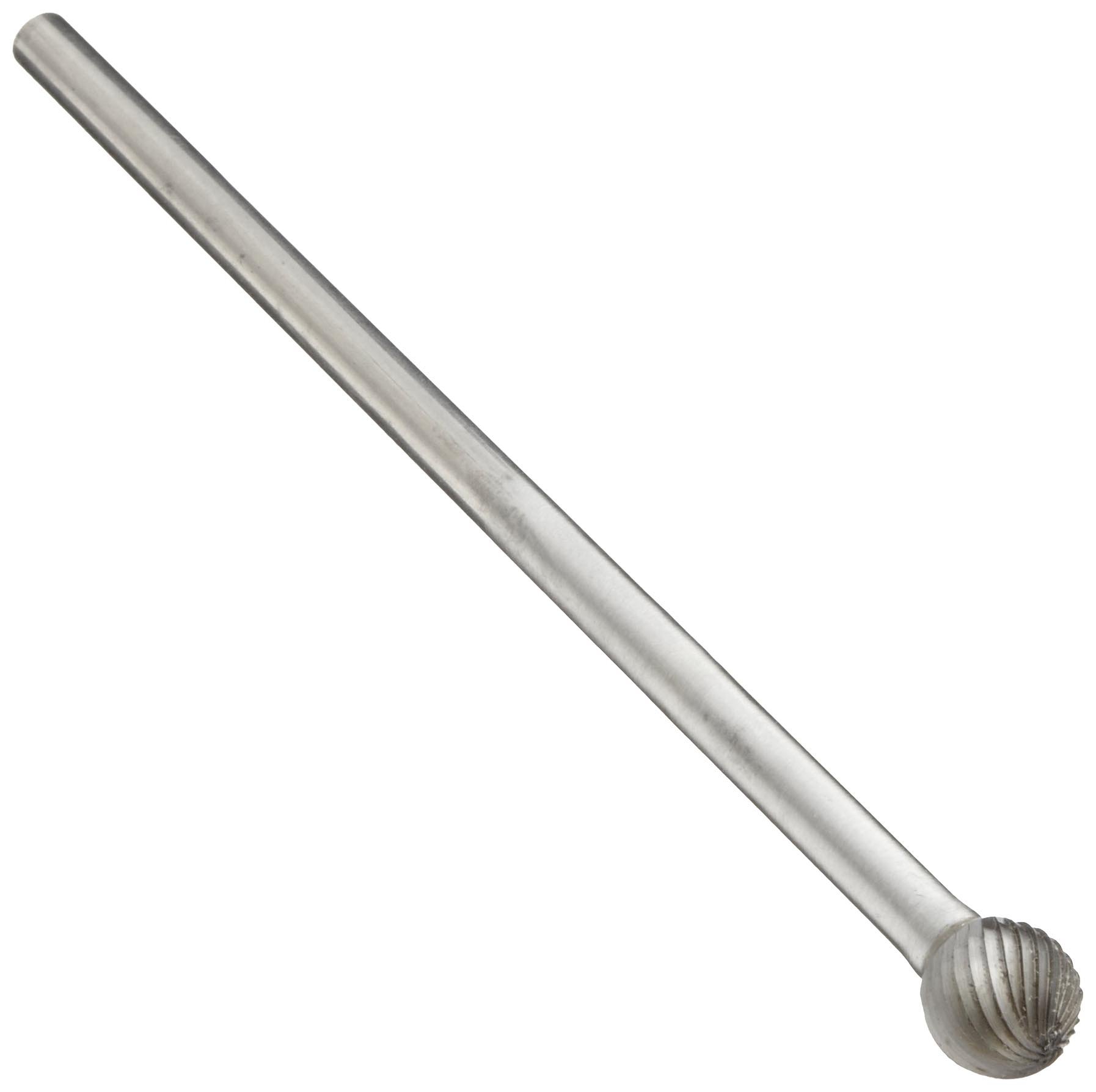

PFERD Ball Carbide Bur, Long-Length, Uncoated (Bright) Finish, Single Cut, Radius End

Be the first to review this item

Product Specifications
Item Shape
Ball
End Cut Type
Radius
Finish Types
Uncoated (Bright)
Manufacturer Grade
Premium
Shank Type
Round
Material Type
Carbide
Cut Type
Single Cut
UNSPSC Code
23241600
Brand Name
Pferd

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 13 hrs 2 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-1 of 1
Head diameter string Head length Shank diameter Item length string Industry standard identifier Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-1 of 1
1/2 inches 7/16 inches 1/4 inches 6-5/16 inches SD-5 L6 25941 B003A4HB6E yes $25.41 Buy Options

Key Features

  • Standard single-cut carbide bur for general-purpose machining on cast iron, steel with a Rockwell Hardness of less than C60, stainless steel, titanium alloys, and nickel-based alloys
  • Provides gradual stock removal
  • Long-length 6" (L6) shank provides better access to deep, hard-to-reach areas than standard-length burs

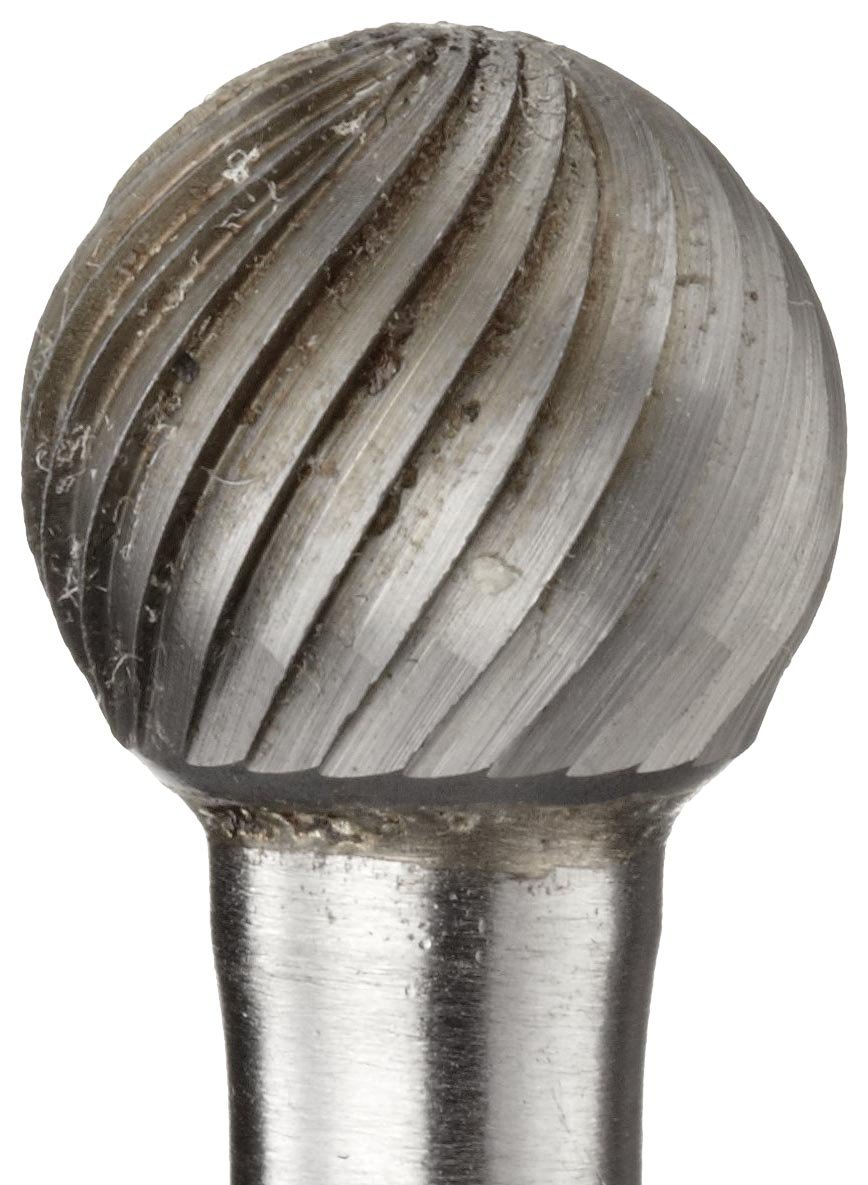

  • Ball shape with radius end (shape D) for machining curved surfaces and for enlarging holes
  • Uncoated (bright) tools have no additional surface treatment or coating

Product Description

The Pferd single-cut carbide bur has a ball shape with a radius end, a long-length 6" (L6) shank, an uncoated (bright) finish, and a 1/4" shank diameter, and is for use on cast iron, steel with a Rockwell Hardness of less than C60, stainless steel, titanium alloys, and nickel-based alloys. The standard single-cut type provides gradual stock removal when used on recommended material. The tool’s long-length 6" (L6) shank provides better access to deep, hard-to-reach areas of the workpiece than standard-length burs. The bur has a ball shape with a radius end, also known as shape D, which is suitable for machining curved surfaces and for enlarging holes. Carbide provides good wear resistance and maintains sharp edges longer than high-speed steel (HSS). With no coating or surface treatment, uncoated carbide supports a range of general-purpose applications. In most applications, burs should be operated within the recommended cutting speed range, expressed in surface feet per minute (SFPM).

Cutting burs, also called rotary files, are small rotary tools with many cutting edges that operate at very high speeds in order to remove material from a workpiece. The bur’s head contains the cutting edges, and the bur’s shank is inserted like a drill bit into a toolholder such as a drill chuck or collet. Burs are versatile tools that are offered in many shapes, sizes, and end types, and they are used in a wide range of industries, including tool, die, and mold manufacturing; metal fabrication; and dentistry. Burs can be used for deburring, or removing small protrusions (burrs) that form on the surface of a workpiece as a result of a machining process. They can also be used for welding preparation, finishing welded joints, chamfering, surface cleaning and finishing, grinding down rough edges, and contouring. A bur’s compact size gives the operator control over contact between the bur and the workpiece, making the tool well suited for delicate operations. Finishes or coatings may be applied to the head of the tool to improve wear resistance, decrease friction, and protect against high temperatures.

Pferd, Inc., manufactures abrasives and cutting tools for grinding, finishing, and cutting. Founded in 1799, Pferd has its U.S. headquarters in Leominster, MA. Pferd meets International Organization for Standardization (ISO) 9001 standards.
