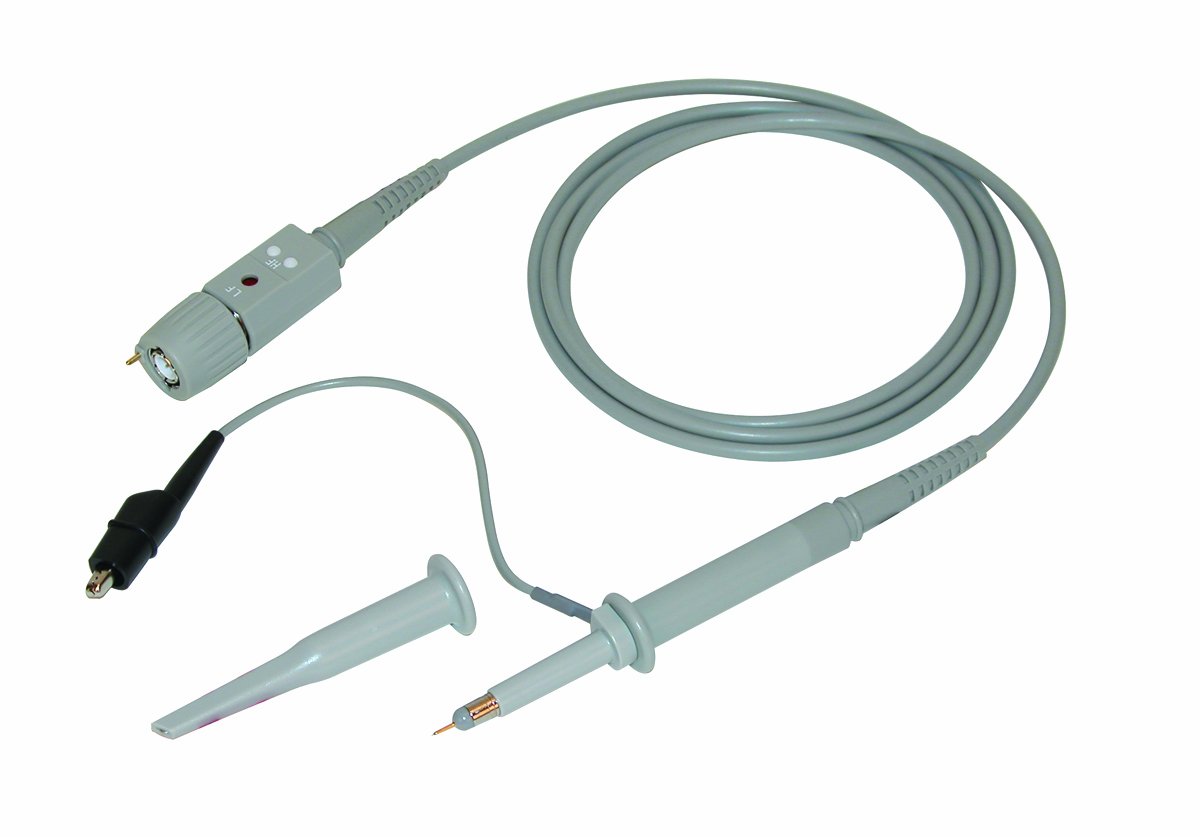

Cal Test Electronics CT3288ARA Passive Oscilloscope Probe, 500 MHz Bandwidth, 0.7 ns Rise Time

Be the first to review this item

ASIN B009QBR6ZG

Specifications for this item
Number of Items
1
Part Number
CT3288ARA
Temperature Range
-20/80  Degrees Celsius
Brand Name
Cal Test Electronics
UNSPSC Code
41113600

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 2? Order in-stock items in the next 23 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Included 15 cm ground lead, 15 cm ground lead with 0.6 mm jack and IC clip, replacement tip, black snap-on sprung hook, tip insulator, IC tip
  • Also include BNC adapter, 4 piece probe tip ground, deluxe trimmer tool, twin lead adapter with 2 IC clips and identifier rings
  • Snap-locking sprung hook
  • Easily replaceable tip
  • Large accessory set

Package Details

Shipping Weight: 0.3 pounds
Package Size: 7.2 x 5.1 x 1.1 inches

Product Description

Included 15 cm ground lead, 15 cm ground lead with 0.6 mm jack and IC clip, replacement tip, black snap-on sprung hook, tip insulator, IC tip. Also include BNC adapter, 4 piece probe tip ground, deluxe trimmer tool, twin lead adapter with 2 IC clips and identifier rings. General purpose series 500 MHz, 10x fixed attenuation oscilloscope probe. Probe features a readout actuator pin (sense pin) on the BNC connector. 500 MHz (-3 dB) bandwidth. High impedance input (10 mega ohms/12 pF). 9-18 pF compensation range. 300 V CAT II IEC rating. The high performance family is a high quality, general purpose set of 5mm passive voltage oscilloscope probes. General purpose series 500 MHz, 10x fixed attenuation oscilloscope probe. Probe features a readout actuator pin (sense pin) on the BNC connector. 500 MHz (-3 dB) bandwidth. High impedance input (10 mega ohms/12 pF). 9-18 pF compensation range. Input capacitance: 12 pF. Output impedance: 1 M ohms. Risetime: 0.7 ns. Compensation: 9-18 pF. Cable Length: 1.2 m. Readout actuator. Operating temperature: 0 degree to +50 degree C. Humidity: 85 percent RH or less (at 35 degree C).
