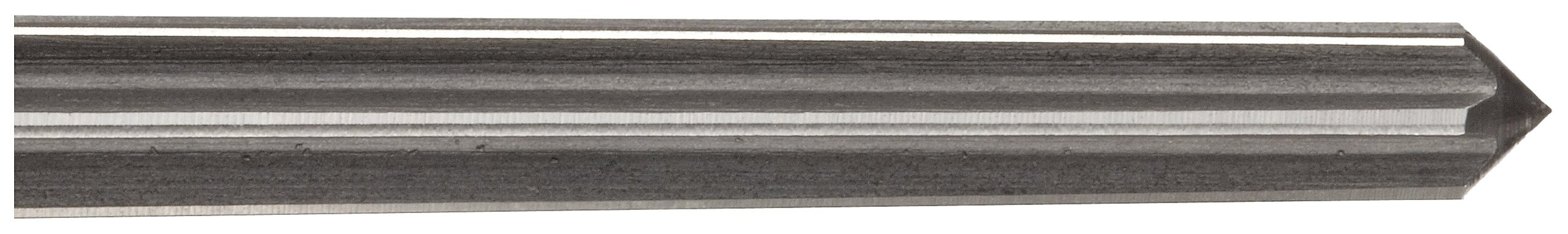

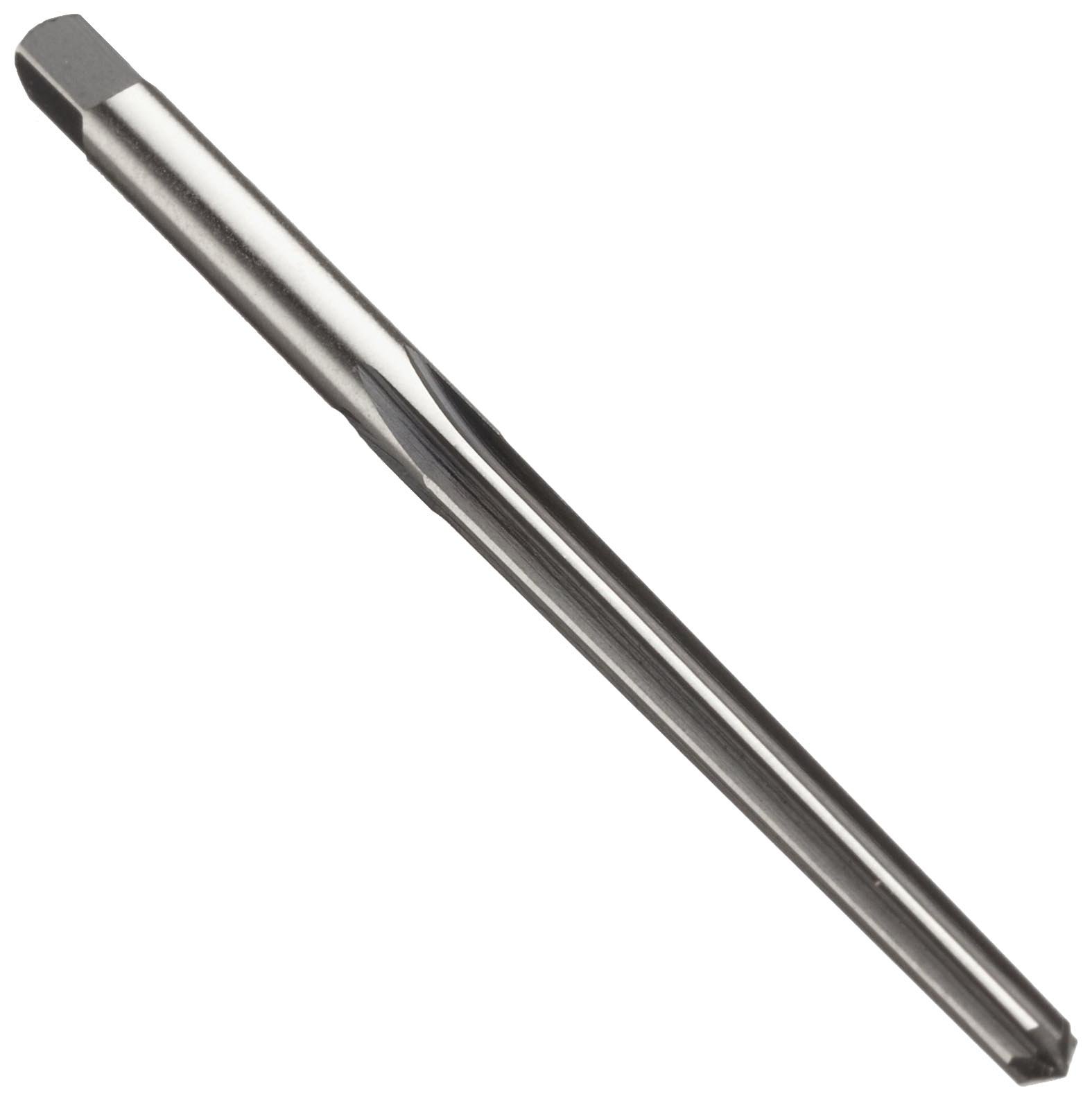

Union Butterfield 4587 High-Speed Steel Taper Pin Reamer, Straight Flute, Round With Square End Shank, Uncoated (Bright) Finish

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Cutting Length
1.11/16  inches
Finish Types
Uncoated (Bright)
Shank Type
Round With Square End
Material Type
High Speed Steel
UNSPSC Code
23241617
Brand Name
Precision Twist
Flute Type
Straight

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 7 hrs 36 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Size System of Measurement Decimal Equivalent Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-11 of 11
0 Taper Pin 0.1287-0.1638" 2-15/16" 5011129 B003JY6V5C yes $28.33 Buy Options
1 Taper Pin 0.1447-0.1638" 2-15/16" 5011130 B003JY6V5M yes $27.91 Buy Options
2 Taper Pin 0.1600-0.2010" 3-3/16" 5011131 B003JY6V6Q yes $28.63 Buy Options
3 Taper Pin 0.1813-0.2294" 3-11/16" 5011132 B003JY6V7A yes $27.91 Buy Options
4 Taper Pin 0.2071-0.2604" 4-1/16" 5011133 B003JY6V84 Usually ships in 1 to 2 months $35.26 Buy Options
5 Taper Pin 0.2410-0.2994" 4-5/16" 5011134 B003JY6V8O yes $33.70 Buy Options
6 Taper Pin 0.2773-0.4220" 5-7/16" 5011135 B003JY6V98 yes $33.92 Buy Options
7 Taper Pin 0.3297-0.4220" 6-5/16" 5011136 B003JY6VA2 yes $44.24 Buy Options
8 Taper Pin 0.3971-0.5050" 7-3/16" 5011137 B003JY6VAM yes $53.36 Buy Options
9 Taper Pin 0.4800-0.6066" 8-5/16" 5011138 B003JY6VBG yes $66.47 Buy Options
10 Taper Pin 0.5799-0.7216" 9-5/16" 5011139 B003JY6V5W yes $74.26 Buy Options

Key Features

  • Taper pin reamer reams holes to receive standard taper pins
  • Straight flute construction for reaming uninterrupted cuts in through holes and blind holes

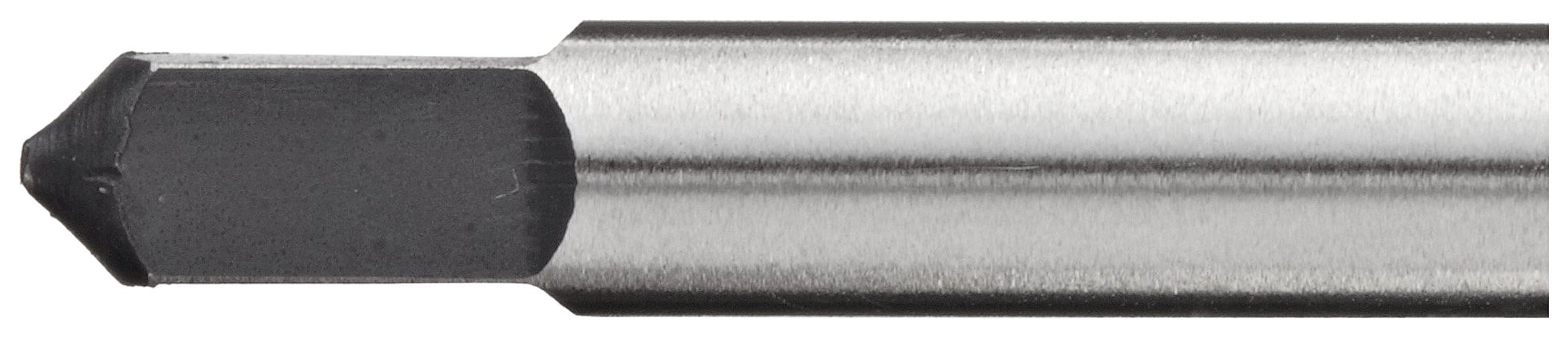

  • Round shank with square end helps to minimize rotation in the tool holder
  • High-speed steel is compatible with a variety of materials
  • Uncoated (bright) tools have no additional surface treatment or coating, suitable for general-purpose applications

Product Description

The Union Butterfield 4587 uncoated, high-speed steel taper pin reamer has straight flutes and a round shank with a square end, and is used for reaming holes intended to receive taper pins. The straight flutes make small, circular, and precise enlargements to through holes (extending through the workpiece) and blind holes (with only one opening). This reamer is useful for uninterrupted cuts in general-purpose applications.

High-speed steel (HSS) is a common, general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials, and provides an economical alternative to coated tools. The square end shank helps to minimize rotation in the tool holder. This tool can be used in drill presses, screw machines, or lathes.

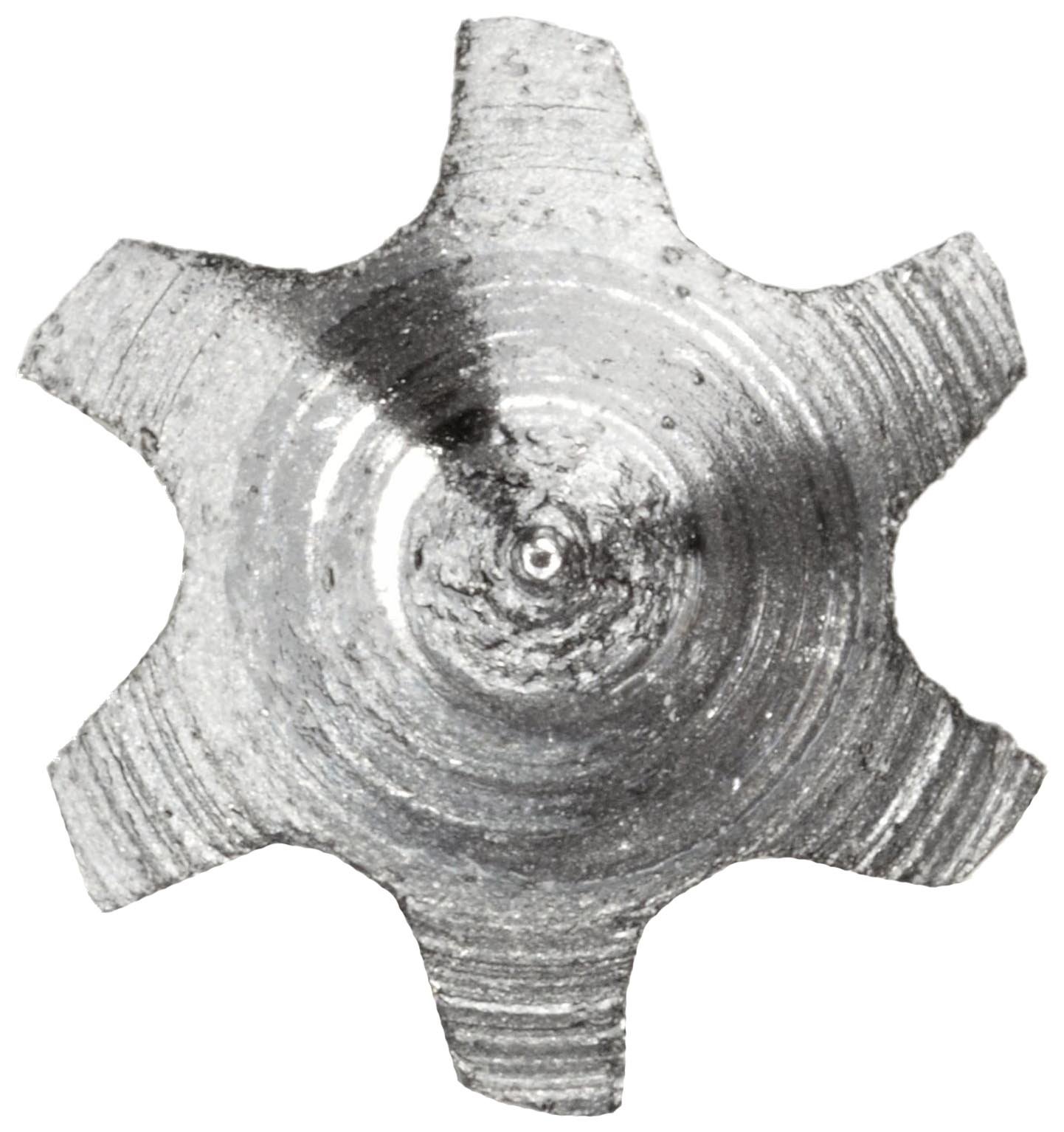

The number of flutes on a reamer depends on the cutting diameter of the tool. Reamers in this series with taper pin sizes 0 to 8 have six flutes and those with taper pin sizes 9 and 10 have eight flutes.

Reamers are used to finish existing holes. When holes are created using common applications such as drilling or punching, they often have minute imperfections. Their roundness may be flawed, or their diameters may be slightly smaller than required. Reamers are made to exacting tolerances, so they can correct such errors and create precisely round holes with exact dimensions. Reaming is often used before tapping screw threads.

Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards.
