Union Butterfield 4500 High-Speed Steel Hand Reamer, Straight Flute, Round With Square End Shank, Uncoated (Bright)

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Cutting Length
5.7/16  inches
Finish Types
Uncoated (Bright)
Shank Type
Round With Square End
Material Type
High Speed Steel
UNSPSC Code
27112837
Brand Name
Precision Twist

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 1 hr 31 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 27 Next 7 »
Size System of Measurement Decimal Equivalent Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 27 Next 7 »
1/8" Inch 0.1250" 3" 5010928 B003JY6OLS yes $33.66 Buy Options
5/32" Inch 0.1562" 3-1/4" 5010929 B003JY6OT0 yes $22.76 Buy Options
3/16 " Inch 0.1875" 3-1/2" 5010930 B003JY6OQS yes $33.66 Buy Options
7/32" Inch 0.2187" 3-3/4" 5010931 B003JY6OUO yes $15.00 Buy Options
1/4" Inch 0.2500" 4" 5010932 B003JY6OL8 yes $38.96 Buy Options
9/32" Inch 0.2813" 4-1/4" 5010933 B003JY6OWM yes $16.22 Buy Options
5/16" Inch 0.3125" 4-1/2" 5010934 B003JY6OSG yes $40.40 Buy Options
11/32" Inch 0.3437" 4-3/4" 5010935 B003JY6OMW yes $43.94 Buy Options
3/8 " Inch 0.3750" 5" 5010936 B003JY6ORW yes $17.86 Buy Options
13/32" Inch 0.4062" 5-1/4" 5010937 B003JY6ONG yes $49.29 Buy Options
7/16" Inch 0.4375" 5-1/2" 5010938 B003JY6OU4 Usually ships in 2 to 5 weeks $49.11 Buy Options
15/32" Inch 0.4688" 5-3/4" 5010939 B003JY6OO0 yes $51.47 Buy Options
1/2 " Inch 0.5000" 6" 5010940 B003JY6OKO yes $55.50 Buy Options
17/32" Inch 0.5312" 6-1/4" 5010941 B003JY6OOK yes $24.92 Buy Options
9/16" Inch 0.5625" 6-1/2" 5010942 B003JY6OW2 yes $58.65 Buy Options
19/32" Inch 0.5938" 6-3/4" 5010943 B003JY6OP4 yes $62.48 Buy Options
5/8" Inch 0.6250" 7" 5010944 B003JY6OTK yes $62.07 Buy Options
21/32" Inch 0.6562" 7-3/8" 5010945 B003JY6OPO yes $69.76 Buy Options
11/16" Inch 0.6875" 7-3/4" 5010946 B003JY6OMC yes $65.89 Buy Options
23/32" Inch 0.7188" 8-1/8" 5010947 B003JY6OQ8 yes $73.08 Buy Options

Key Features

  • Straight flute reamer for general purpose reaming to make minor enlargements to existing holes with a precise size and roundness
  • Straight flute reamers are good for use in through or blind holes without interruptions such as keyways (through holes extend through the entire workpiece, while blind holes do not)
  • Square end shank fits into a tap wrench, adjustable hand wrench, or standard chuck and helps prevent rotation in the tool holder
  • High-speed steel is a common general-purpose steel for cutting tools and is compatible with a variety of materials
  • Uncoated (bright) tools have no additional surface treatment or coating, suitable for general-purpose applications

Product Description

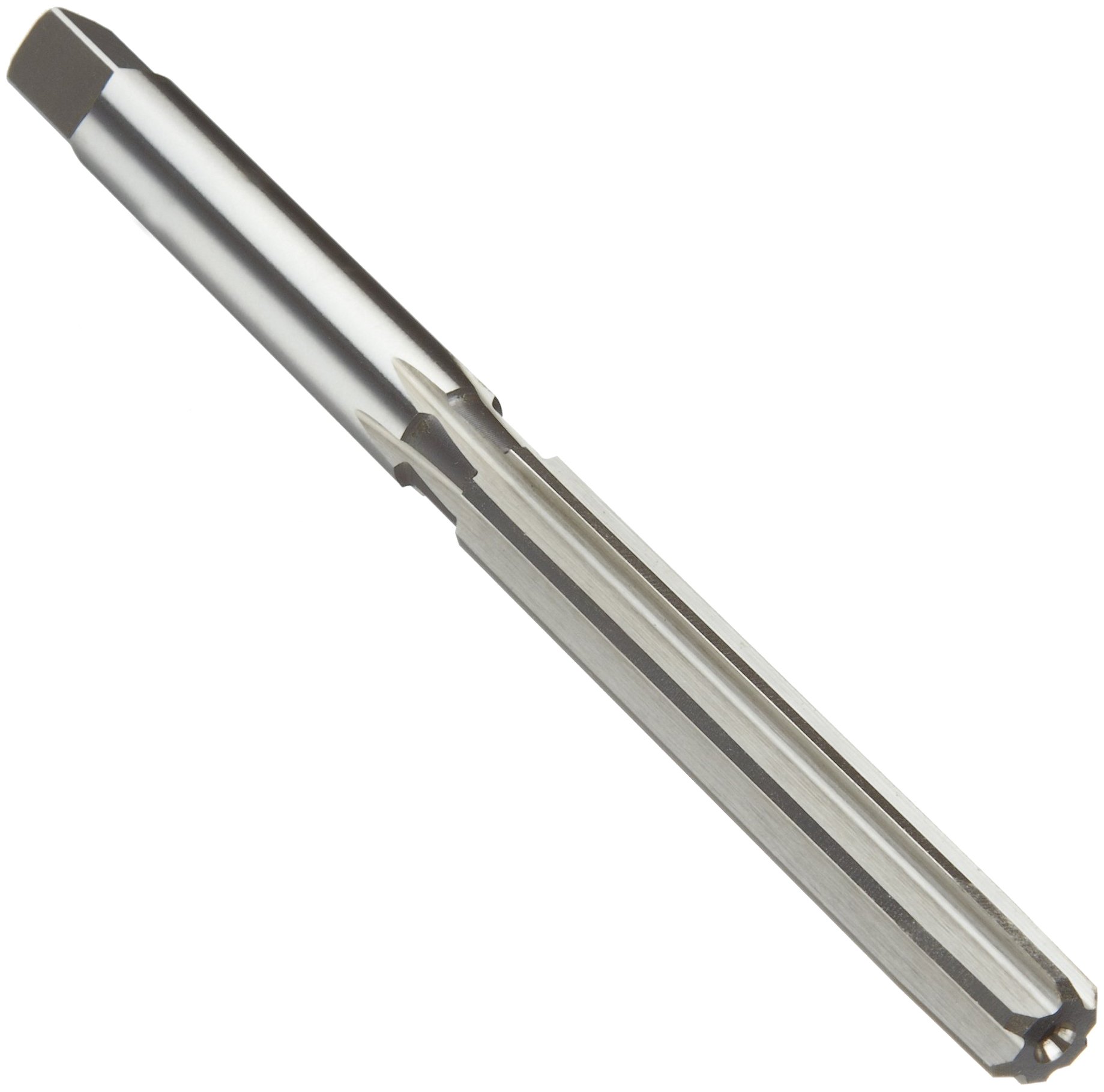

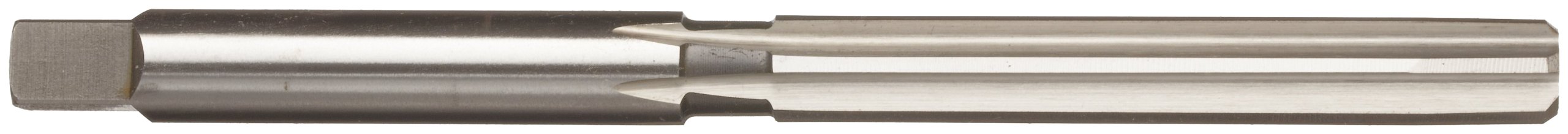

The Union Butterfield 4500 high-speed steel straight flute hand reamer is an uncoated (bright) round shank tool with a taper lead and a square end; it is commonly used for general-purpose hand reaming. Straight flute reamers are useful for uninterrupted cuts in general-purpose applications. They make small, circular, and precise enlargements to through holes (extending through the workpiece) and blind holes (with only one opening).

High-speed steel (HSS) is a general-purpose steel for cutting tools and is compatible with many metalworking materials. For alignment, a hand reamer has a relatively long taper lead (compared with a machine reamer, which has a 45-degree bevel lead) to allow the reamer to enter a hole and center itself. A round shank with a square end allows this reamer to be used with a tap wrench, an adjustable hand wrench, or standard tap or reamer chucks. The square end also prevents rotation in the tool holder.

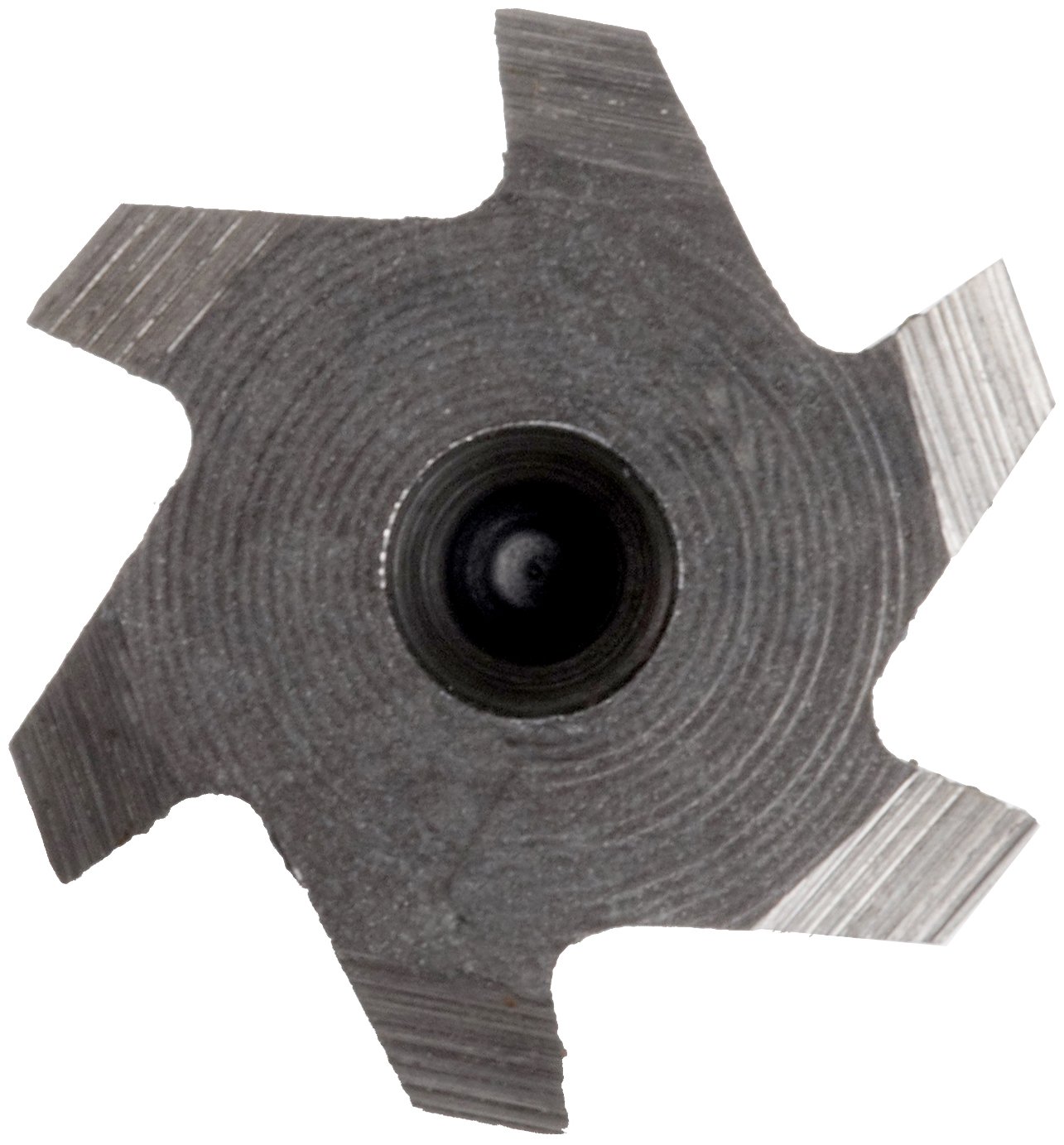

In the Union Butterfield 4500 series, reamers 0.1250” to 0.5312” in diameter have six flutes, 0.5625” to 1.0000” in diameter have eight flutes, and 1.1250” to 1.5000” in diameter have 10 flutes. Tolerances for reamers that are 1/8” to 19/32” tolerances are +0.0001” to +0.0004”; for 5/8” to 1” they are +0.0001” to +0.0005”, and for 1-1/8” and larger they are +0.0002” to +0.0006”.

Reamers are used to finish existing holes. When holes are created using common applications such as drilling or punching, they often have minute imperfections. Their roundness may be flawed, or their diameters may be slightly smaller than required. Reamers are made to exacting tolerances, so they can correct such errors and create precisely round holes with exact dimensions. Reaming is often used before tapping screw threads.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. They have locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards.
