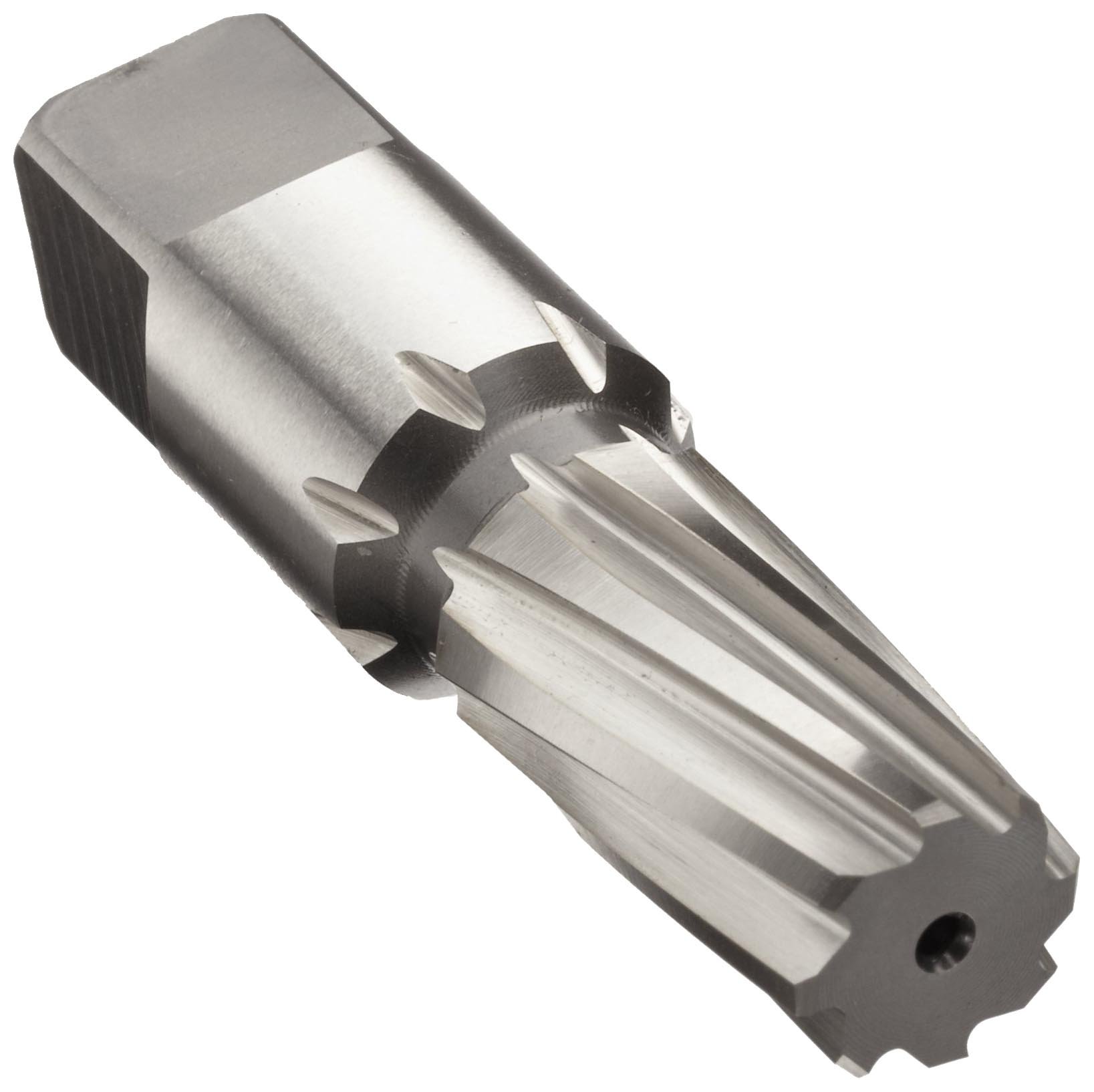

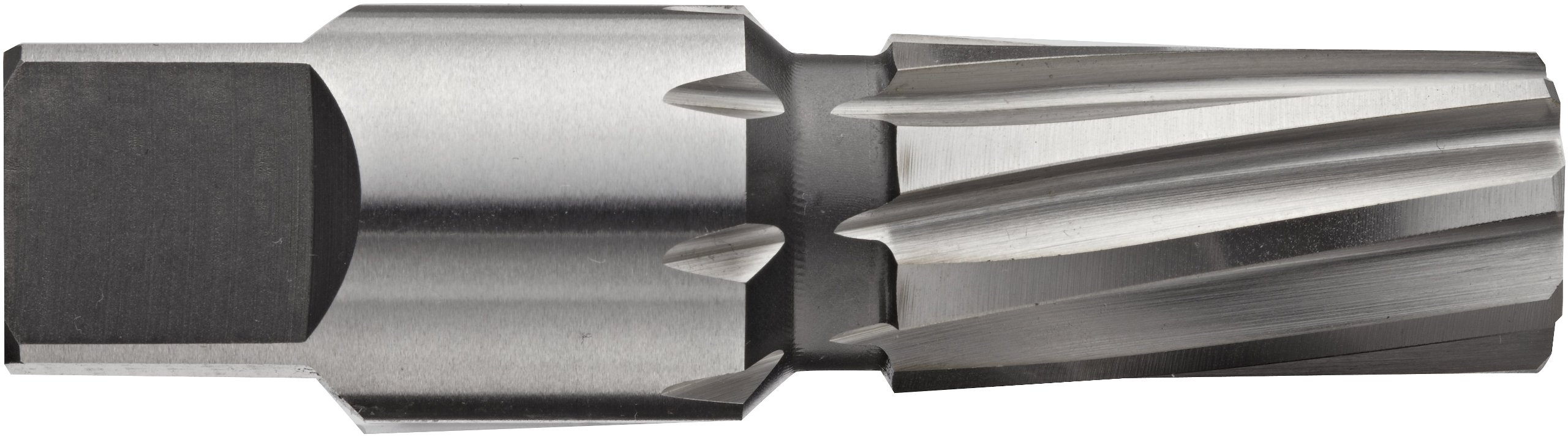

Union Butterfield 4600 High-Speed Steel Taper Pin Reamer, Left Hand Spiral Flute, Round With Square End Shank, Uncoated (Bright) Finish

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Cutting Length
1.3/4  inches
Finish Types
Uncoated (Bright)
Shank Type
Round With Square End
Material Type
High Speed Steel
UNSPSC Code
23241617
Brand Name
Precision Twist
Flute Type
Left Hand Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 2 days 17 hrs 20 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Size System of Measurement Decimal Equivalent Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-9 of 9
1/8" Inch 0.1250" 2-1/8" 1810007 B003JY6VVG yes $44.11 Buy Options
1/4" Inch 0.2500" 2-7/16" 1810008 B003JY6VV6 yes $49.94 Buy Options
3/8 " Inch 0.3750" 2-9/16" 1810009 B003JY6VXE yes $55.51 Buy Options
1/2 " Inch 0.5000" 3-1/8" 1810010 B003JY6VUM yes $63.22 Buy Options
3/4" Inch 0.7500" 3-1/4" 1810011 B003JY6VWU yes $82.45 Buy Options
1" Inch 1.0000" 4" 1810012 B003JY6VTI yes $119.50 Buy Options
1-1/4" Inch 1.2500" 4" 1810013 B003JY6VUC yes $212.59 Buy Options
1-1/2" Inch 1.5000" 4-1/4" 1810014 B003JY6VTS yes $278.75 Buy Options
2" Inch 2.0000" 4-1/2" 1810015 B003JY6VVQ yes $365.68 Buy Options

Key Features

  • Reams holes to be tapped with National Pipe Taper (NPT) threading
  • Spiral construction protects interrupted cuts by preventing whole-flute contact with the leading edge of the interruption
  • Left-hand spiral design pushes chips ahead of the tool into the hole; useful for through holes
  • High-speed steel is compatible with a variety of materials
  • Round shank with square end helps to minimize rotation in the tool holder

Product Description

The Union Butterfield 4600 high-speed steel left-hand spiral flute taper pipe reamer is an uncoated (bright) round shank tool with a square end; its standard size and 3/4" per foot taper make it suitable for reaming holes that are to be tapped with National Pipe Taper (NPT) threading. This tool is often used in a drill press, screw machine or lathe. It can be used with cast iron, steel, brass, and most ferrous and non-ferrous materials.

Using a taper reamer prior to tapping with taper taps provides threads of better quality. Taper pipe reamers in this series are recommended for tapping any NPT threading: Dryseal or Military Aeronautical Pipe Thread (ANPT) specification. Spiral flute reamers are useful for interrupted cuts because they prevent whole flute contact with the leading edge of an interrupted cut, as in a keyway. This prevents damage to the interruption and the reamer flute. Also, spiral flute taper pipe reamers are designed for reaming harder materials where additional shear is needed. Left-hand spiral tools are good for use in through holes (extending through the workpiece) because they push chips ahead of the tip of the tool. High-speed steel (HSS) is a general-purpose steel for cutting tools that is compatible with many metalworking materials. It is often lower in price than other cutting tool substrates. Square-end shanks help prevent rotation in the tool holder. Uncoated (bright) tools have no additional surface treatment or coating; they are suitable for general-purpose applications.

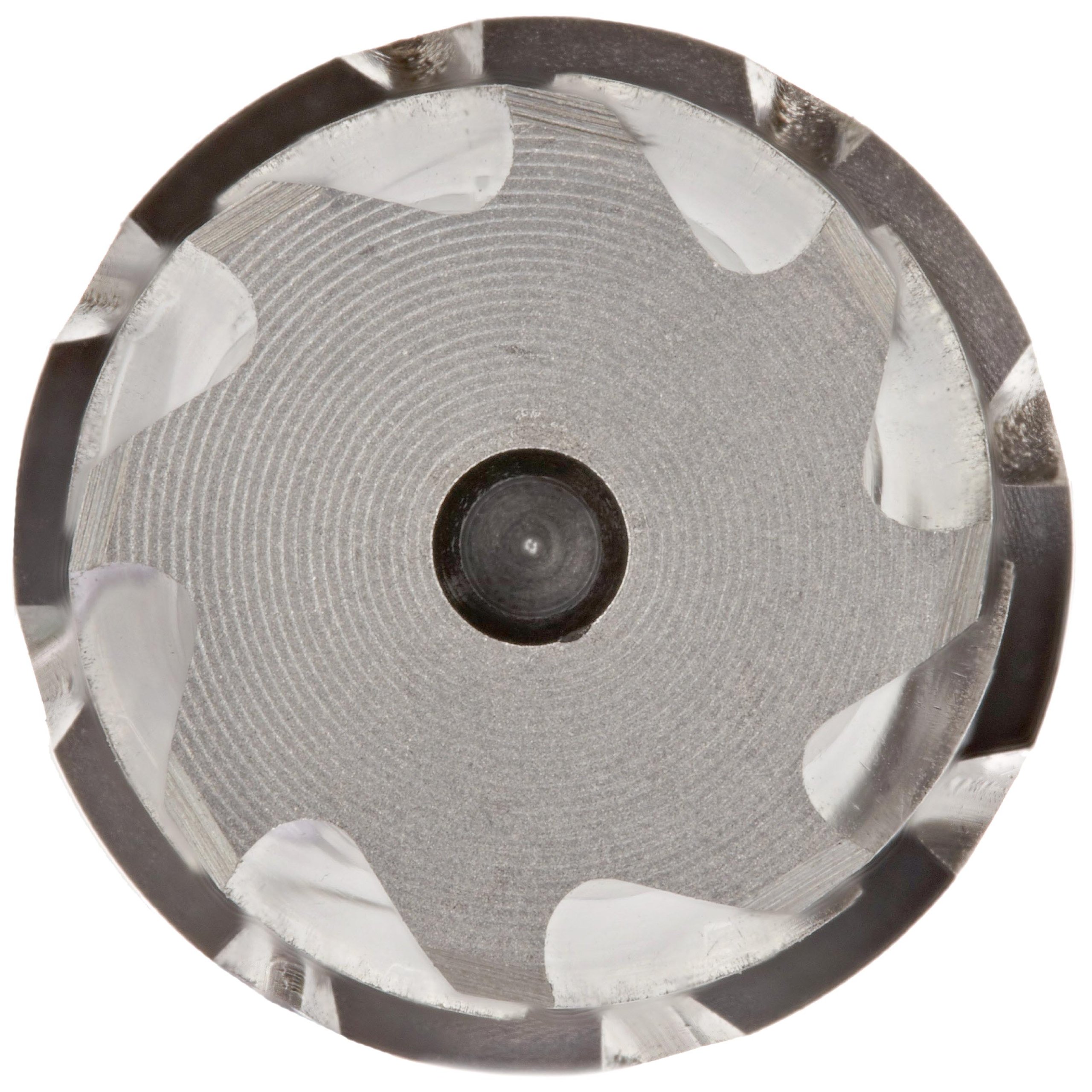

The number of flutes on a reamer depends on the cutting diameter of the tool. Reamers in this series that are 1/8” and 1/4” in diameter have six flutes, 3/8” and 1/2” in diameter have eight flutes, 3/4” to 1-1/2” in diameter have 10 flutes, and 2” in diameter have 12 flutes.

Reamers are used to finish existing holes. When holes are created using common applications like drilling or punching they often have minute imperfections. Their roundness may be flawed, or their diameters may be slightly smaller than required. Reamers are made to exacting tolerances, so they can correct such errors and create precisely round holes with exact dimensions. Reaming is often used before tapping screw threads.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. They have locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards.
