Union Butterfield 4588 High-Speed Steel Taper Pin Reamer, Left Hand Spiral Flute, Round Shank, Uncoated (Bright) Finish

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Cutting Length
1.9/16  inches
Finish Types
Uncoated (Bright)

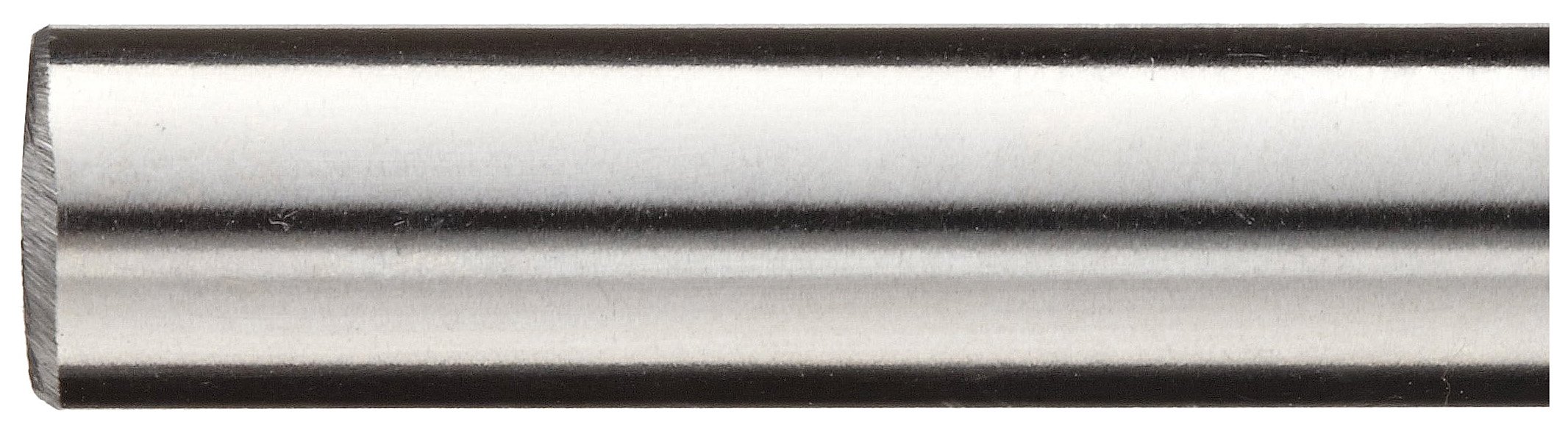

Shank Type
Round
Material Type
High Speed Steel
UNSPSC Code
23241617
Brand Name
Precision Twist
Flute Type
Left Hand Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 9 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-17 of 17
Size System of Measurement Decimal Equivalent Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-17 of 17
0 Taper Pin 0.1287-0.1638" 5-15/16" 5011163 B003JY6VFW yes $27.11 Buy Options
1 Taper Pin 0.1447-0.1638" 2-15/16" 5011164 B003JY6VGQ yes $28.18 Buy Options
2 Taper Pin 0.1600-0.2010" 3-3/16" 5011165 B003JY6VHU yes $31.42 Buy Options
3 Taper Pin 0.1813-0.2294" 3-11/16" 5011166 B003JY6VIO yes $35.39 Buy Options
4 Taper Pin 0.2071-0.2604" 4-1/16" 5011167 B003JY6VJI yes $39.23 Buy Options
5 Taper Pin 0.2410-0.2994" 4-5/16" 5011168 B003JY6VJS yes $40.39 Buy Options
6 Taper Pin 0.2773-0.4220" 5-7/16" 5011169 B003JY6VKC yes $46.69 Buy Options
7 Taper Pin 0.3297-0.4220" 6-5/16" 5011170 B003JY6VKM yes $55.83 Buy Options
8 Taper Pin 0.3971-0.5050" 7-3/16" 5011171 B003JY6VKW yes $63.30 Buy Options
9 Taper Pin 0.4800-0.6066" 8-5/16" 5011172 B003JY6VLQ yes $68.11 Buy Options
10 Taper Pin 0.5799-0.7216" 9-5/16" 5011173 B003JY6VHA yes $88.94 Buy Options
2/0 Taper Pin 0.1137-0.1462" 2-9/16" 5011162 B003JY6VC0 yes $21.86 Buy Options
3/0 Taper Pin 0.1029-0.1302" 5-5/16" 5011161 B003JY6VCK yes $28.18 Buy Options
4/0 Taper Pin 0.0869-0.1142" 2-5/16" 5011160 B003JY6VDE yes $29.77 Buy Options
5/0 Taper Pin 0.0719-0.0966" 2-3/16" 5011159 B003JY6VDY yes $31.49 Buy Options
6/0 Taper Pin 0.0611-0.0806" 1-15/16" 5011158 B003JY6VEI yes $28.35 Buy Options
7/0 Taper Pin 0.0497-0.0666" 1-13/16" 5011157 B003JY6VFC yes $31.99 Buy Options

Key Features

  • Reams holes correctly sized and tapered for receiving standard taper pins

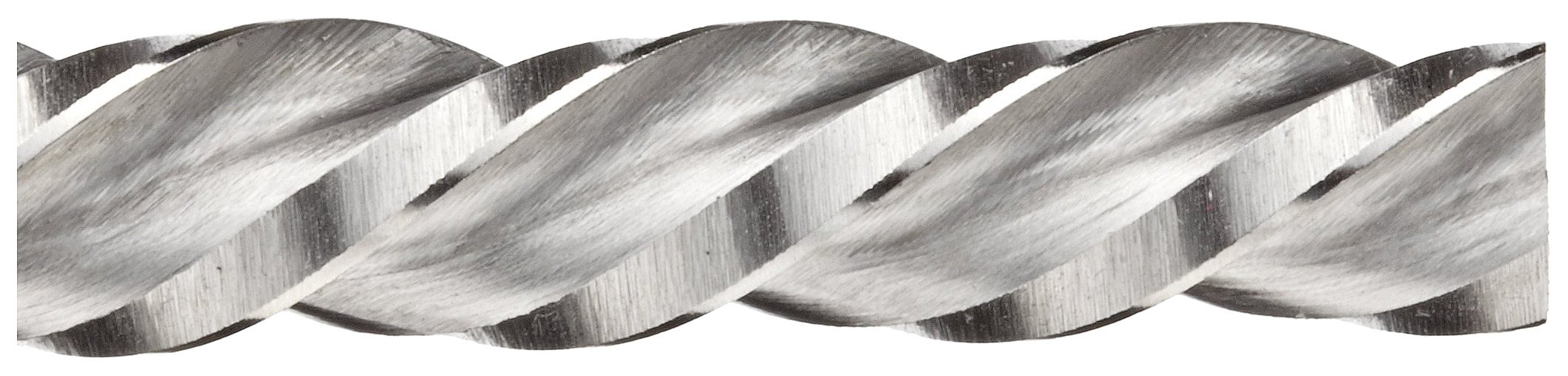

  • Helical flute design for exceptionally smooth surface finish
  • Left-hand spiral design pushes chips ahead of the tool into the hole; useful for through holes
  • High-speed steel is compatible with a variety of materials
  • Uncoated (bright) tools have no additional surface treatment or coating, suitable for general-purpose applications

Product Description

The Union Butterfield 4588 high-speed steel left-hand spiral (helical) flute taper pin reamer is an uncoated (bright) round shank tool commonly used for reaming holes that are intended to receive taper pins, particularly in difficult or long-chipping materials. This tool is often used in a drill press, screw machine or lathe.

A taper pin is a standardized tapered fastener that has a slightly larger diameter at one end than the other so that it can be inserted into a reamed, correctly tapered hole, creating a tight connection due to friction. Some taper pins have threaded ends to receive nuts. Helical flutes can create an exceptionally smooth surface finish because their highly angled spiral allows for maximum surface contact and easier chip removal, thus reducing vibration and finish scoring. All spiral reamer construction, including helical construction, prevents whole-flute contact with the leading edge in an interrupted cut, as in a keyway. This reduces the possibility of damage to the interruption and to the reamer flute. Left-hand spiral tools are good for use in through holes (extending through the workpiece) because they push chips ahead of the tip of the tool. High-speed steel (HSS) is a general-purpose steel for cutting tools that is compatible with many metalworking materials. It is often lower in price than other cutting tool substrates.

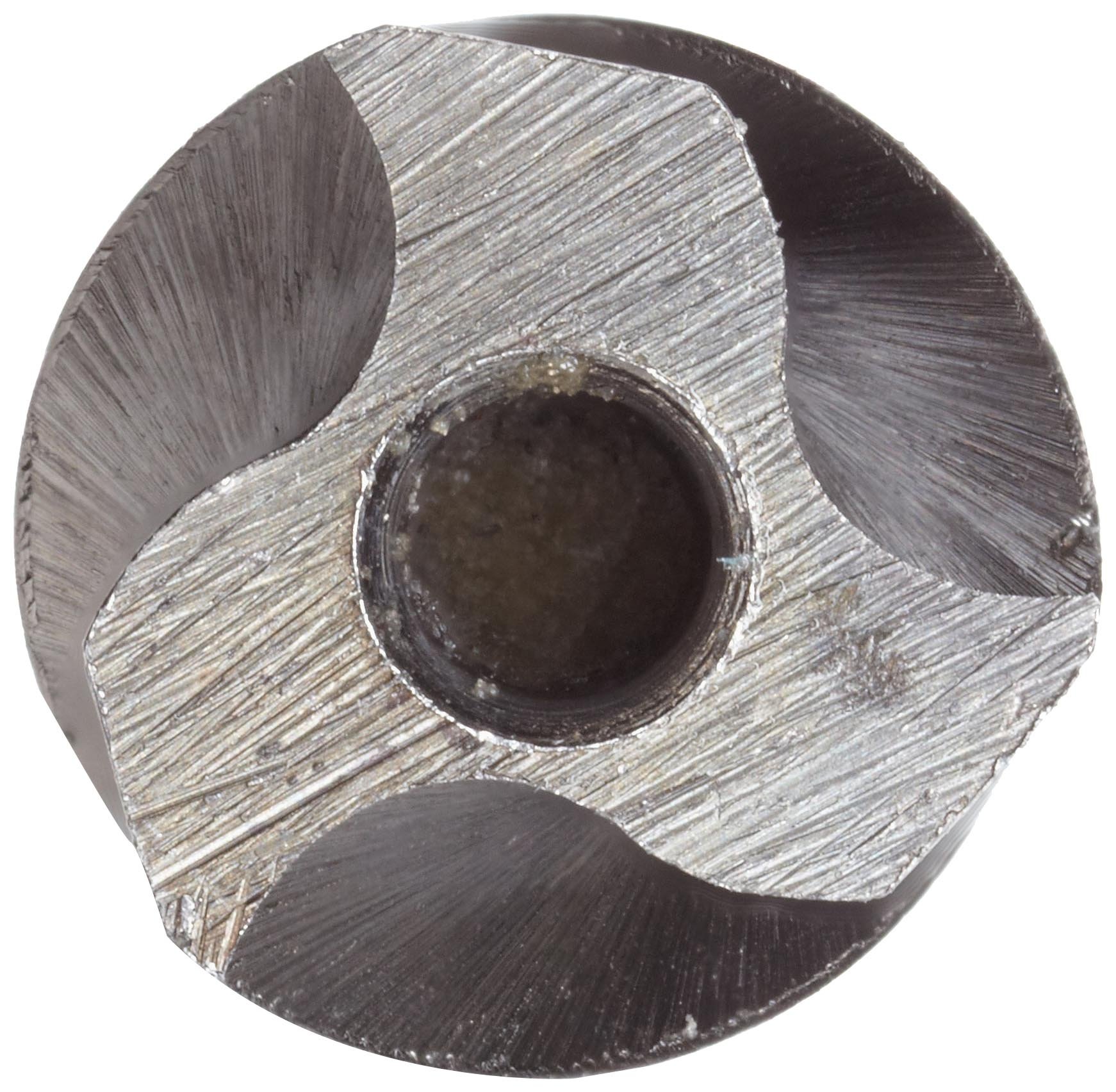

The number of flutes on a reamer depends on the cutting diameter of the tool. Reamers in this series with taper pin sizes 7/0 to 3/0 have two flutes, those with sizes 2/0 to 8 have three flutes, and those with sizes 9 and 10 have four flutes.

Reamers are used to finish existing holes. When holes are created using common applications such as drilling or punching, they often have minute imperfections. Their roundness may be flawed, or their diameters may be slightly smaller than required. Reamers are made to exacting tolerances, so they can correct such errors and create precisely round holes with exact dimensions. Reaming is often used before tapping screw threads.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. They have locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards.
