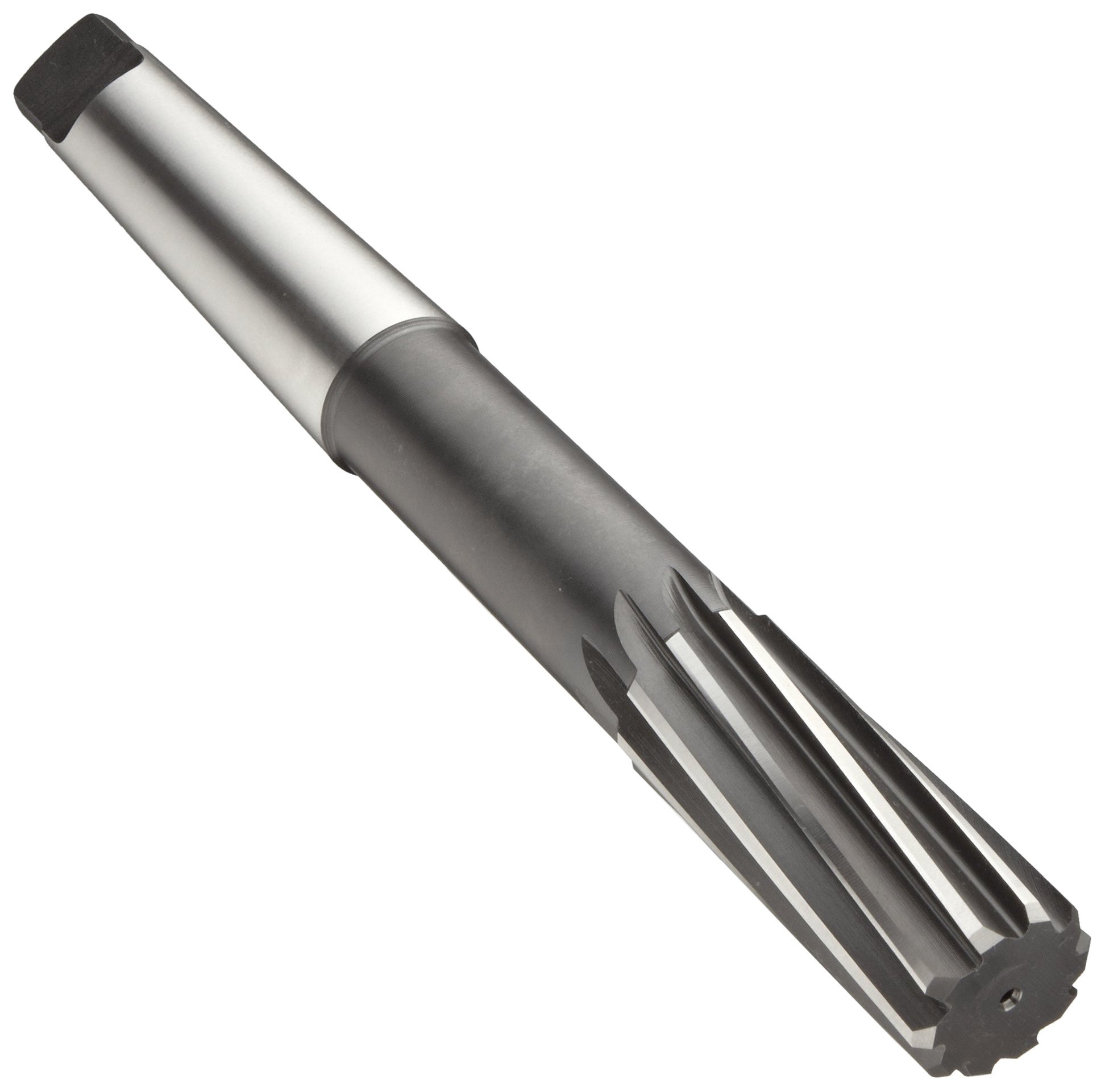

Union Butterfield 4537 High-Speed Steel Chucking Reamer, Right Hand Spiral Flute, Taper Shank, Uncoated (Bright) Finish

Be the first to review this item

Product Specifications
Cutting Direction
Right-Hand
Cutting Length
2.3/4  inches
Finish Types
Uncoated (Bright)
Shank Type
Morse Taper
Material Type
High Speed Steel
UNSPSC Code
23241611
Brand Name
Precision Twist
Flute Type
Right Hand Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 24? Order in-stock items in the next 7 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 20
Size System of Measurement Decimal Equivalent Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 20
1/4" Inch 0.2500" 6" 5010140 B003JY6URG yes $12.03 Buy Options
5/16" Inch 0.3125" 6" 5010142 B003JY6UVC yes $37.08 Buy Options
3/8 " Inch 0.3750" 7" 5010144 B003JY6UUI yes $36.47 Buy Options
7/16" Inch 0.4375" 7" 5010146 B003JY6UW6 yes $37.33 Buy Options
1/2 " Inch 0.5000" 8" 5010148 B003JY6UR6 yes $43.71 Buy Options
9/16" Inch 0.5625" 8" 5010150 B003JY6UX0 yes $47.29 Buy Options
5/8" Inch 0.6250" 9" 5010152 B003JY6UVW yes $52.01 Buy Options
11/16" Inch 0.6875" 9" 5010154 B003JY6URQ yes $55.83 Buy Options
3/4" Inch 0.7500" 9-1/2" 5010156 B003JY6UTY yes $67.56 Buy Options
13/16" Inch 0.8125" 9-1/2" 5010158 B003JY6USA yes $70.68 Buy Options
7/8" Inch 0.8750" 10" 5010160 B003JY6UWQ yes $85.63 Buy Options
15/16" Inch 0.9375" 10" 5010162 B003JY6USU yes $67.97 Buy Options
1" Inch 1.0000" 10-1/2" 5010164 B003JY6UN0 yes $114.67 Buy Options
1-1/16" Inch 1.0625" 10-1/2" 5010165 B003JY6UNK yes $122.10 Buy Options
1-1/8" Inch 1.1250" 11" 5010166 B003JY6UOY yes $131.42 Buy Options
1-3/16" Inch 1.1875" 11" 5010167 B003JY6UPI yes $147.52 Buy Options
1-5/16" Inch 1.3125" 11-1/2" 5010169 B003JY6UQC yes $191.67 Buy Options
1-3/8" Inch 1.3750" 12" 5010170 B003JY6UQ2 yes $207.82 Buy Options
1-7/16" Inch 1.4375" 12" 5010171 B003JY6UQM yes $217.03 Buy Options
1-1/2" Inch 1.5000" 12-1/2" 5010172 B003JY6UNU yes $238.25 Buy Options

Key Features

  • Straight flute for general-purpose reaming of uninterrupted cuts in through holes and blind holes
  • Morse taper shank for accurate alignment and firm hold in the socket of a tool holder
  • High-speed steel is compatible with a variety of materials
  • Uncoated (bright) tools have no additional surface treatment or coating for use on a broad range of materials
  • 45-degree bevel at the cutting tip facilitates entry to pre-drilled holes

Product Description

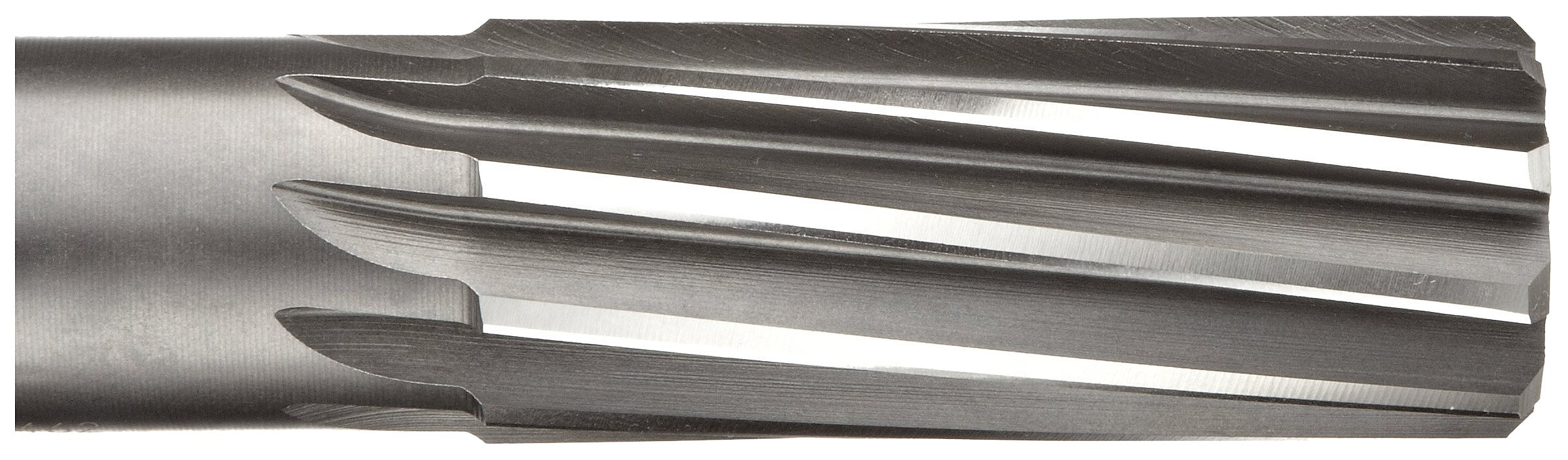

The Union Butterfield 4537 uncoated high-speed steel right-hand spiral flute chucking reamer (also called a machine reamer) has a Morse taper shank tool with a 45-degree bevel lead, commonly used for general-purpose reaming; it is also chosen for reaming interrupted cuts and blind holes (with only one opening). Right-hand spiral reamers are useful for interrupted cuts and blind holes. Spiral construction prevents whole-flute contact with the leading edge in an interrupted cut, as in a keyway. This reduces the possibility of damage to the interruption and to the reamer flute. Right-hand spiral tools pull chips away from the tip of the tool, instead of driving chips in front of the tool. As a result right-hand spiral reamers are useful when reaming blind holes, since pulling chips out of the hole prevents clogging as well as tool damage that can result from clogging.

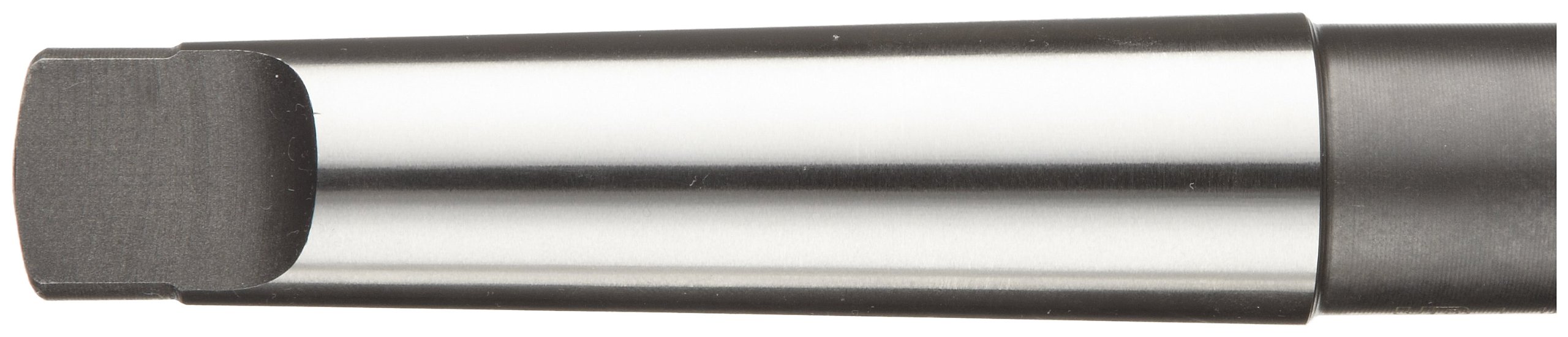

High-speed steel (HSS) is a common, general-purpose steel for cutting tools and is compatible with a variety of materials. With no coating or surface treatment, this uncoated tool can be used on a broad range of materials and provide an economical alternative to coated tools. Taper shank tools can be self-holding or self-releasing based on the degree of taper: Small tapers are self-holding within a tool holder, while large tapers are self-releasing and will easily release from the tool holder. The shank end of a Morse taper shank tool is self-holding because friction between the tool and the tool holder prevents slippage. It is tapered to ensure accurate alignment of the tool in the socket of the tool holder. This reamer has a 45-degree bevel at the cutting tip to facilitate entry to pre-drilled holes.

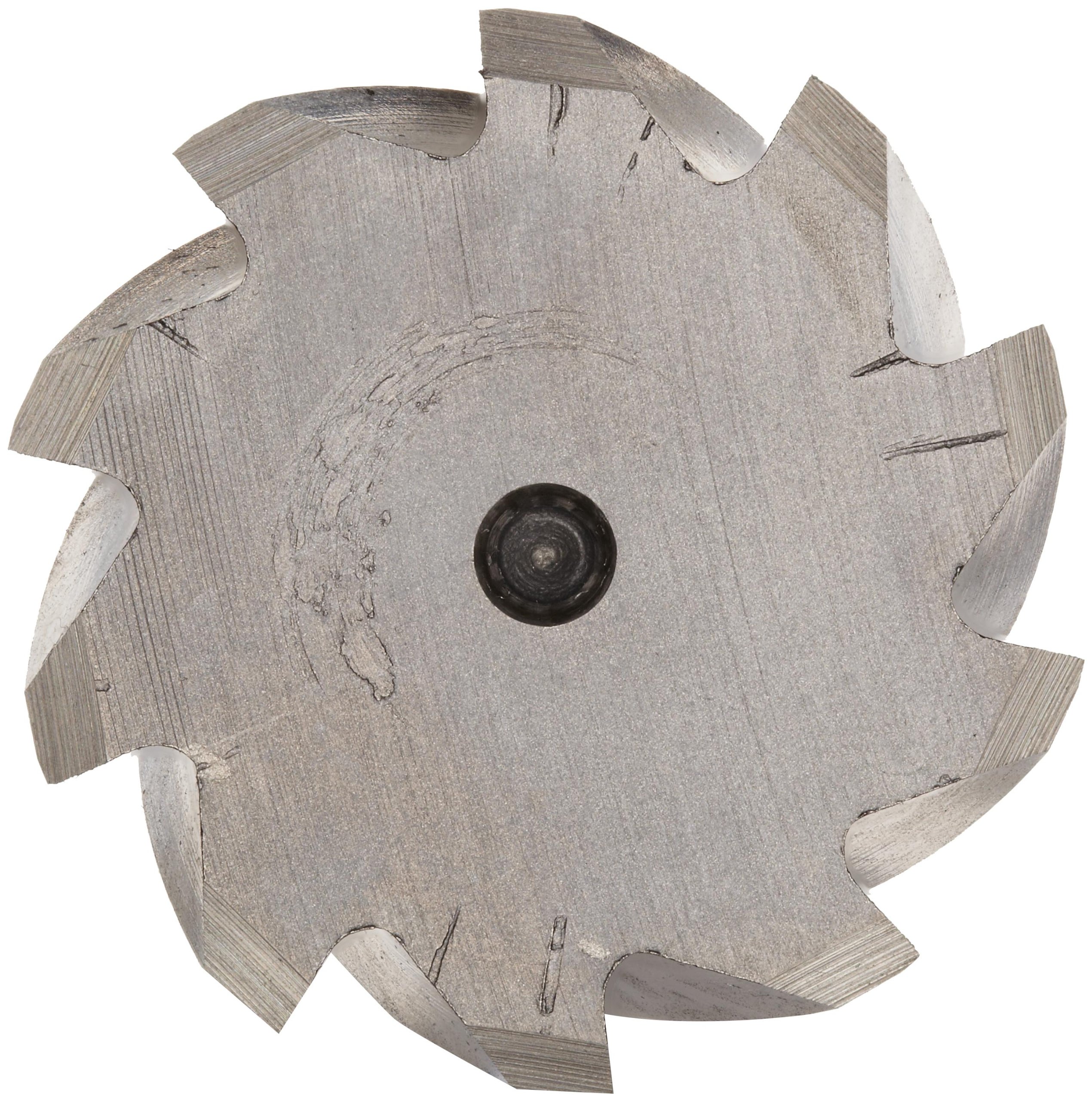

In the Union Butterfield 4537 series, reamers 0.2500” to 0.5000” in diameter have six flutes, 0.5625” to 1.0625” in diameter have eight flutes, and 1.1250” to 1.5000” in diameter have 10 flutes. Tolerances for reamers up to 0.5000” are +0.0002” to -0.0000”; larger than 0.0500” and up to 0.7500” are +0.0003” to -0.0000”; and larger than 0.7500” up to 1.5000” are +0.0004” to -0.0000”. There is an exception for reamers that are dowel-pin sized; their tolerances are +0.0000” to -0.0002”.

Reamers are used to finish existing holes. When holes are created using common applications such as drilling or punching they often have minute imperfections. Their roundness may be flawed, or their diameters may be slightly smaller than required. Reamers are made to exacting tolerances so they can correct such errors and create precisely round holes with exact dimensions. Reaming is often used before tapping screw threads.

Precision manufactures machine tools under the following brands: Precision Twist, Precision Dormer, and Union Butterfield. They have locations around the world, and provide tools adhering to ANSI, NAS, and DIN standards.
