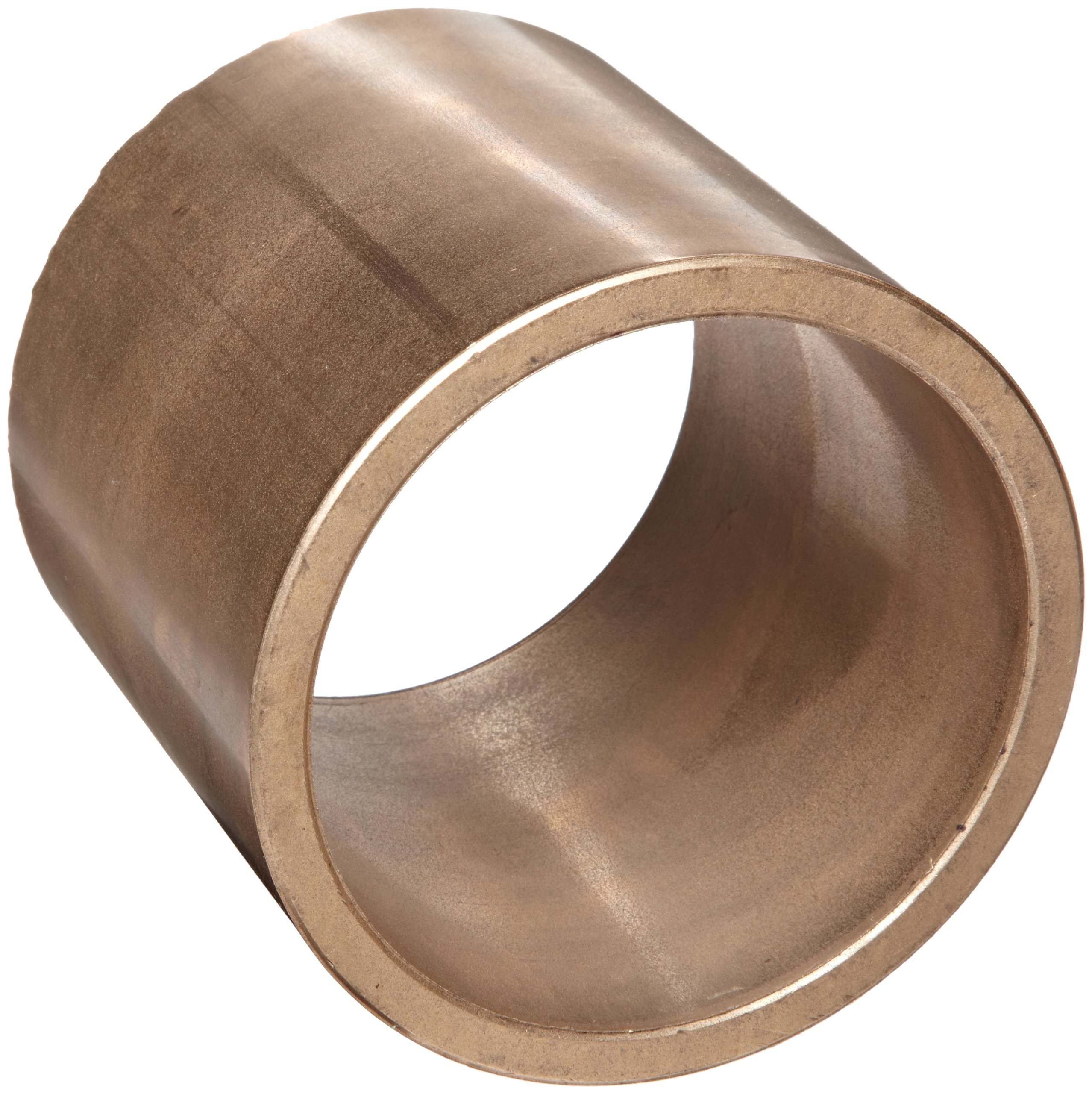

Bunting Bearings Powdered Metal SAE 841 Sleeve (Plain) Bearings

Be the first to review this item

Product Specifications
UNSPSC Code
31171509
Brand Name
Bunting Bearings

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 45 Next 20 »
Bore Diameter Outside Diameter Width Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 45 Next 20 »
1/8" 1/4" 1/4" 1/4" B0040GK6ZE yes $7.52 Buy Options
1/8" 7/32" 1/4" 1/4" B0040GK6YU yes $11.46 Buy Options
3/16" 1/4" 5/16" 5/16" B0040GK6ZY yes $8.16 Buy Options
5/8" 3/8" 1/2" 1" B0040GK7P8 yes $4.37 Buy Options
5/8" 7/8" 1 1/2" 1 1/2" B0040GKAEQ yes $8.42 Buy Options
5/8" 7/8" 5/8" 5/8" B0040GKADC yes $8.38 Buy Options
3/4" 3/4" 1/2" 1- 1/4" B0040GK9ZQ yes $3.21 Buy Options
1 1/8" 1 1/4"   1 1/8" B0040GK3C0 yes $26.86 Buy Options
1 1/8" 1 3/8"   1 3/4" B0040GK4CO Temporarily out of stock. Order now and we'll deliver when available. $8.38 Buy Options
1 1/8" 1 3/8"   2 1/2" B0040GK4E2 Temporarily out of stock. Order now and we'll deliver when available. $9.58 Buy Options
1 1/8" 1 3/8"   2" B0040GK3ZM yes $9.80 Buy Options
1 1/8" 1 3/8"   1/2" B0040GK4F6 Temporarily out of stock. Order now and we'll deliver when available. $3.66 Buy Options
1 1/8" 1 3/8"   1" B0040GK4EM yes $3.58 Buy Options
1 1/8" 1 3/8"   3" B0040GK4GK yes $9.75 Buy Options
1- 3/16" 3/4" 5/8" 2- 1/2" B0040GK9NI yes $3.11 Buy Options
1 1/4" 1 1/2"   1 1/2" B0040GK5B4 yes $7.52 Buy Options
1 1/4" 1 1/2"   1 1/2" B0040GK564 yes $5.17 Buy Options
1 1/4" 1 1/2"   2" B0040GK56O yes $10.26 Buy Options
1 1/4" 1 1/2"   1/2" B0040GK54G yes $2.20 Buy Options
1 1/4" 1 1/2"   1 1/4" B0040GK55K yes $6.77 Buy Options

Key Features

  • SAE 841 bronze bearing for supporting radial and axial loads with a load-at-velocity value of 50,000 PV
  • Sintered with powdered metals for strength, durability, and corrosion resistance
  • Vacuum-infused with SAE 30 oil to provide lubricant from the bearing to the shaft during operation
  • Operating temperatures range from 10 degrees F to 220 F (-12 degrees C to 104 C)
  • Straight bore fits conventional cylindrical shafts

Product Description

This bronze Bunting Bearings powdered metal sleeve (plain) bearing is formed and sized to SAE (Society of Automotive Engineers) 841 specifications for supporting radial and axial loads. This bearing has been sintered with powdered metals for strength, durability, and corrosion resistance. It is vacuum-infused with SAE 30 oil, which remains in the pores of the bearing to provide lubricant from the bearing to the shaft during operation. This plain bearing has a maximum load value of 2,000 psi (pounds per square inch), a maximum velocity value of 1,200 sfpm (surface feet per minute), and a maximum load-at-velocity (PV) value of 50,000. It has an operating temperature range of 10 degrees F to 220 F (-12 degrees C to 104 C). Designed with a regular straight bore, this bearing fits to conventional cylindrical shafts. This oil-filled powdered metal sleeve (plain) bearing is for use in various applications such as heavy-lifting equipment, pumps, aircraft, and motors, among others.

Specifications

Chemical and physical properties, and manufacture AMS 4805
Specification defining sampling procedures and tables for attribute inspection ANSI/ASQC Z1.4
Specifications for sintered, oil-infused bronze bearings ASTM B438
Specification for iron-base powder metallurgy (PM), oil-infused bearings ASTM B439
Metal Powder Industries Federation CT-1000-K26
Chemical and physical properties, and manufacture ISO 9001
Chemical and physical properties, and manufacture MIL-B-5687D

Plain bearings (with no rolling elements) are used to handle radial or axial loads by providing a low-friction motion between two surfaces as shafts rotate or move back and forth through the center of the bearing. The most common types are bushings (also called bush), with a sleeve or flanged design, and are measured by their bore (inside diameter), outside diameter, length, and width (thickness). Plain bearings are used in automobiles, construction equipment, medical applications, railroad cars, turbines, various military applications, aeronautics, space exploration, among others.

Bunting Bearings LLC manufactures a variety of bearings that meet standards for quality assurance established by the SAE, the American Society for Testing and Materials (ASTM), and the International Organization for Standardization (ISO), among others. Founded in 1907, Bunting Bearings LLC is based in Holland, Ohio.
